Hope: Hanmer NW Details

PropertyValue
Rupture Count31,069
Ruptures Above Sect Min Mag30,944
Ruptures w/ Nonzero Rates44
Magnitude Range[5.28, 8.51]
Length Range[3, 1,071] km
Total Rate0.0021738303 /yr
Multi-Fault Rate0.0021738303 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults95

Table Of Contents

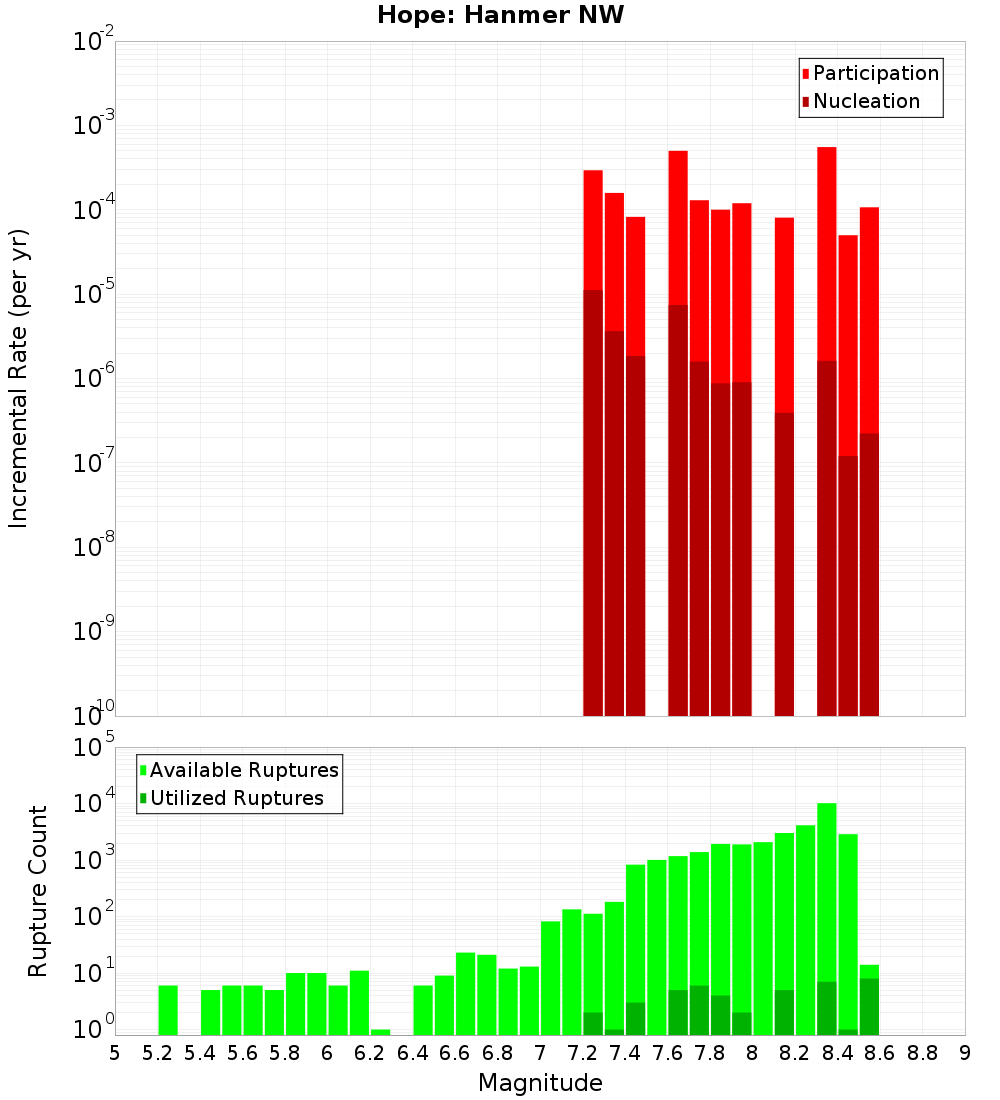

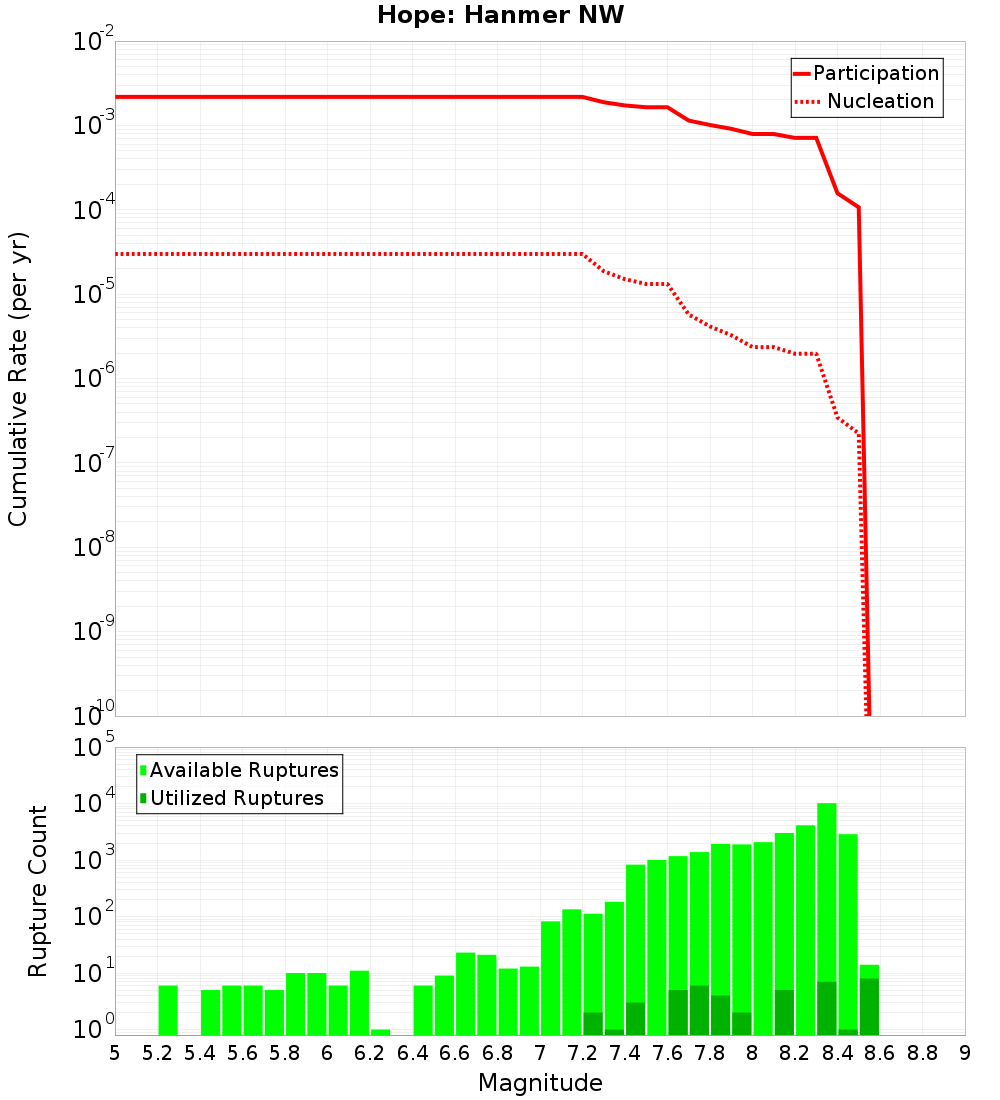

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

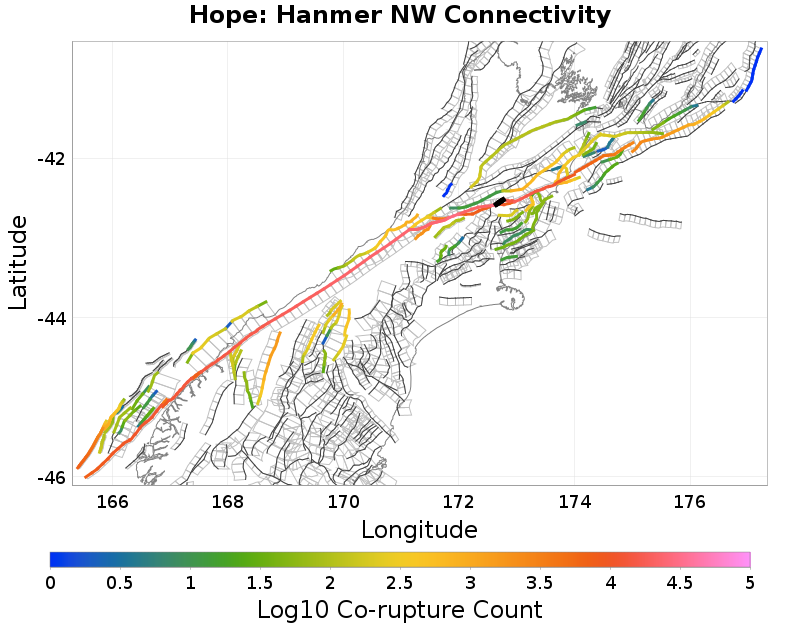

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hanmer SW, 0 km away
Hanmer, 0.16 km away
Hope: Hanmer SE, 3.63 km away
Hope: Hope River, 6.3 km away
Kakapo, 6.3 km away
Esk North, 9.97 km away
Clarence: Southwest, 12.23 km away
Elliott, 12.52 km away
Hurunui Peak, 12.98 km away
Clarence: Central, 13.28 km away
Balmoral, 14.78 km away
Mt Culverden, 14.91 km away
The Humps, 15.26 km away
Hope: Conway, 15.41 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count29,340
Co-rupture Rate0.0020890636

Hope: Hanmer SW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count10,246
Co-rupture Rate1.0948637E-4

Hanmer, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count17,529
Co-rupture Rate5.6346605E-4

Hope: Hanmer SE, 3.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count7,136
Co-rupture Rate1.0948637E-4

Hope: Hope River, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count21,680
Co-rupture Rate0.0015416015

Kakapo, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count7,612
Co-rupture Rate5.474622E-4

Esk North, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Elliott, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count879
Co-rupture Rate4.987574E-5

Hurunui Peak, 12.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Central, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 14.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 14.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate8.47666E-5

The Humps, 15.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 15.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count18,641
Co-rupture Rate4.1891806E-4
