Hororata Details

PropertyValue
Rupture Count196
Ruptures Above Sect Min Mag192
Ruptures w/ Nonzero Rates6
Magnitude Range[6.75, 7.88]
Length Range[17, 191] km
Total Rate1.3886357E-4 /yr
Multi-Fault Rate1.3886357E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults11

Table Of Contents

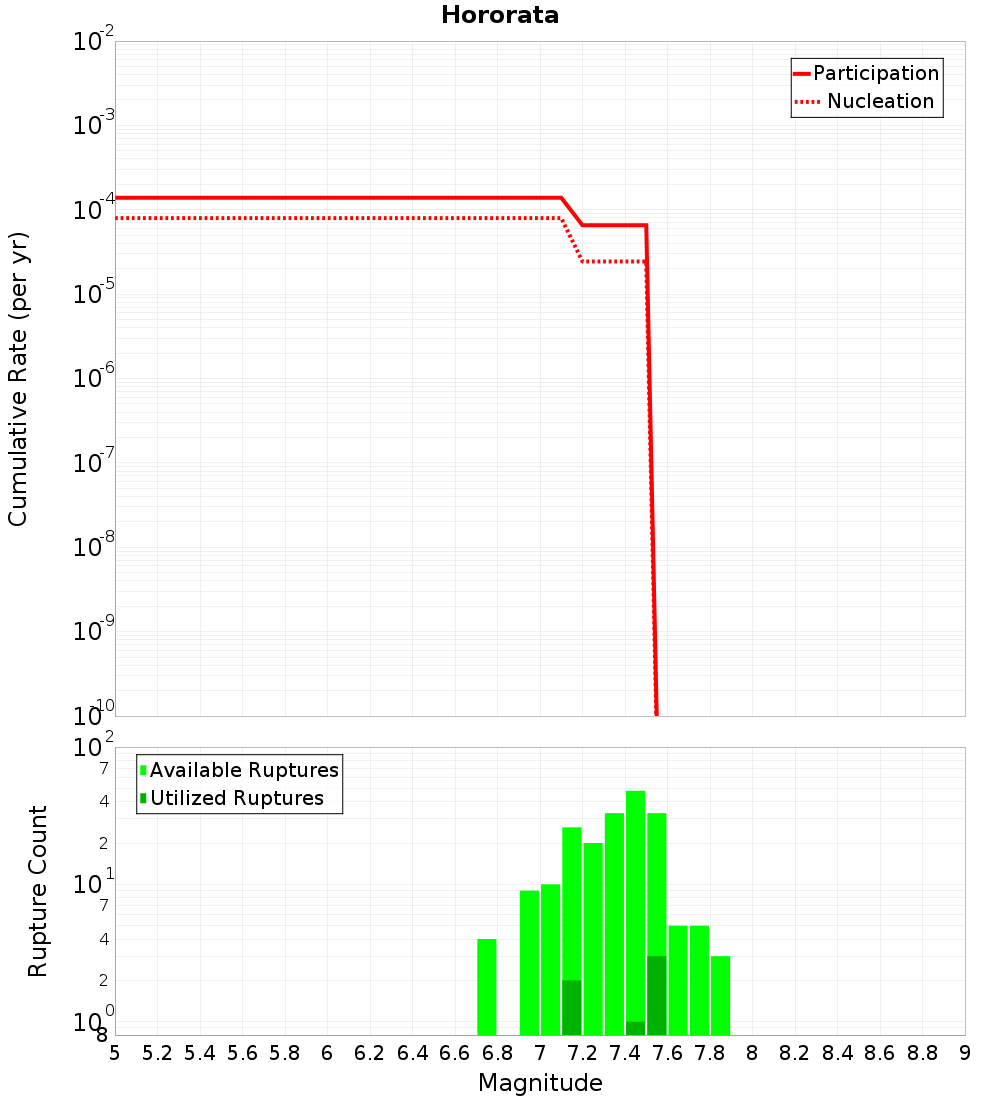

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

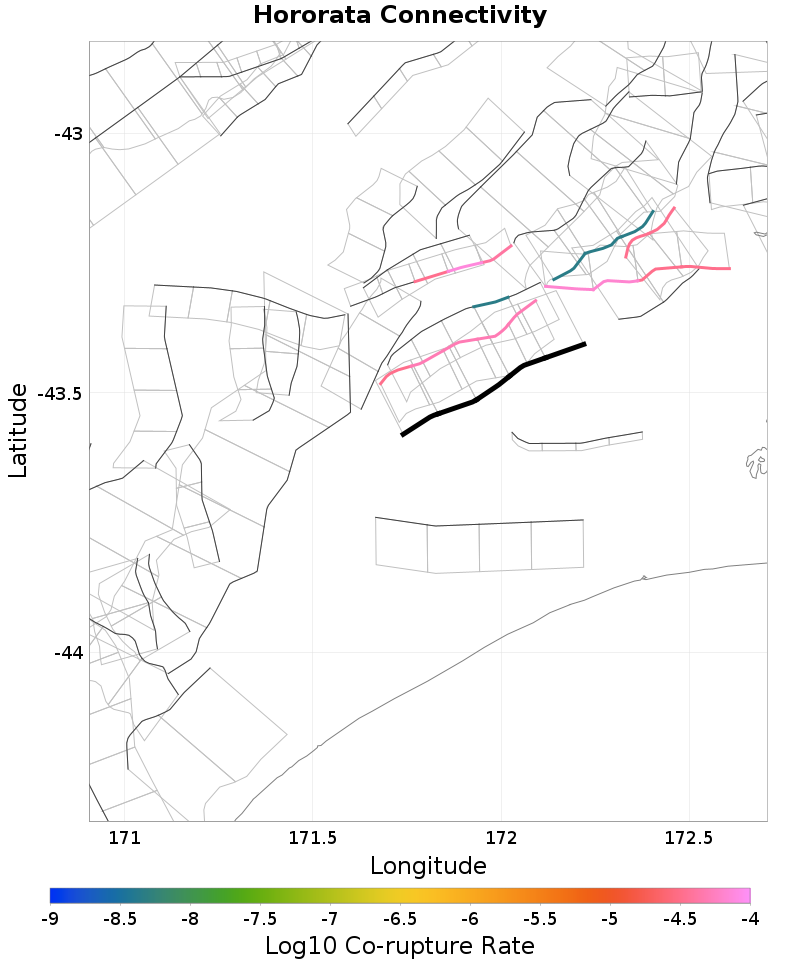

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
High Peak - Sheffield, 0.11 km away
Kowai - View Hill, 0.19 km away
Lees Valley, 3.65 km away
Esk South, 4.53 km away
Starvation - Ashley, 5.87 km away
Springbank, 7.88 km away
Big Ben, 7.94 km away
Knowles Top, 9.67 km away
Greendale, 10.04 km away
Torlesse, 10.38 km away
Hutt Peel, 10.65 km away
Double Hill, 11.15 km away
Porters Pass, 14.38 km away
Mt Lawry, 17.55 km away
Rakaia, 18.46 km away

High Peak - Sheffield, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count92
Co-rupture Rate6.549563E-5

Kowai - View Hill, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count54
Co-rupture Rate4.53322E-9

Lees Valley, 3.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 4.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count108
Co-rupture Rate6.54911E-5

Springbank, 7.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Big Ben, 7.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 9.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate4.53322E-9

Greendale, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate0.0

Hutt Peel, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Double Hill, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate7.336794E-5

Mt Lawry, 17.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate3.3205655E-5

Rakaia, 18.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
