Hundalee Details

PropertyValue
Rupture Count1,661
Ruptures Above Sect Min Mag1,659
Ruptures w/ Nonzero Rates18
Magnitude Range[6.87, 8.45]
Length Range[20, 843] km
Total Rate1.9563112E-4 /yr
Multi-Fault Rate1.9563112E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults67

Table Of Contents

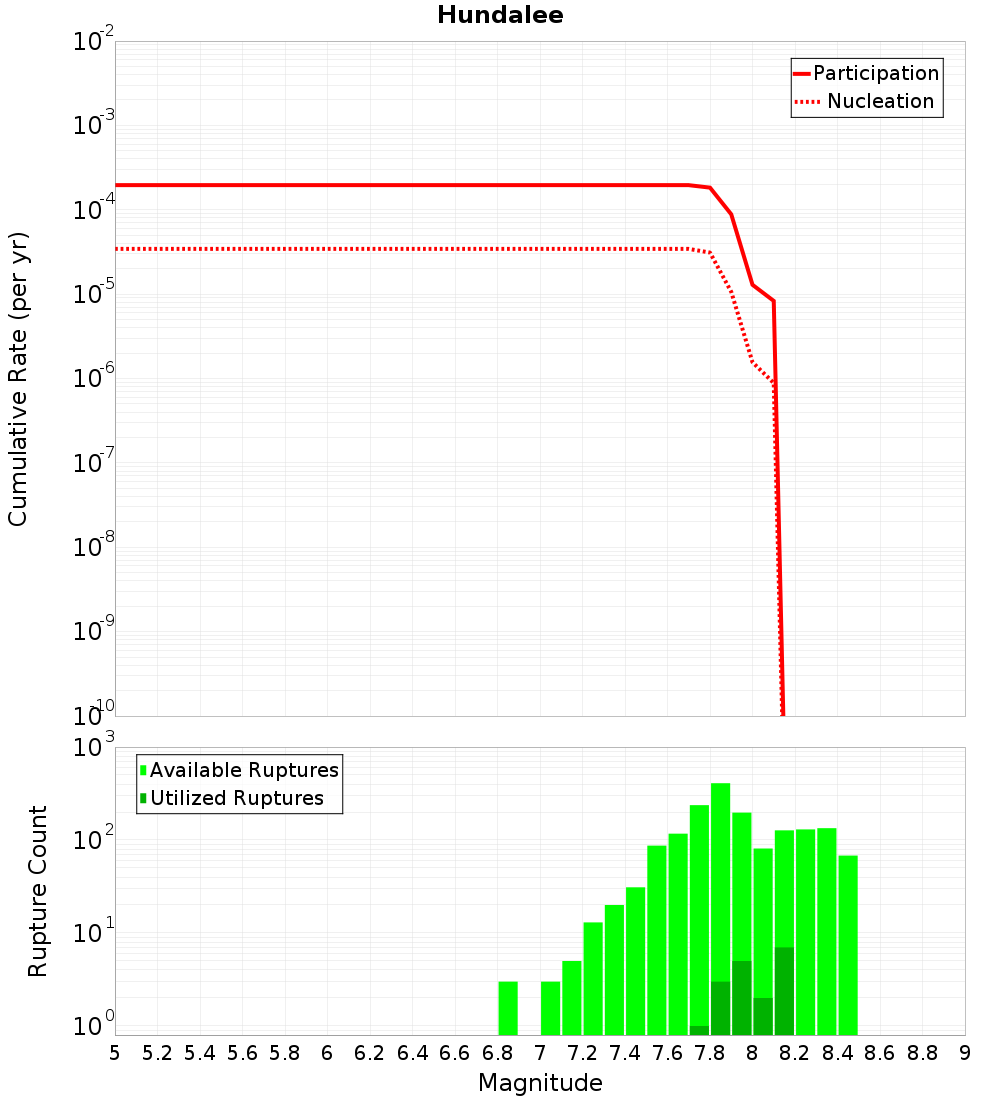

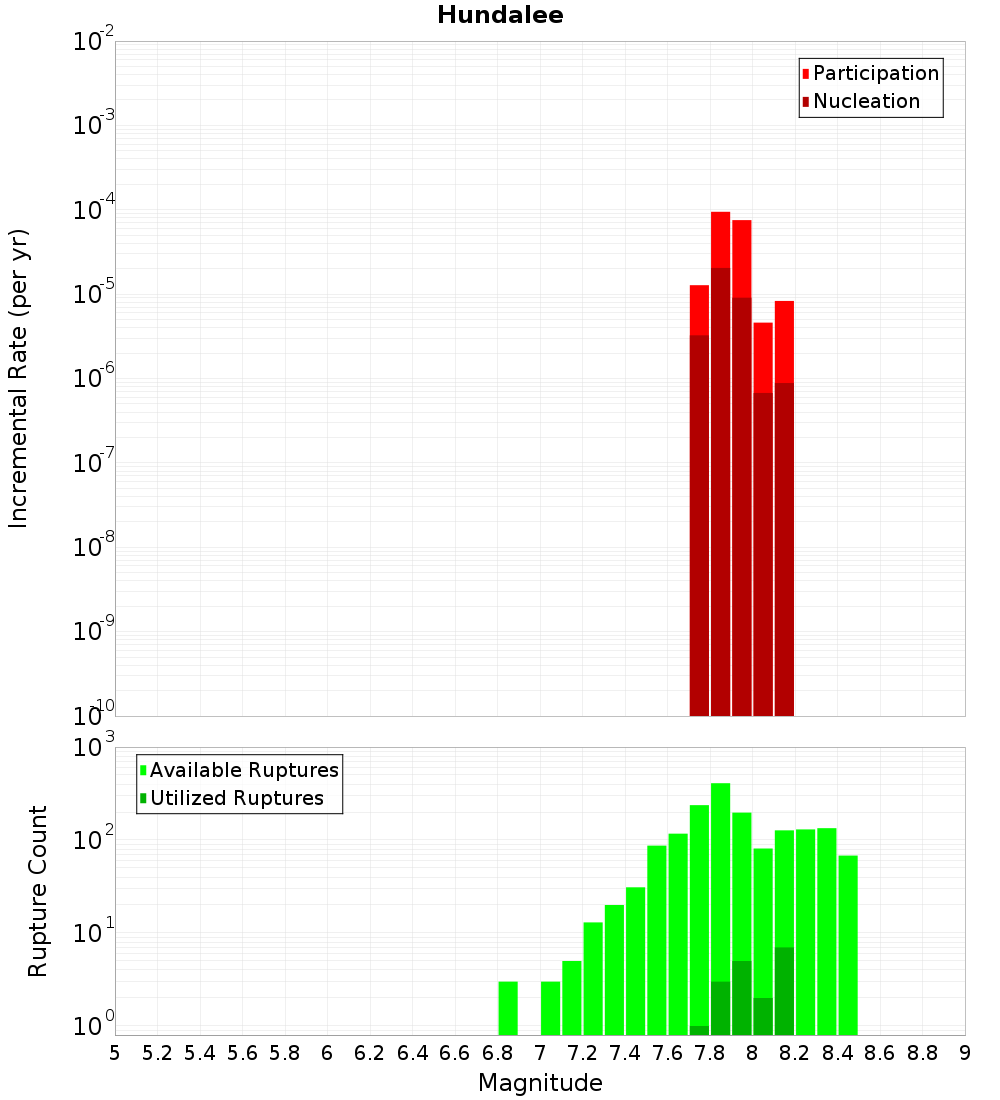

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

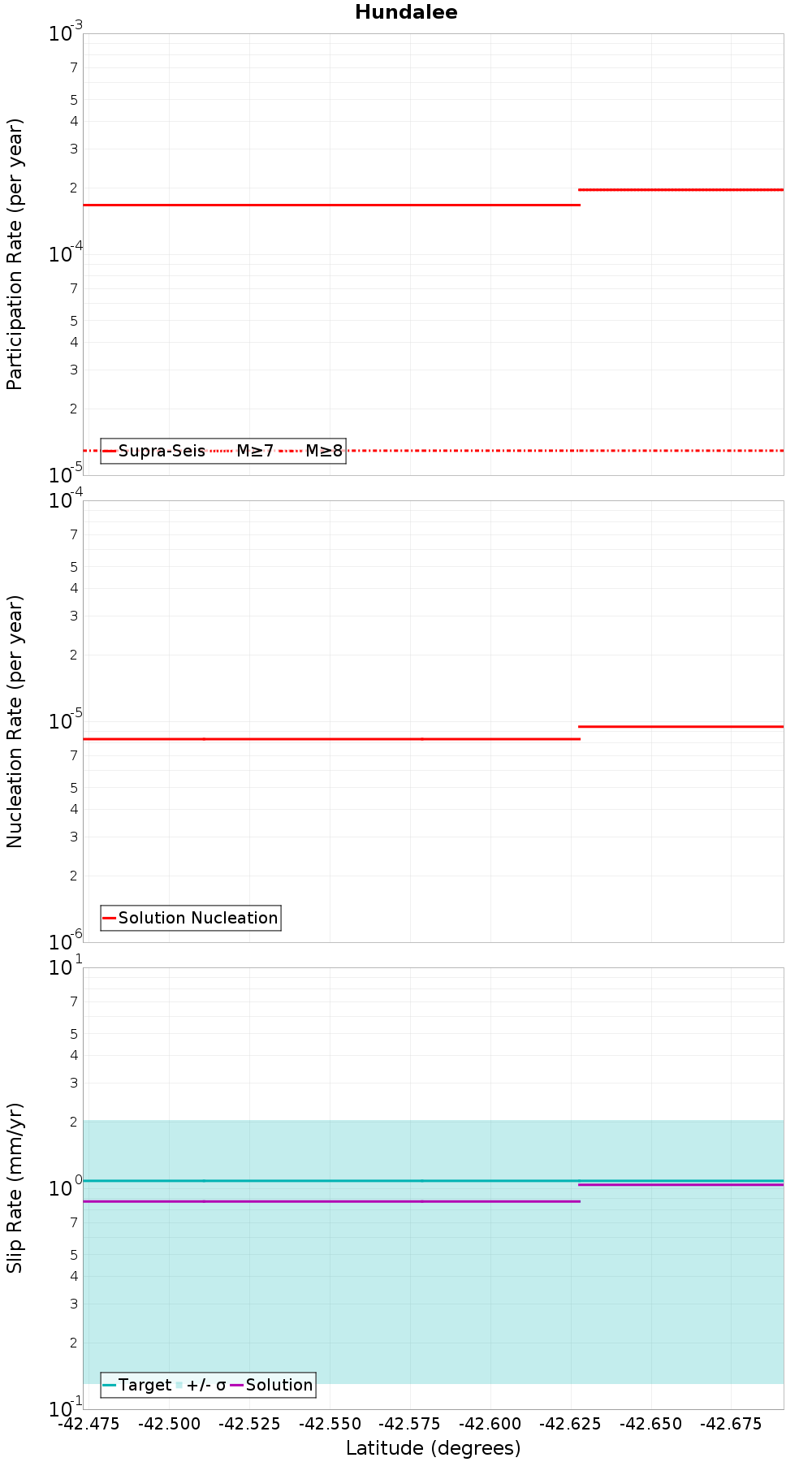

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

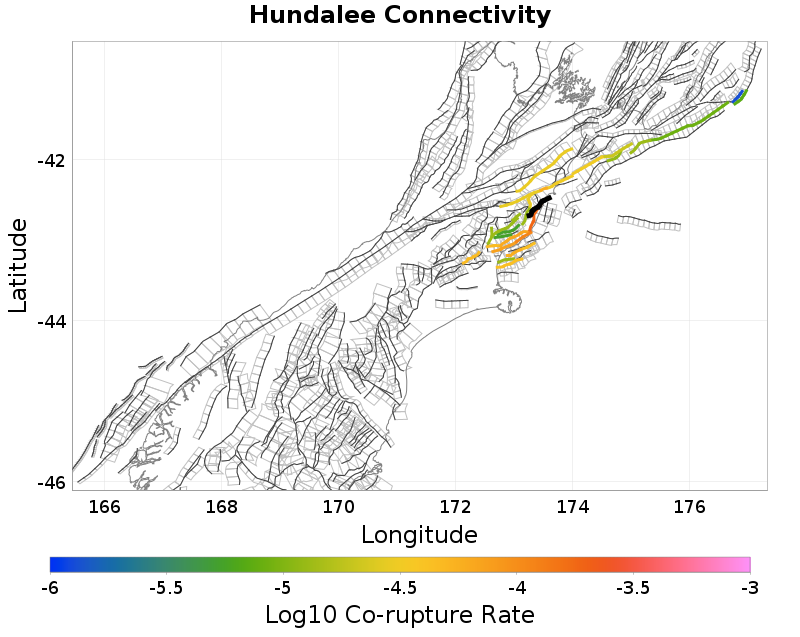

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Leader: Central, 0.23 km awayLeader: North, 12.63 km away
StoneJug, 0.23 km awayJordan, 15.34 km away
The Humps, 0.43 km awayHope: Seaward, 15.42 km away
Hawkswood, 0.92 km awayLowry, 15.49 km away
Kaiwara North, 3.48 km awayConway Trough East, 15.71 km away
Hope: Conway, 4.6 km awayMt Culverden, 16.46 km away
Conway Trough West, 5.24 km awayKaikoura - Mangamaunu, 17.62 km away
Leader: South, 5.67 km awayAlexander, 19.86 km away
Leonard Mound, 9.87 km away

Leader: Central, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count262
Co-rupture Rate2.8655253E-5

StoneJug, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate0.0

Hawkswood, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count688
Co-rupture Rate1.8287003E-4

Kaiwara North, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count156
Co-rupture Rate1.2761093E-5

Hope: Conway, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count1,461
Co-rupture Rate5.9611386E-5

Conway Trough West, 5.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate0.0

Leader: South, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate0.0

Leonard Mound, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate1.2761093E-5

Leader: North, 12.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate2.8655253E-5

Jordan, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Hope: Seaward, 15.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count353
Co-rupture Rate3.1609277E-5

Lowry, 15.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate1.2761093E-5

Conway Trough East, 15.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Kaikoura - Mangamaunu, 17.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate0.0

Alexander, 19.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?false
Co-rupture Count70
Co-rupture Rate5.3633403E-6
