Manahi 1 Details
| Property | Value |
|---|---|
| Rupture Count | 213 |
| Ruptures Above Sect Min Mag | 212 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.72, 7.91] |
| Length Range | [13, 208] km |
| Total Rate | 9.135499E-6 /yr |
| Multi-Fault Rate | 9.135499E-6 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

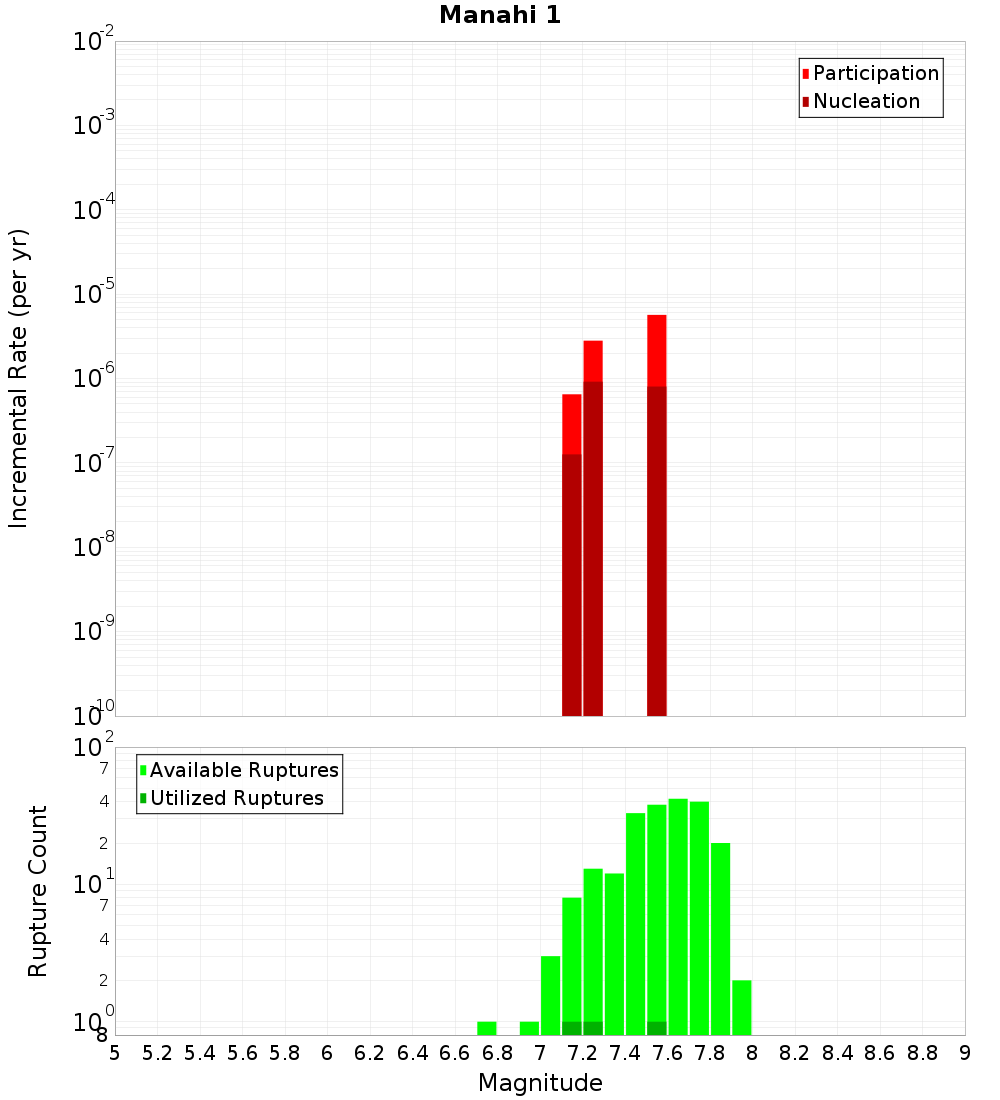

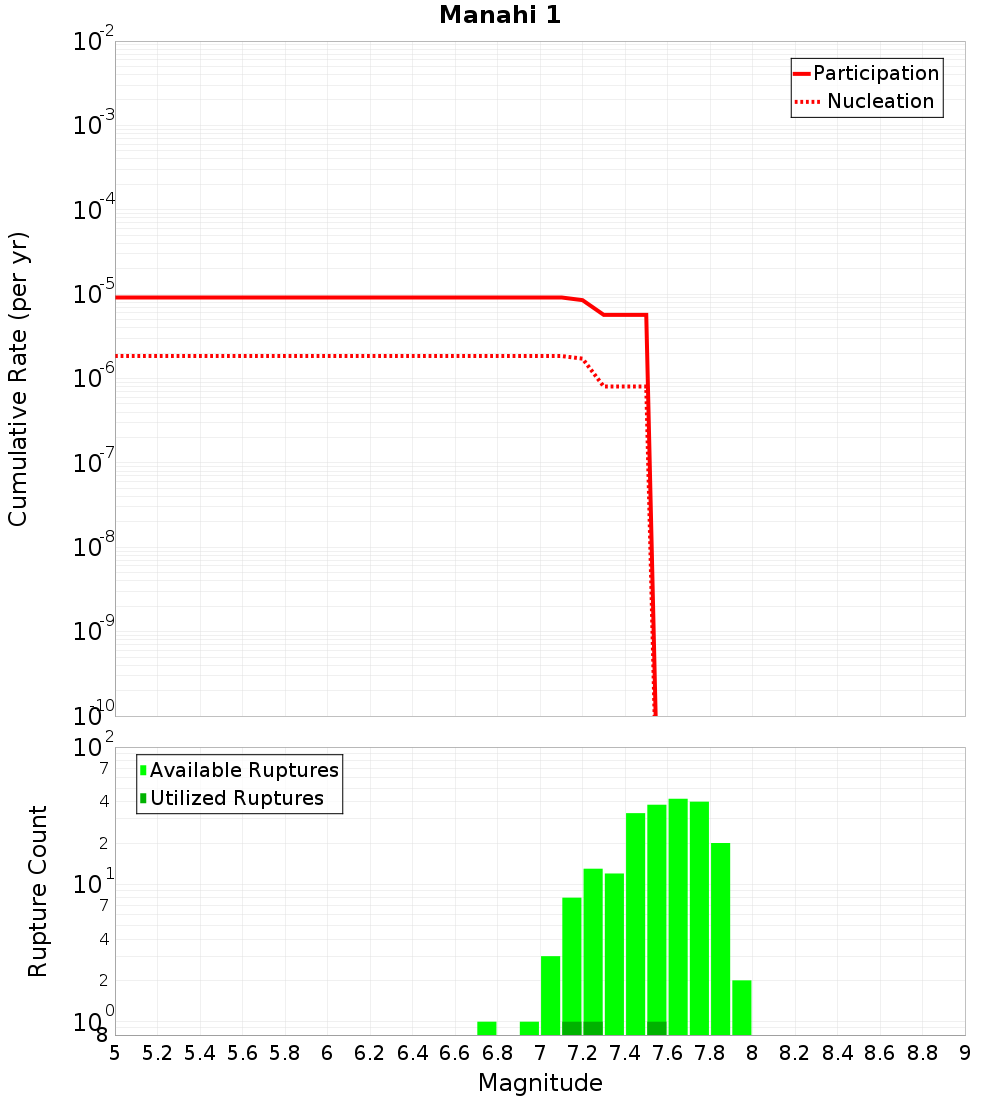

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

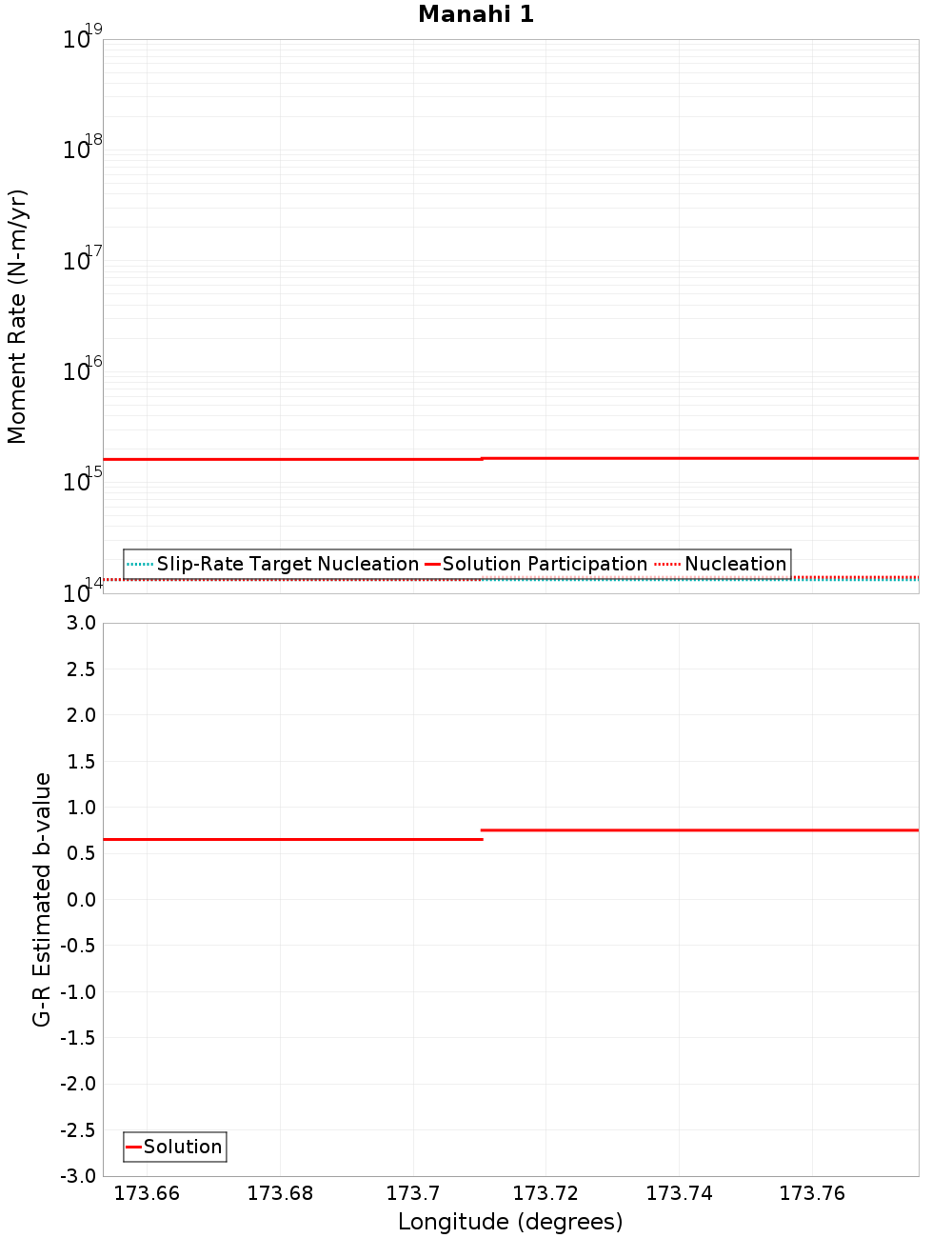

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Pihama, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Egmont: Central, 0.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 161 |
| Co-rupture Rate | 8.485593E-6 |
Ihaia, 0.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 102 |
| Co-rupture Rate | 9.135499E-6 |
Oaonui, 1.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
Kiri, 1.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 101 |
| Co-rupture Rate | 6.499061E-7 |
Cape Egmont: North, 1.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 0.0 |
Rahotu, 5.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Cape Egmont: South, 7.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 128 |
| Co-rupture Rate | 5.676633E-6 |
Manahi 2, 8.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Warea, 14.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 158 |
| Co-rupture Rate | 0.0 |
