Waipukurau - Poukawa Details

PropertyValue
Rupture Count384
Ruptures Above Sect Min Mag379
Ruptures w/ Nonzero Rates12
Magnitude Range[6.75, 8.27]
Length Range[19, 500] km
Total Rate5.7284505E-4 /yr
Multi-Fault Rate4.9656315E-4 /yr (86.68%)
Directly-Connected Faults4
All Co-Rupturing Faults35

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

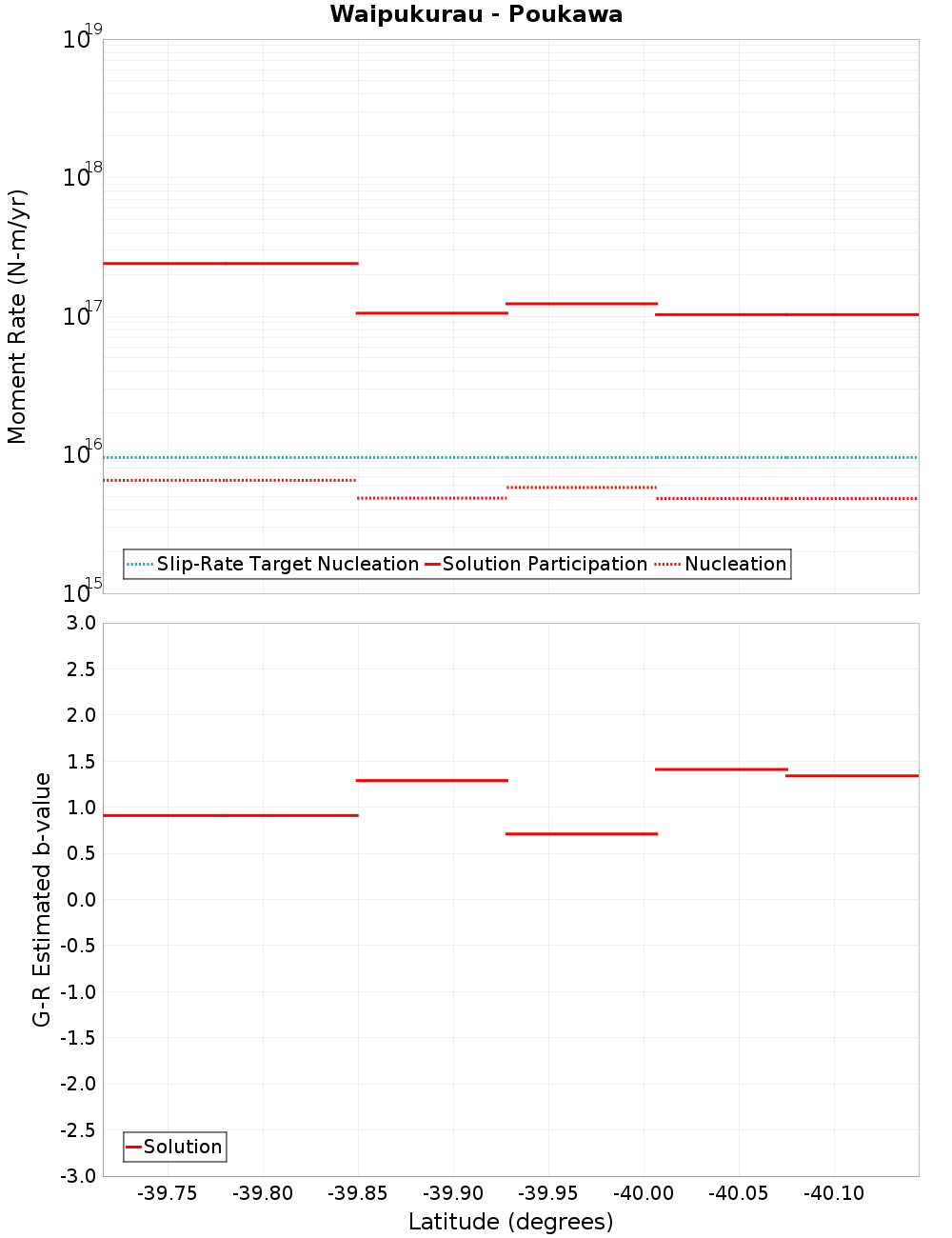

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.46 km away
Oruawharo - Mangatoro, 3.54 km away
Tukituki Thrust, 3.54 km away
Te Heka, 5.63 km away
Ruataniwha, 13.21 km away
Maunga, 16.04 km away
Waimarama 1 & 2, 18.75 km away

Awanui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count307
Co-rupture Rate1.308261E-4

Clear Hills - Waikopiro, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Oruawharo - Mangatoro, 3.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate2.778428E-4

Tukituki Thrust, 3.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate2.3200977E-4

Te Heka, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate5.403973E-6

Ruataniwha, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maunga, 16.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 18.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
