Whangamoa Details

Property	Value
Rupture Count	1,115
Ruptures Above Sect Min Mag	1,109
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.95, 8.48]
Length Range	[23, 899] km
Total Rate	5.5714703E-5 /yr
Multi-Fault Rate	1.38433015E-5 /yr (24.85%)
Directly-Connected Faults	1
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

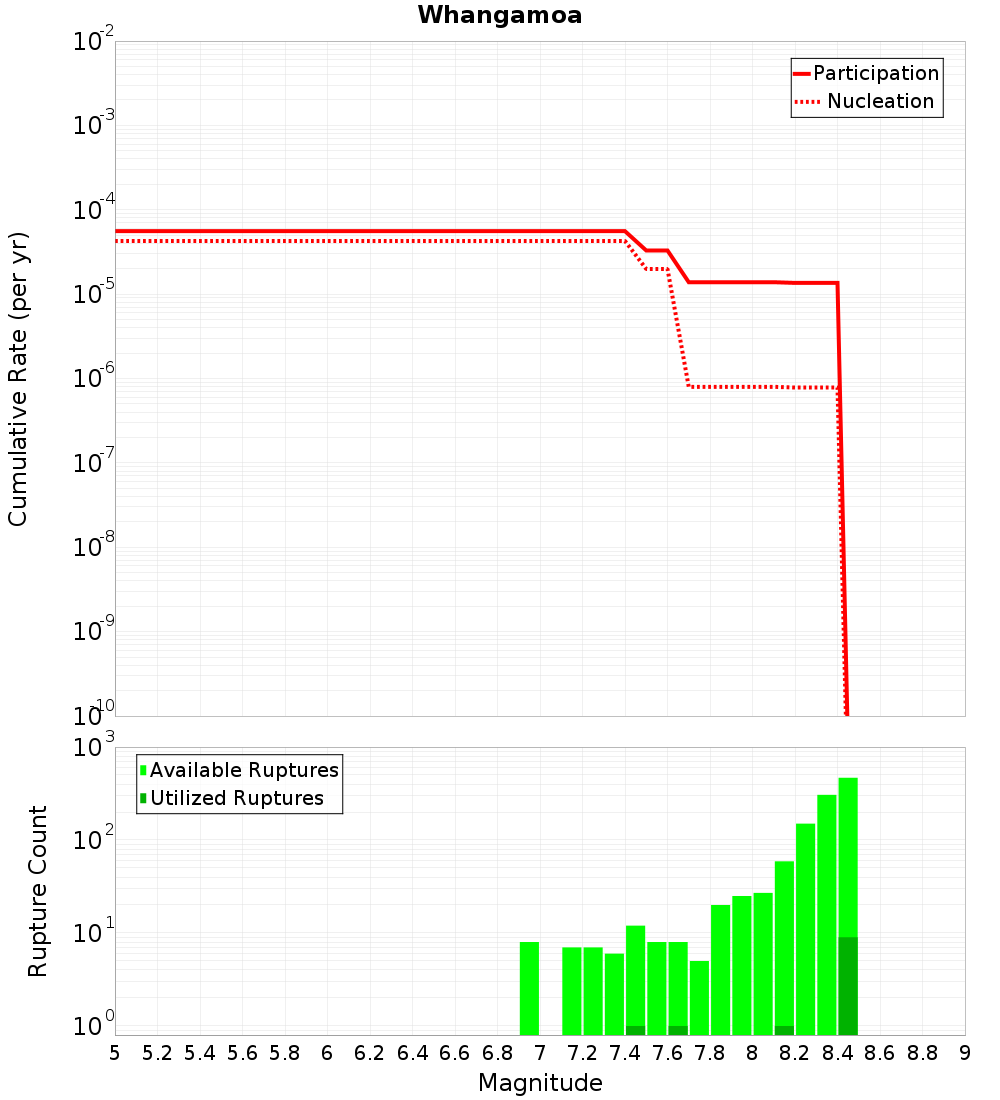

Magnitude-Frequency Distribution

Incremental	Cumulative

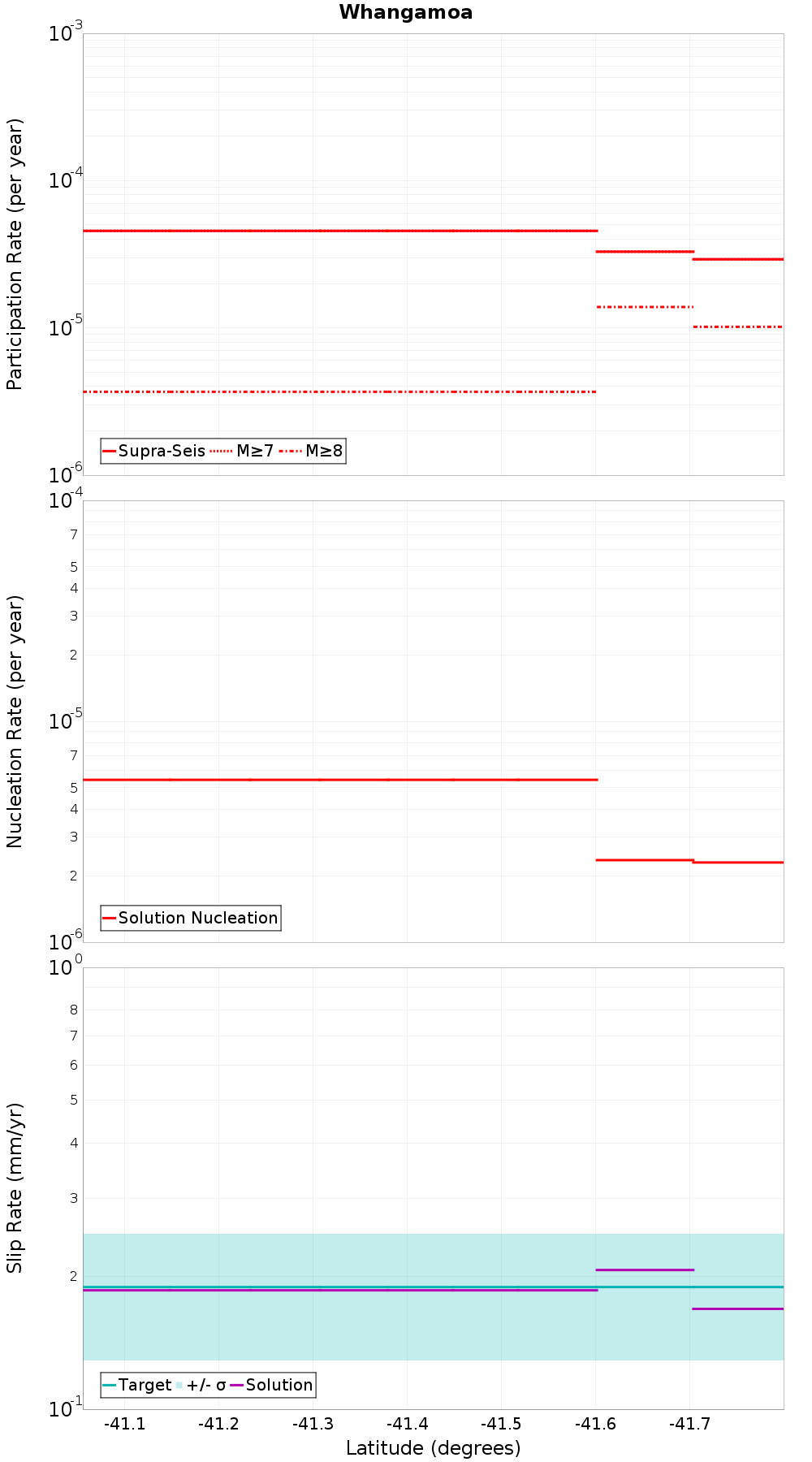

Along-Strike Values

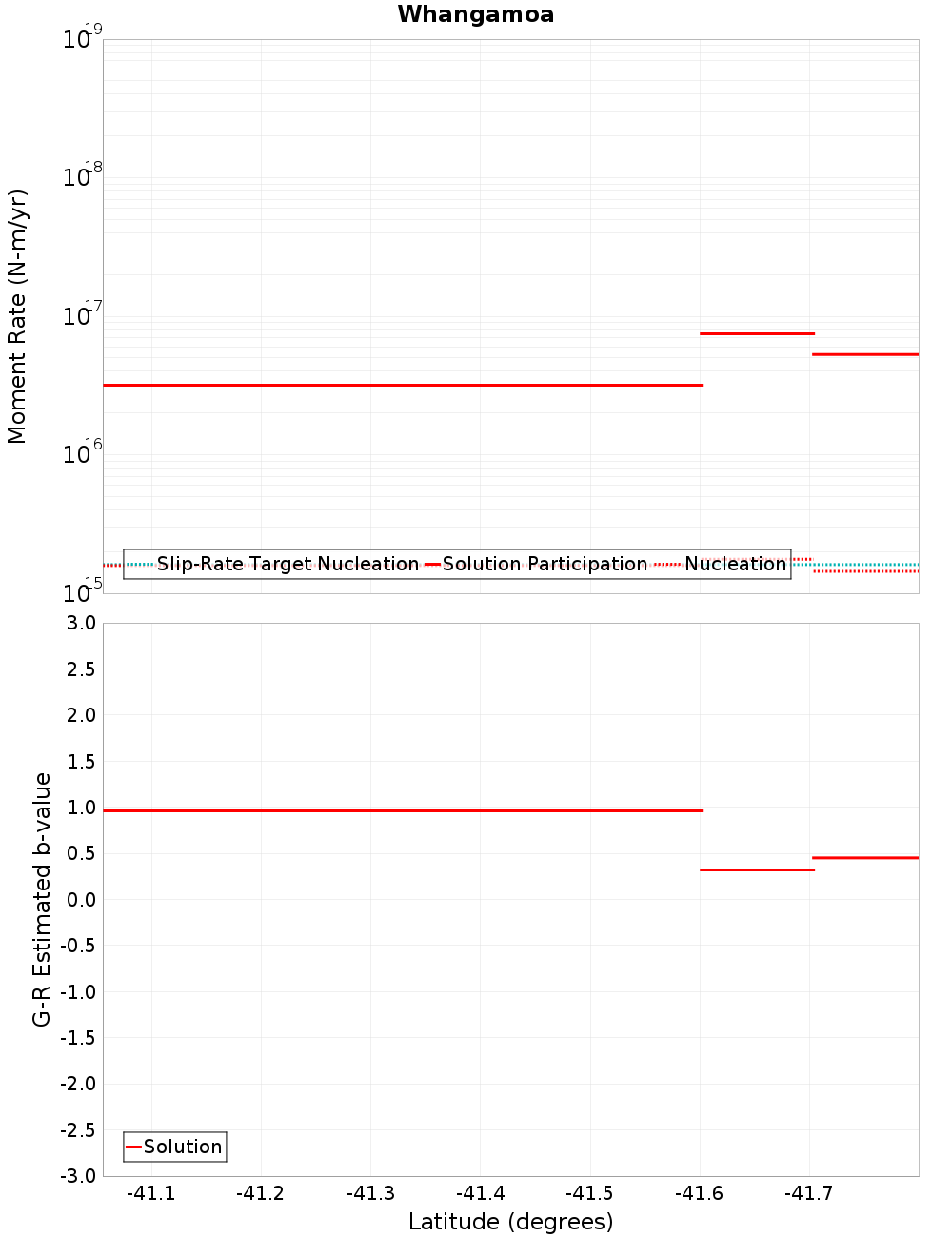

Moment-Rates and b-Values

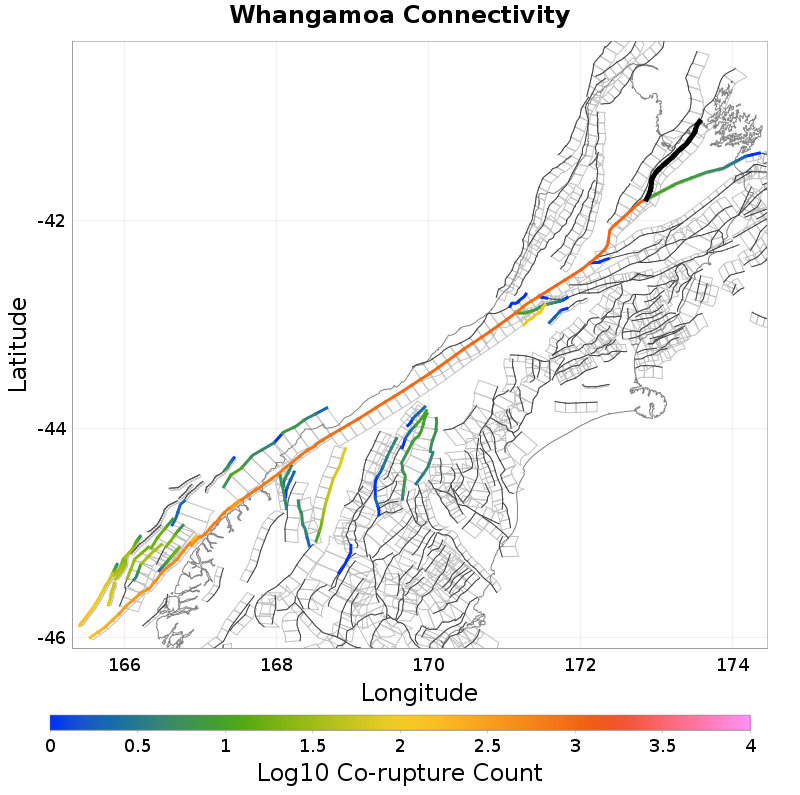

Connectivity

Nearby Sections

Fault Section
Wairau, 0 km away
Alpine: Springs Junction to Tophouse, 0 km away
Waimea Offshore, 0.85 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Surville, 14.06 km away
Tutaki, 15.19 km away
Ruby Bay - Moutere, 15.39 km away

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	true
Directly Connected?	true
Co-rupture Count	1,079
Co-rupture Rate	1.38433015E-5

Waimea Offshore, 0.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Surville, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tutaki, 15.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruby Bay - Moutere, 15.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMFRYeVNU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
