Caswell High 5 Details

Property	Value
Rupture Count	18,666
Ruptures Above Sect Min Mag	16,551
Ruptures w/ Nonzero Rates	219
Magnitude Range	[5.68, 8.48]
Length Range	[5, 888] km
Total Rate	3.86547E-4 /yr
Multi-Fault Rate	3.86547E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	41

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

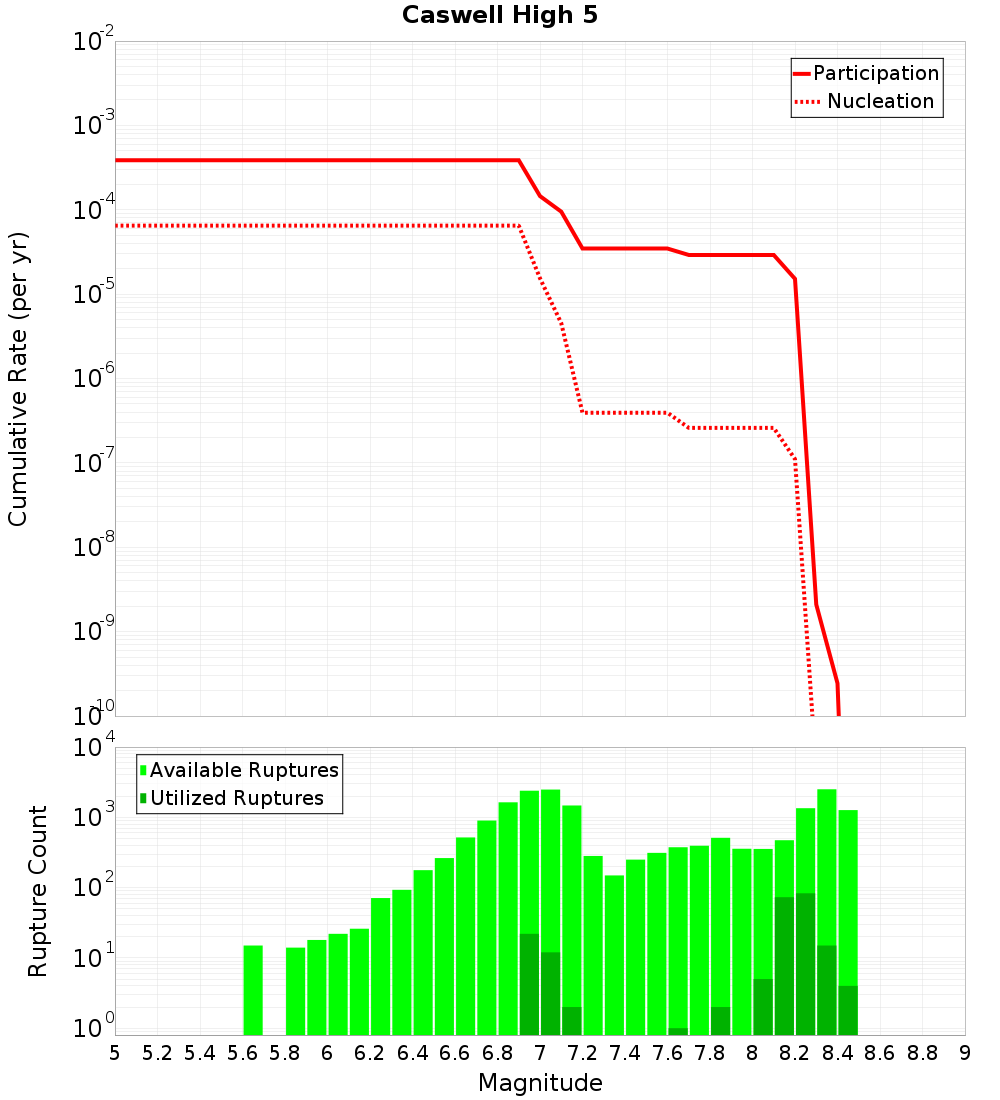

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

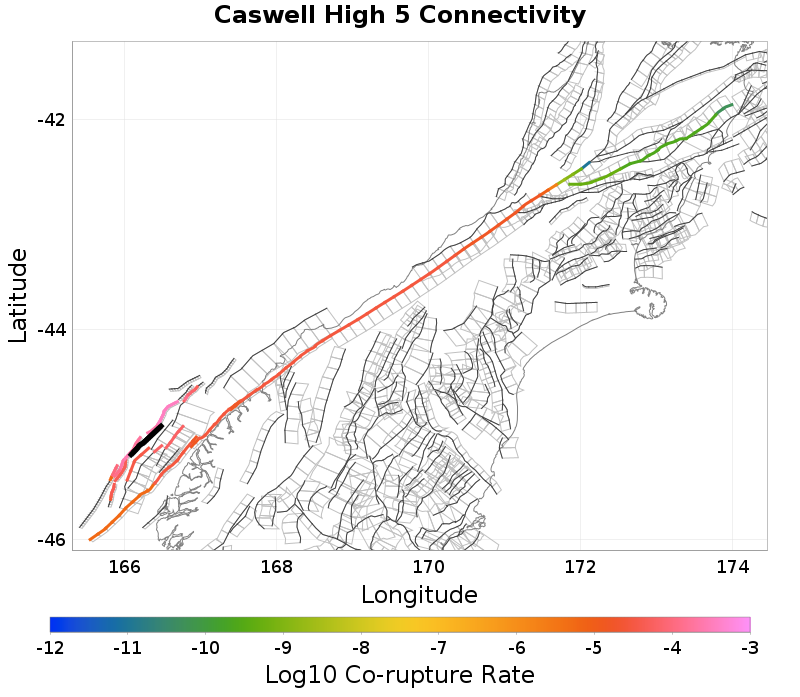

Connectivity

Nearby Sections

Fault Section
Caswell High 4, 1.68 km away
Caswell High 67, 2.62 km away
Central Wedge 4 - South Wedge 411, 4.8 km away
South Wedge 5, 6.15 km away
Caswell High 3, 6.38 km away
Central Wedge 1 & 2 & 3, 10.73 km away
South Wedge 3-6-10, 12.89 km away
South Wedge 2, 15.79 km away
Caswell High 1, 17.85 km away

Caswell High 4, 1.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	10,015
Co-rupture Rate	2.9163042E-4

Caswell High 67, 2.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	8,648
Co-rupture Rate	3.5186764E-4

Central Wedge 4 - South Wedge 411, 4.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	669
Co-rupture Rate	0.0

South Wedge 5, 6.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	7,264
Co-rupture Rate	3.4679368E-5

Caswell High 3, 6.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	2,070
Co-rupture Rate	4.598646E-5

Central Wedge 1 & 2 & 3, 10.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,298
Co-rupture Rate	0.0

South Wedge 3-6-10, 12.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,416
Co-rupture Rate	6.0237202E-5

South Wedge 2, 15.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	764
Co-rupture Rate	6.0237202E-5

Caswell High 1, 17.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	6,124
Co-rupture Rate	1.0537143E-4
