Clarence: Northeast Details

Property	Value
Rupture Count	10,083
Ruptures Above Sect Min Mag	10,082
Ruptures w/ Nonzero Rates	102
Magnitude Range	[6.89, 8.52]
Length Range	[21, 958] km
Total Rate	6.11717E-4 /yr
Multi-Fault Rate	6.116957E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

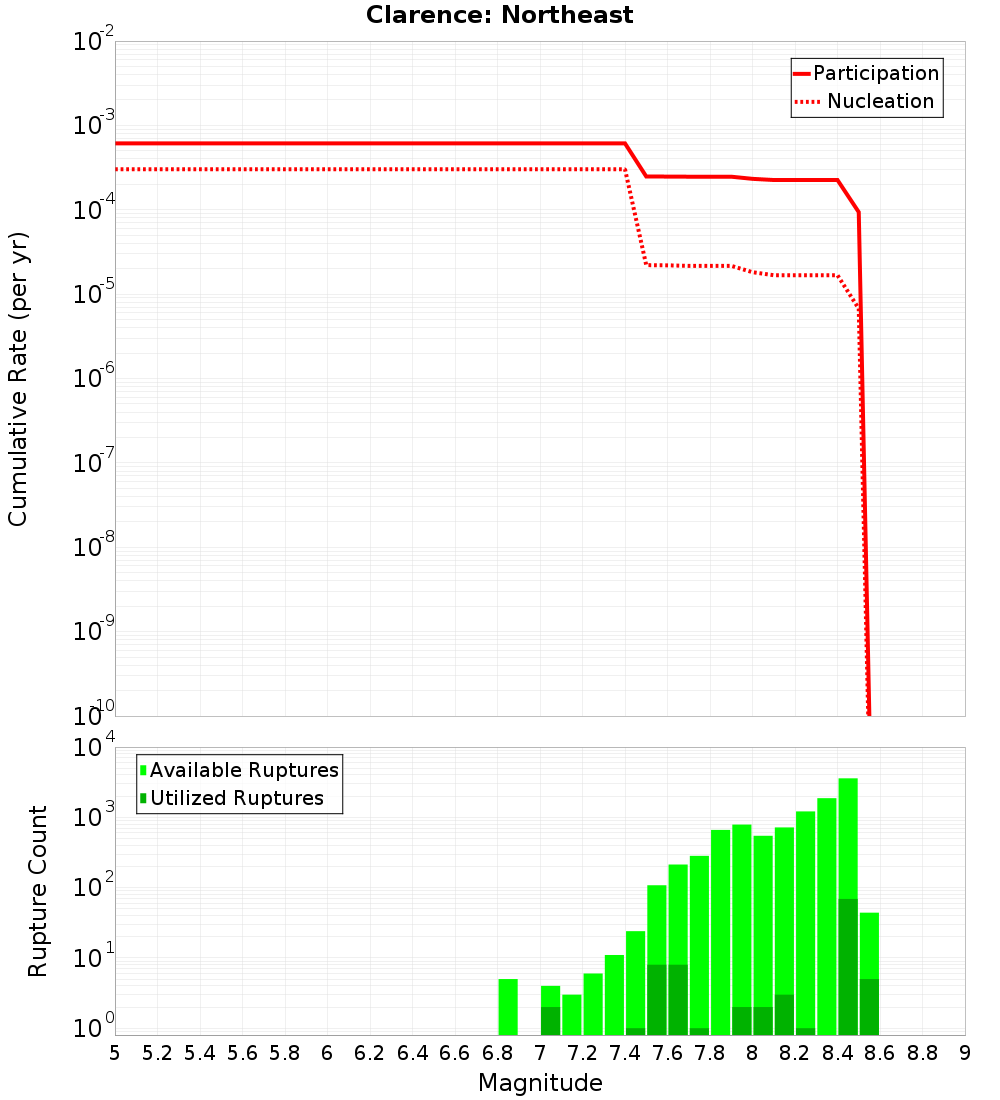

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

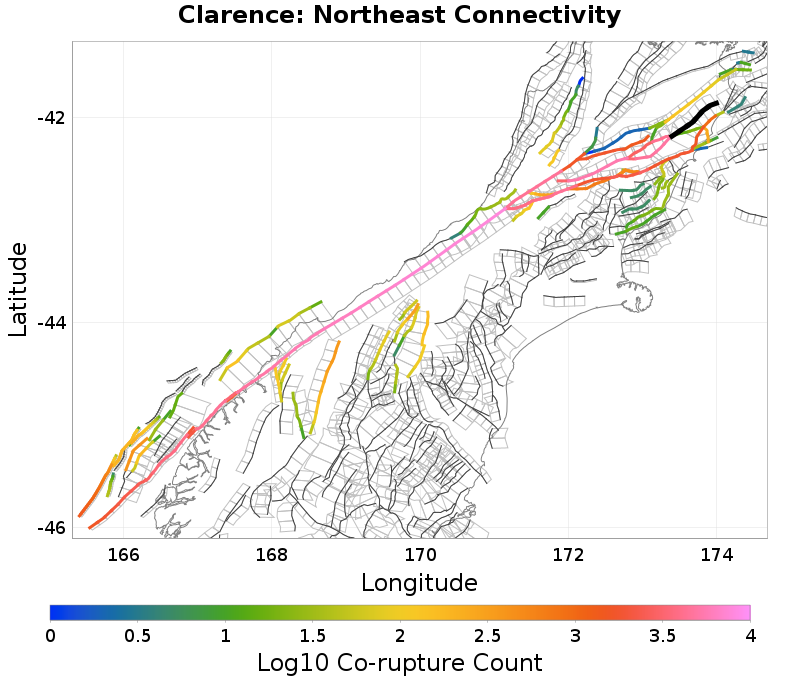

Connectivity

Nearby Sections

Fault Section
Elliott, 0.02 km away
Clarence: Central, 0.09 km away
Jordan, 0.22 km away
Fidget, 0.64 km away
Needles East 2, 7.34 km away
Awatere: Northeast 1, 8.47 km away
Awatere: Southwest, 10.35 km away
Kekerengu 1, 10.43 km away
London Hill, 10.86 km away
Papatea, 11.87 km away
Needles, 11.97 km away
Barefell, 16.85 km away
Chancet, 18.61 km away

Elliott, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,884
Co-rupture Rate	1.399153E-4

Clarence: Central, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,231
Co-rupture Rate	2.9198765E-5

Jordan, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,558
Co-rupture Rate	1.8594901E-4

Fidget, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	0.0

Needles East 2, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Awatere: Northeast 1, 8.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	146
Co-rupture Rate	2.0154562E-8

Awatere: Southwest, 10.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	0.0

Kekerengu 1, 10.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	949
Co-rupture Rate	5.4224796E-4

London Hill, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Papatea, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	254
Co-rupture Rate	1.2980985E-6

Needles, 11.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Barefell, 16.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	0.0

Chancet, 18.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
