Hohonu: South Details

Property	Value
Rupture Count	5,115
Ruptures Above Sect Min Mag	5,105
Ruptures w/ Nonzero Rates	178
Magnitude Range	[6.95, 8.41]
Length Range	[23, 761] km
Total Rate	1.11502864E-4 /yr
Multi-Fault Rate	8.8092536E-5 /yr (79.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

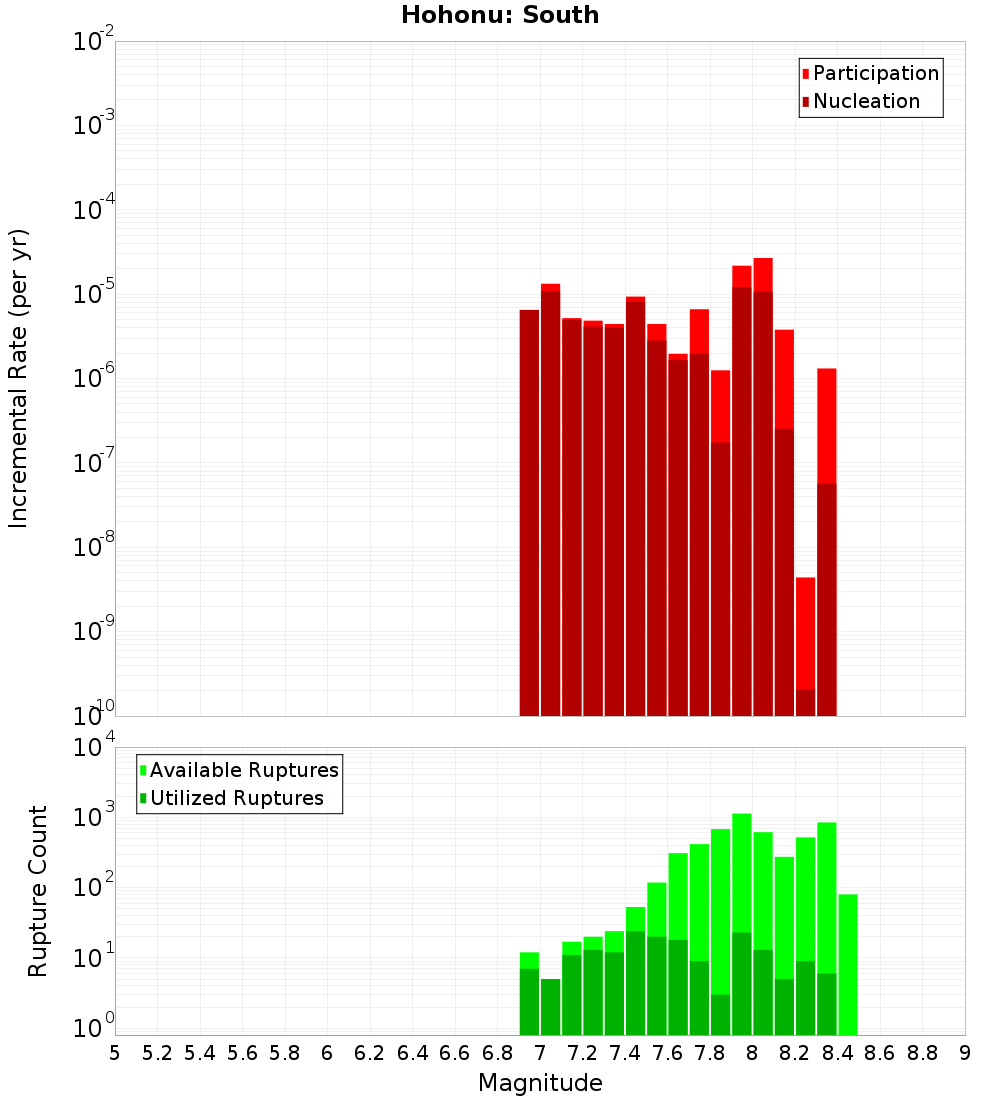

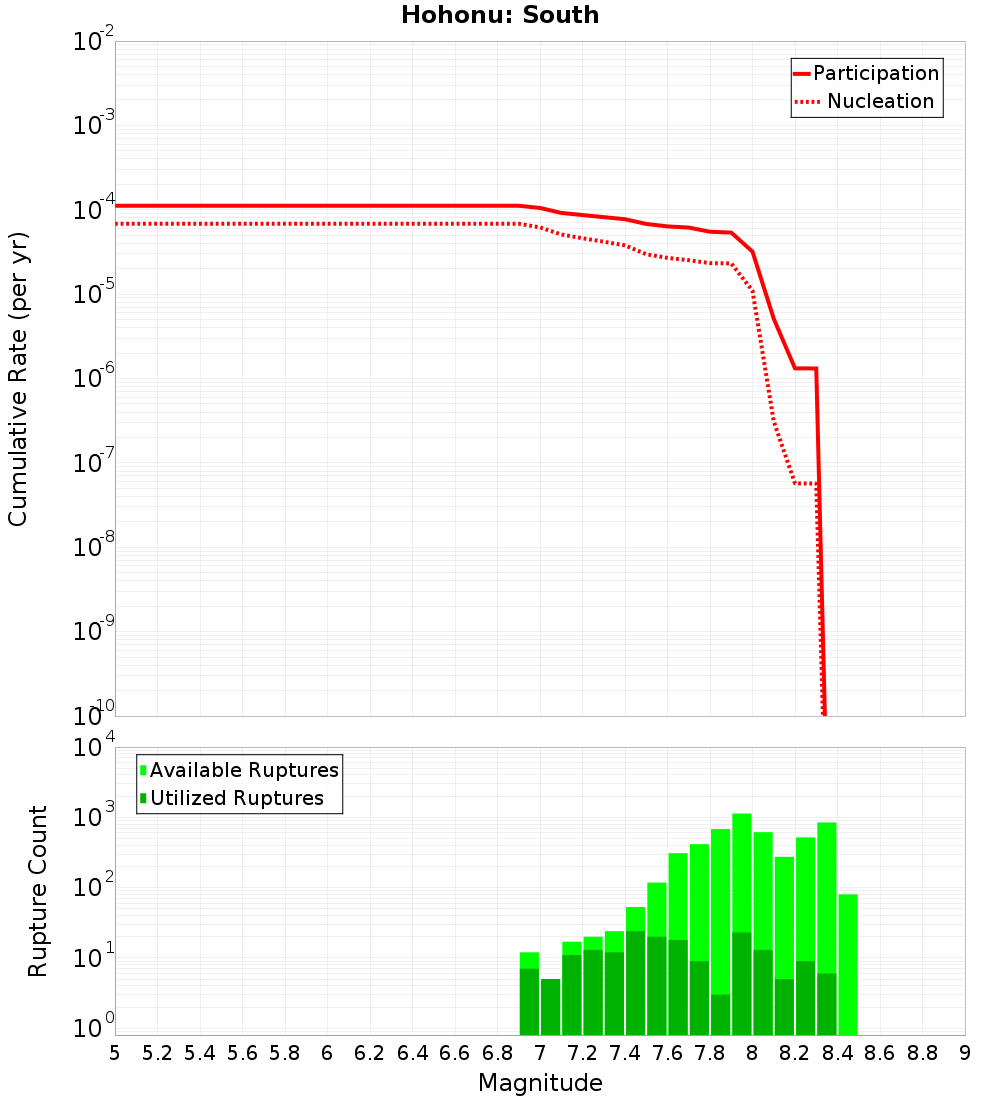

Magnitude-Frequency Distribution

Incremental	Cumulative

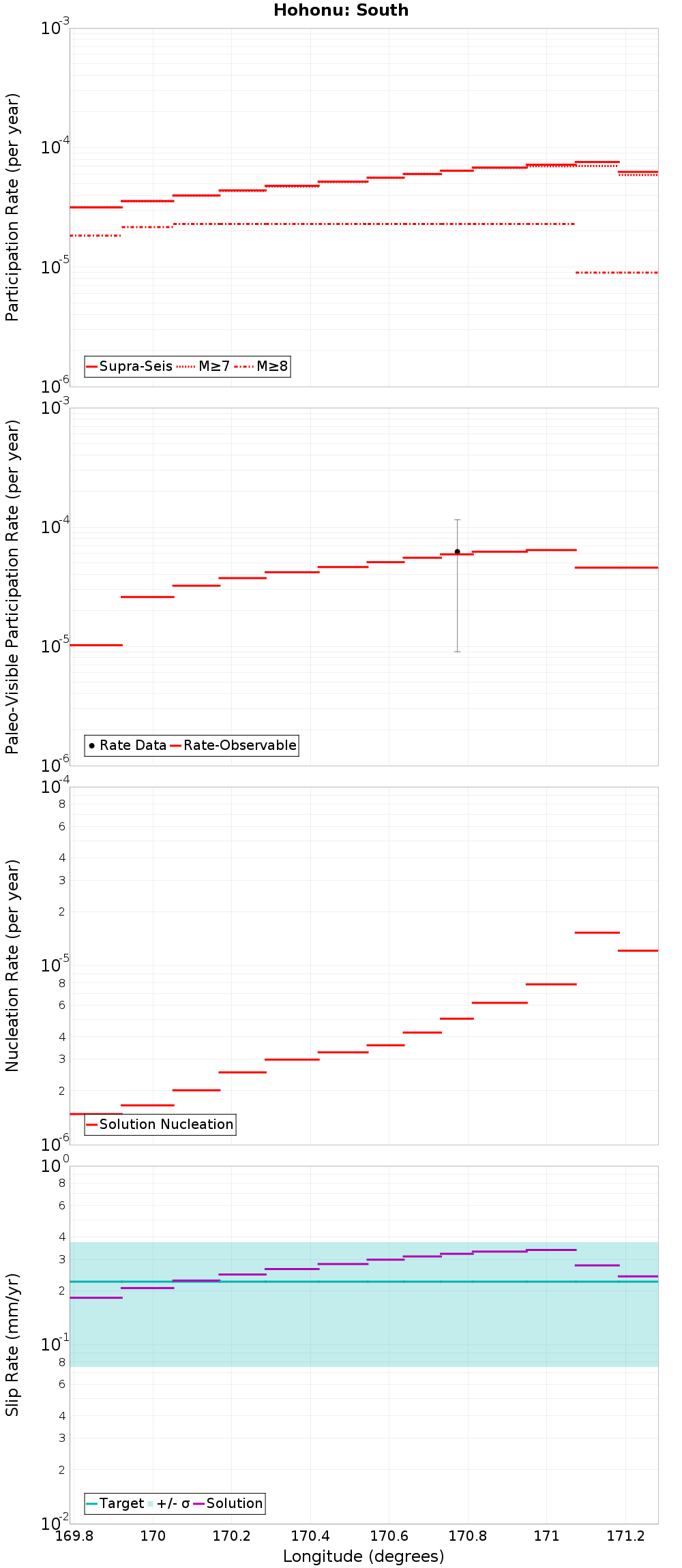

Along-Strike Values

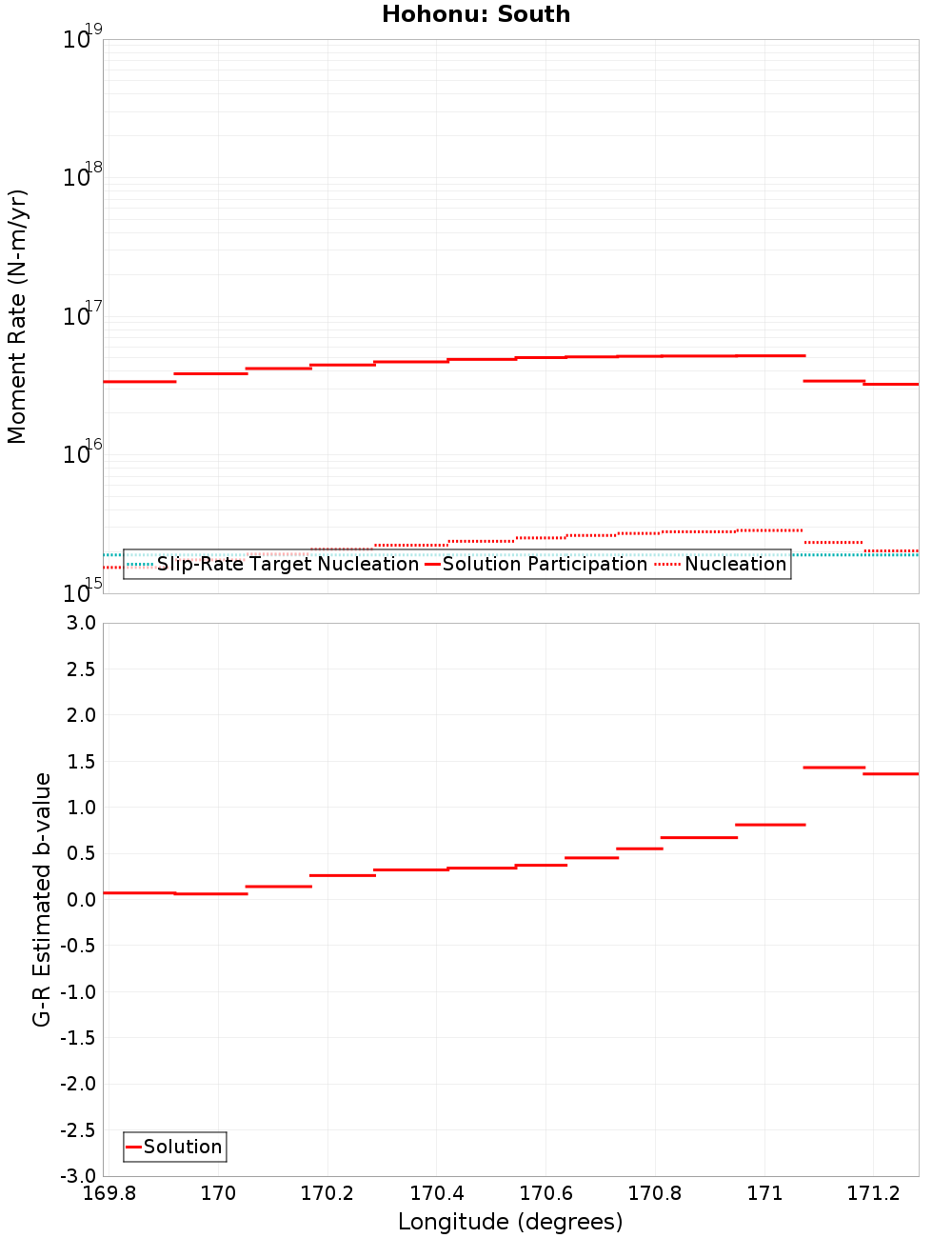

Moment-Rates and b-Values

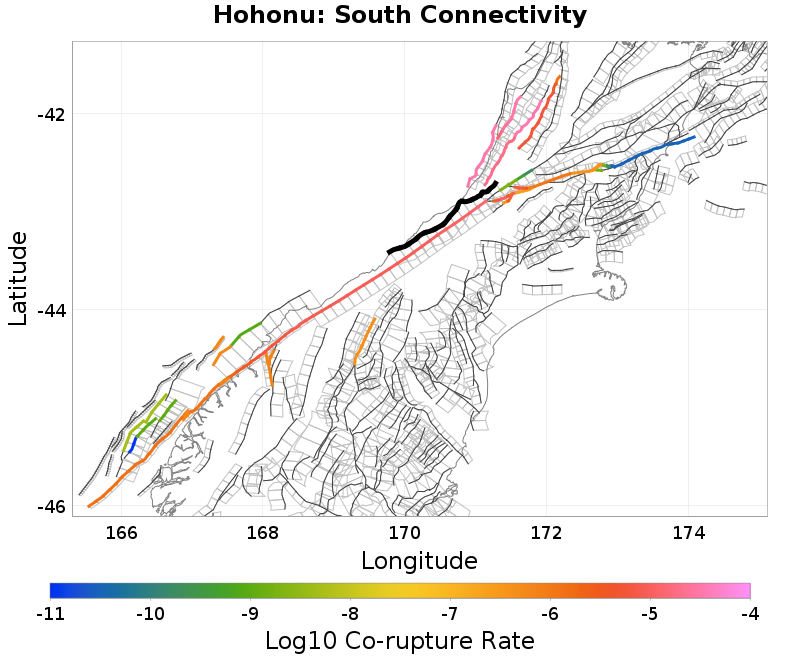

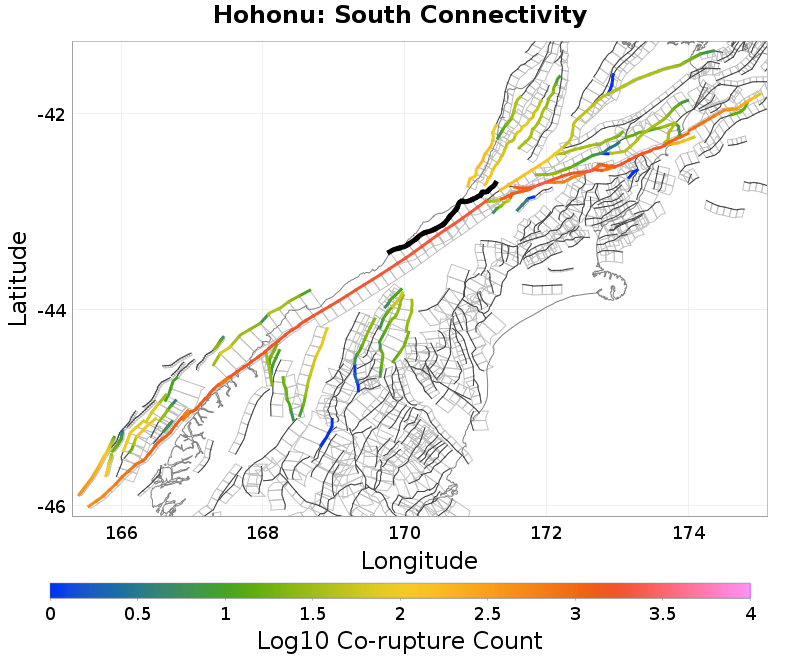

Connectivity

Nearby Sections

Fault Section
Alpine: Kaniere to Springs Junction, 0.1 km away
Kelly, 0.17 km away
Alpine: Jacksons to Kaniere, 0.83 km away
Browning Pass, 3.12 km away
Maimai: South, 7.36 km away
Hope: Taramakau, 10.77 km away
Cape Foulwind 1, 14.49 km away

Alpine: Kaniere to Springs Junction, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	161
Co-rupture Rate	1.7810956E-9

Kelly, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,301
Co-rupture Rate	1.12686575E-5

Alpine: Jacksons to Kaniere, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,010
Co-rupture Rate	1.38430405E-5

Browning Pass, 3.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,305
Co-rupture Rate	8.6976E-6

Maimai: South, 7.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	128
Co-rupture Rate	2.0840711E-5

Hope: Taramakau, 10.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,261
Co-rupture Rate	6.397373E-6

Cape Foulwind 1, 14.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	186
Co-rupture Rate	3.344075E-5
