Moumahaki - Okaia 4 Details

Property	Value
Rupture Count	637
Ruptures Above Sect Min Mag	533
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.22, 7.31]
Length Range	[10, 119] km
Total Rate	1.225401E-4 /yr
Multi-Fault Rate	1.225401E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

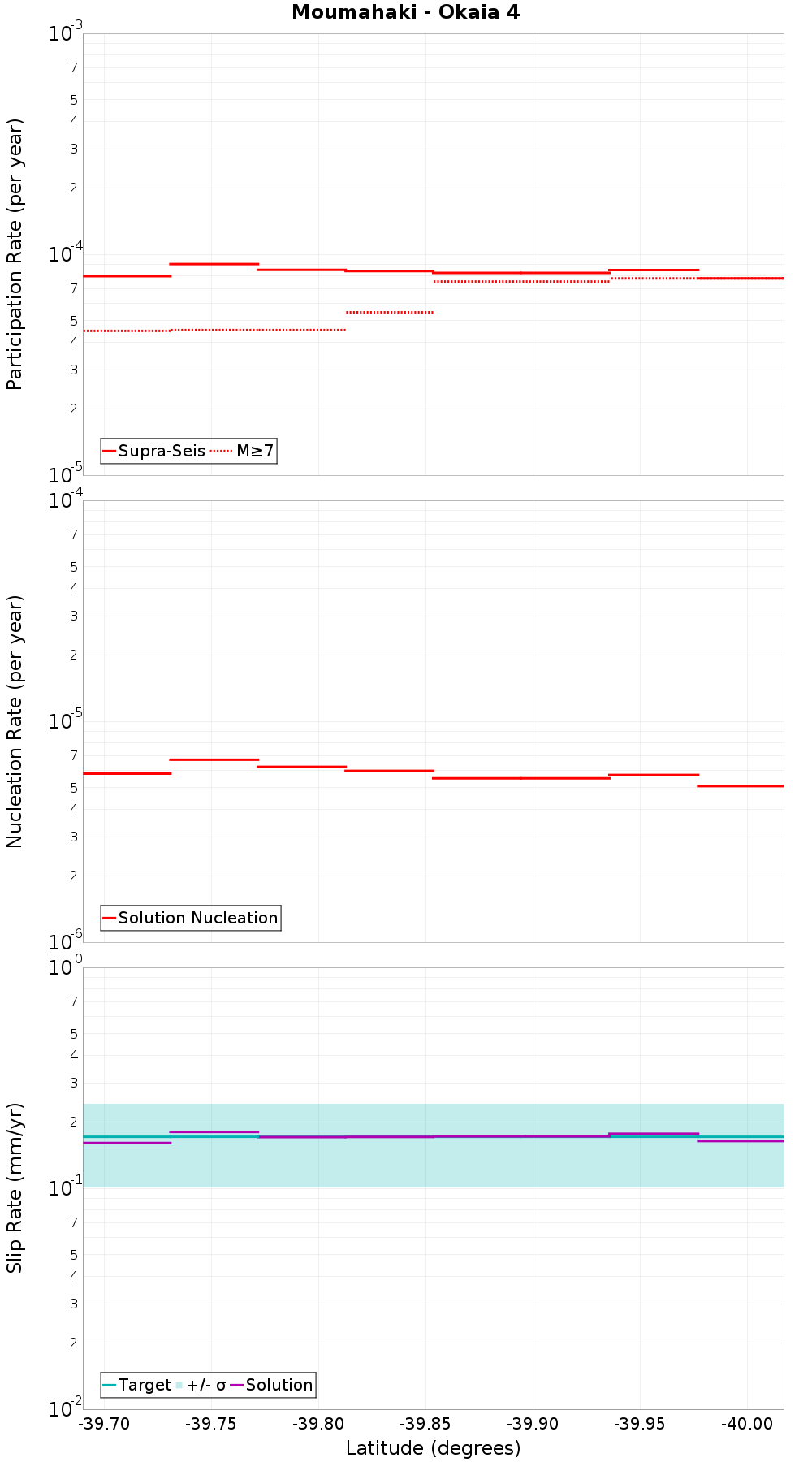

Along-Strike Values

Moment-Rates and b-Values

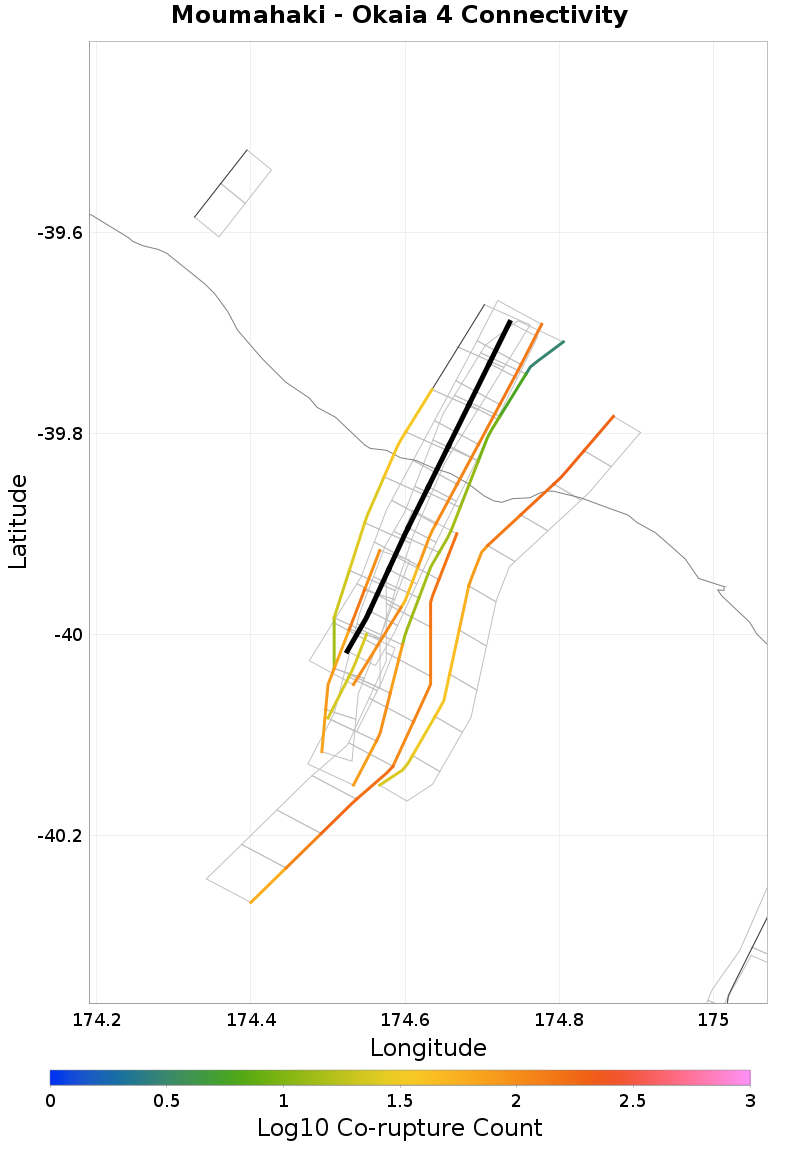

Connectivity

Nearby Sections

Fault Section
Waitotara 8 & 9, 0.15 km away
Ridge Road - Okaia 2, 0.31 km away
Waitotara 10 & 11, 0.33 km away
Waverley - Okaia 1, 0.43 km away
Okaia 5, 0.64 km away
Okaia 3, 0.93 km away
Nukumuru - Waitotara 1-6, 7.97 km away

Waitotara 8 & 9, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	273
Co-rupture Rate	7.323454E-5

Ridge Road - Okaia 2, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	251
Co-rupture Rate	2.3006376E-5

Waitotara 10 & 11, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	121
Co-rupture Rate	9.222561E-6

Waverley - Okaia 1, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	0.0

Okaia 5, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	171
Co-rupture Rate	5.6895683E-6

Okaia 3, 0.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	0.0

Nukumuru - Waitotara 1-6, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	198
Co-rupture Rate	3.144896E-5
