North Canterbury Shelf 11 Details

PropertyValue
Rupture Count96
Ruptures Above Sect Min Mag95
Ruptures w/ Nonzero Rates7
Magnitude Range[6.72, 7.90]
Length Range[14, 236] km
Total Rate8.138839E-5 /yr
Multi-Fault Rate8.138839E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults18

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

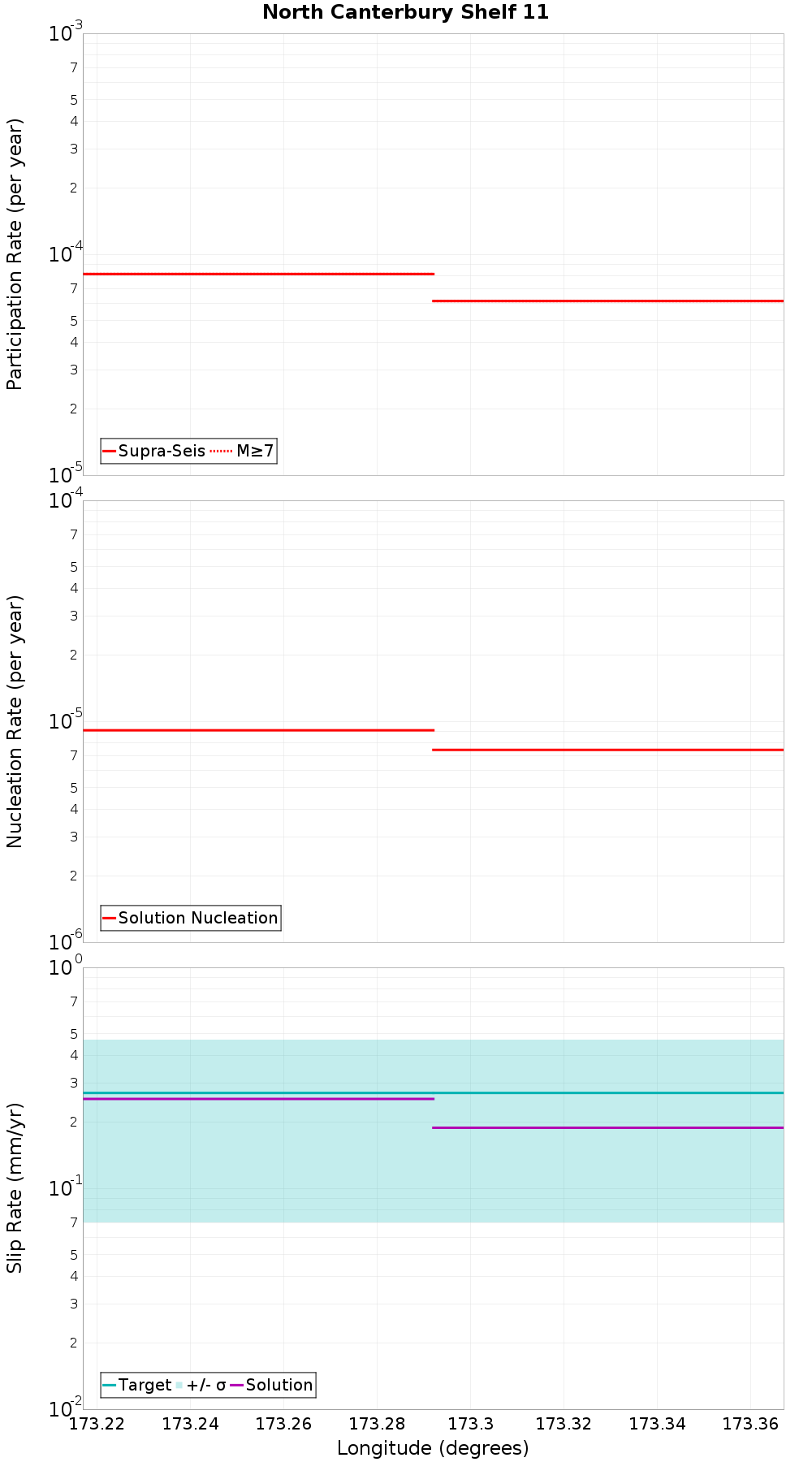

Along-Strike Values

(top)

Along-strike plot

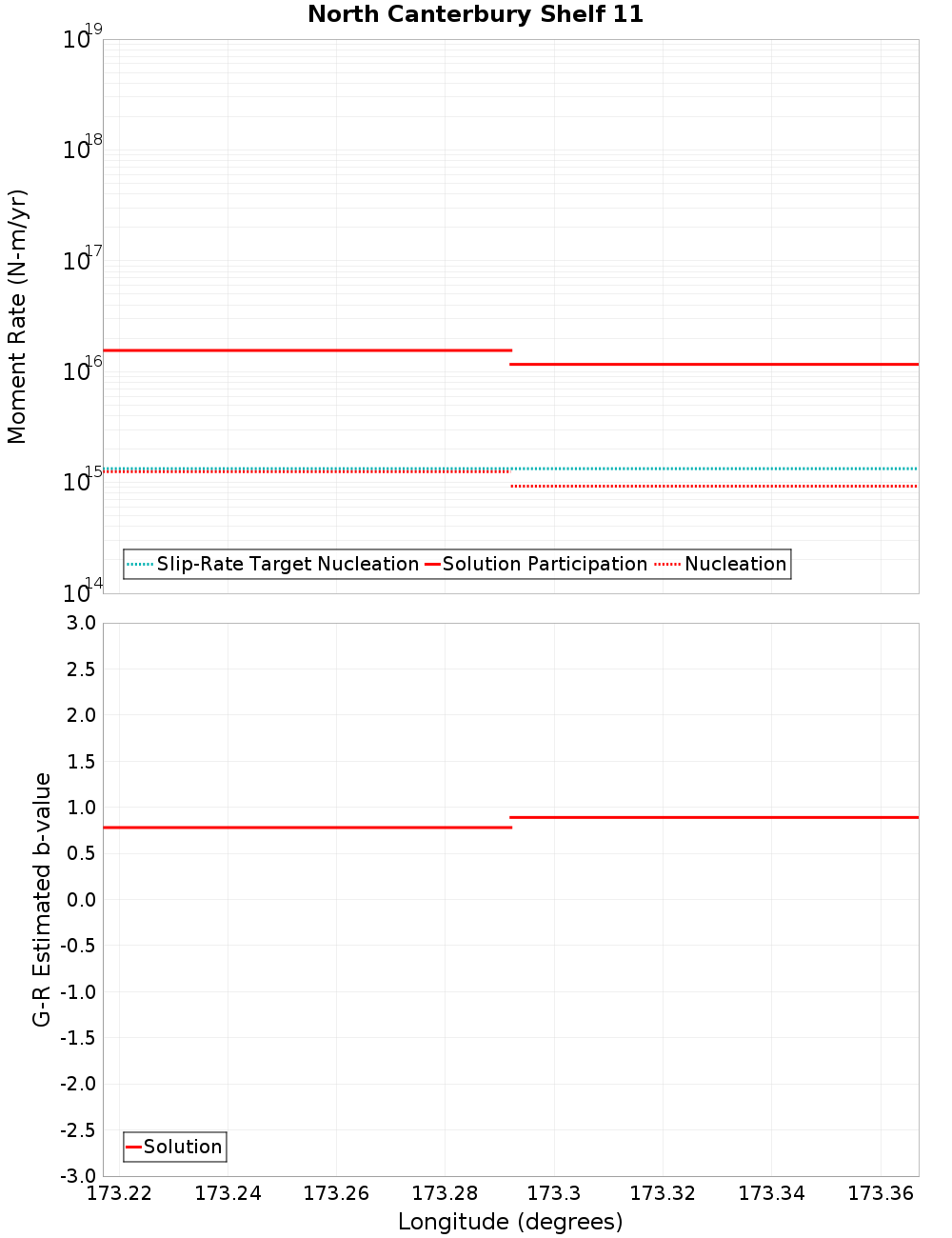

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Motunau, 0.21 km away
Leithfield - NCVI - NCVII, 1.09 km away
Point Gibson, 2.04 km away
North Canterbury Shelf 4, 5.8 km away
AmberBlyth, 6.61 km away
North Canterbury Shelf 2, 9.89 km away
OmihiLwrHuru, 11.31 km away
Hawkswood, 15.2 km away
Pegasus Bay, 17.11 km away
Kaiwara South, 18.62 km away

Motunau, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count48
Co-rupture Rate7.525067E-5

Leithfield - NCVI - NCVII, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate4.5208735E-6

Point Gibson, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate2.8083961E-5

North Canterbury Shelf 4, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate2.1629507E-5

AmberBlyth, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate3.825493E-5

North Canterbury Shelf 2, 9.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

OmihiLwrHuru, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hawkswood, 15.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Pegasus Bay, 17.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Kaiwara South, 18.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
