Nukumuru - Waitotara 1-6 Details

Property	Value
Rupture Count	398
Ruptures Above Sect Min Mag	308
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.21, 7.22]
Length Range	[10, 99] km
Total Rate	7.137394E-5 /yr
Multi-Fault Rate	7.137394E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

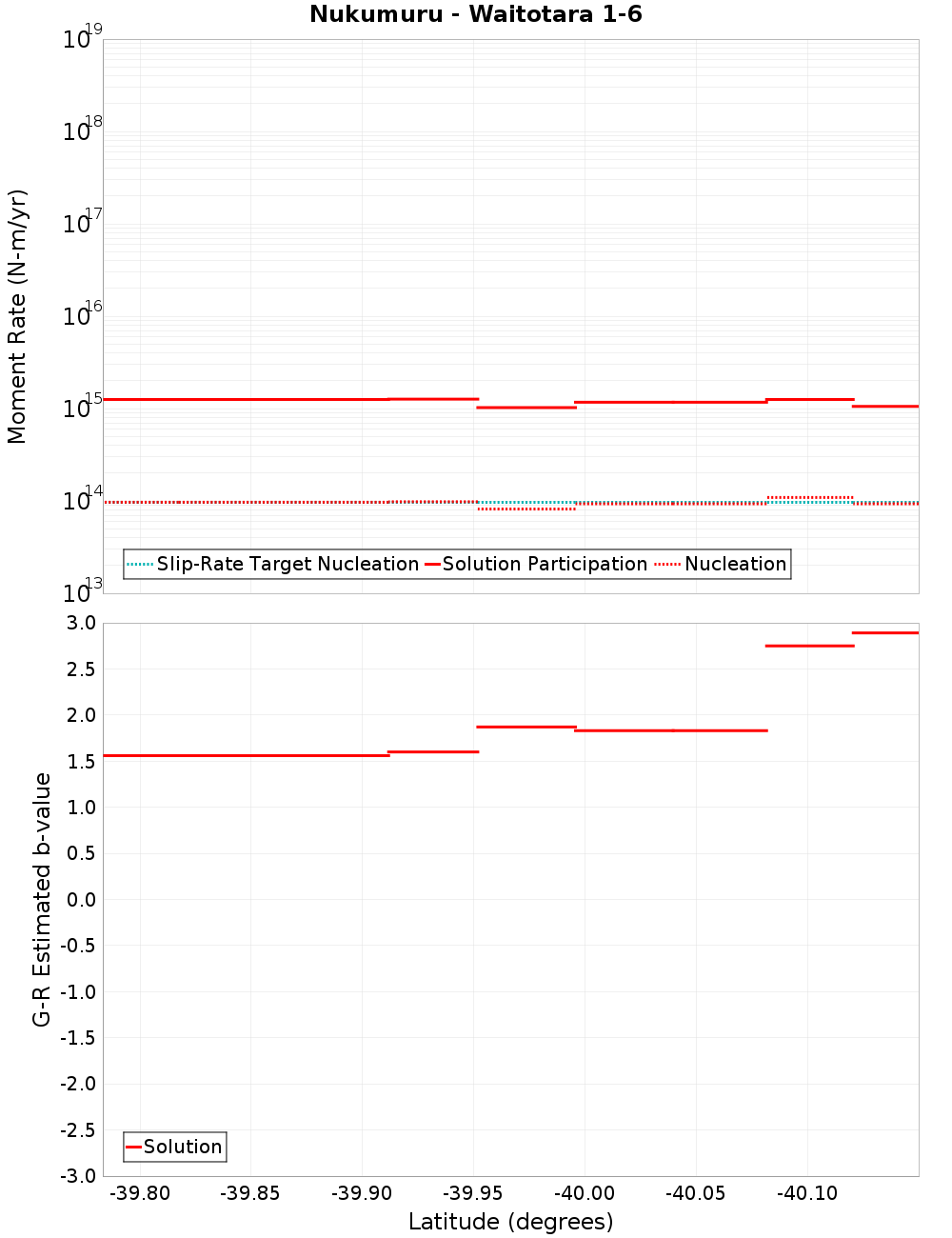

Moment-Rates and b-Values

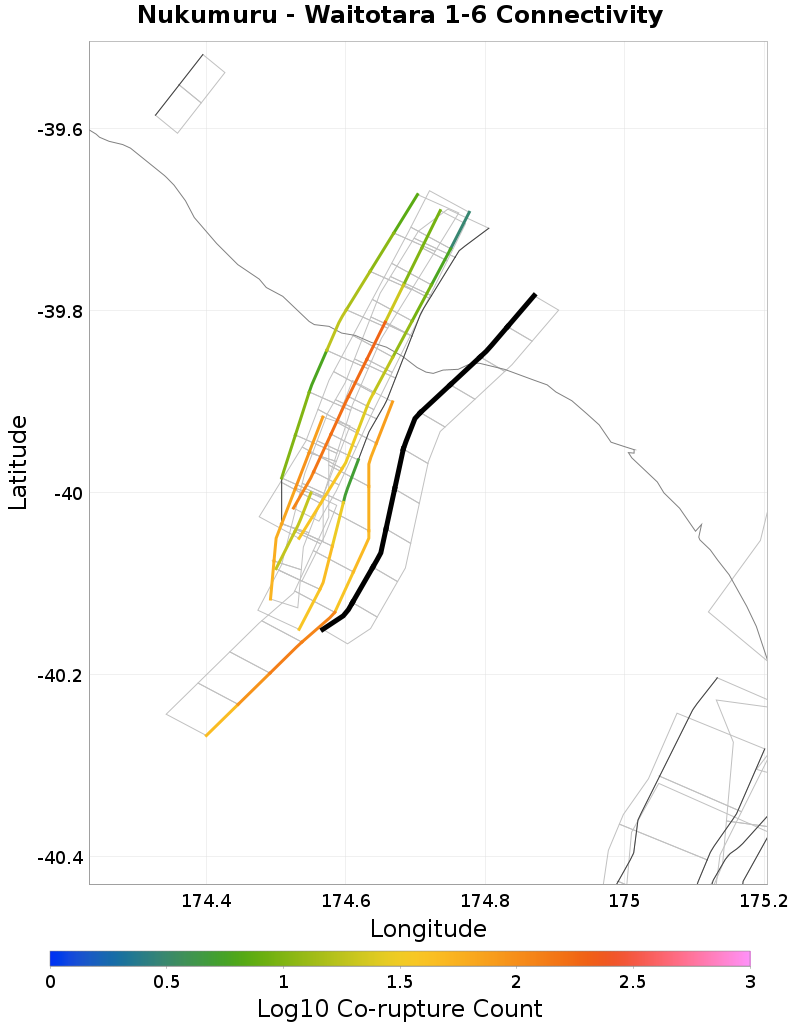

Connectivity

Nearby Sections

Fault Section
Waitotara 8 & 9, 0.55 km away
Waitotara 10 & 11, 2.6 km away
Ridge Road - Okaia 2, 5.95 km away
Okaia 5, 6.96 km away
Moumahaki - Okaia 4, 7.97 km away
Okaia 3, 8.9 km away
Waverley - Okaia 1, 9.7 km away

Waitotara 8 & 9, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	185
Co-rupture Rate	2.779806E-5

Waitotara 10 & 11, 2.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	9.222561E-6

Ridge Road - Okaia 2, 5.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	3.9524308E-5

Okaia 5, 6.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	93
Co-rupture Rate	0.0

Moumahaki - Okaia 4, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	198
Co-rupture Rate	3.144896E-5

Okaia 3, 8.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	0.0

Waverley - Okaia 1, 9.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	4.006756E-7
