Ohae 3 Details
| Property | Value |
|---|---|
| Rupture Count | 71 |
| Ruptures Above Sect Min Mag | 70 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.52, 8.17] |
| Length Range | [8, 415] km |
| Total Rate | 1.243121E-5 /yr |
| Multi-Fault Rate | 1.243121E-5 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

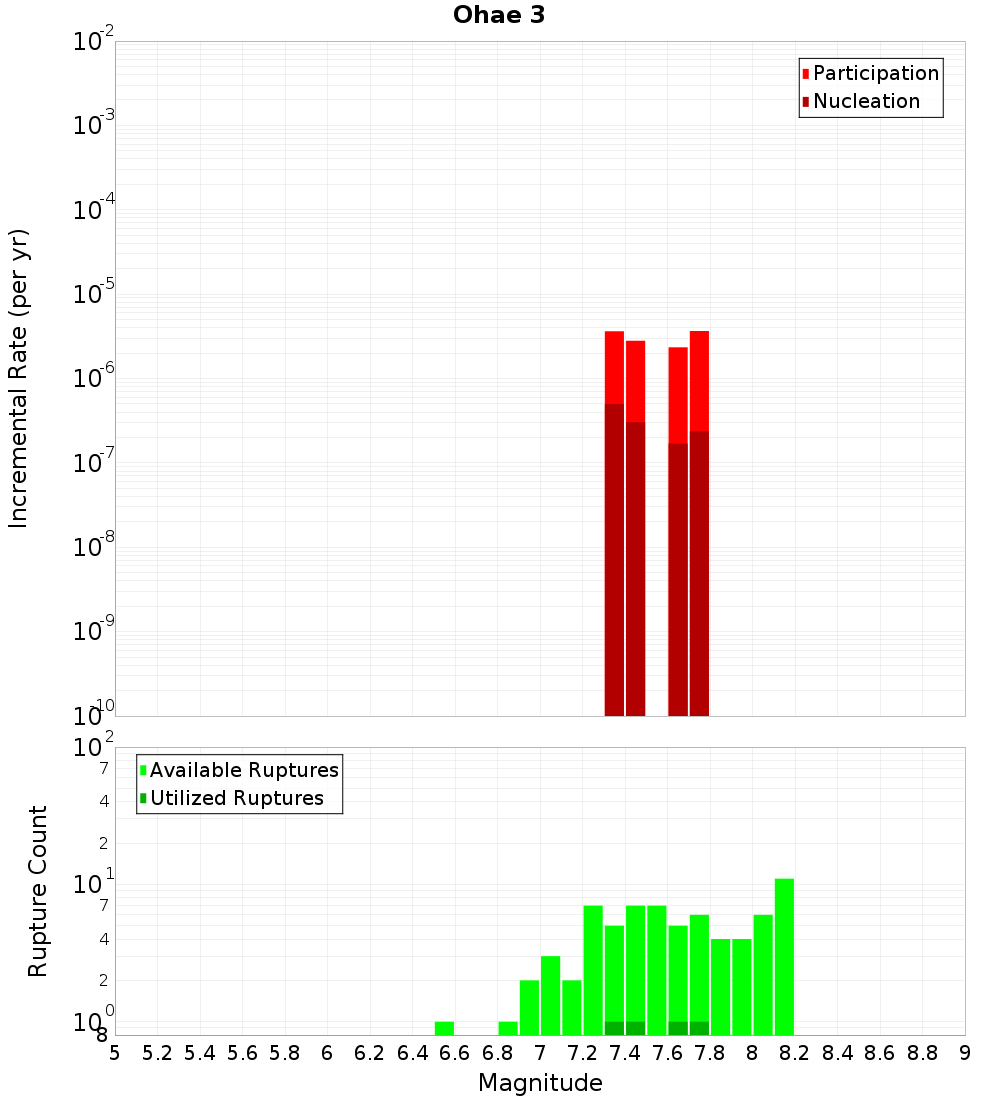

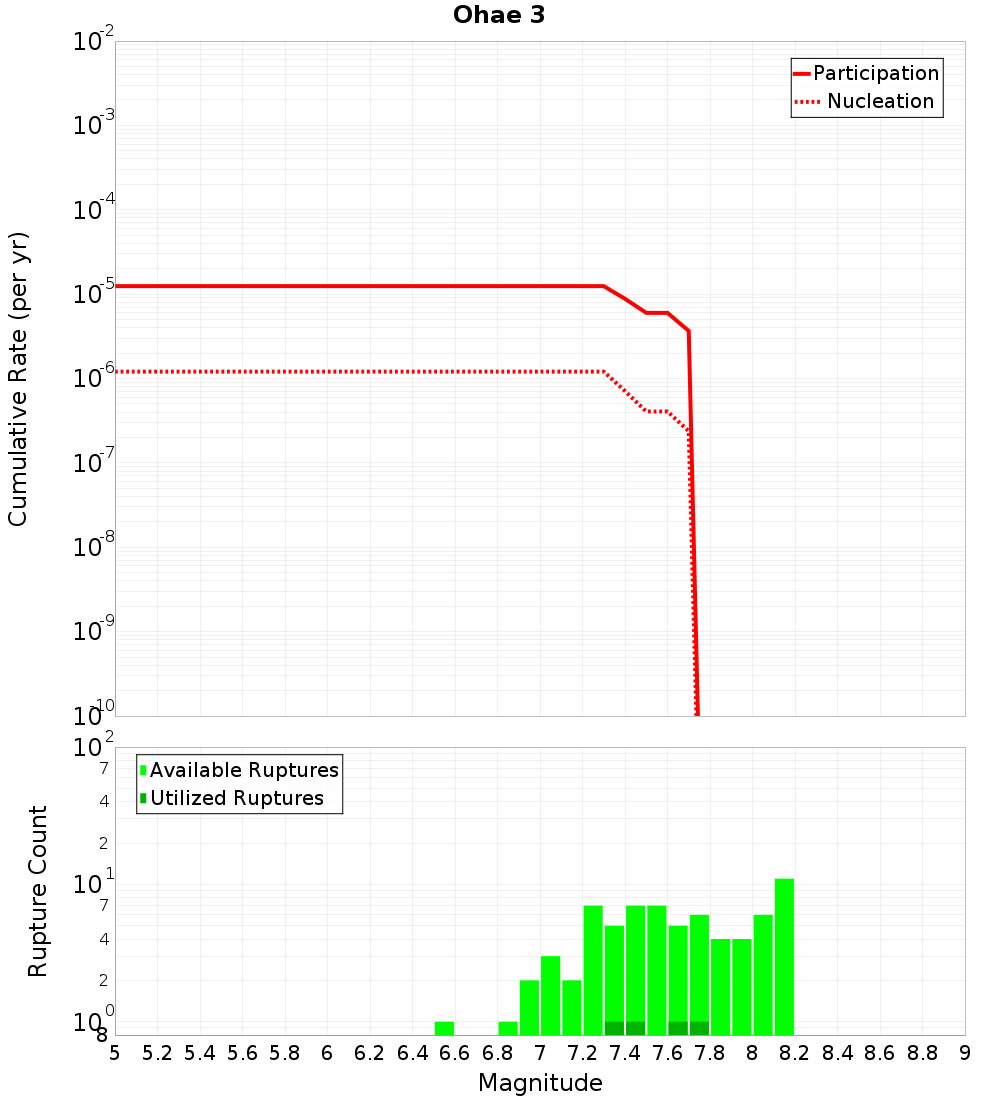

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

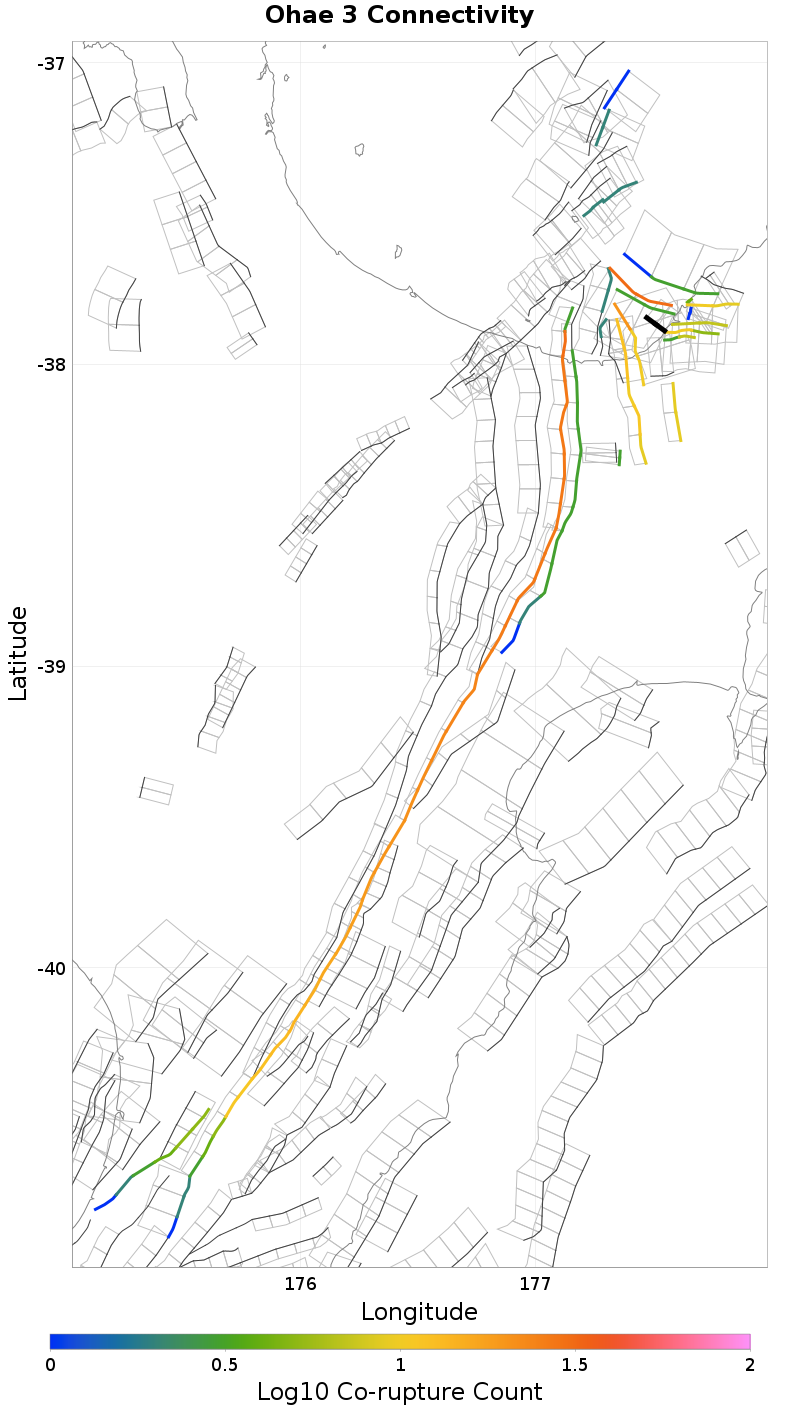

Connectivity
 |  |
|---|
Nearby Sections
Raukumara 17, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 3.629716E-6 |
Opape 1, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 2.341982E-6 |
Ohae 2, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 3.656957E-6 |
Ohae 1, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 0.0 |
Raukumara 18, 0.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 5.1445363E-6 |
Motu River, 2.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 2.8025545E-6 |
Kereu, 2.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 21, 5.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
Raukumara 16, 8.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 25, 9.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 3.629716E-6 |
Raukumara 20, 9.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Kotare - Moutuhora, 10.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 5.9989393E-6 |
Tirohanga, 11.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hariki, 13.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 3.629716E-6 |
Opotiki 2, 13.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 3.656957E-6 |
Opotiki 3, 16.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 3.656957E-6 |
Raukumara 24, 17.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu, 19.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 5.1445363E-6 |
