Pukerua - Shepherds Gully: 1 Details

PropertyValue
Rupture Count1,445
Ruptures Above Sect Min Mag1,442
Ruptures w/ Nonzero Rates40
Magnitude Range[6.37, 8.28]
Length Range[7, 536] km
Total Rate3.534079E-4 /yr
Multi-Fault Rate3.534079E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults58

Table Of Contents

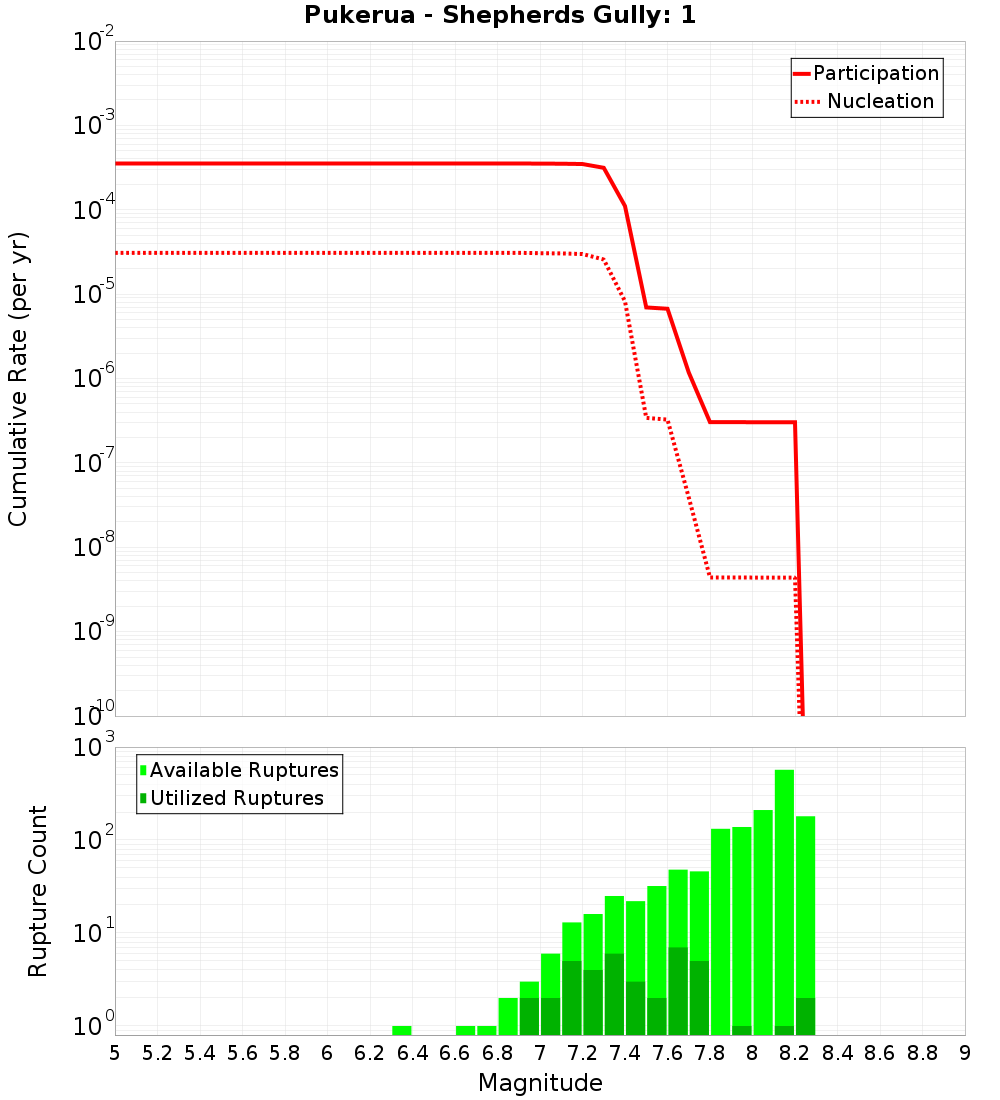

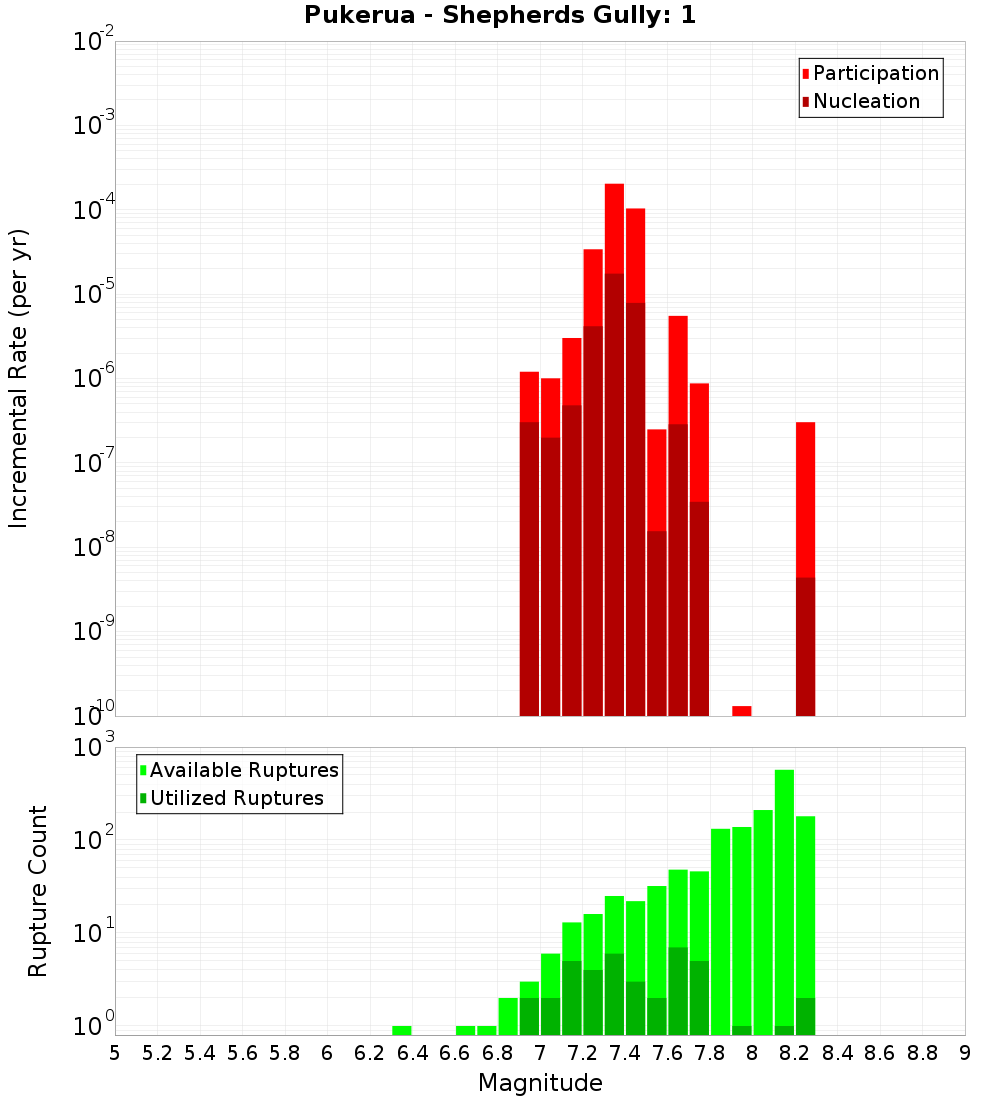

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

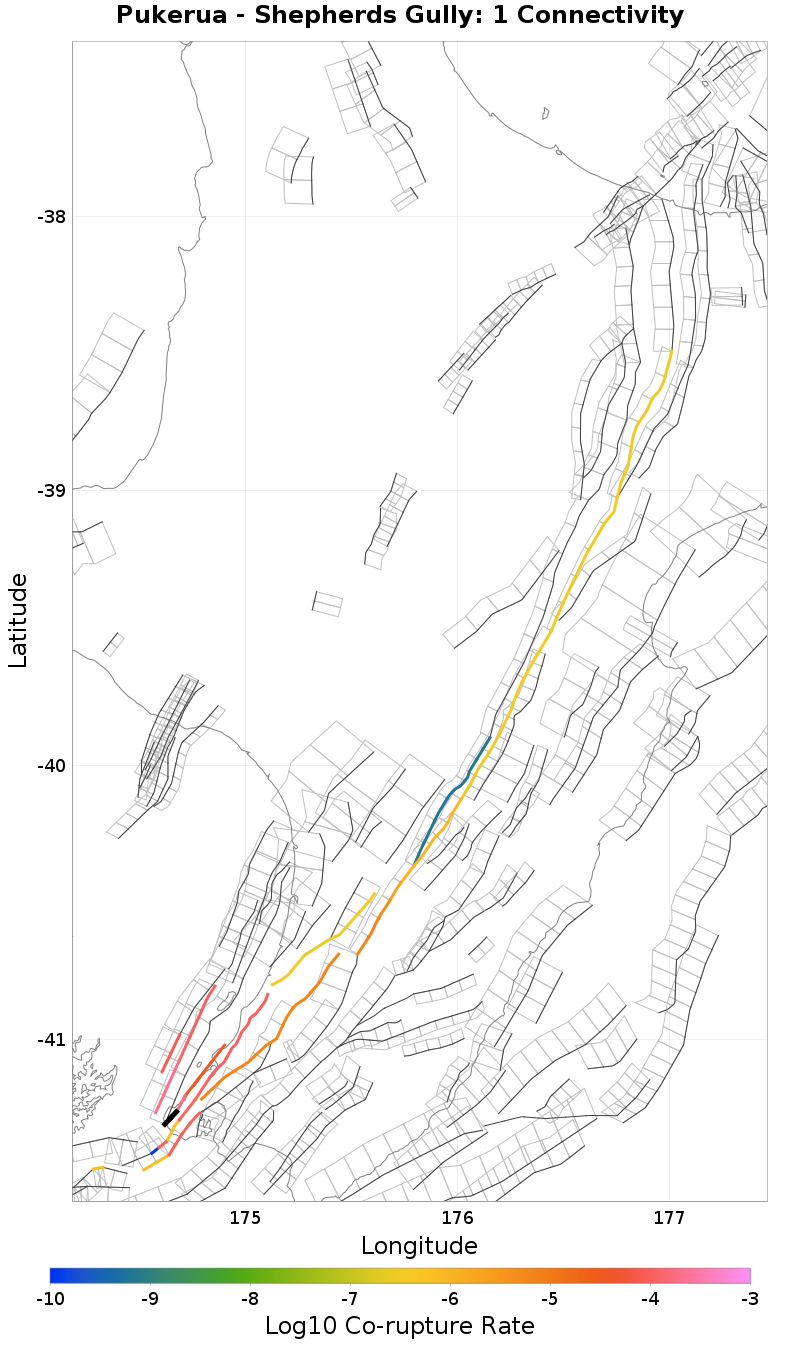

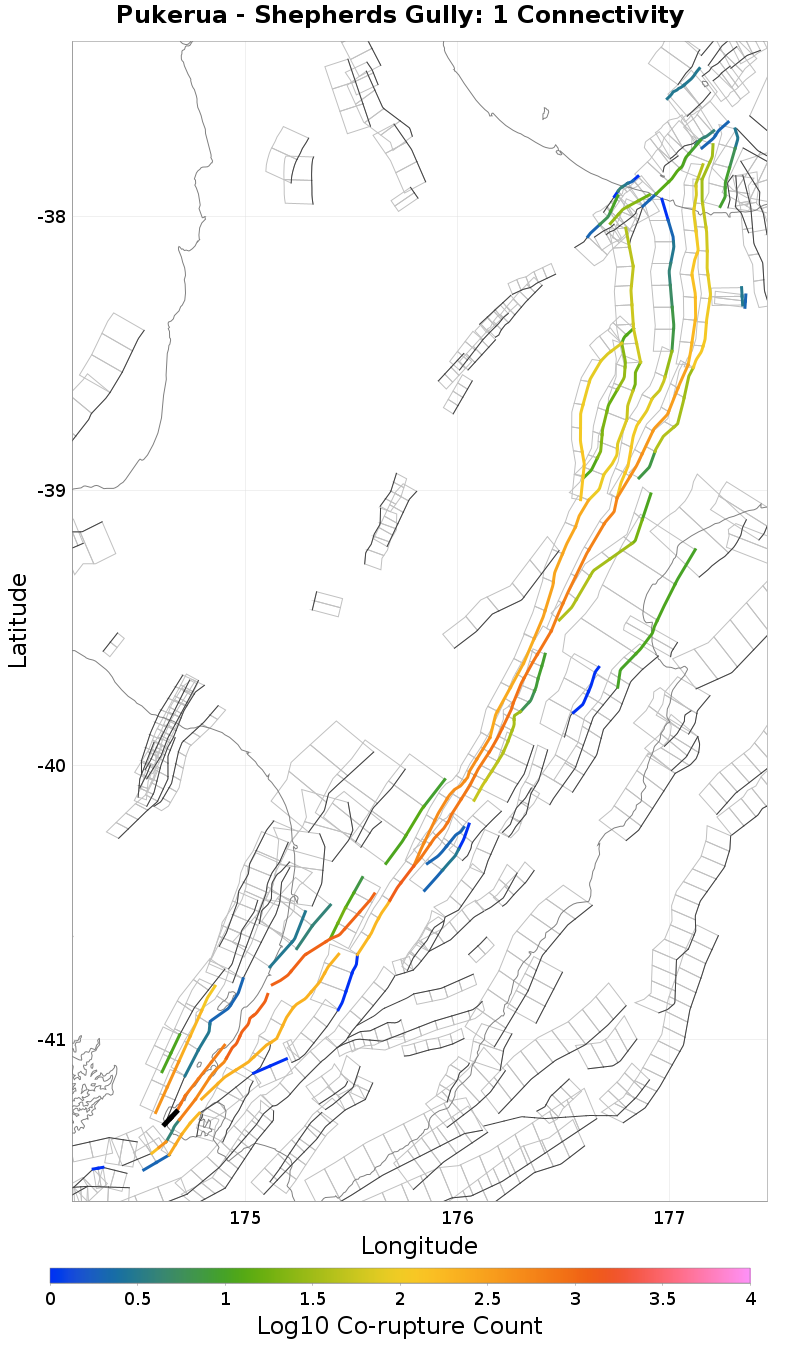

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Shepherds Gully - Mana, 0 km awayWellington Hutt Valley: 4, 9.04 km away
Pukerua - Shepherds Gully: 2, 0 km awayOhariu South 1, 9.15 km away
Ohariu, 2.91 km awayWhitemans Valley, 9.6 km away
Ohariu South 2, 4.05 km awayAotea - Evans Bay, 9.94 km away
Wellington Hutt Valley: 2, 4.05 km awayMoonshine, 11.23 km away
Okupe 1, 5.82 km awayWairau 3, 13.01 km away
Wellington Hutt Valley: 1, 5.94 km awayOtaheke South, 14.97 km away
Wellington Hutt Valley: 3, 7.12 km awayFisherman 1, 17.2 km away
Pukerua - Shepherds Gully: 3, 7.39 km away

Shepherds Gully - Mana, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count806
Co-rupture Rate1.7553905E-4

Ohariu, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count1,286
Co-rupture Rate1.15289404E-4

Ohariu South 2, 4.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count412
Co-rupture Rate1.03750346E-4

Wellington Hutt Valley: 2, 4.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count258
Co-rupture Rate1.03750244E-4

Okupe 1, 5.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count412
Co-rupture Rate2.8400996E-4

Wellington Hutt Valley: 1, 5.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate6.9335573E-7

Wellington Hutt Valley: 3, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count185
Co-rupture Rate1.03750244E-4

Pukerua - Shepherds Gully: 3, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count676
Co-rupture Rate3.681666E-5

Wellington Hutt Valley: 4, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 1, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 9.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 9.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate6.6466114E-6

Wairau 3, 13.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Fisherman 1, 17.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate8.61377E-5
