Ranfurly Details

PropertyValue
Rupture Count319
Ruptures Above Sect Min Mag319
Ruptures w/ Nonzero Rates12
Magnitude Range[7.01, 8.10]
Length Range[24, 266] km
Total Rate1.6567603E-5 /yr
Multi-Fault Rate1.6567603E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults20

Table Of Contents

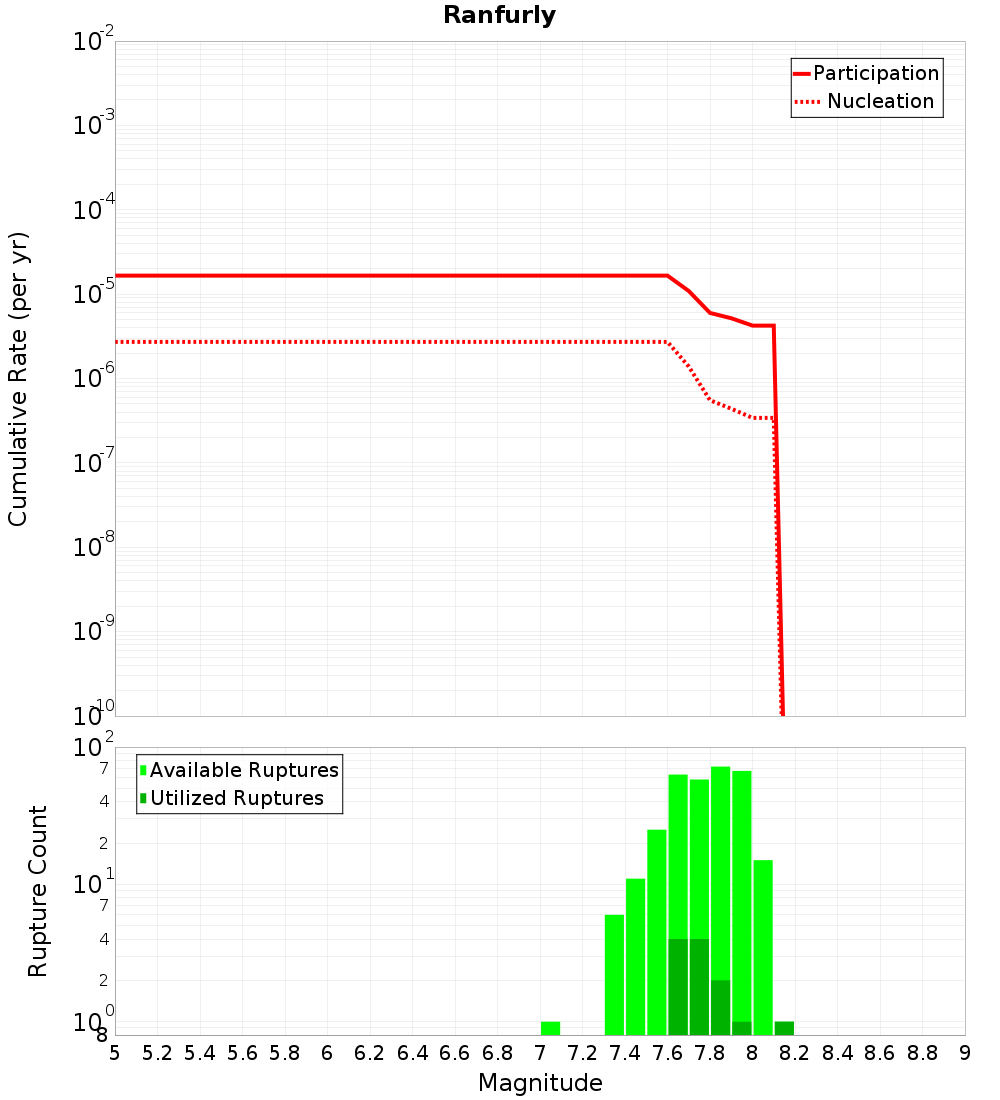

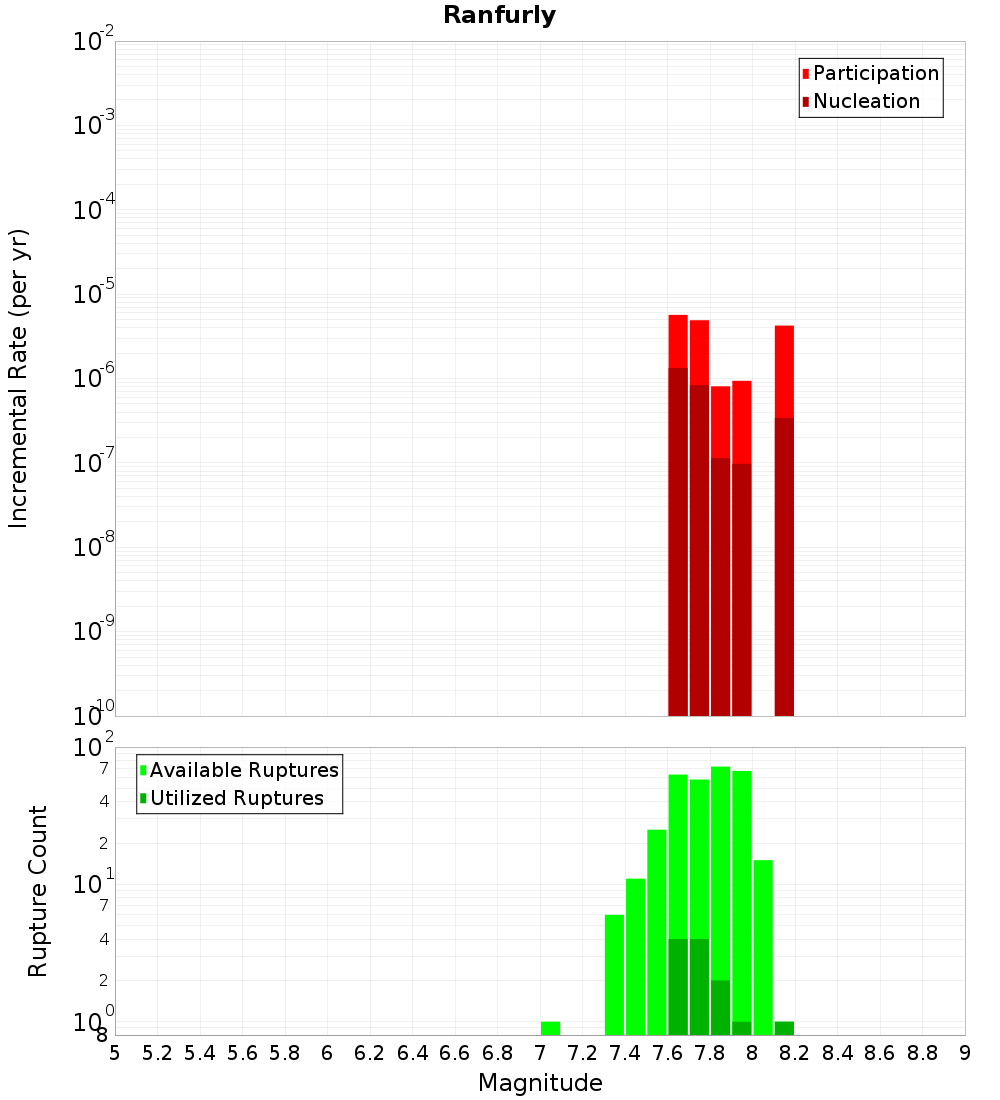

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

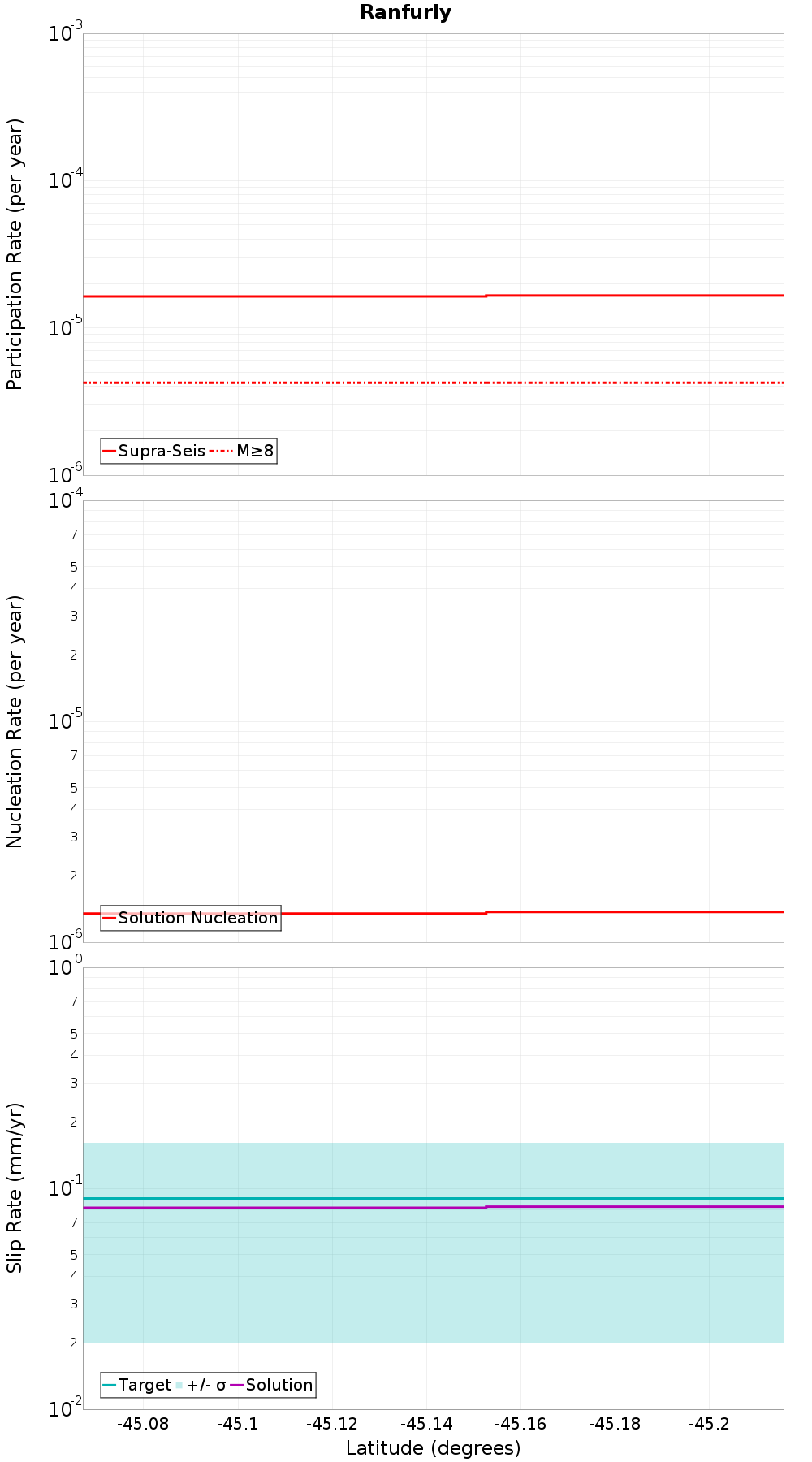

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

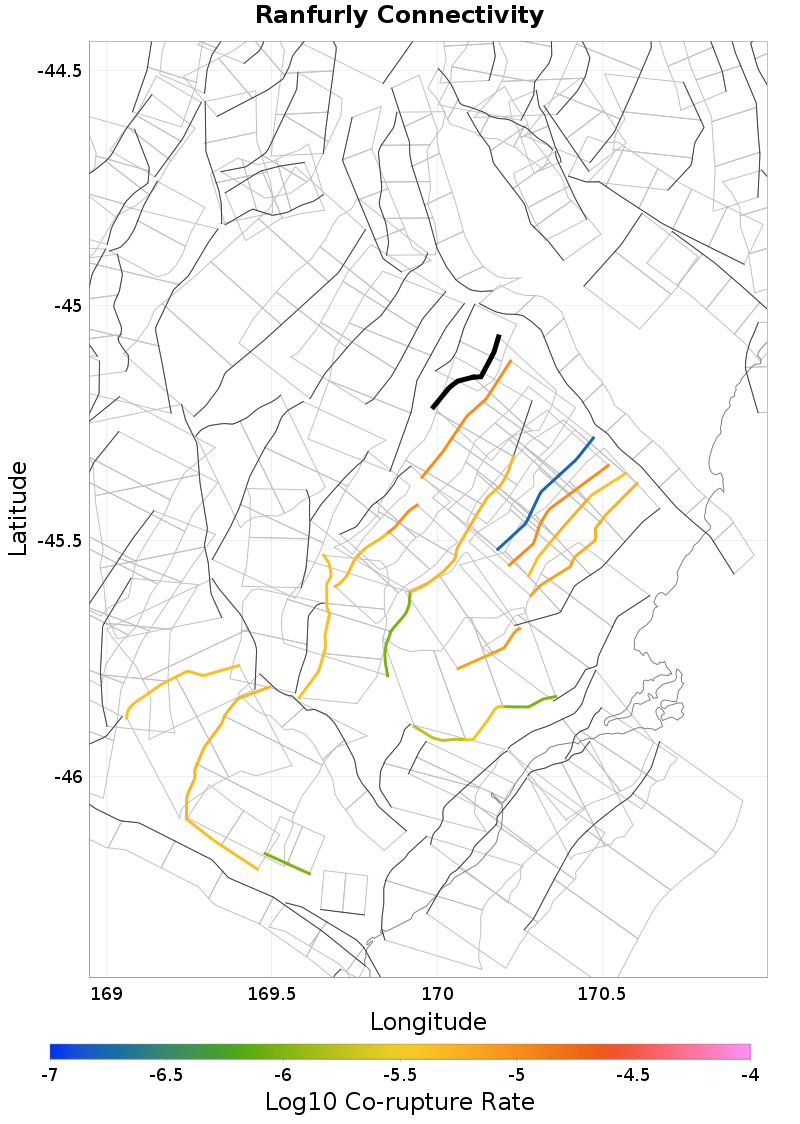

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Billys Ridge, 0.11 km away
Hyde North, 0.19 km away
Horse Flat, 0.22 km away
Murphys Creek, 1.24 km away
Waipiata, 2.79 km away
Cross Eden, 4.43 km away
Gimmerburn, 4.98 km away
Waihemo, 5.63 km away
Dunback Hill, 5.98 km away
Hawkdun, 10.99 km away
Garibaldi, 12.32 km away
Flat Stream - Glenpark, 13.41 km away
Pylap, 13.82 km away
Long Valley, 18.55 km away

Billys Ridge, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count148
Co-rupture Rate1.01538135E-5

Hyde North, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count158
Co-rupture Rate5.177986E-6

Horse Flat, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate1.6782528E-7

Murphys Creek, 1.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate5.5764463E-6

Waipiata, 2.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count171
Co-rupture Rate9.821795E-6

Cross Eden, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gimmerburn, 4.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate6.7898623E-6

Hawkdun, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 13.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Pylap, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate0.0

Long Valley, 18.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
