Ridge Road - Okaia 2 Details

Property	Value
Rupture Count	618
Ruptures Above Sect Min Mag	506
Ruptures w/ Nonzero Rates	18
Magnitude Range	[6.25, 7.33]
Length Range	[10, 123] km
Total Rate	1.3359991E-4 /yr
Multi-Fault Rate	1.3359991E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

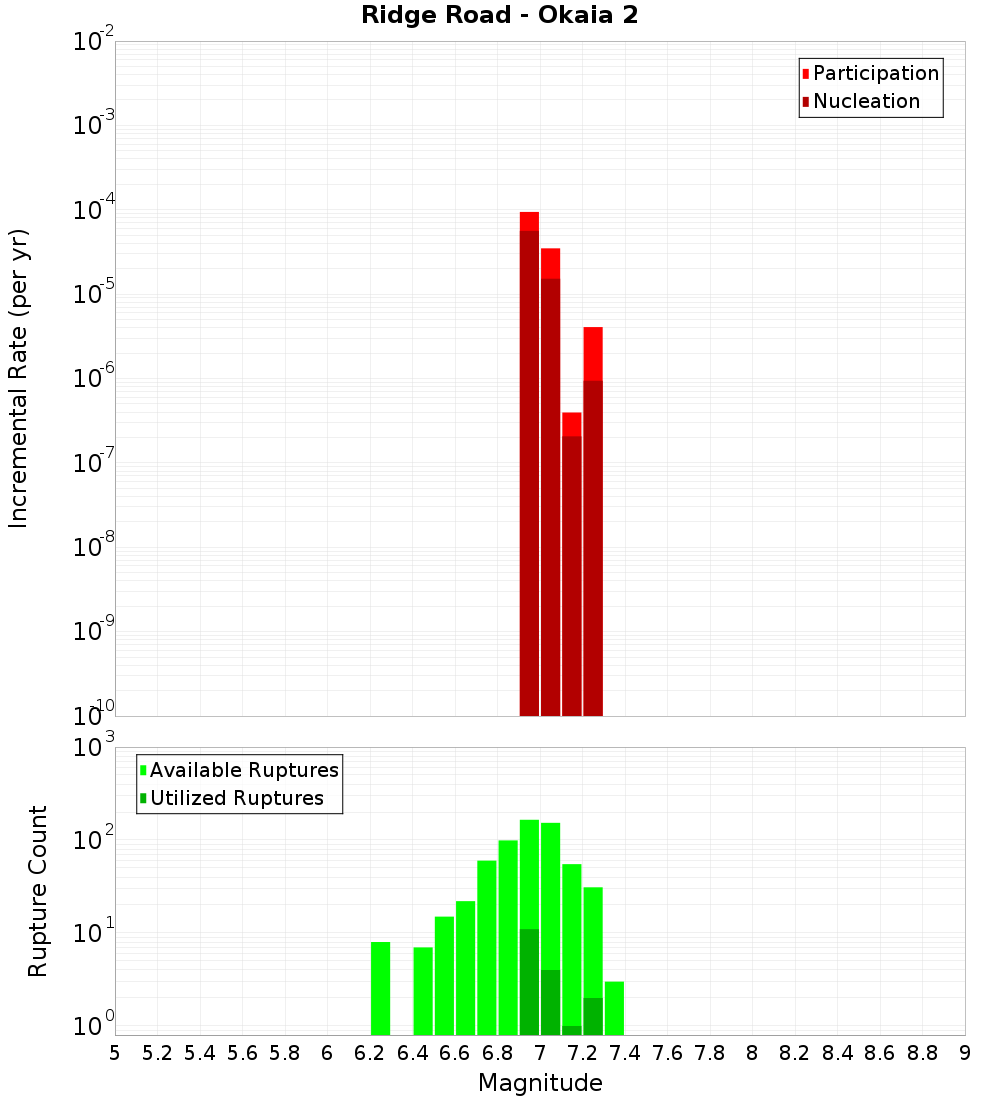

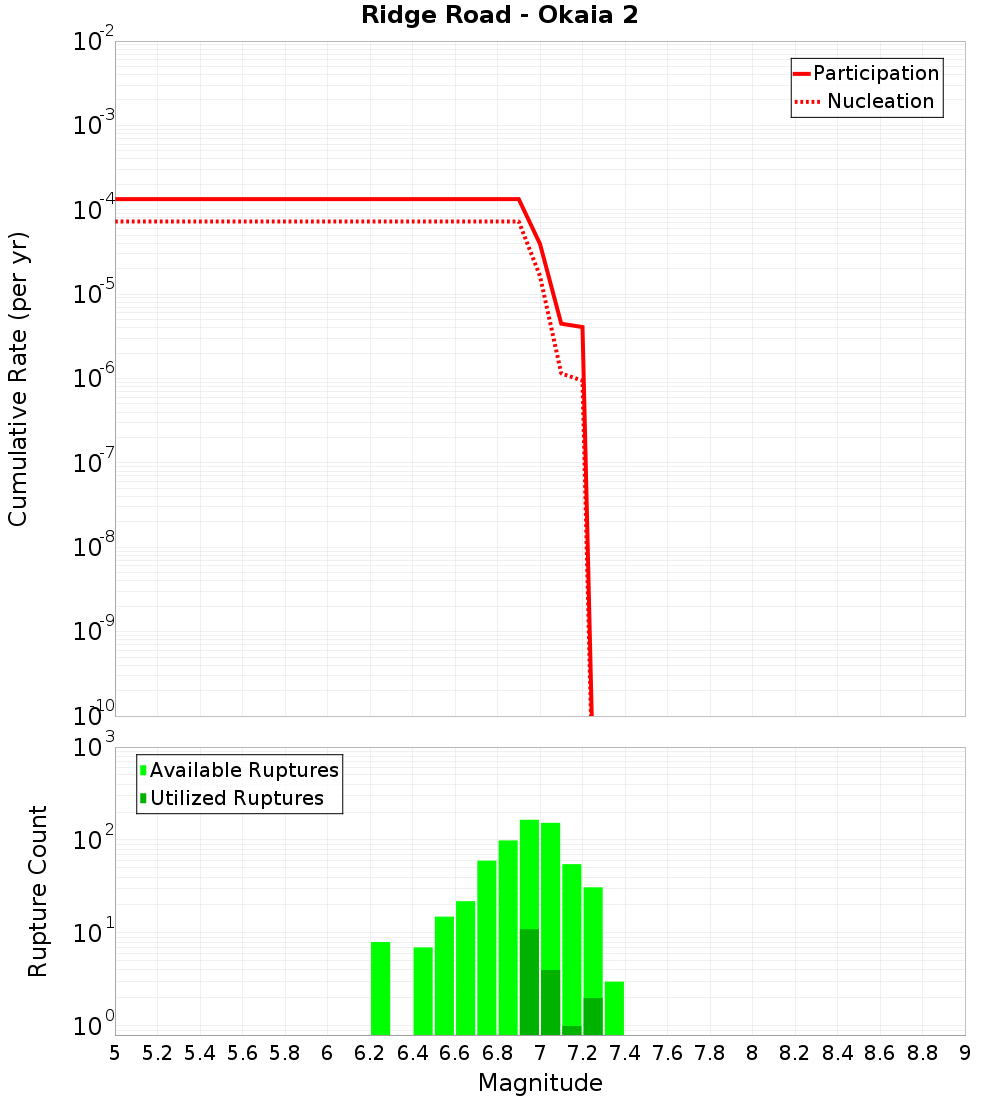

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

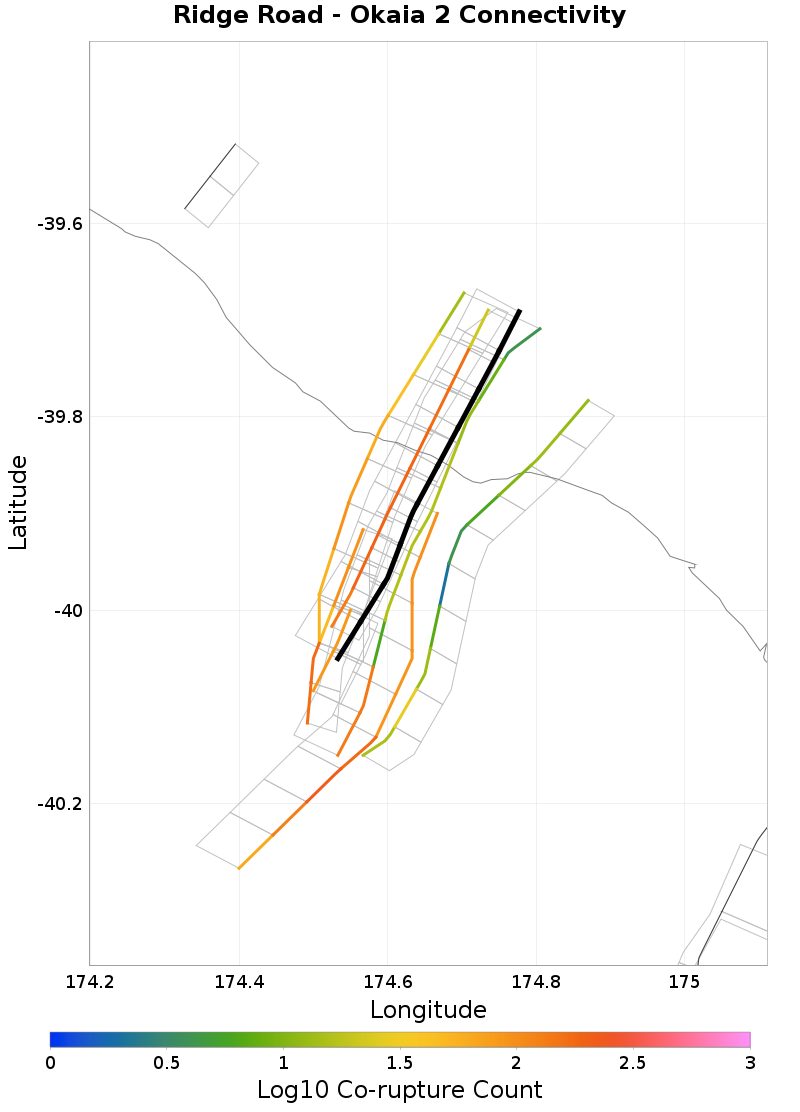

Connectivity

Nearby Sections

Fault Section
Waverley - Okaia 1, 0.09 km away
Okaia 3, 0.28 km away
Moumahaki - Okaia 4, 0.31 km away
Okaia 5, 0.31 km away
Waitotara 10 & 11, 0.52 km away
Waitotara 8 & 9, 2.25 km away
Nukumuru - Waitotara 1-6, 5.95 km away

Waverley - Okaia 1, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	101
Co-rupture Rate	1.4716728E-5

Okaia 3, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	84
Co-rupture Rate	9.0646745E-6

Moumahaki - Okaia 4, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	245
Co-rupture Rate	2.3006376E-5

Okaia 5, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	230
Co-rupture Rate	2.0406296E-5

Waitotara 10 & 11, 0.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	157
Co-rupture Rate	2.3900557E-5

Waitotara 8 & 9, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	270
Co-rupture Rate	5.7840574E-5

Nukumuru - Waitotara 1-6, 5.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	3.9524308E-5
