Turi: South Details
| Property | Value |
|---|---|
| Rupture Count | 444 |
| Ruptures Above Sect Min Mag | 441 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.78, 7.91] |
| Length Range | [18, 208] km |
| Total Rate | 1.3495659E-4 /yr |
| Multi-Fault Rate | 4.8309288E-5 /yr (35.80%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

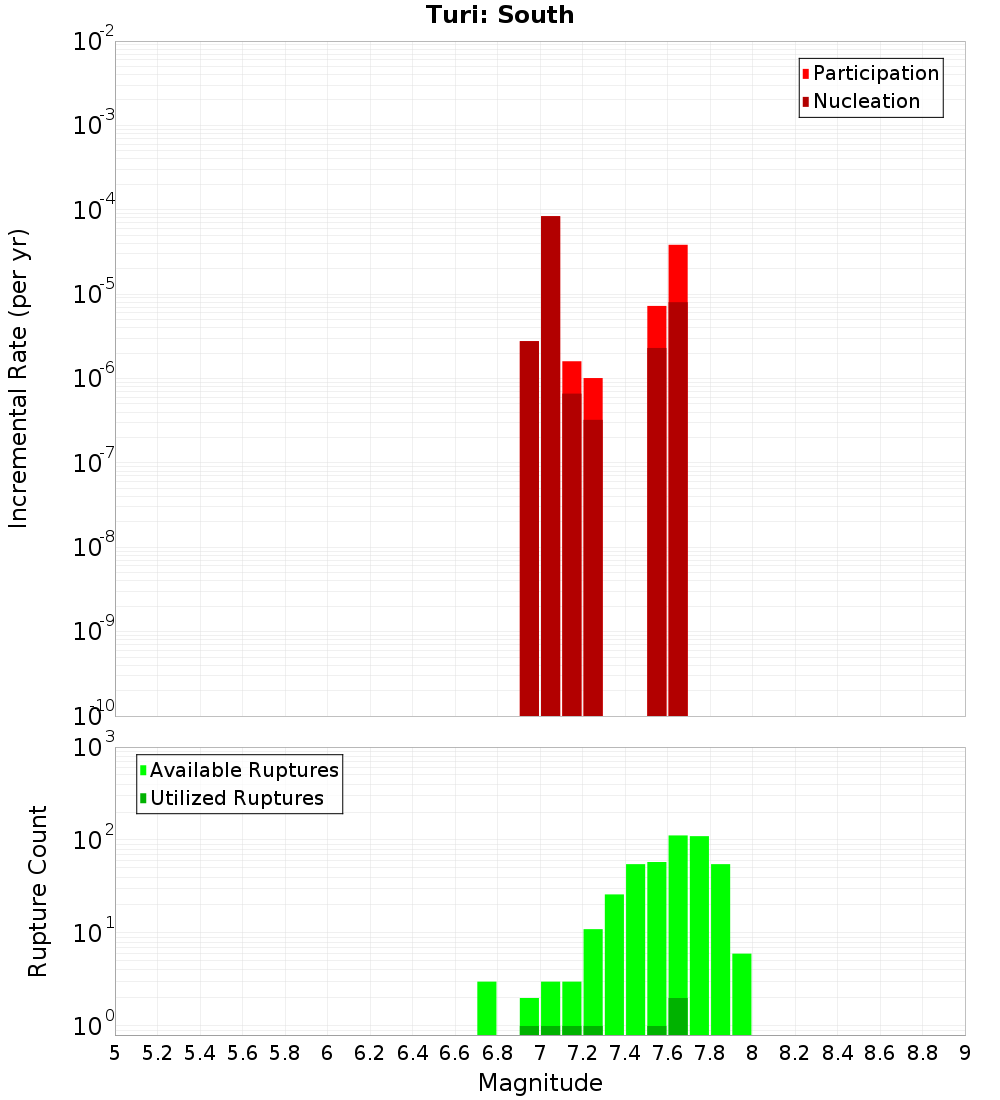

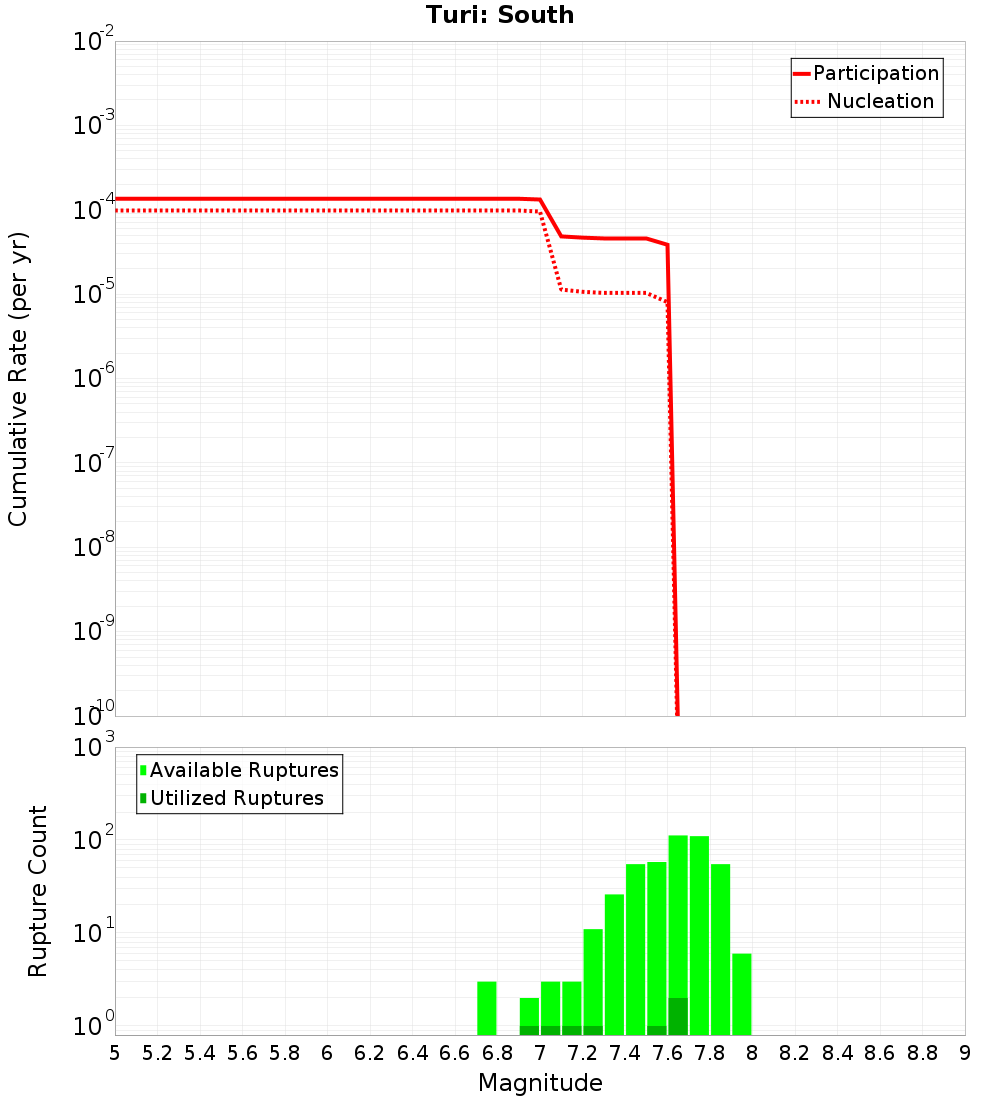

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

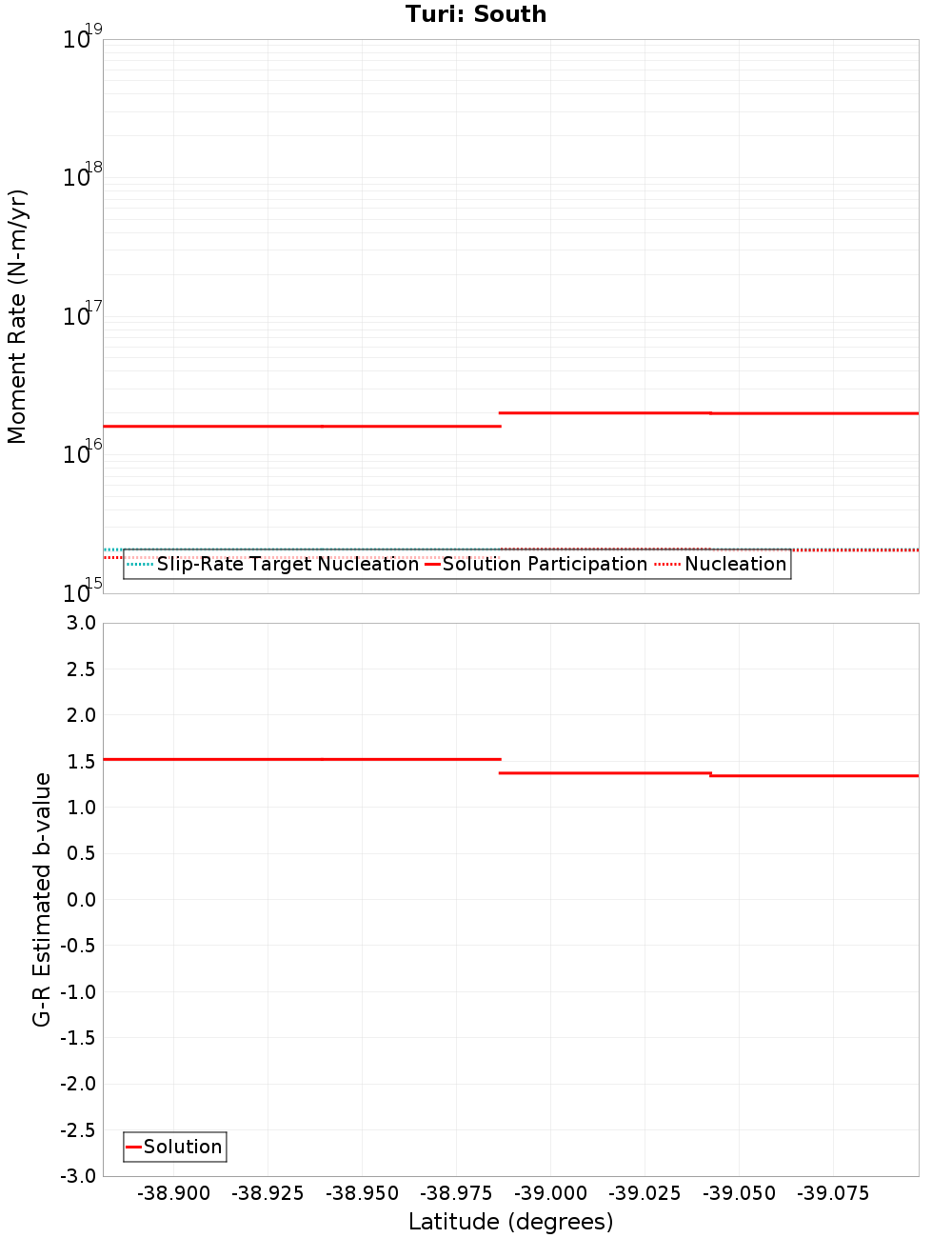

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Turi: Central, 0 km away |
| Parihaka, 4.48 km away |
| Warea, 9.28 km away |
Turi: Central, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 207 |
| Co-rupture Rate | 4.8309288E-5 |
Parihaka, 4.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 94 |
| Co-rupture Rate | 1.3476935E-5 |
Warea, 9.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 420 |
| Co-rupture Rate | 2.4969117E-5 |
