Waimarama 1 & 2 Details

PropertyValue
Rupture Count27
Ruptures Above Sect Min Mag26
Ruptures w/ Nonzero Rates2
Magnitude Range[6.78, 7.49]
Length Range[19, 100] km
Total Rate2.3053632E-4 /yr
Multi-Fault Rate2.3053632E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults6

Table Of Contents

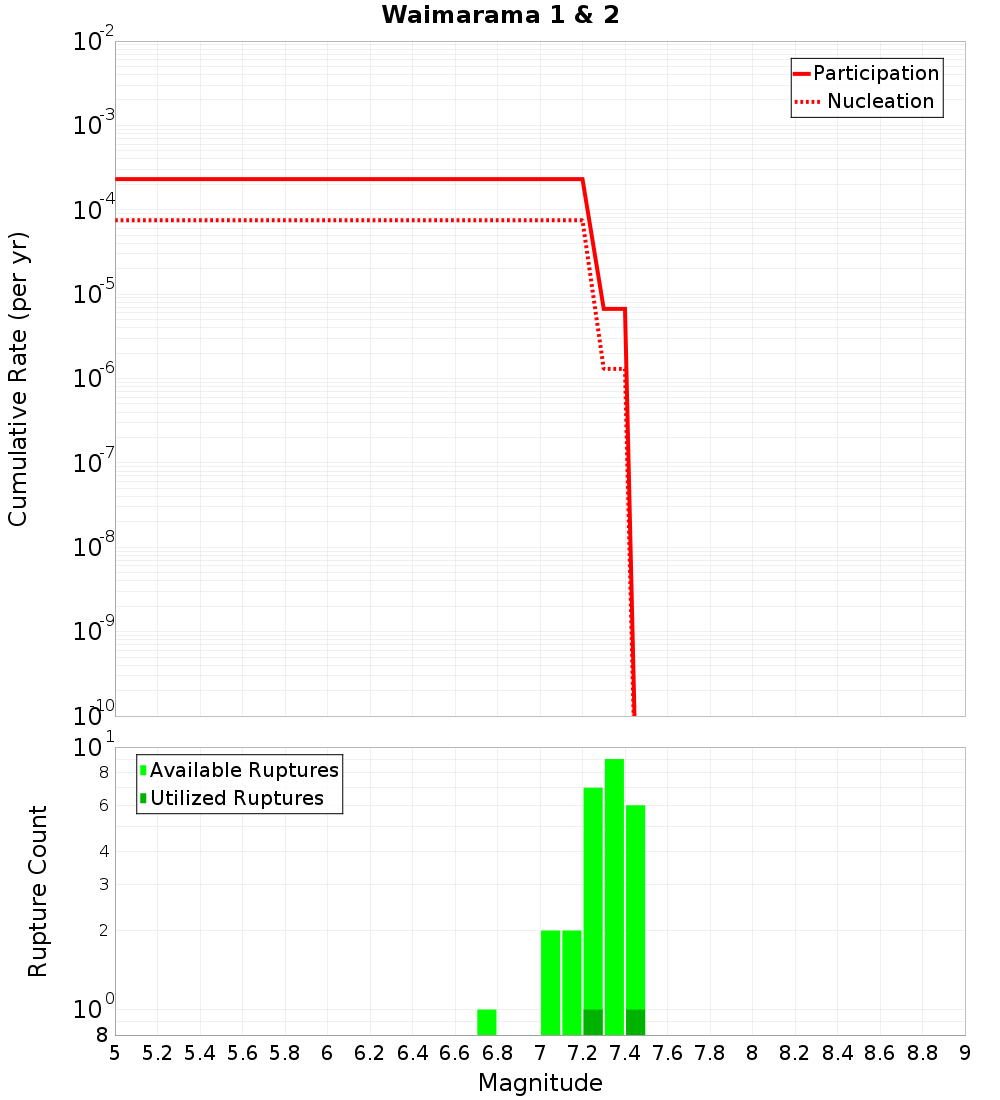

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

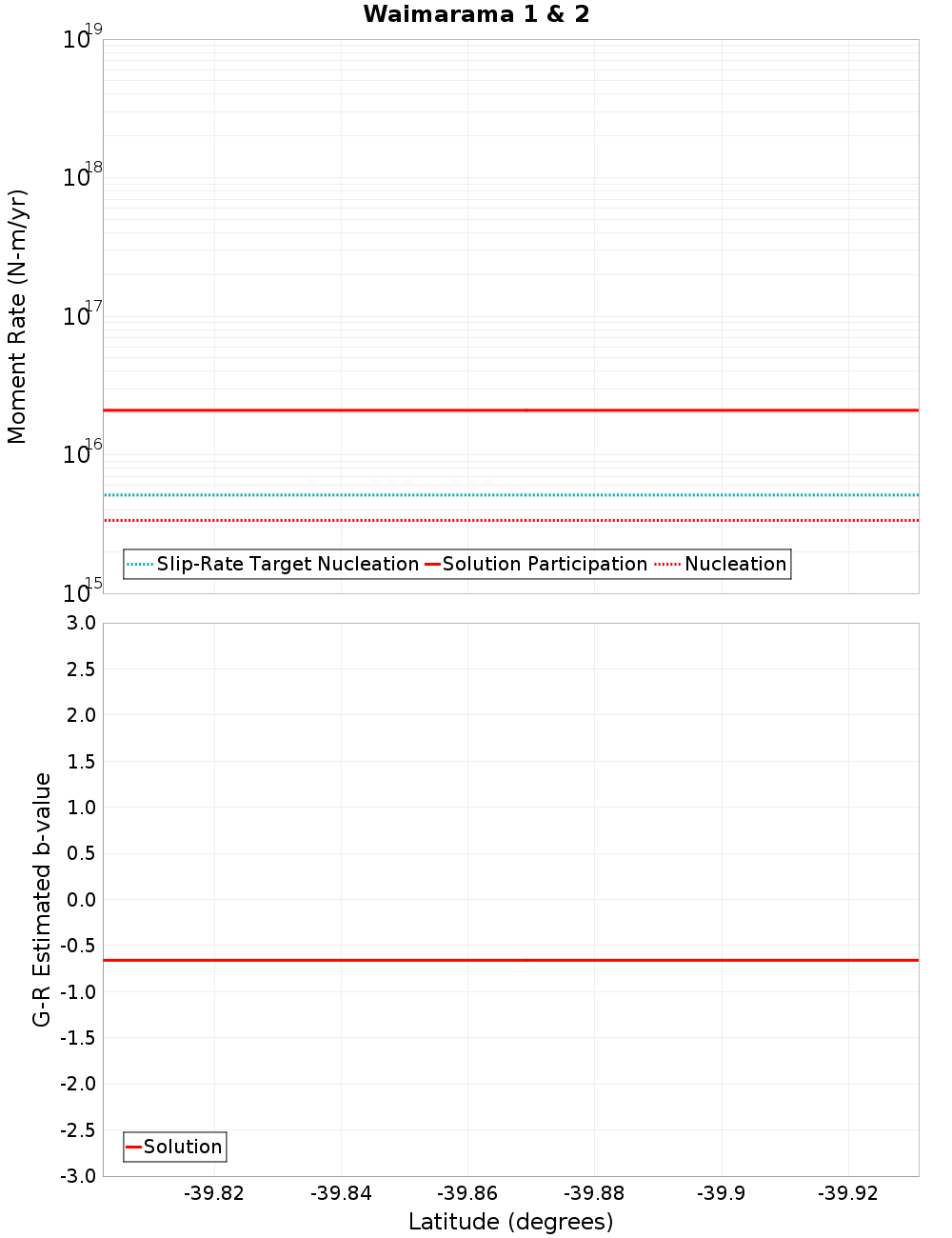

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimarama 3 & 4, 1.47 km away
Kairakau 2, 4.98 km away
Kairakau North, 5.05 km away
Kidnappers Ridge, 8.69 km away
Kairakau South, 8.9 km away
Tukituki Thrust, 13.11 km away
Hawke Bay 8, 17.47 km away
Waipukurau - Poukawa, 18.75 km away
Awanui, 19.68 km away

Waimarama 3 & 4, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate6.676115E-6

Kairakau 2, 4.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Kairakau North, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate2.2386019E-4

Kidnappers Ridge, 8.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate6.676115E-6

Kairakau South, 8.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate2.2386019E-4

Tukituki Thrust, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 8, 17.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipukurau - Poukawa, 18.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 19.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
