Waitahuna 2 Details

PropertyValue
Rupture Count6
Ruptures Above Sect Min Mag5
Ruptures w/ Nonzero Rates1
Magnitude Range[6.65, 7.85]
Length Range[9, 148] km
Total Rate2.230481E-5 /yr
Multi-Fault Rate2.230481E-5 /yr (100.00%)
Directly-Connected Faults1
All Co-Rupturing Faults5

Table Of Contents

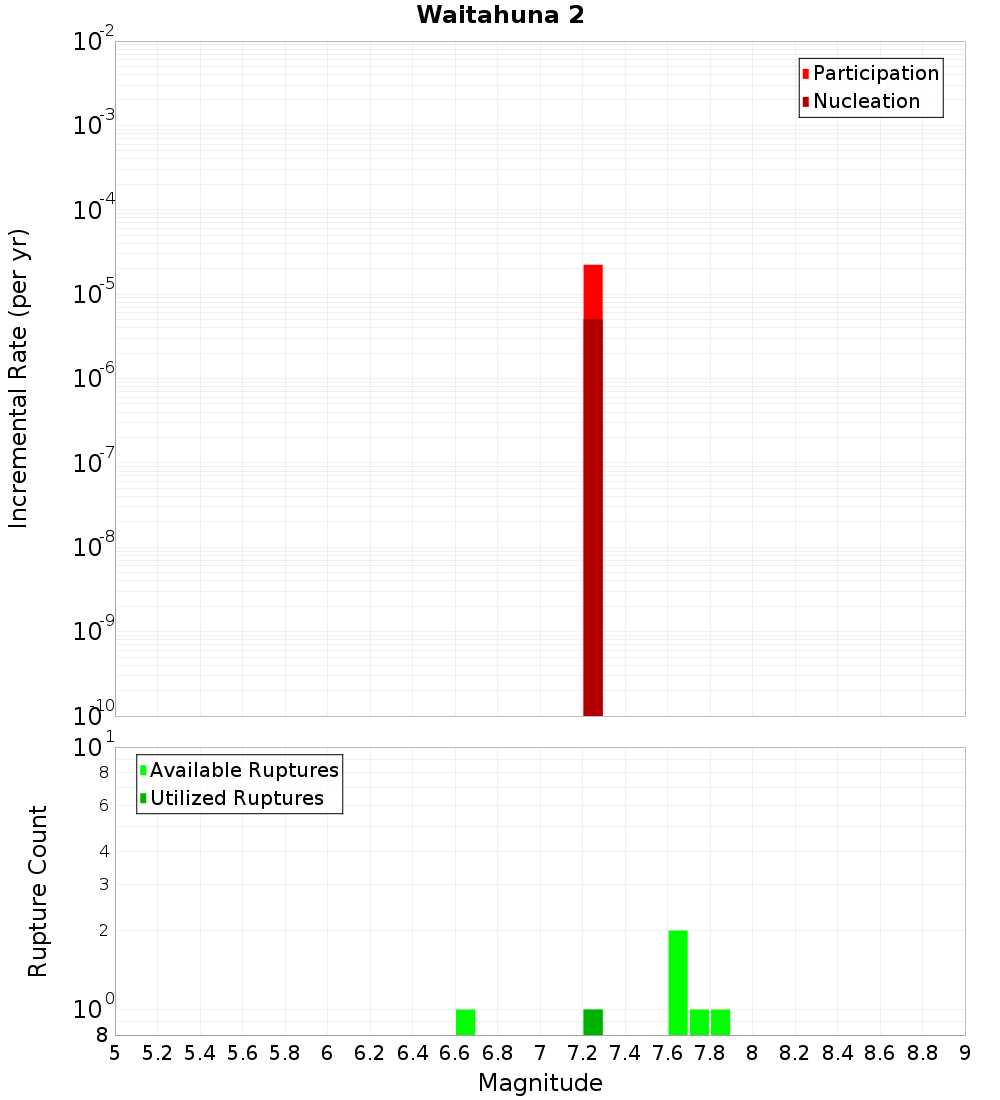

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

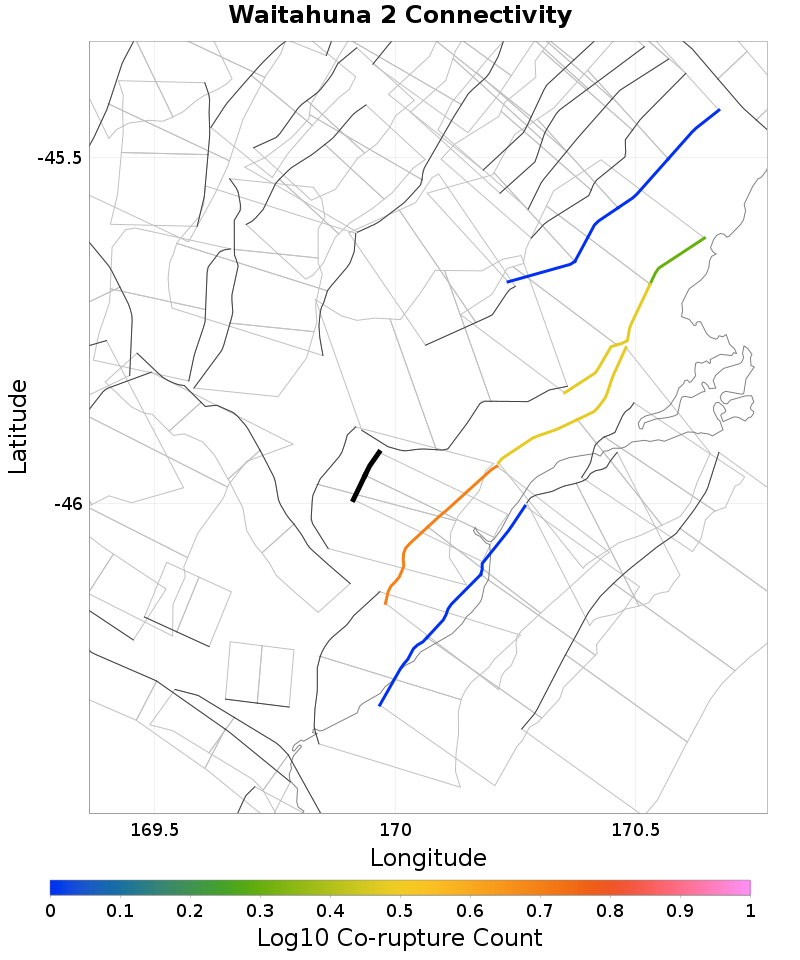

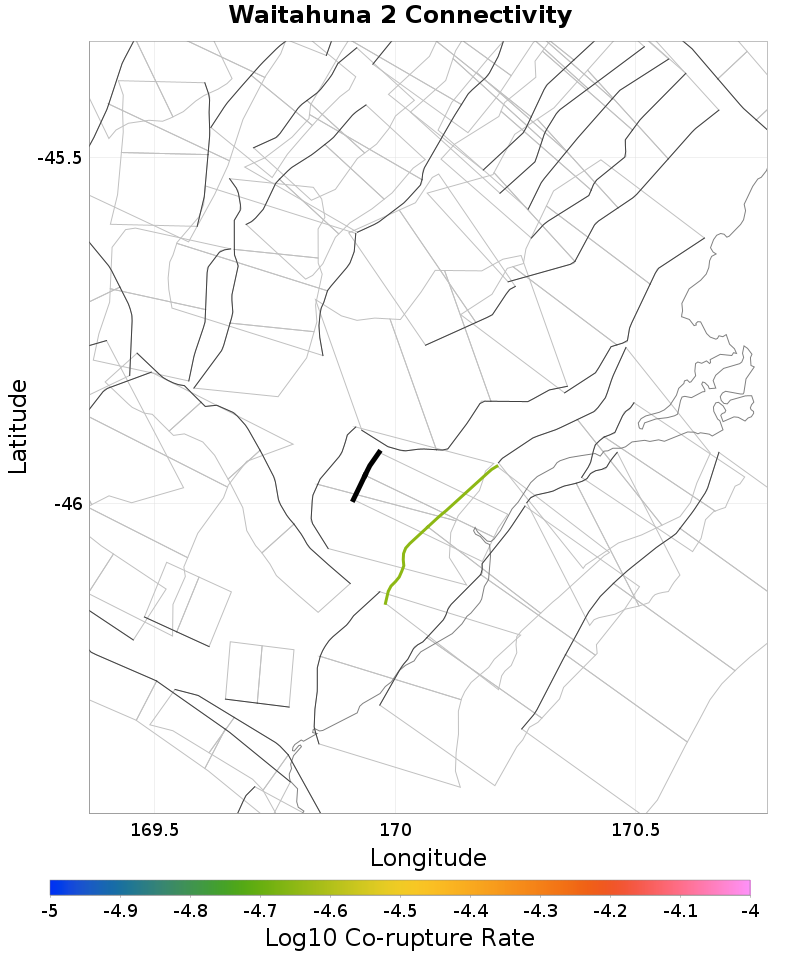

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maungatua - North Taieri, 1.55 km away
Waitahuna 1, 3.63 km away
Titri Central, 8.3 km away
Tuapeka, 10.05 km away
Titri South, 11.33 km away
Titri North, 11.7 km away
Green Island, 16.13 km away
Akatore, 16.32 km away
Hyde South - The Twins, 18 km away
Nichols Rock, 18.79 km away

Maungatua - North Taieri, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 3.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri Central, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate2.230481E-5

Tuapeka, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri South, 11.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri North, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Green Island, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 16.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hyde South - The Twins, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 18.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
