Waitotara 10 & 11 Details

Property	Value
Rupture Count	533
Ruptures Above Sect Min Mag	435
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.29, 7.33]
Length Range	[11, 123] km
Total Rate	1.282208E-4 /yr
Multi-Fault Rate	1.282208E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

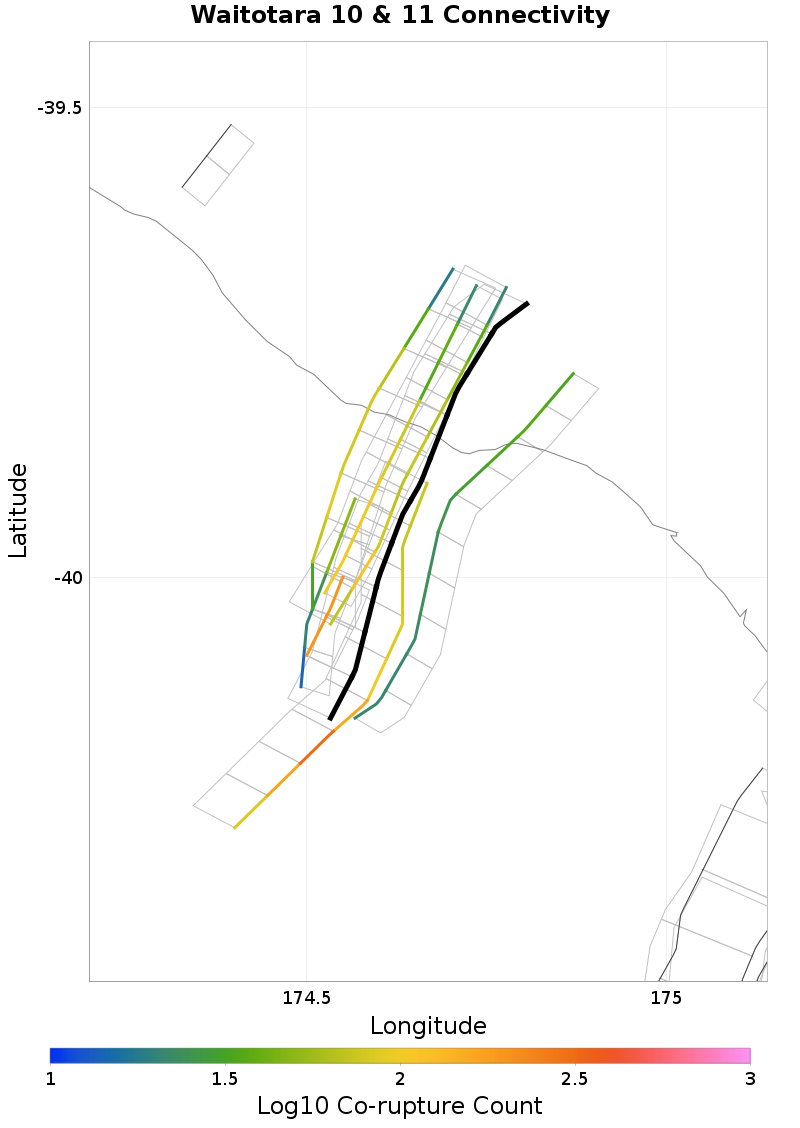

Connectivity

Nearby Sections

Fault Section
Waverley - Okaia 1, 0.11 km away
Okaia 5, 0.27 km away
Okaia 3, 0.29 km away
Moumahaki - Okaia 4, 0.33 km away
Ridge Road - Okaia 2, 0.52 km away
Waitotara 8 & 9, 0.72 km away
Nukumuru - Waitotara 1-6, 2.6 km away

Waverley - Okaia 1, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	108
Co-rupture Rate	0.0

Okaia 5, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	49
Co-rupture Rate	9.977467E-6

Okaia 3, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	199
Co-rupture Rate	5.4460274E-6

Moumahaki - Okaia 4, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	117
Co-rupture Rate	9.222561E-6

Ridge Road - Okaia 2, 0.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	141
Co-rupture Rate	1.9831989E-5

Waitotara 8 & 9, 0.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	348
Co-rupture Rate	9.889801E-5

Nukumuru - Waitotara 1-6, 2.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODMuMHNaN2Z2
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	9.222561E-6
