Alpine: Jacksons to Kaniere Details

PropertyValue
Rupture Count161,340
Ruptures Above Sect Min Mag161,324
Ruptures w/ Nonzero Rates3,991
Magnitude Range[6.92, 8.54]
Length Range[22, 1,156] km
Total Rate0.004069965 /yr
Multi-Fault Rate0.0040650843 /yr (99.88%)
Directly-Connected Faults10
All Co-Rupturing Faults108

Table Of Contents

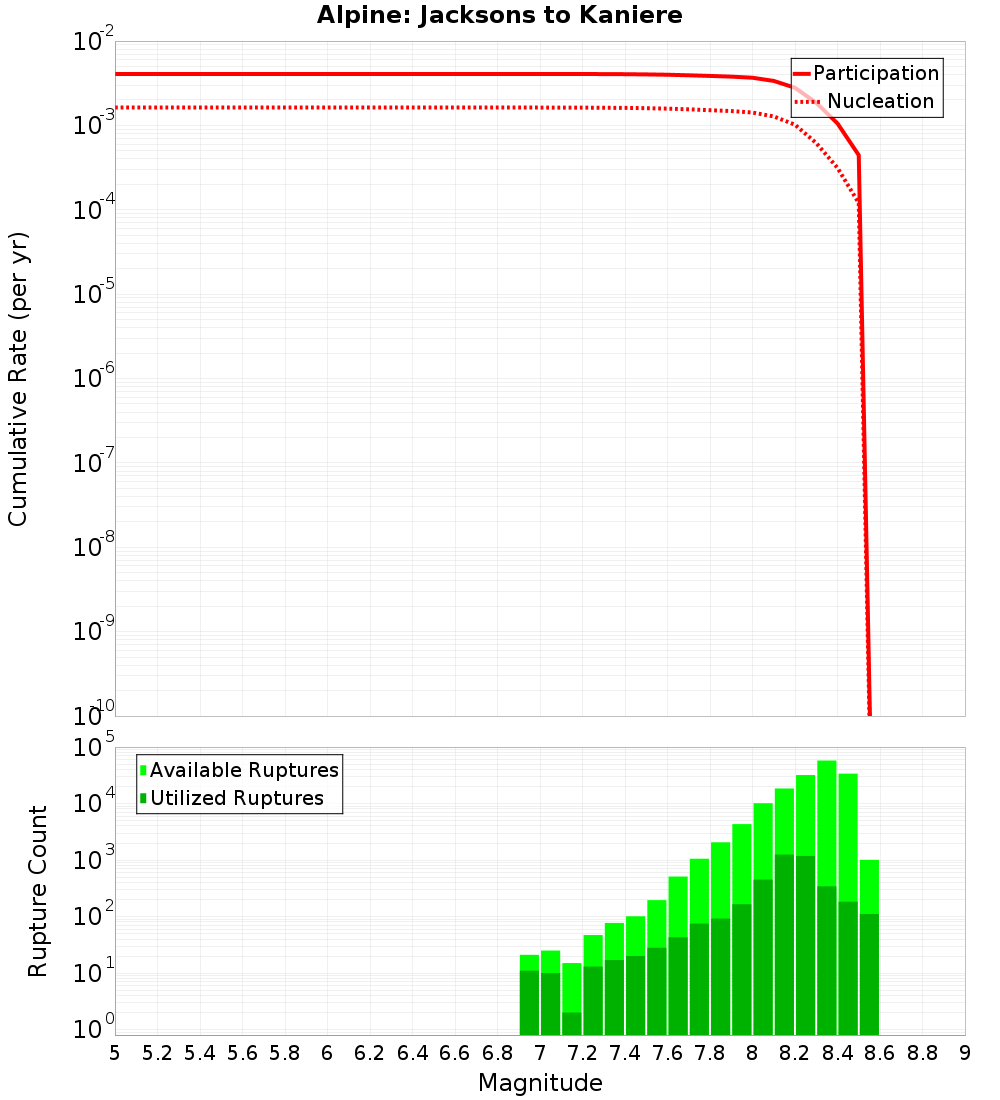

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

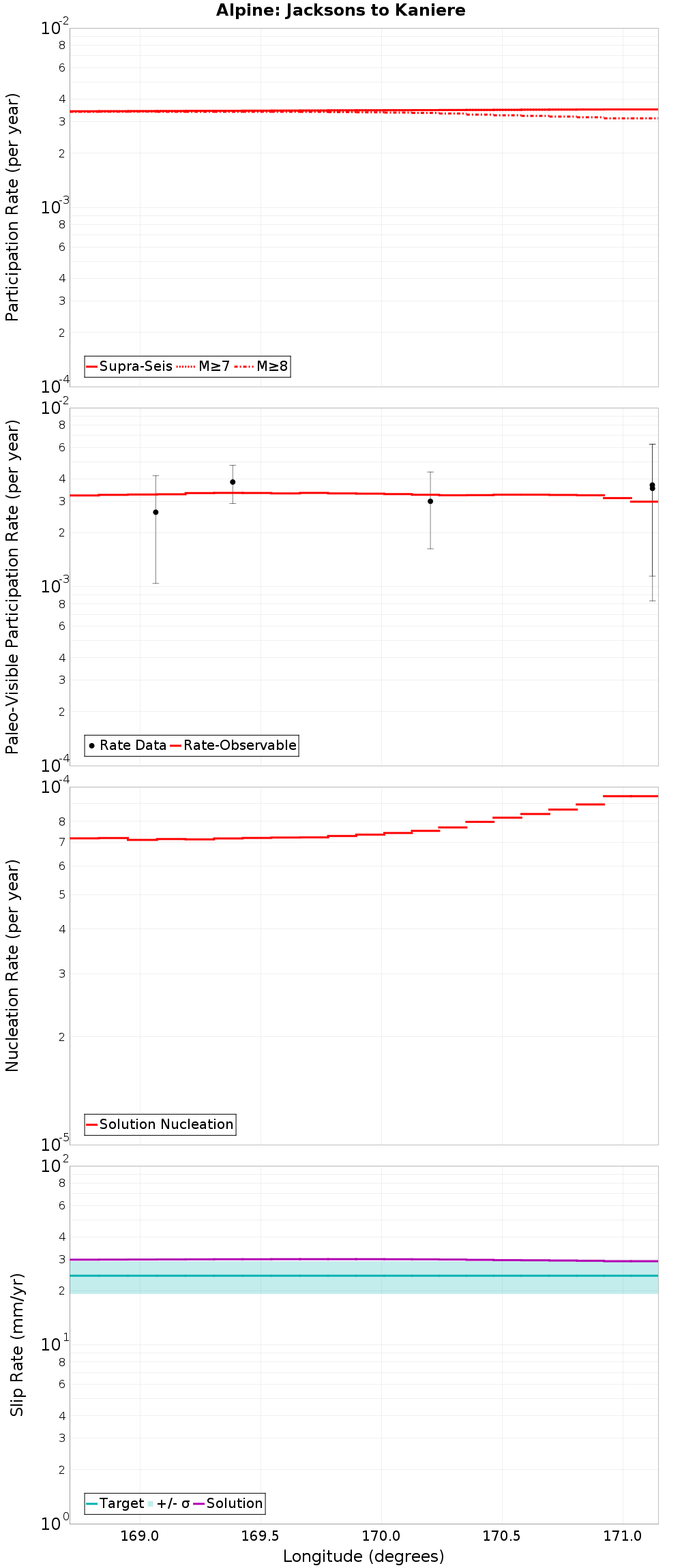

Along-Strike Values

(top)

Along-strike plot

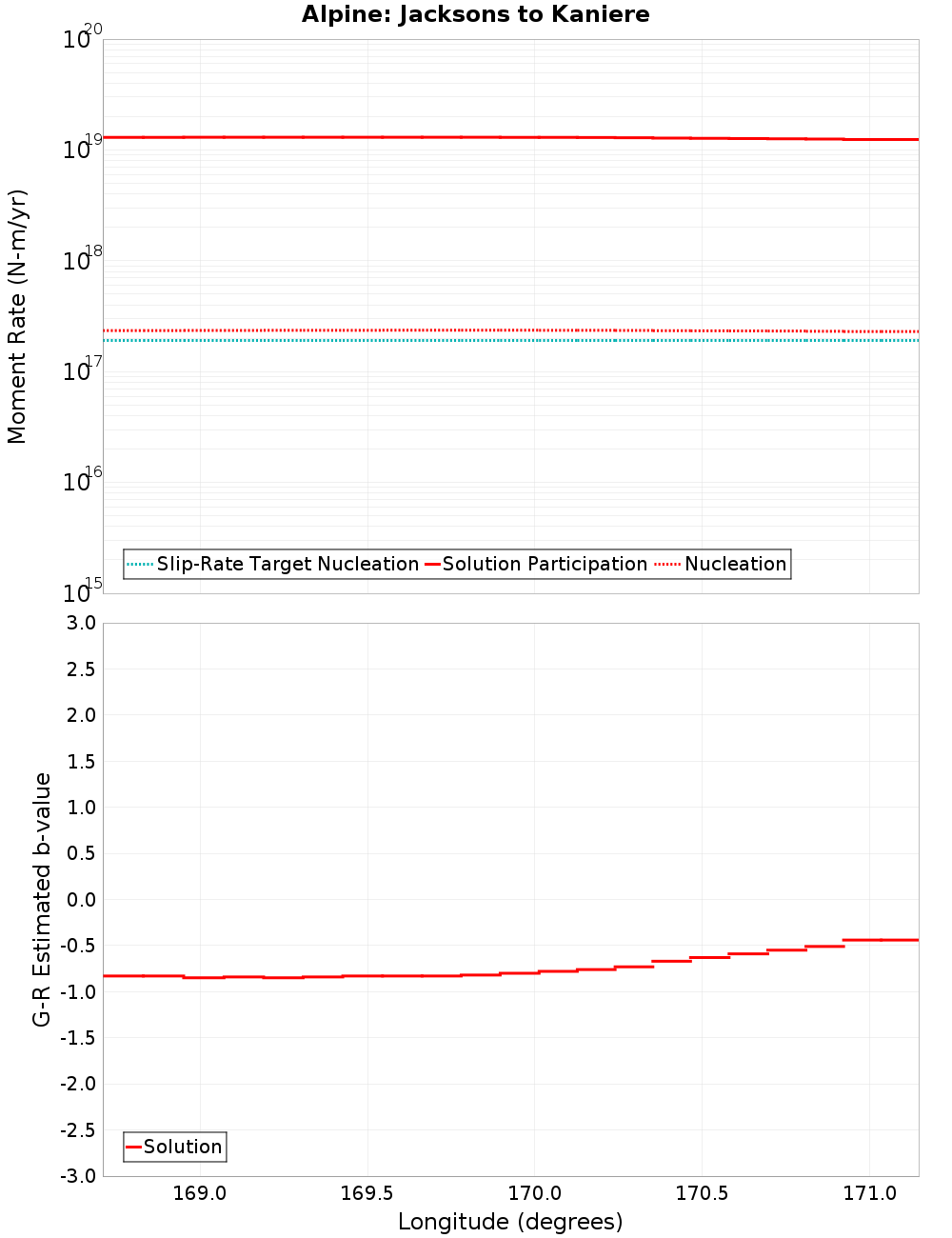

Moment-Rates and b-Values

(top)

Along-strike plot

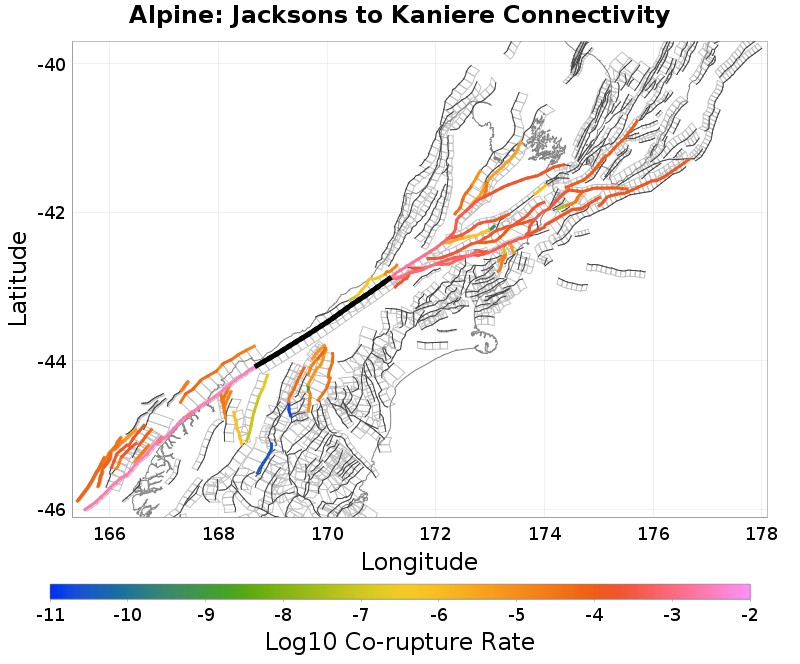

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George to Jacksons, 0 km away
Kelly, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Hohonu: South, 0.83 km away
Browning Pass, 0.87 km away
Moonlight North, 1.51 km away
Huxley, 2.42 km away
Hopkins, 6.17 km away
Barrier Range, 9.41 km away
Barn, 10.19 km away
Ostler North, 14.82 km away
Hunter Valley, 15 km away
Wanaka, 15.24 km away
Lake Heron, 17.9 km away
Maimai: South, 18.68 km away

Alpine: George to Jacksons, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count124,828
Co-rupture Rate0.0033096902

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count93,471
Co-rupture Rate0.0010439306

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count43,354
Co-rupture Rate0.0018311662

Hohonu: South, 0.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count2,010
Co-rupture Rate1.5254604E-5

Browning Pass, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count13,433
Co-rupture Rate1.9540478E-4

Moonlight North, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count7,527
Co-rupture Rate2.1206404E-7

Huxley, 2.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count1,173
Co-rupture Rate6.766878E-6

Hopkins, 6.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count4,535
Co-rupture Rate5.808329E-5

Barrier Range, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count2,206
Co-rupture Rate6.3434613E-6

Barn, 10.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?false
Co-rupture Count1,677
Co-rupture Rate4.5176712E-5

Ostler North, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?false
Co-rupture Count1,924
Co-rupture Rate4.2785934E-5

Hunter Valley, 15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count1,992
Co-rupture Rate4.9228307E-5

Wanaka, 15.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Heron, 17.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: South, 18.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
