Alpine: Kaniere to Springs Junction Details

PropertyValue
Rupture Count46,991
Ruptures Above Sect Min Mag46,984
Ruptures w/ Nonzero Rates2,270
Magnitude Range[6.86, 8.52]
Length Range[21, 1,009] km
Total Rate0.0036749619 /yr
Multi-Fault Rate0.0036574923 /yr (99.52%)
Directly-Connected Faults9
All Co-Rupturing Faults98

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

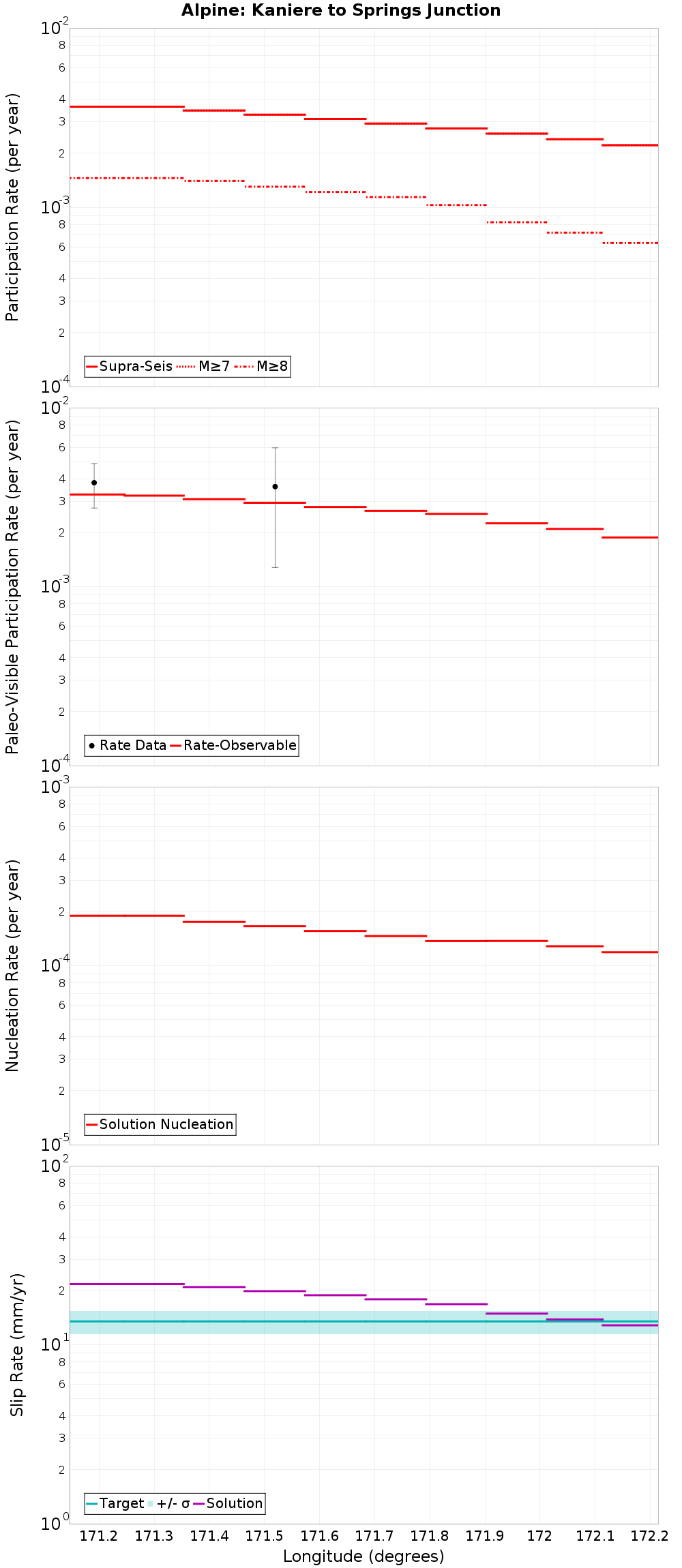

Along-Strike Values

(top)

Along-strike plot

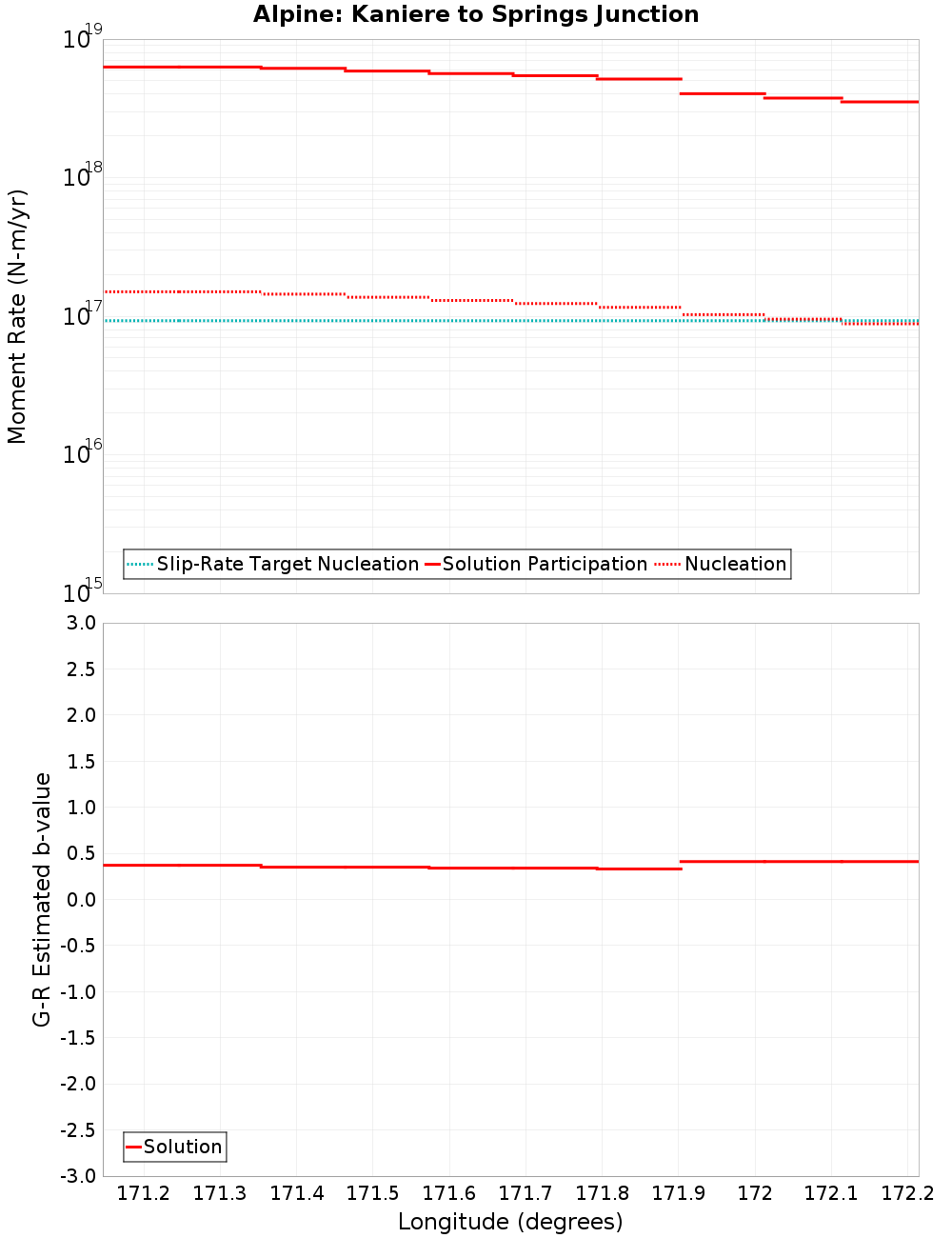

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Alpine: Springs Junction to Tophouse, 0 km awayBrowning Pass, 0.42 km away
Alpine: Jacksons to Kaniere, 0 km awayHope: Hurunui, 1.98 km away
Kelly, 0 km awayHope: Hope River, 2.78 km away
Awatere: Southwest, 0 km awayKakapo, 6.15 km away
Clarence: Southwest, 0.1 km awayWhite Creek - buried, 12.03 km away
Hohonu: South, 0.1 km awayEsk North, 14.89 km away
Fowlers, 0.29 km awayMaimai: South, 15.02 km away
Hope: Taramakau, 0.31 km awayPoulter, 17.42 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count16,820
Co-rupture Rate0.0013213641

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count43,354
Co-rupture Rate0.0018311662

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count1,805
Co-rupture Rate0.0015606357

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count4,201
Co-rupture Rate2.9261777E-4

Clarence: Southwest, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count11,954
Co-rupture Rate2.089061E-4

Hohonu: South, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count161
Co-rupture Rate1.024305E-9

Fowlers, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count6,751
Co-rupture Rate3.3179847E-6

Hope: Taramakau, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count87
Co-rupture Rate6.633414E-10

Browning Pass, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?true
Co-rupture Count4,415
Co-rupture Rate2.3646835E-4

Hope: Hurunui, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?false
Co-rupture Count1,383
Co-rupture Rate2.2644042E-4

Hope: Hope River, 2.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?false
Co-rupture Count894
Co-rupture Rate1.975016E-4

Kakapo, 6.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?false
Co-rupture Count485
Co-rupture Rate1.9020901E-5

White Creek - buried, 12.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: South, 15.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 17.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDJlcTJx
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate2.8356228E-6
