Alpine: George to Jacksons Details

PropertyValue
Rupture Count132,288
Ruptures Above Sect Min Mag132,277
Ruptures w/ Nonzero Rates296
Magnitude Range[6.80, 8.54]
Length Range[19, 1,156] km
Total Rate0.0035561498 /yr
Multi-Fault Rate0.0032995546 /yr (92.78%)
Directly-Connected Faults9
All Co-Rupturing Faults89

Table Of Contents

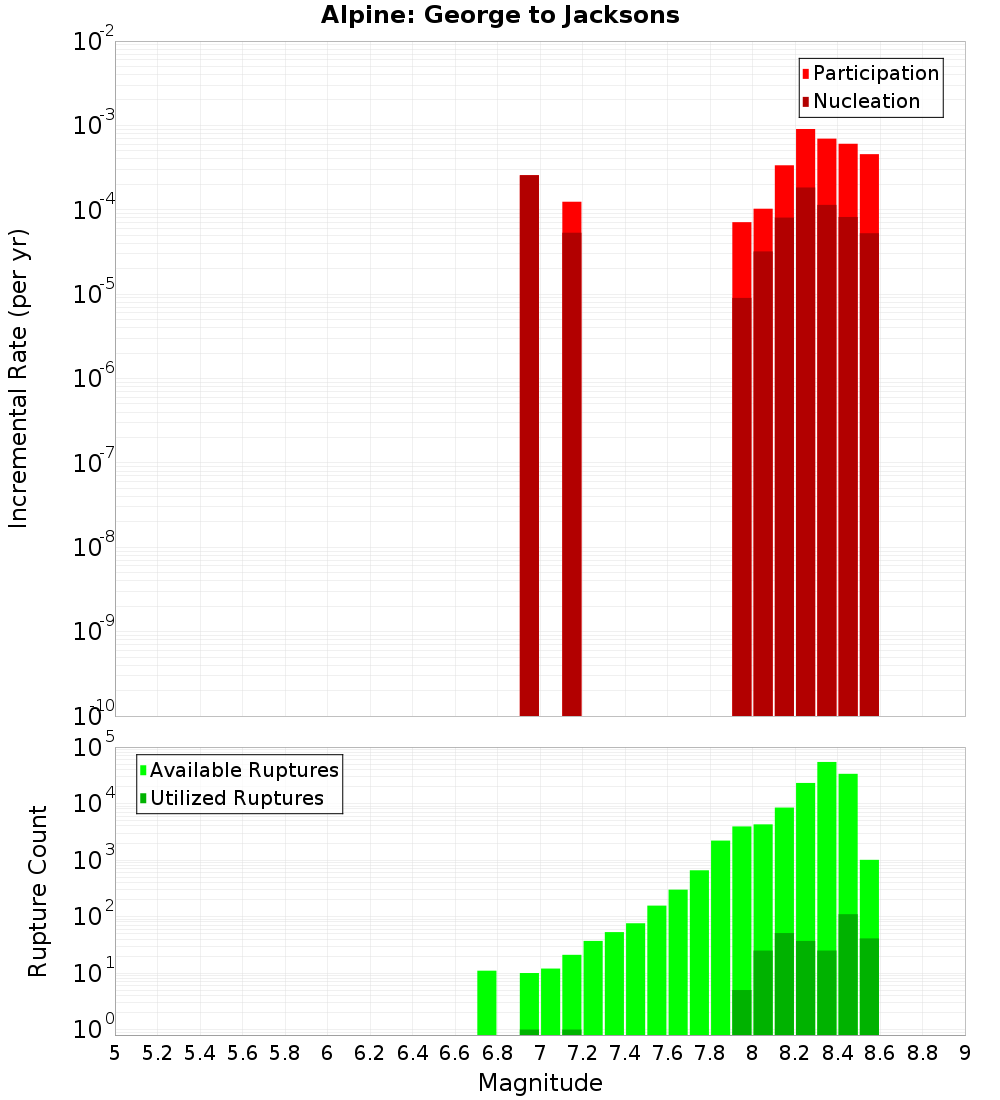

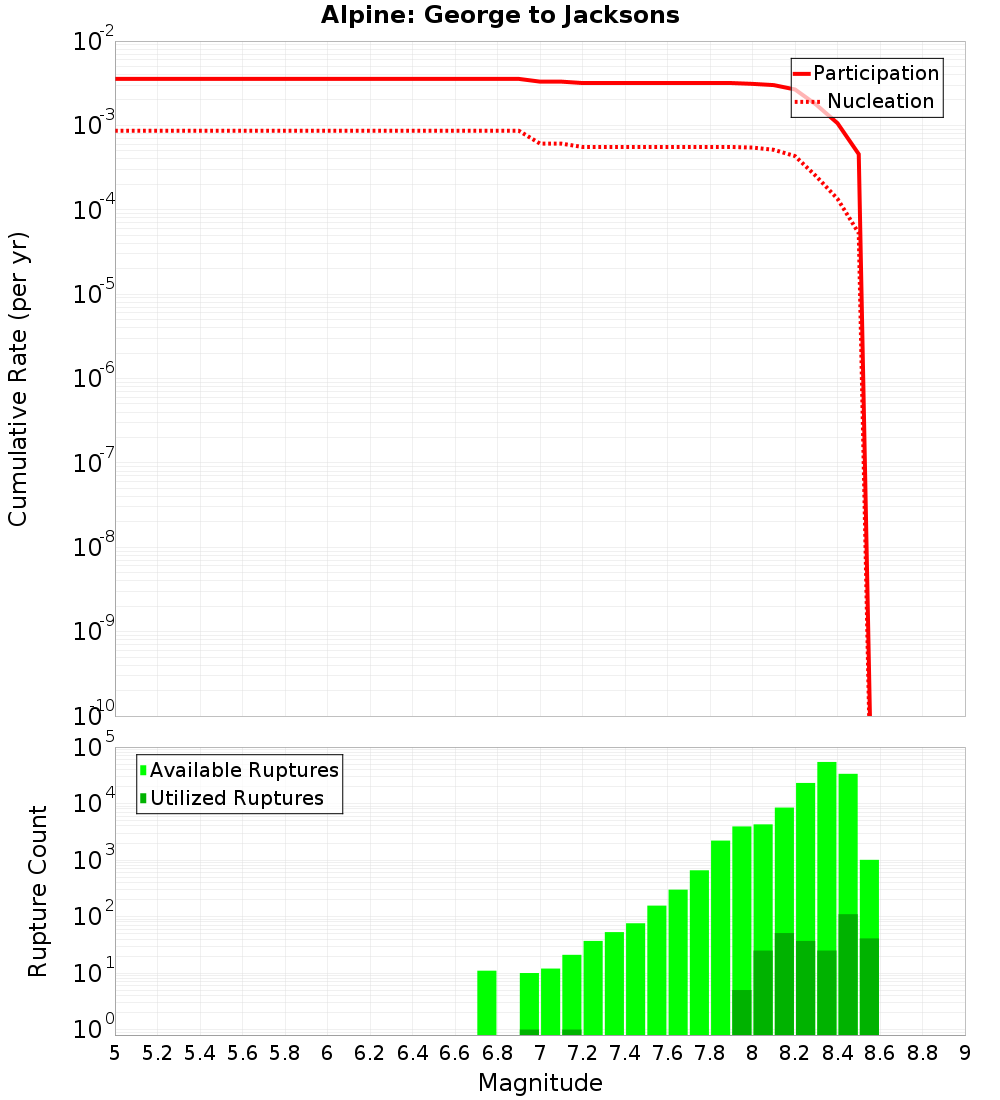

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

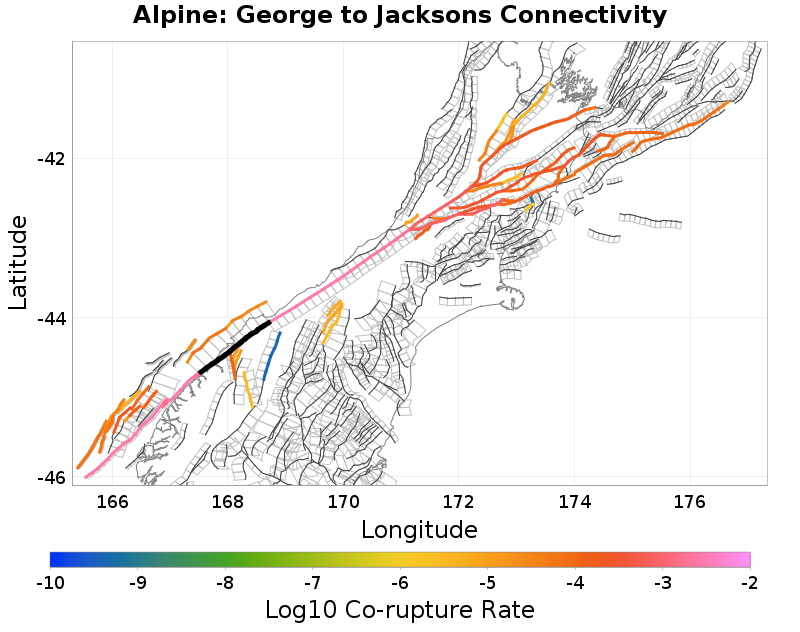

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George seaward, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Alpine: George landward, 0 km away
Darran, 0.14 km away
Skippers, 0.2 km away
Hollyford, 0.48 km away
Madagascar, 0.81 km away
Barn, 3.58 km away
Moonlight North, 8.52 km away
Alpine: Caswell - South George, 15.24 km away
Livingstone, 18.42 km away

Alpine: George seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count62,917
Co-rupture Rate0.0020314662

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count124,828
Co-rupture Rate0.0032254995

Alpine: George landward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count52,653
Co-rupture Rate9.85544E-4

Darran, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count2,355
Co-rupture Rate1.14698574E-4

Skippers, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count1,654
Co-rupture Rate1.1291206E-5

Hollyford, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count761
Co-rupture Rate1.17517275E-5

Madagascar, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count3,005
Co-rupture Rate8.2218095E-5

Barn, 3.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count1,849
Co-rupture Rate3.7356927E-5

Moonlight North, 8.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count206
Co-rupture Rate4.313173E-10

Alpine: Caswell - South George, 15.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count112,949
Co-rupture Rate0.0030170102

Livingstone, 18.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
