Alpine: Resolution - Five Fingers Details
| Property | Value |
|---|---|
| Rupture Count | 63,248 |
| Ruptures Above Sect Min Mag | 63,244 |
| Ruptures w/ Nonzero Rates | 239 |
| Magnitude Range | [6.82, 8.54] |
| Length Range | [20, 1,156] km |
| Total Rate | 0.0029787626 /yr |
| Multi-Fault Rate | 0.0029787626 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 90 |
Table Of Contents

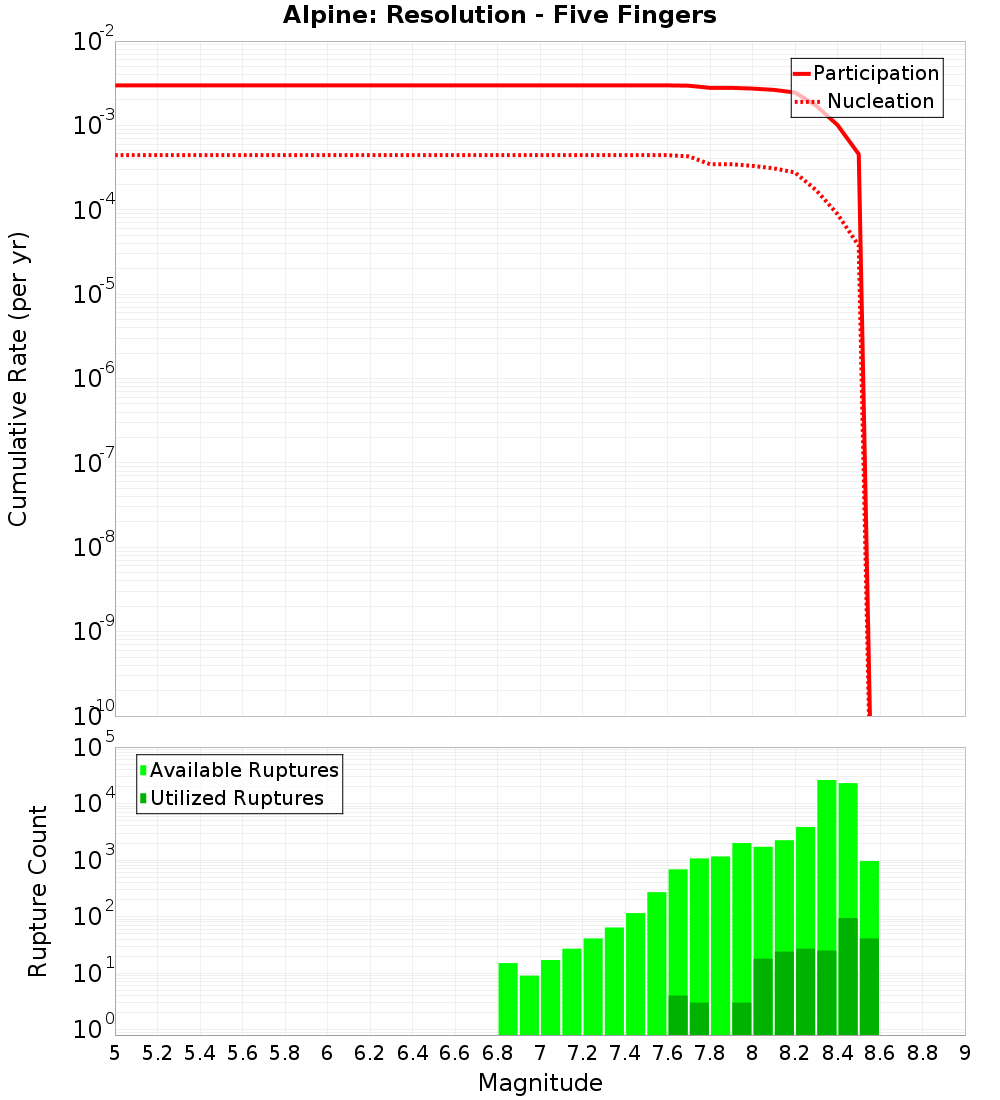

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

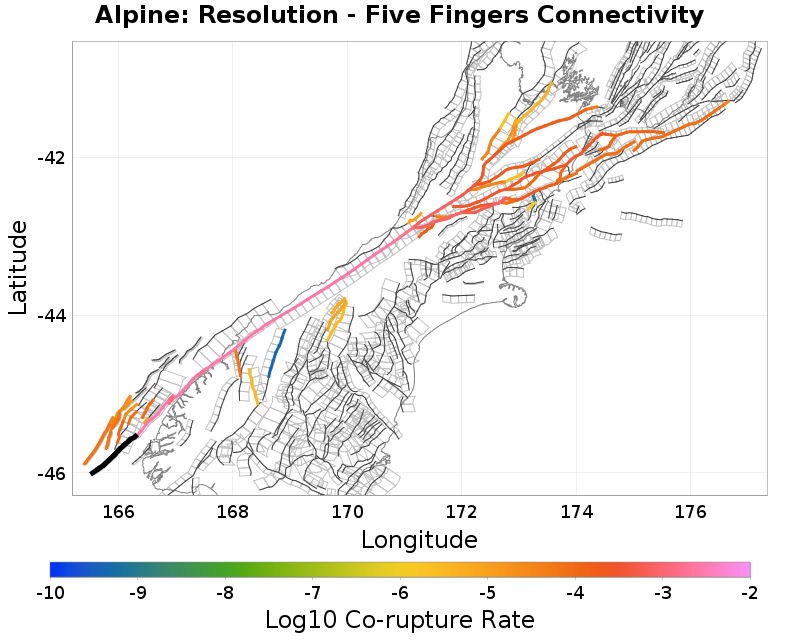

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| South Wedge 5, 0.13 km away |
| South Wedge 3-6-10, 0.3 km away |
| Alpine: Resolution - Dagg, 0.91 km away |
| Caswell 211, 12.73 km away |
| Caswell High 1, 14.93 km away |
South Wedge 5, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 247 |
| Co-rupture Rate | 1.11098554E-4 |
South Wedge 3-6-10, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 67 |
| Co-rupture Rate | 8.4818086E-5 |
Alpine: Resolution - Dagg, 0.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 62,778 |
| Co-rupture Rate | 0.0029700238 |
Caswell 211, 12.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,095 |
| Co-rupture Rate | 5.4963257E-5 |
Caswell High 1, 14.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 33,592 |
| Co-rupture Rate | 6.1905164E-5 |
