Hawkswood Details

PropertyValue
Rupture Count789
Ruptures Above Sect Min Mag788
Ruptures w/ Nonzero Rates19
Magnitude Range[7.08, 8.19]
Length Range[27, 525] km
Total Rate2.2434196E-4 /yr
Multi-Fault Rate2.2434196E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults39

Table Of Contents

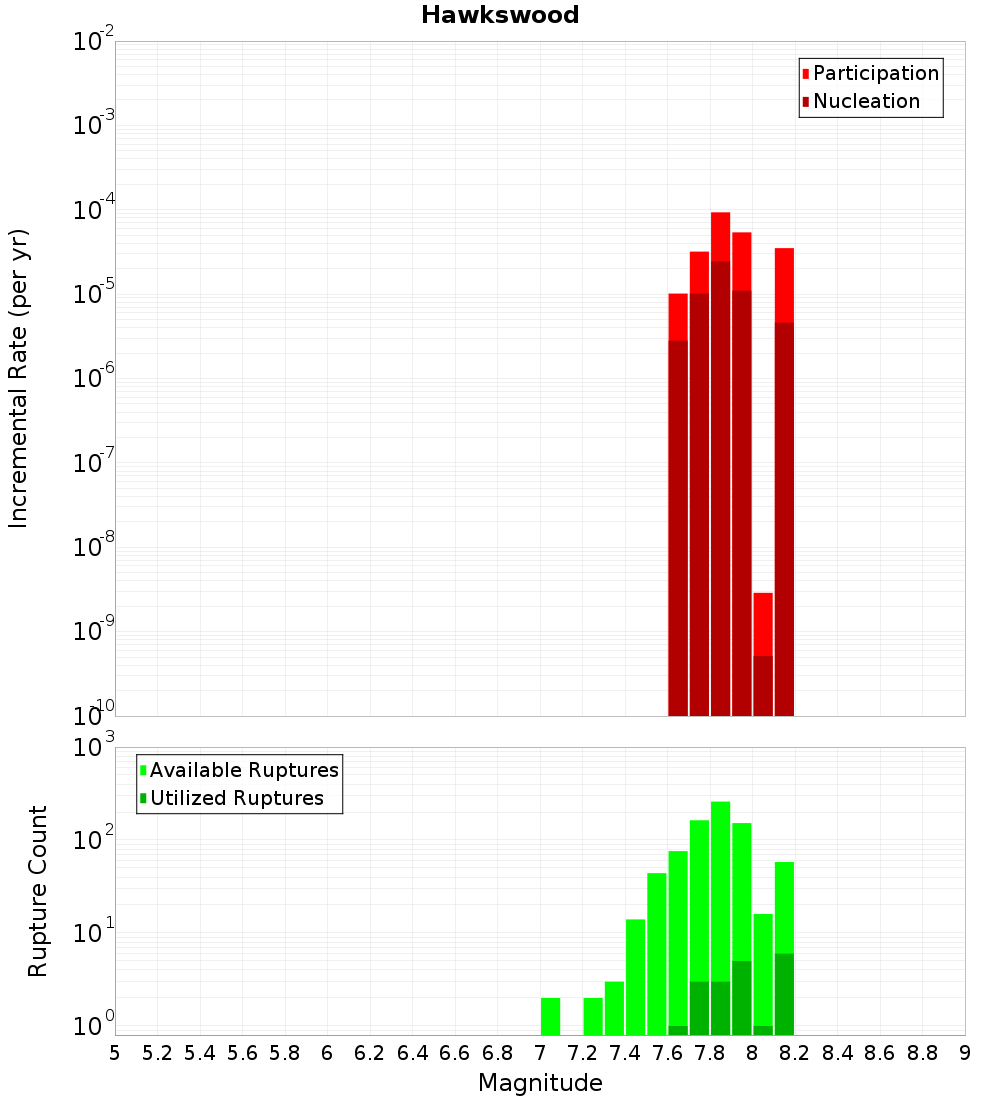

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

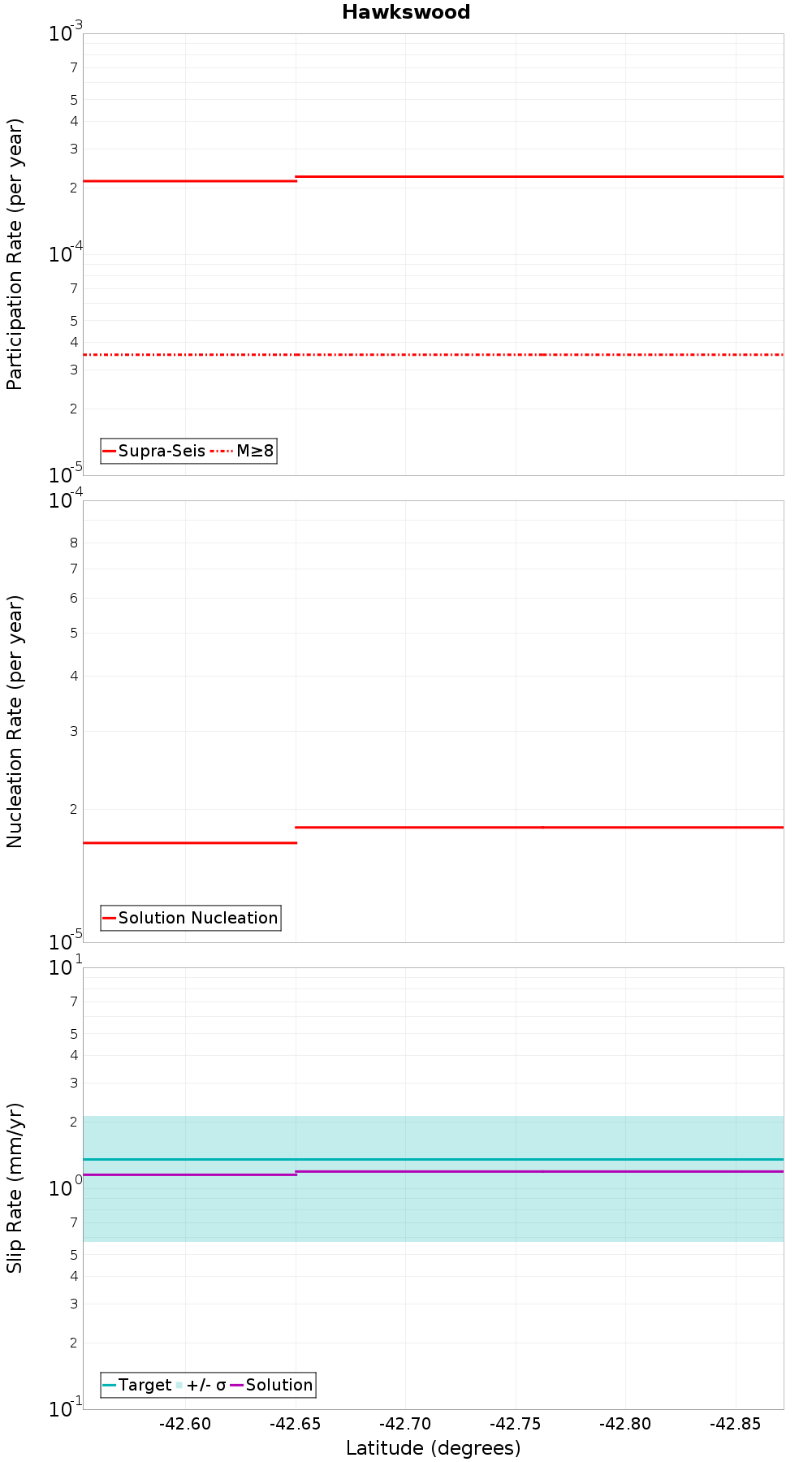

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hundalee, 0.92 km awayMarlborough Slope 11, 14.13 km away
StoneJug, 2.25 km awayAlexander, 15.06 km away
Conway Trough West, 2.68 km awayNorth Canterbury Shelf 11, 15.2 km away
OmihiLwrHuru, 3.06 km awayKaiwara South, 16.48 km away
AmberBlyth, 3.15 km awayLeithfield - NCVI - NCVII, 17.16 km away
Kaiwara North, 9.21 km awayLeonard Mound, 17.63 km away
Conway Trough East, 9.51 km awayLowry, 17.9 km away
Leader: Central, 10.65 km awayLeader: North, 18.35 km away
Leader: South, 10.65 km awayHope: Conway, 18.44 km away
Point Gibson, 10.72 km awayMarlborough Slope 9, 19.26 km away
The Humps, 11.32 km awayMarlborough Slope 2, 19.59 km away

Hundalee, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count688
Co-rupture Rate1.8226804E-4

StoneJug, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Conway Trough West, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.0155382E-5

OmihiLwrHuru, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count266
Co-rupture Rate7.000368E-5

AmberBlyth, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count543
Co-rupture Rate1.6743486E-4

Kaiwara North, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Conway Trough East, 9.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: Central, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate2.8191453E-5

Leader: South, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 10.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate0.0

The Humps, 11.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Marlborough Slope 11, 14.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 15.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate8.197492E-6

North Canterbury Shelf 11, 15.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Kaiwara South, 16.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate8.197492E-6

Leithfield - NCVI - NCVII, 17.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count69
Co-rupture Rate7.718798E-5

Leonard Mound, 17.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 17.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: North, 18.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate2.8191453E-5

Hope: Conway, 18.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count549
Co-rupture Rate6.085107E-5

Marlborough Slope 9, 19.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Marlborough Slope 2, 19.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
