Puketerata North Details
| Property | Value |
|---|---|
| Rupture Count | 2,052 |
| Ruptures Above Sect Min Mag | 1,878 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.05, 7.62] |
| Length Range | [7, 181] km |
| Total Rate | 6.411656E-4 /yr |
| Multi-Fault Rate | 6.411656E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 24 |
Table Of Contents

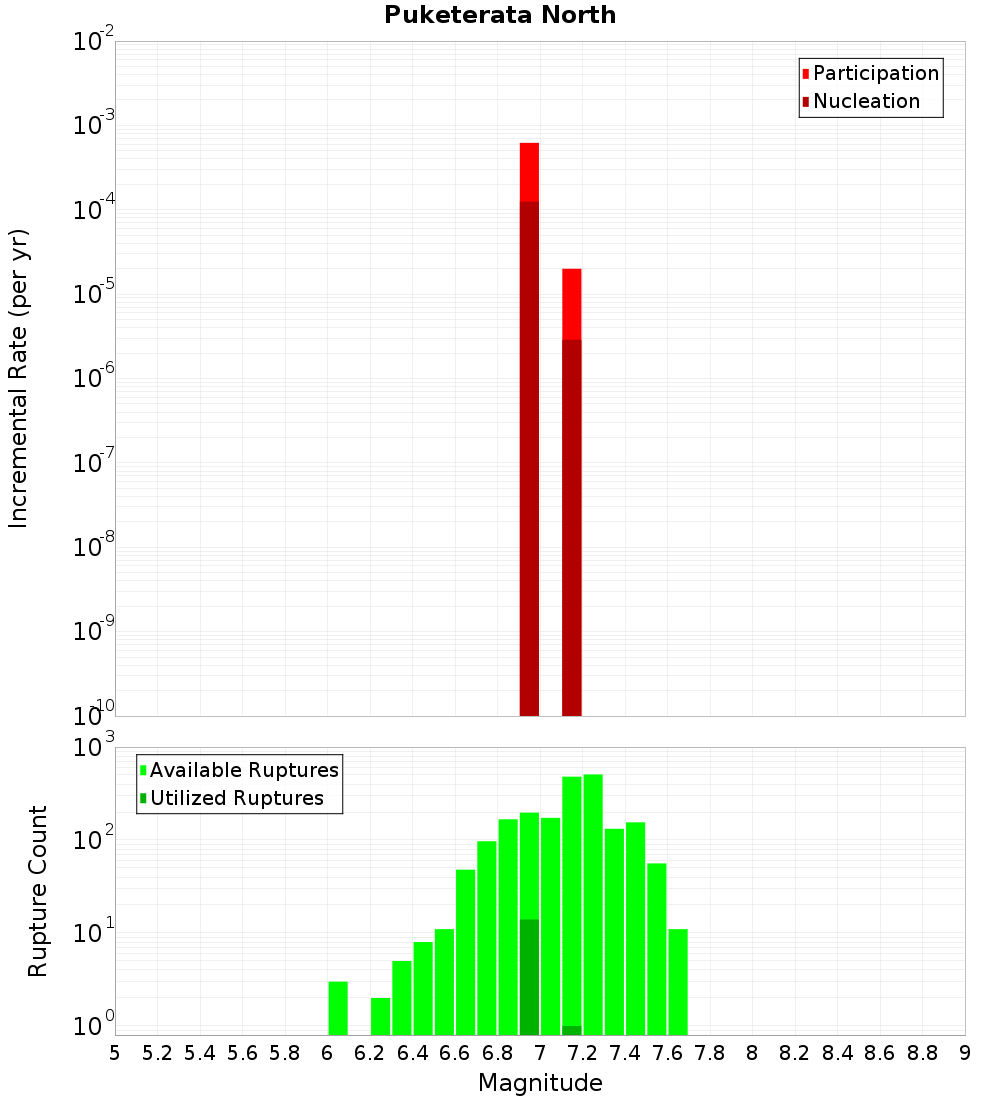

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Puketerata, 0.1 km away |
| Maleme, 0.17 km away |
| Paeroa, 2.15 km away |
| Orakeikorako, 3.28 km away |
| EarthquakeFlat - Tumunui, 7.65 km away |
| Whangamata West, 9.6 km away |
| Kaiapo, 17.13 km away |
Puketerata, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,317 |
| Co-rupture Rate | 5.901271E-4 |
Maleme, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,062 |
| Co-rupture Rate | 3.1277852E-4 |
Paeroa, 2.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,366 |
| Co-rupture Rate | 3.2838708E-4 |
Orakeikorako, 3.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 469 |
| Co-rupture Rate | 5.103854E-5 |
EarthquakeFlat - Tumunui, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,672 |
| Co-rupture Rate | 1.9990419E-5 |
Whangamata West, 9.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,151 |
| Co-rupture Rate | 4.748705E-4 |
Kaiapo, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 540 |
| Co-rupture Rate | 5.199573E-4 |
