Roaring Lion Details

PropertyValue
Rupture Count1,080
Ruptures Above Sect Min Mag1,079
Ruptures w/ Nonzero Rates10
Magnitude Range[7.28, 8.29]
Length Range[33, 379] km
Total Rate7.786822E-6 /yr
Multi-Fault Rate7.786822E-6 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults37

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

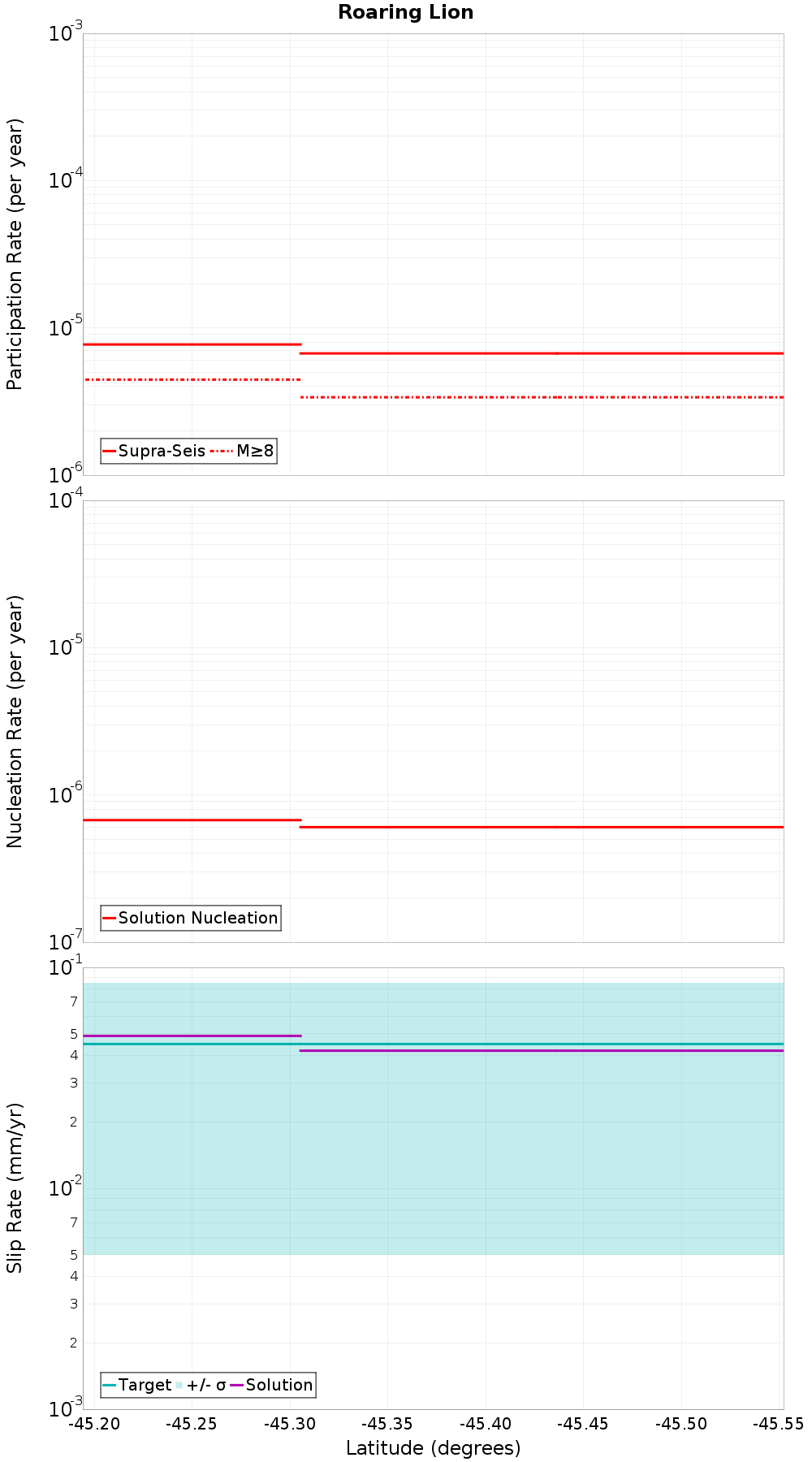

Along-Strike Values

(top)

Along-strike plot

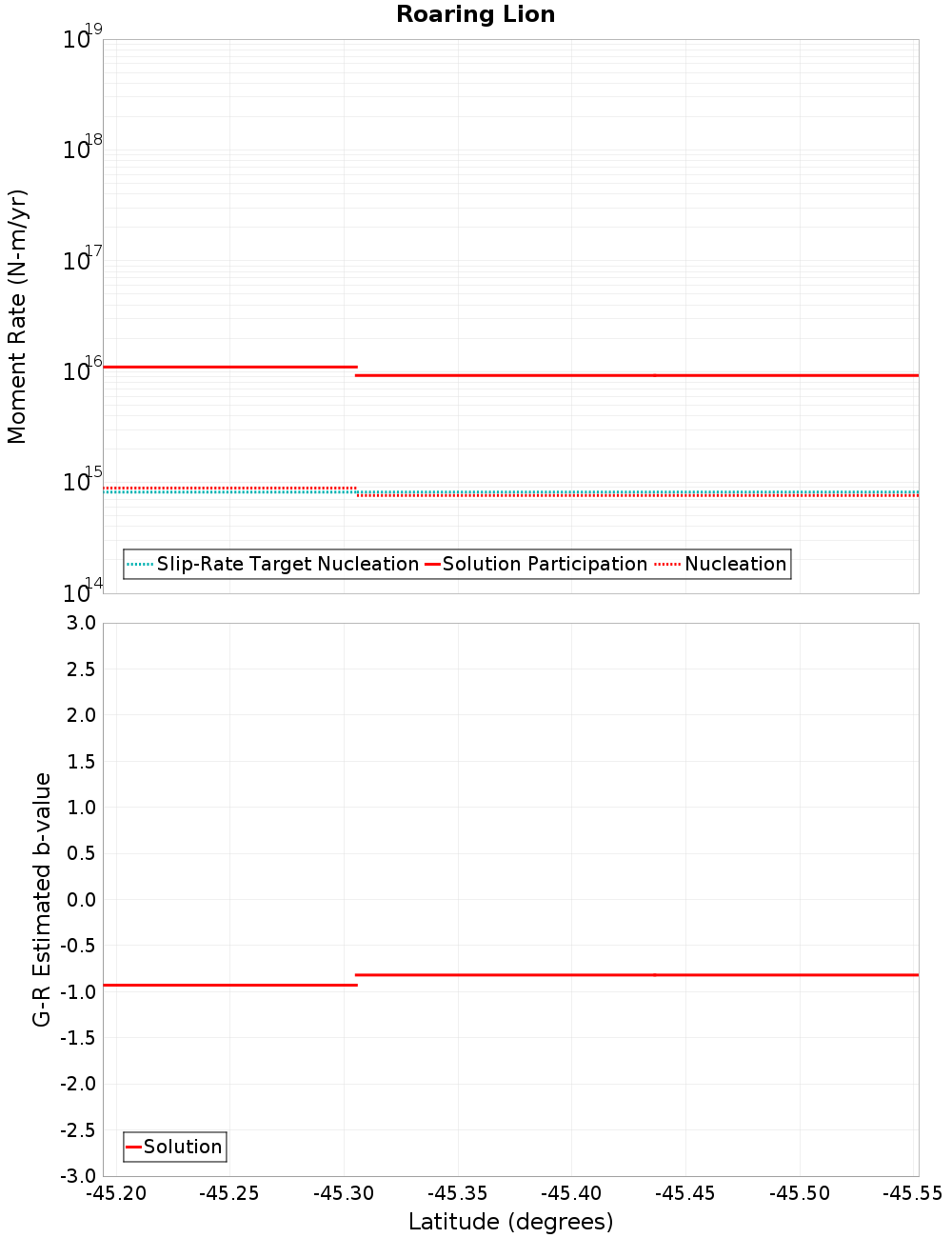

Moment-Rates and b-Values

(top)

Along-strike plot

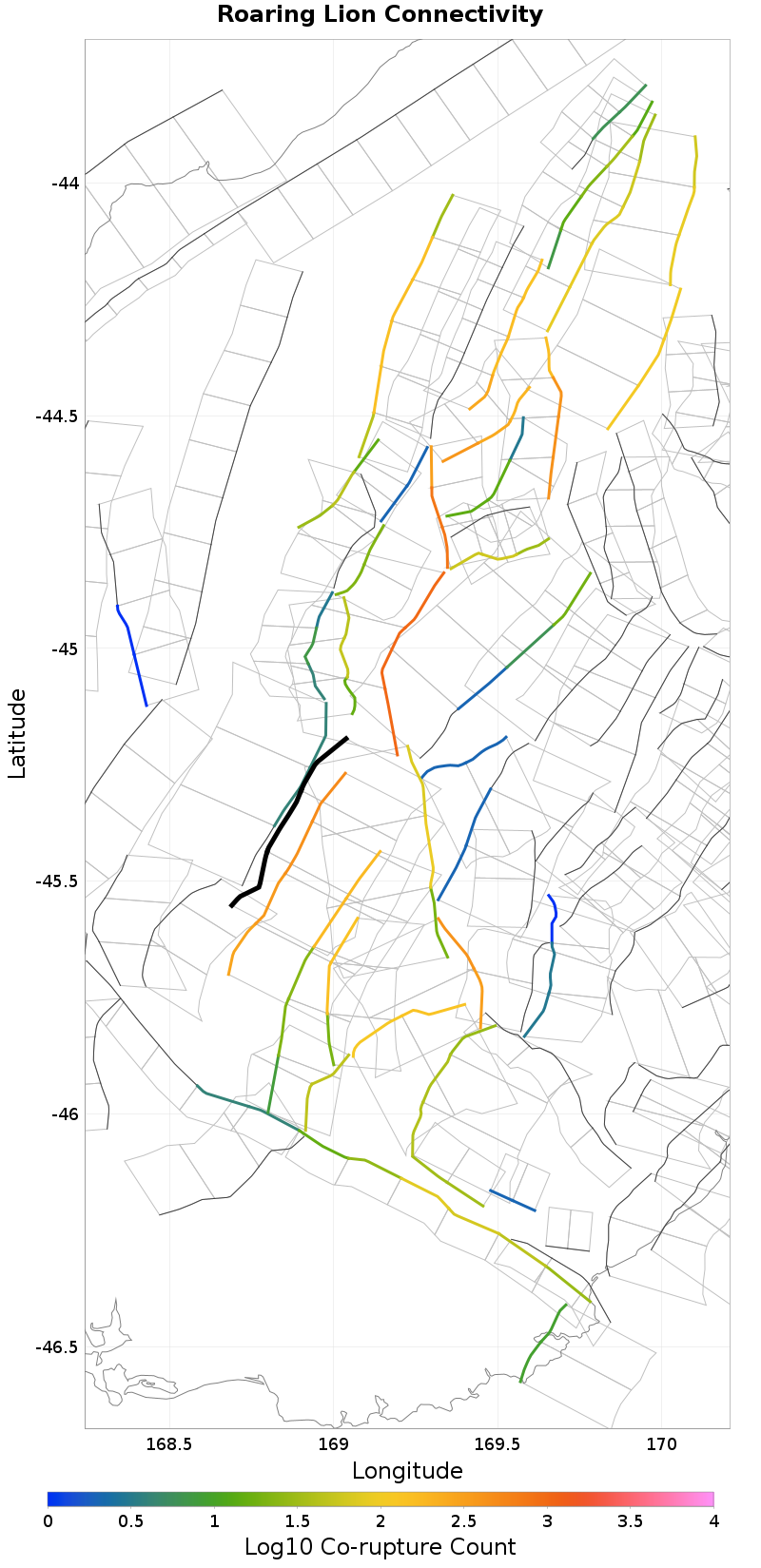

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Old Man, 0.15 km away
Nevis, 0.43 km away
Pisa, 0.79 km away
Garvie, 2.73 km away
Teviot, 3.6 km away
Mid Dome, 5.36 km away
Roaring Meg, 6.05 km away
Dunstan, 6.22 km away
Waikaia, 6.7 km away
Wendon Valley, 10.34 km away
NW Cardrona South, 10.86 km away
Lake Onslow, 12.32 km away
Galloway, 13.84 km away
Waikaka, 18.85 km away

Old Man, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count89
Co-rupture Rate1.962687E-8

Nevis, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate0.0

Pisa, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count1,028
Co-rupture Rate5.683259E-6

Garvie, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count528
Co-rupture Rate3.2635214E-6

Teviot, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count418
Co-rupture Rate2.6130556E-6

Mid Dome, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Meg, 6.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate0.0

Dunstan, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Waikaia, 6.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count185
Co-rupture Rate1.2505814E-6

Wendon Valley, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count153
Co-rupture Rate3.4137931E-6

NW Cardrona South, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Lake Onslow, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Waikaka, 18.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate2.0325667E-6
