Te Ikaarongamai Details

PropertyValue
Rupture Count120
Ruptures Above Sect Min Mag113
Ruptures w/ Nonzero Rates6
Magnitude Range[6.43, 7.50]
Length Range[12, 128] km
Total Rate0.0010748187 /yr
Multi-Fault Rate0.0010748187 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults7

Table Of Contents

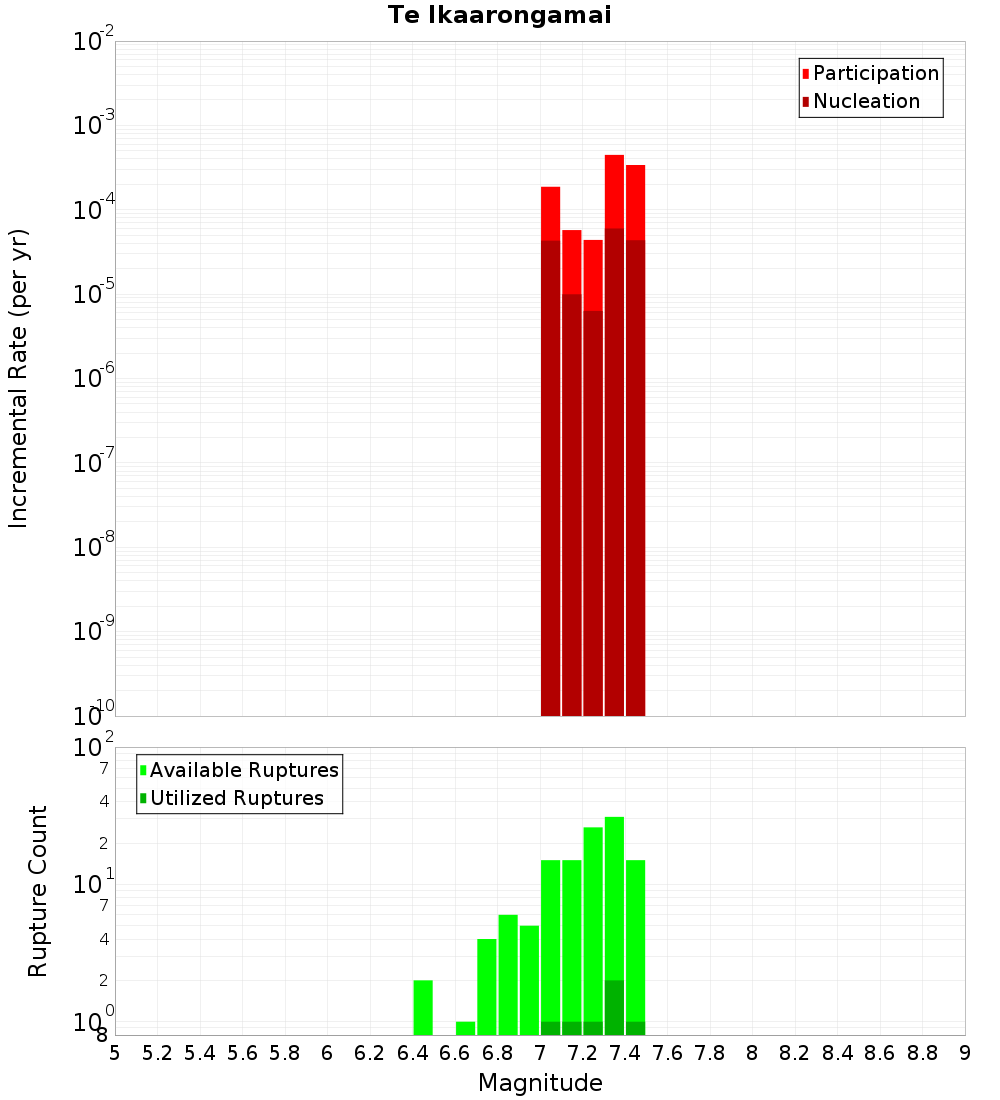

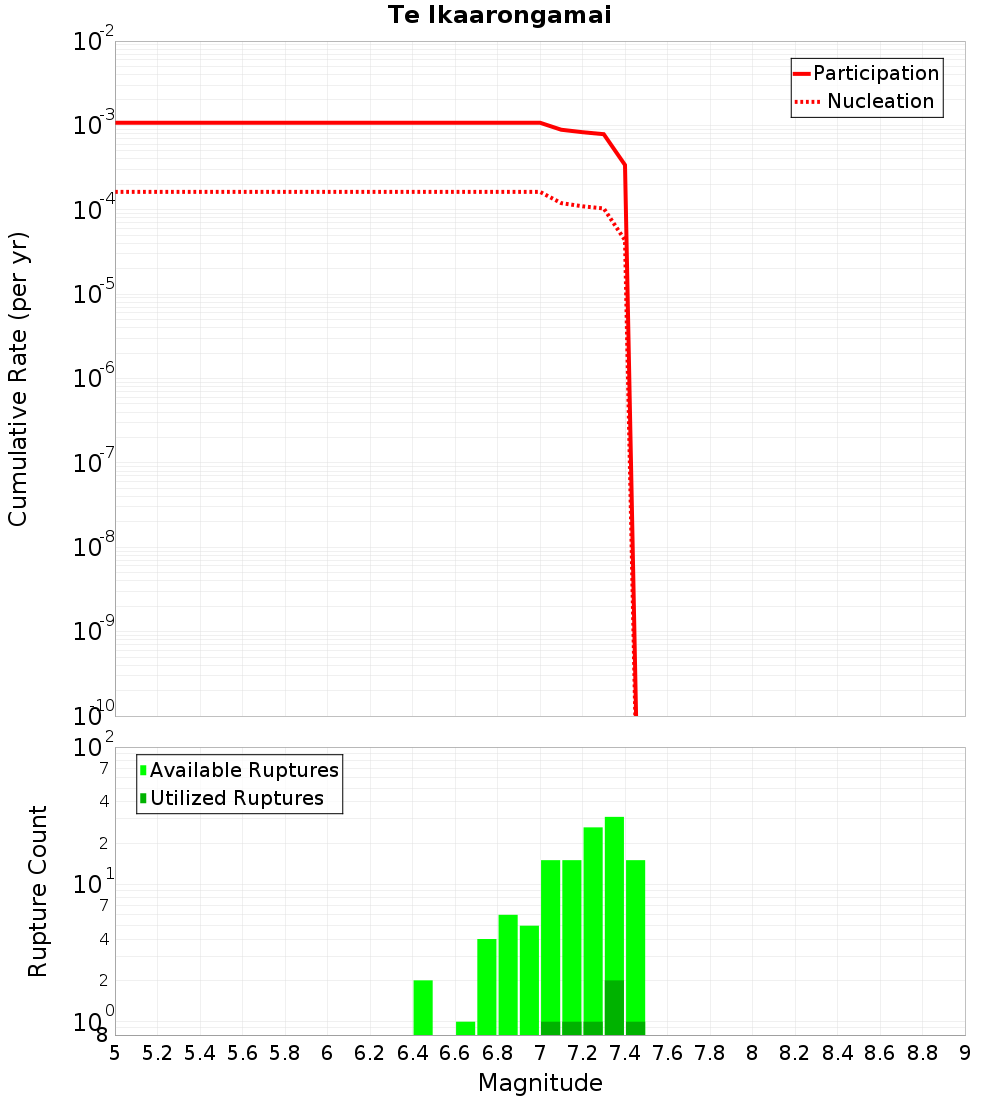

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

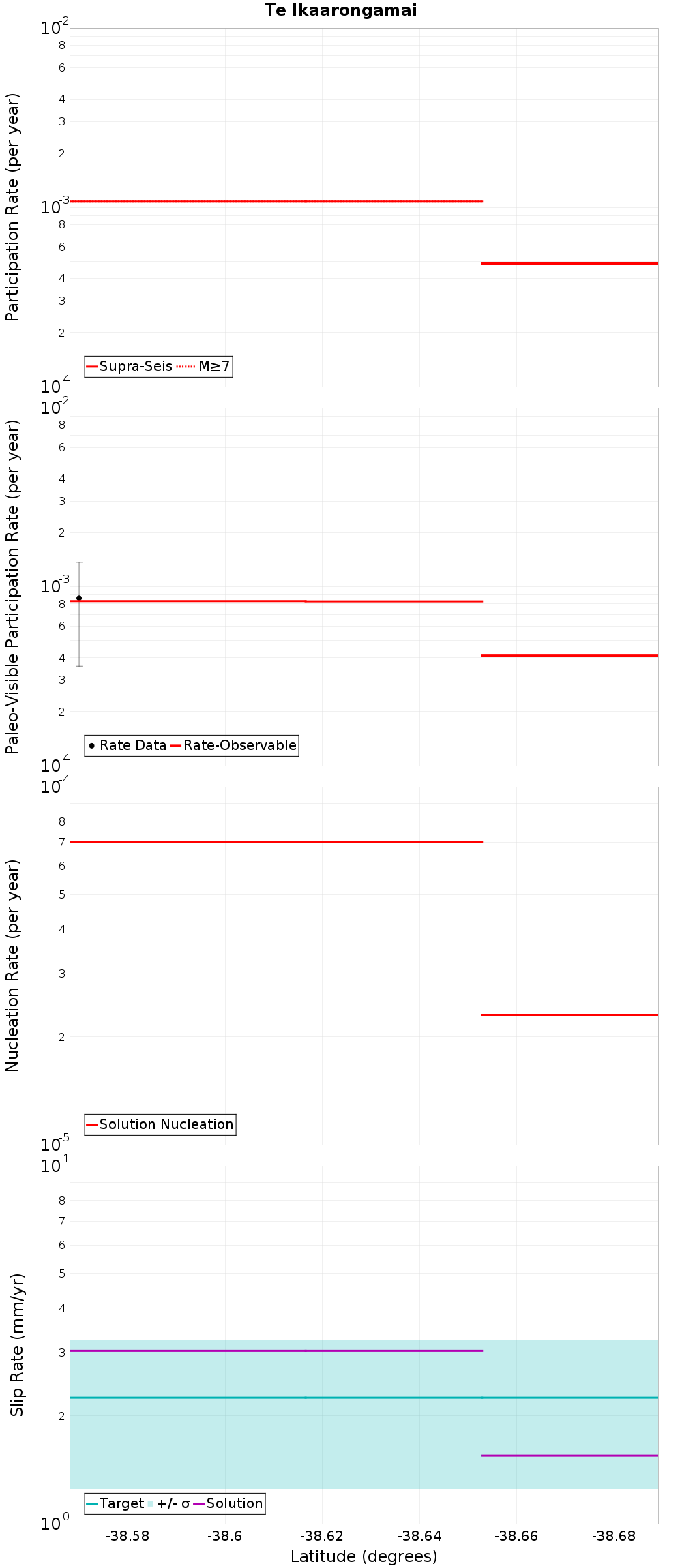

Along-Strike Values

(top)

Along-strike plot

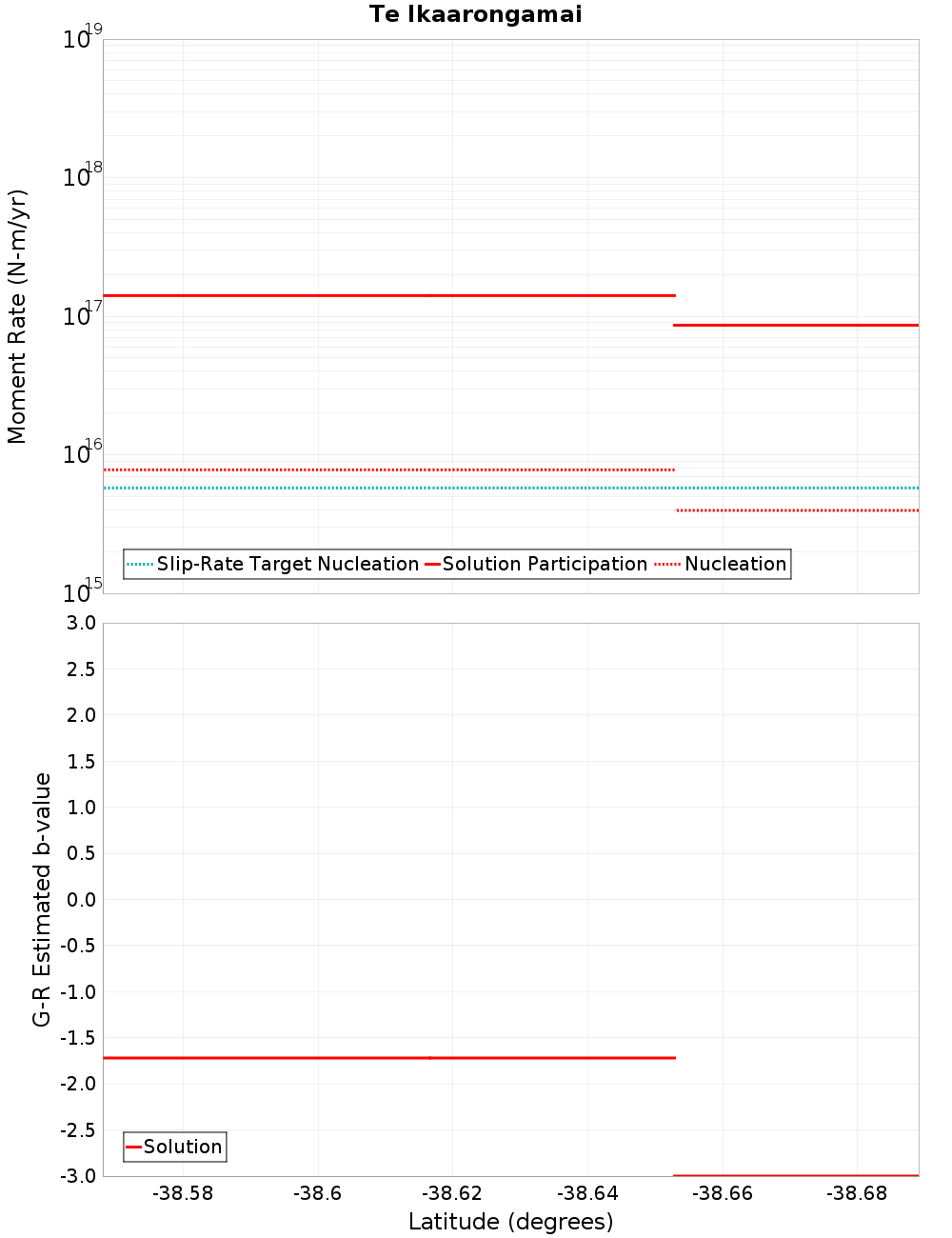

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ariel Bank, 0.33 km away
Gable End South, 0.43 km away
Ariel East, 1.44 km away
Pakarae, 1.64 km away
Gable End North, 3.53 km away
Ariel Bank 2, 11.27 km away
Poverty Bay, 14.65 km away
Lachlan 3, 19.41 km away

Ariel Bank, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate7.357034E-4

Gable End South, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel East, 1.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count55
Co-rupture Rate3.3911524E-4

Pakarae, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gable End North, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate0.0

Ariel Bank 2, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate0.0010748187

Poverty Bay, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Lachlan 3, 19.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate3.9654537E-4
