Waitangi Details
| Property | Value |
|---|---|
| Rupture Count | 2 |
| Ruptures Above Sect Min Mag | 1 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.78, 7.19] |
| Length Range | [18, 40] km |
| Total Rate | 2.0722622E-5 /yr |
| Multi-Fault Rate | 2.0722622E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

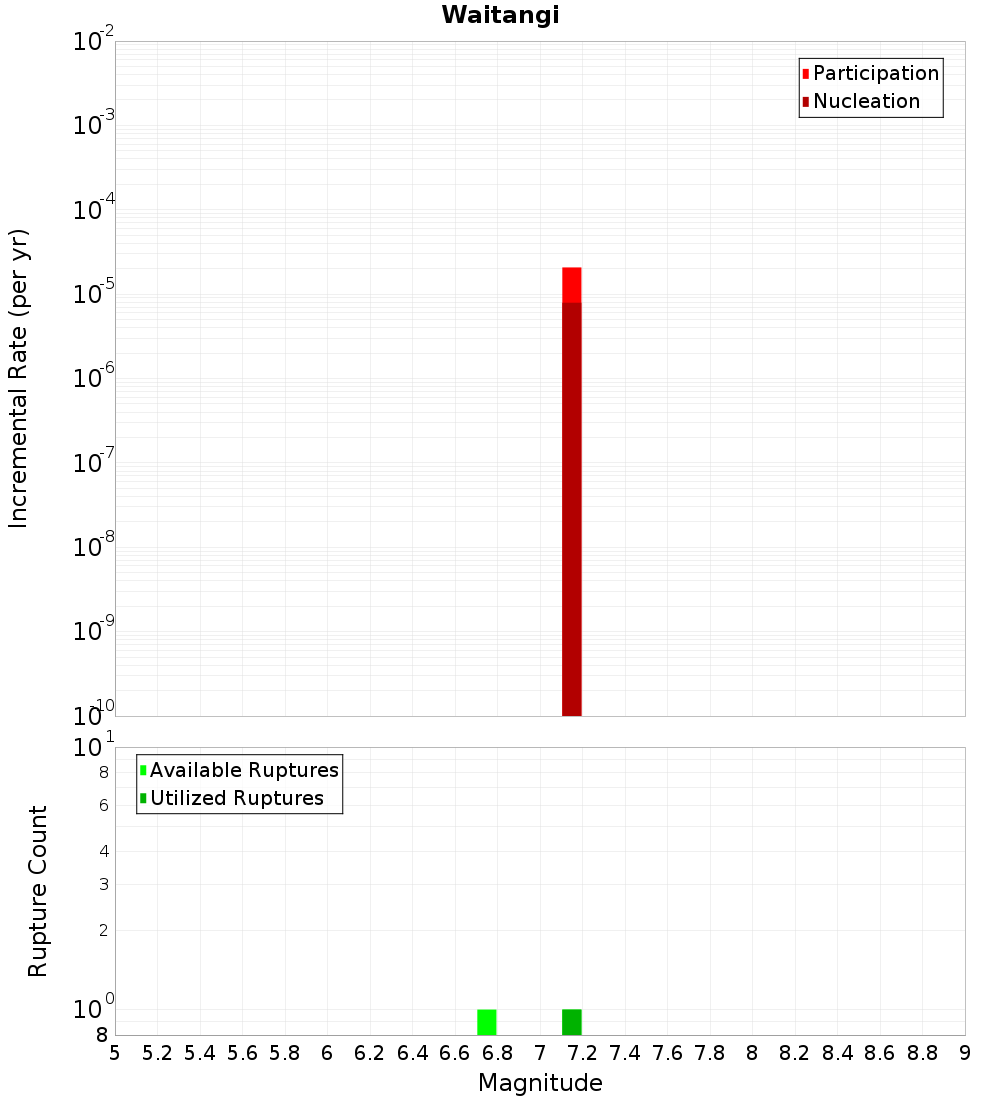

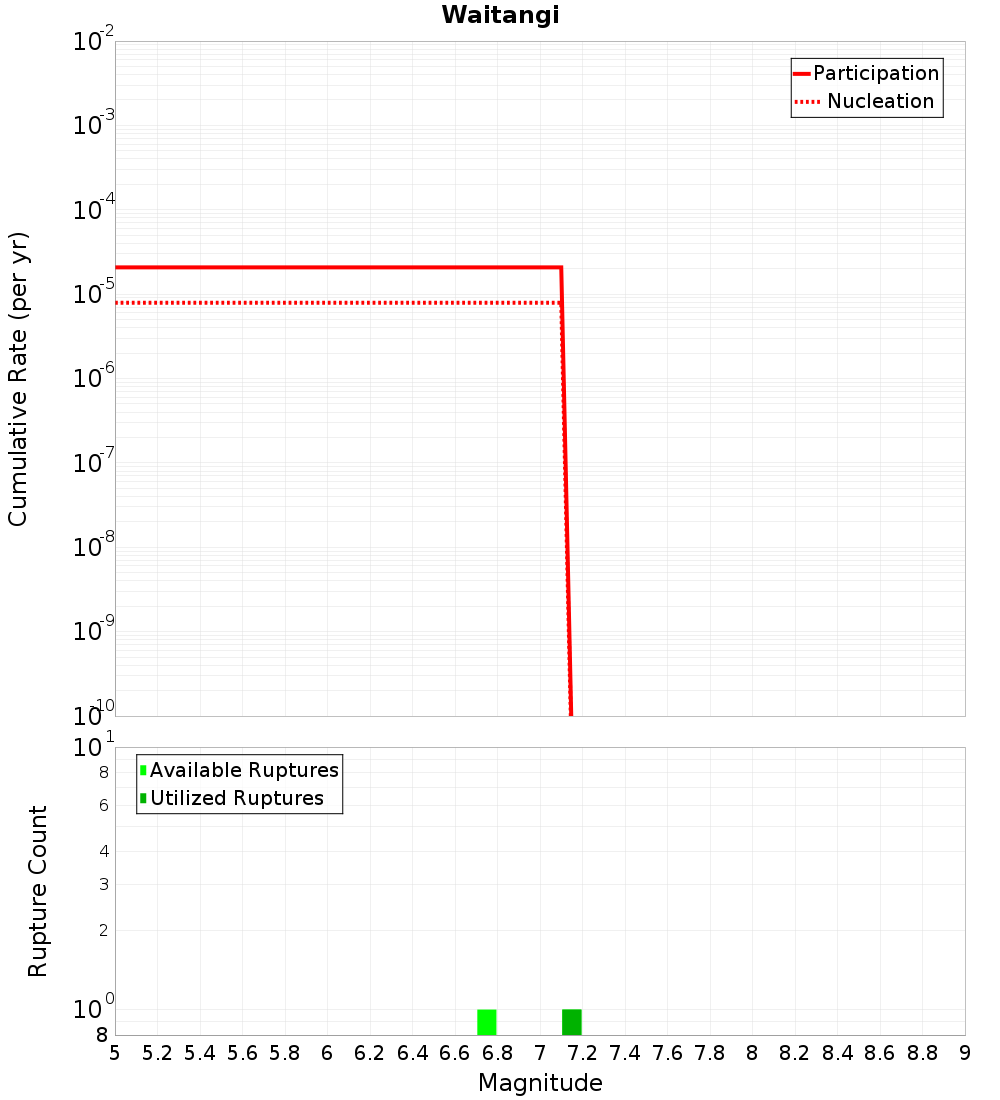

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

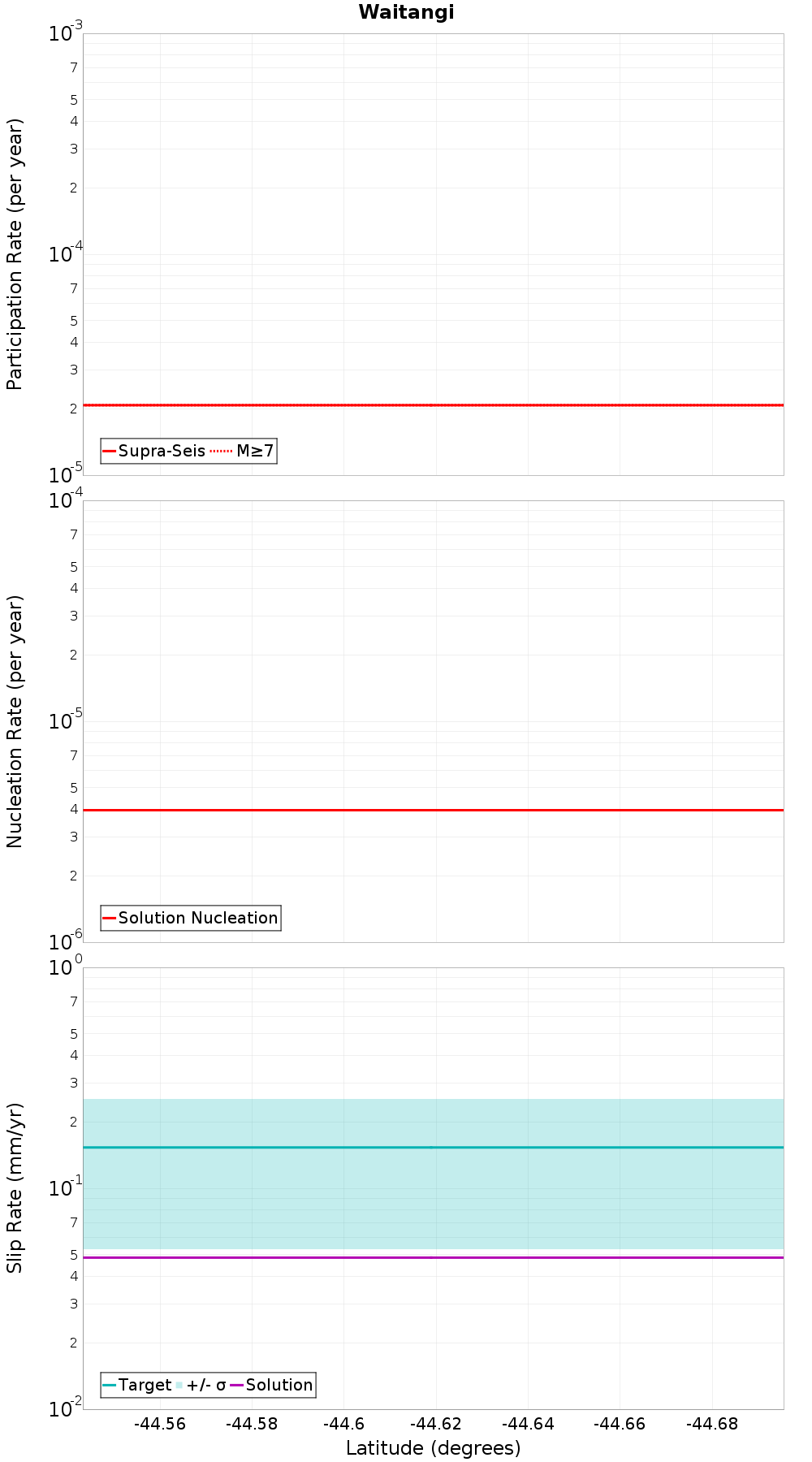

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Fern Gully, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Sutton, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 2.0722622E-5 |
Middle Range, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awahokomo, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Gibson, 0.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dryburgh, 1.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kirkliston, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Stonewall, 3.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Falstone, 11.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 12.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Grampian, 14.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Omarama Saddle, 15.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hawkdun, 18.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzODkuMDZFY0xC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
