Braemar Details

Property	Value
Rupture Count	13,348
Ruptures Above Sect Min Mag	13,295
Ruptures w/ Nonzero Rates	22
Magnitude Range	[6.54, 8.26]
Length Range	[14, 537] km
Total Rate	8.9468894E-4 /yr
Multi-Fault Rate	8.9468894E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	95

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

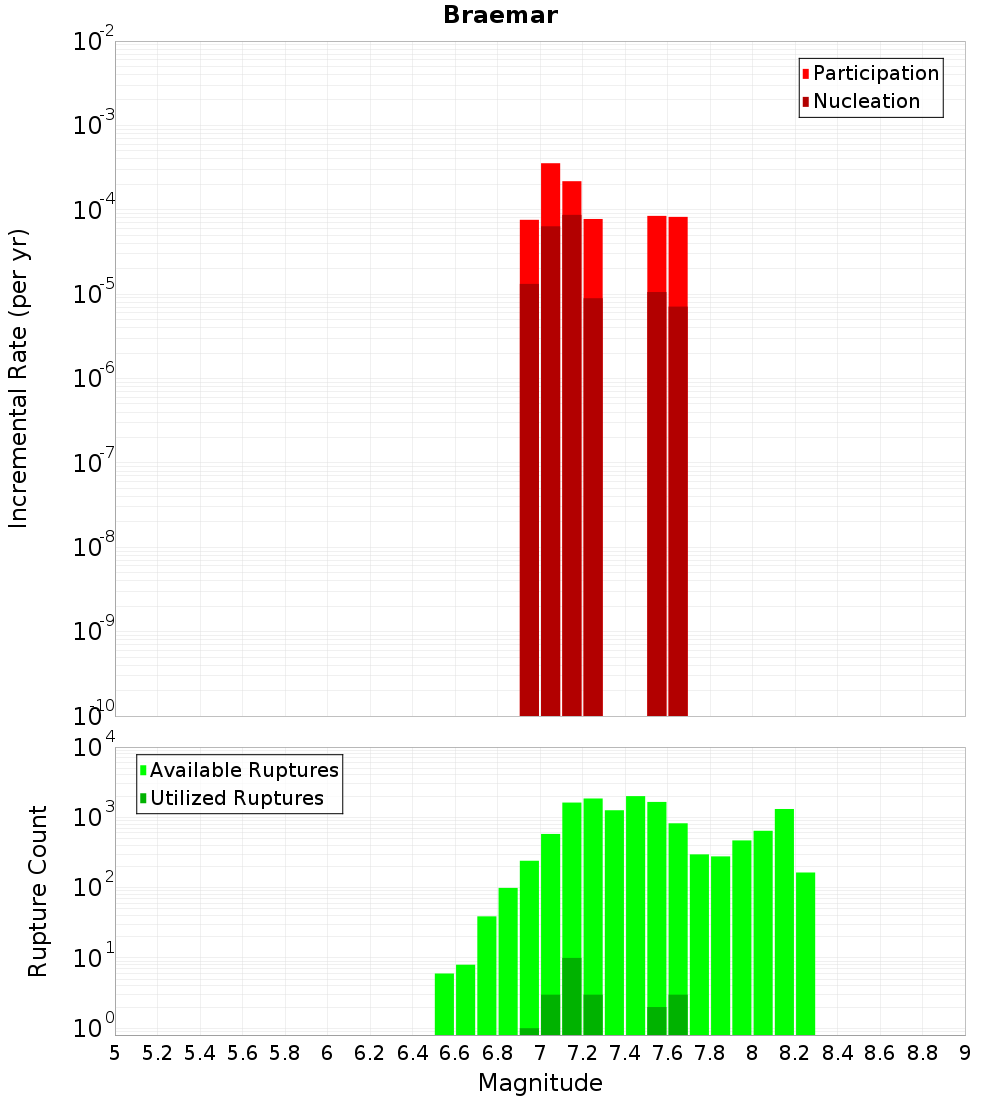

Magnitude-Frequency Distribution

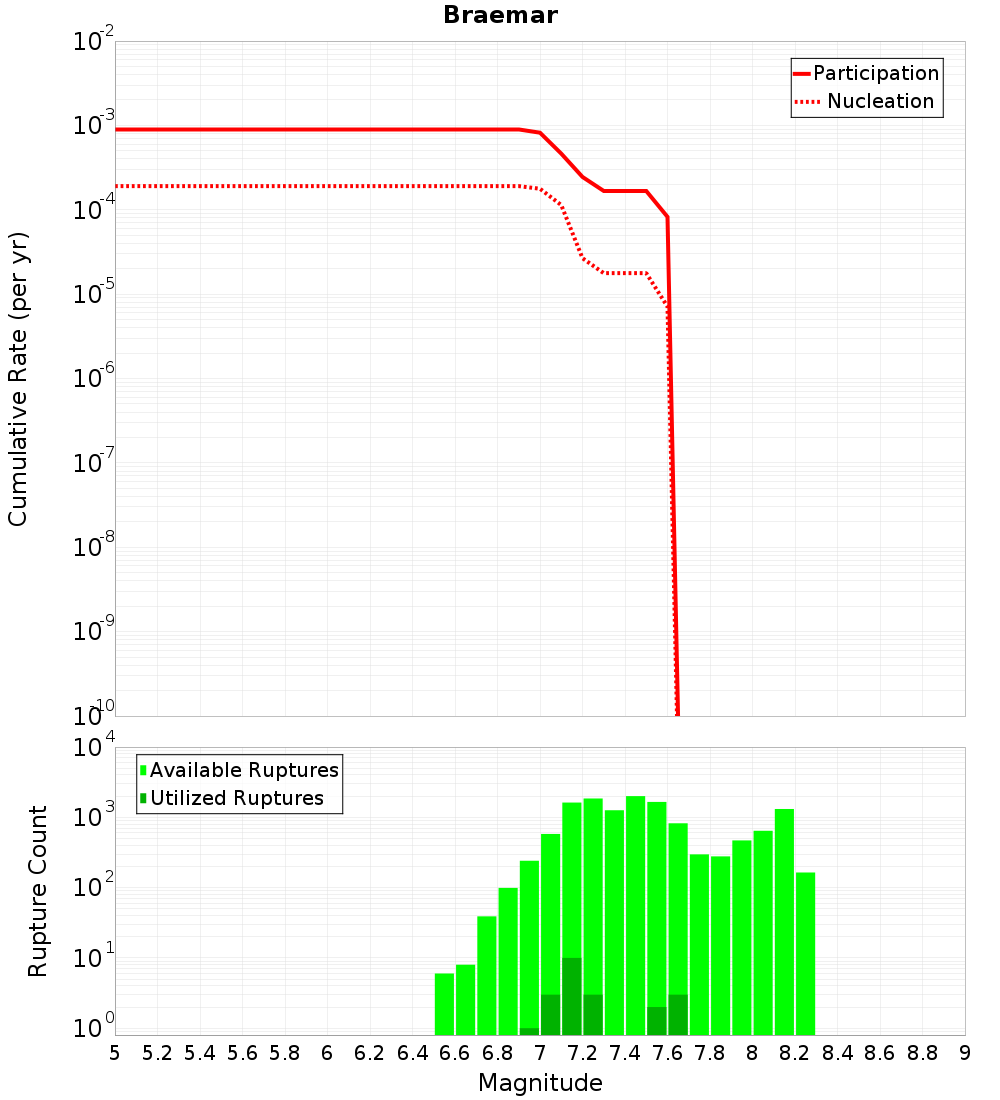

Incremental	Cumulative

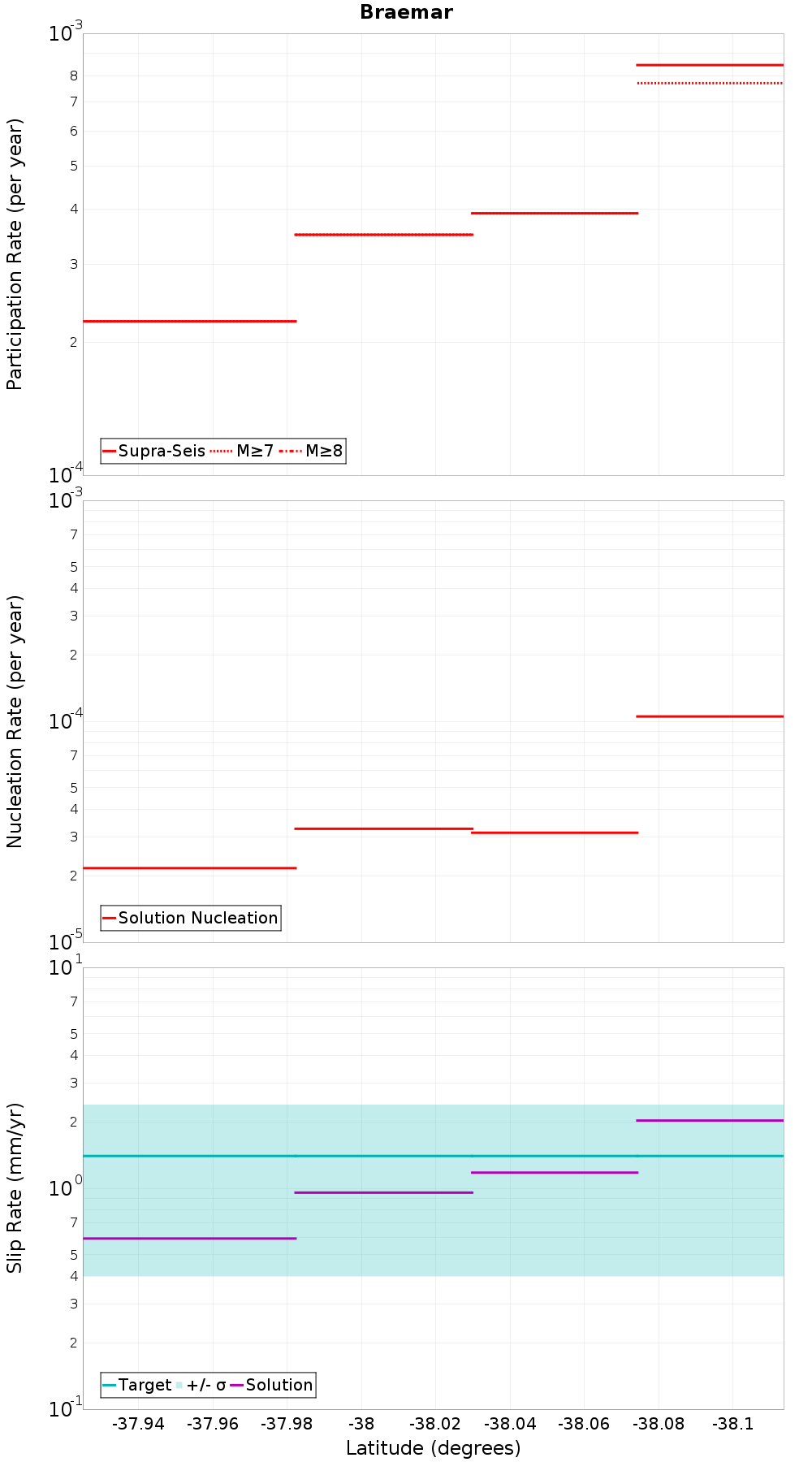

Along-Strike Values

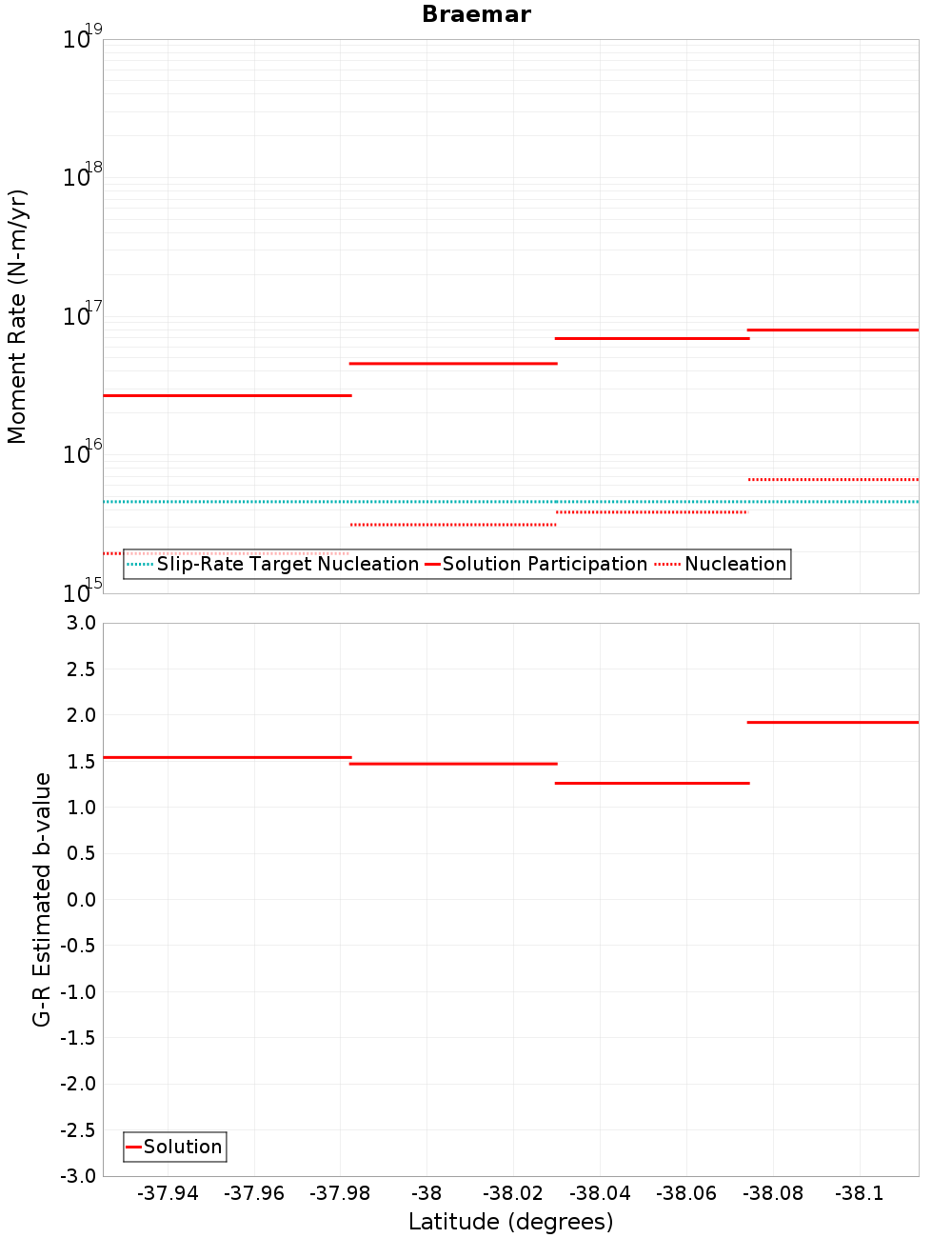

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rotoitipakau, 0.14 km away
Waiohau: North, 0.18 km away
Awakeri, 0.22 km away
Edgecumbe 1987, 0.3 km away
Otakiri, 0.57 km away
Matata, 1.02 km away
Edgecumbe Coastal, 4.61 km away
Whakatane: North, 6.02 km away
White Island 1, 11.2 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 19.75 km away

Rotoitipakau, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,175
Co-rupture Rate	5.8574084E-4

Waiohau: North, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,746
Co-rupture Rate	0.0

Awakeri, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,095
Co-rupture Rate	4.7528403E-5

Edgecumbe 1987, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,380
Co-rupture Rate	9.4170086E-5

Otakiri, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,039
Co-rupture Rate	1.030211E-4

Matata, 1.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,772
Co-rupture Rate	6.913041E-4

Edgecumbe Coastal, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,470
Co-rupture Rate	2.1308806E-4

Whakatane: North, 6.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	65
Co-rupture Rate	7.1389564E-5

White Island 1, 11.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	7,013
Co-rupture Rate	1.1942874E-4

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,924
Co-rupture Rate	7.6480594E-4

Waimana: North, 19.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	38
Co-rupture Rate	0.0
