Campbell Bank Details
| Property | Value |
|---|---|
| Rupture Count | 909 |
| Ruptures Above Sect Min Mag | 906 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.46, 8.51] |
| Length Range | [12, 925] km |
| Total Rate | 3.6154836E-4 /yr |
| Multi-Fault Rate | 3.6154836E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 65 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

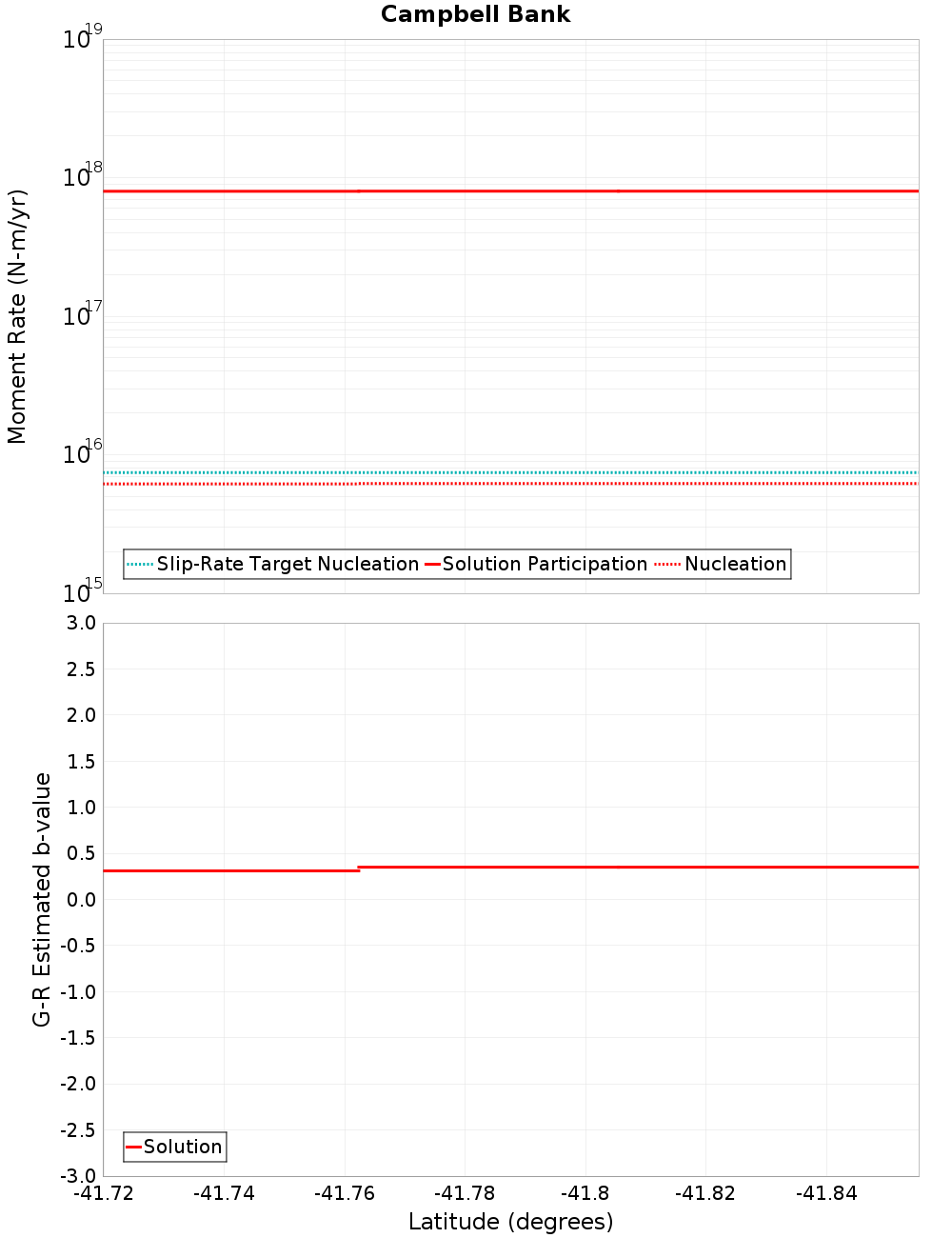

Moment-Rates and b-Values

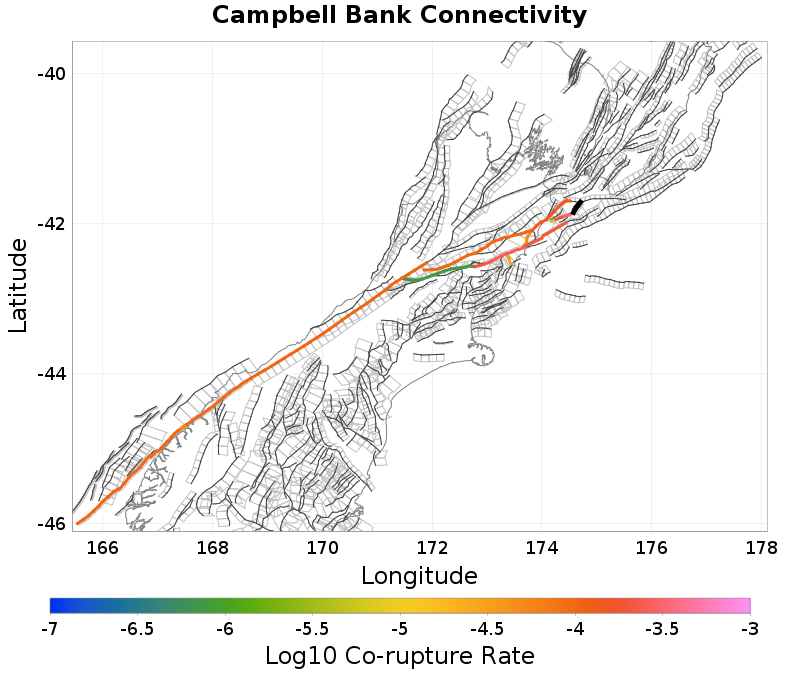

Connectivity
 |  |
|---|
Nearby Sections
Chancet, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 441 |
| Co-rupture Rate | 3.1408676E-4 |
BooBoo, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 685 |
| Co-rupture Rate | 1.5232548E-4 |
Upper Slope, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
Te Rapa 2, 3.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Rapa 1, 4.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kekerengu Bank, 9.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wharanui, 9.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hope: Te Rapa, 12.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 228 |
| Co-rupture Rate | 2.0385794E-4 |
Wharekauhau, 13.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: Needles, 15.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 33 |
| Co-rupture Rate | 0.0 |
Opouawe - Uruti, 16.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 0.0 |
Needles East 2, 17.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: 1, 17.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 33 |
| Co-rupture Rate | 0.0 |
Needles, 17.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 375 |
| Co-rupture Rate | 1.5232548E-4 |
