Cape Egmont: South Details
| Property | Value |
|---|---|
| Rupture Count | 351 |
| Ruptures Above Sect Min Mag | 349 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.92, 7.91] |
| Length Range | [21, 208] km |
| Total Rate | 1.7979403E-4 /yr |
| Multi-Fault Rate | 1.3281684E-4 /yr (73.87%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 14 |
Table Of Contents

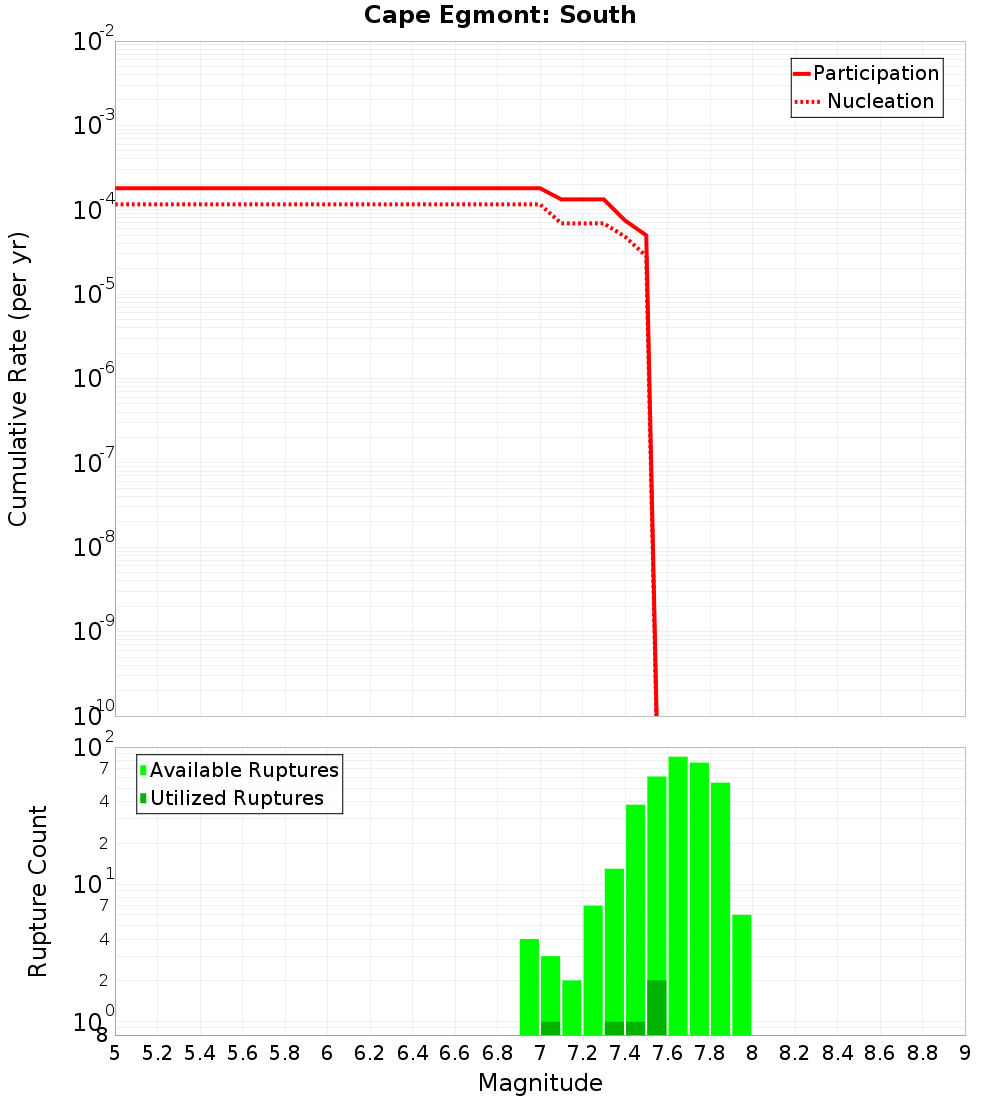

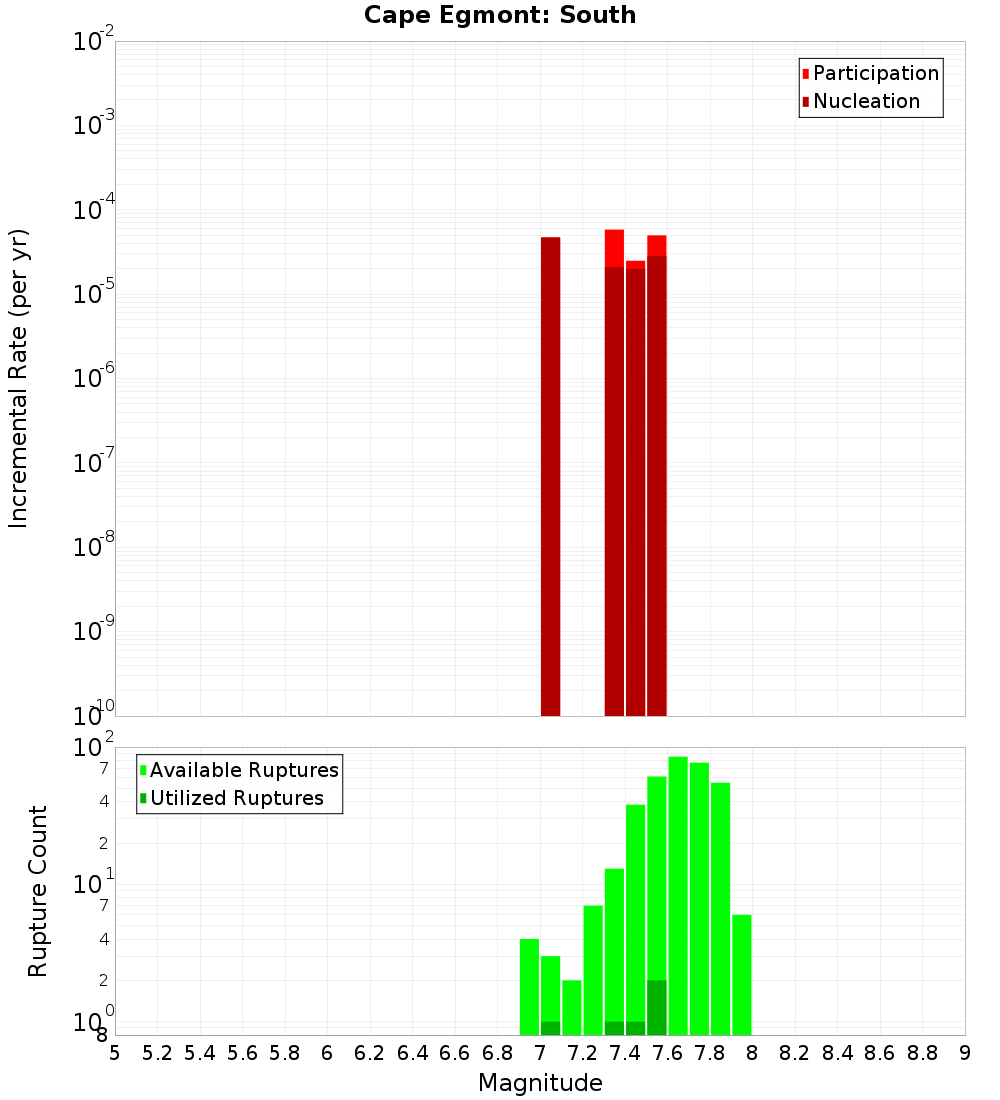

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

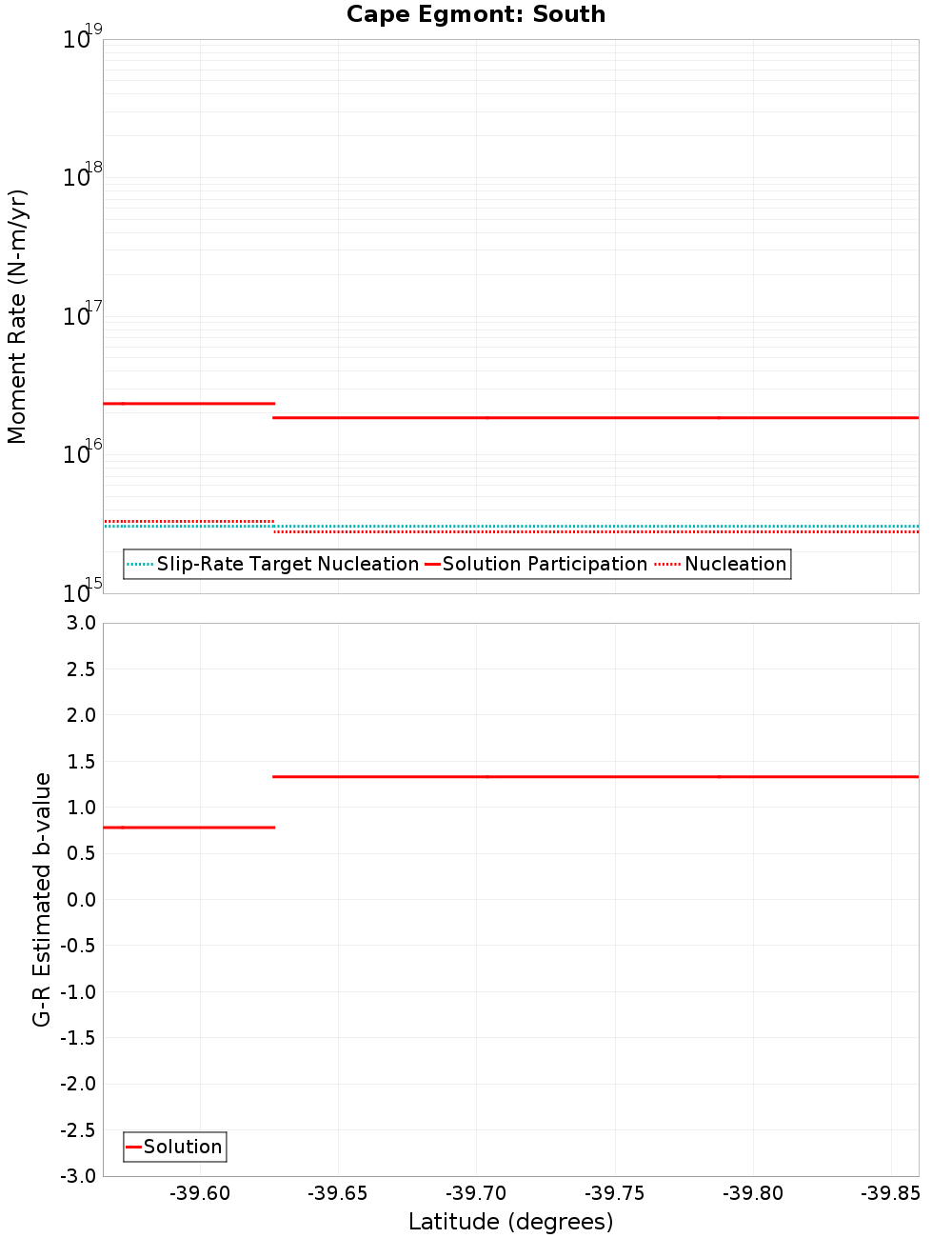

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Pihama, 0.32 km away |
| Cape Egmont: Central, 0.35 km away |
| Manahi 1, 7.96 km away |
| Cape Egmont: North, 10.13 km away |
| Kiri, 18.8 km away |
| Ihaia, 18.91 km away |
| Manahi 2, 19.92 km away |
Pihama, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 53 |
| Co-rupture Rate | 5.8194055E-5 |
Cape Egmont: Central, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 288 |
| Co-rupture Rate | 7.4622796E-5 |
Manahi 1, 7.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 128 |
| Co-rupture Rate | 6.521984E-6 |
Cape Egmont: North, 10.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 172 |
| Co-rupture Rate | 4.3221436E-5 |
Kiri, 18.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 157 |
| Co-rupture Rate | 5.8194055E-5 |
Ihaia, 18.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 116 |
| Co-rupture Rate | 4.974342E-5 |
Manahi 2, 19.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
