Cape Foulwind 4 Details
| Property | Value |
|---|---|
| Rupture Count | 104 |
| Ruptures Above Sect Min Mag | 101 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.95, 7.85] |
| Length Range | [24, 194] km |
| Total Rate | 4.8810536E-5 /yr |
| Multi-Fault Rate | 4.8810536E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 6 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

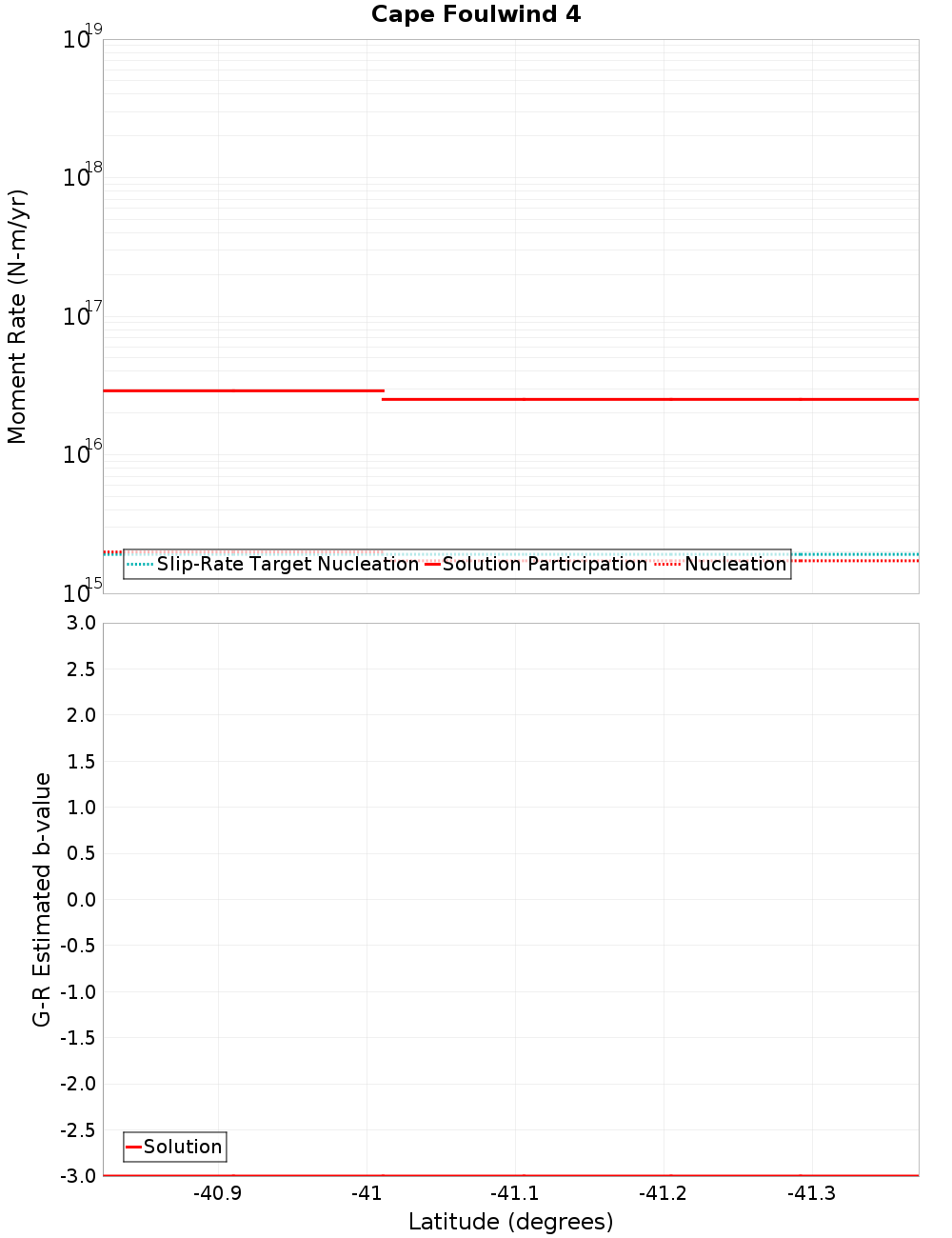

Moment-Rates and b-Values

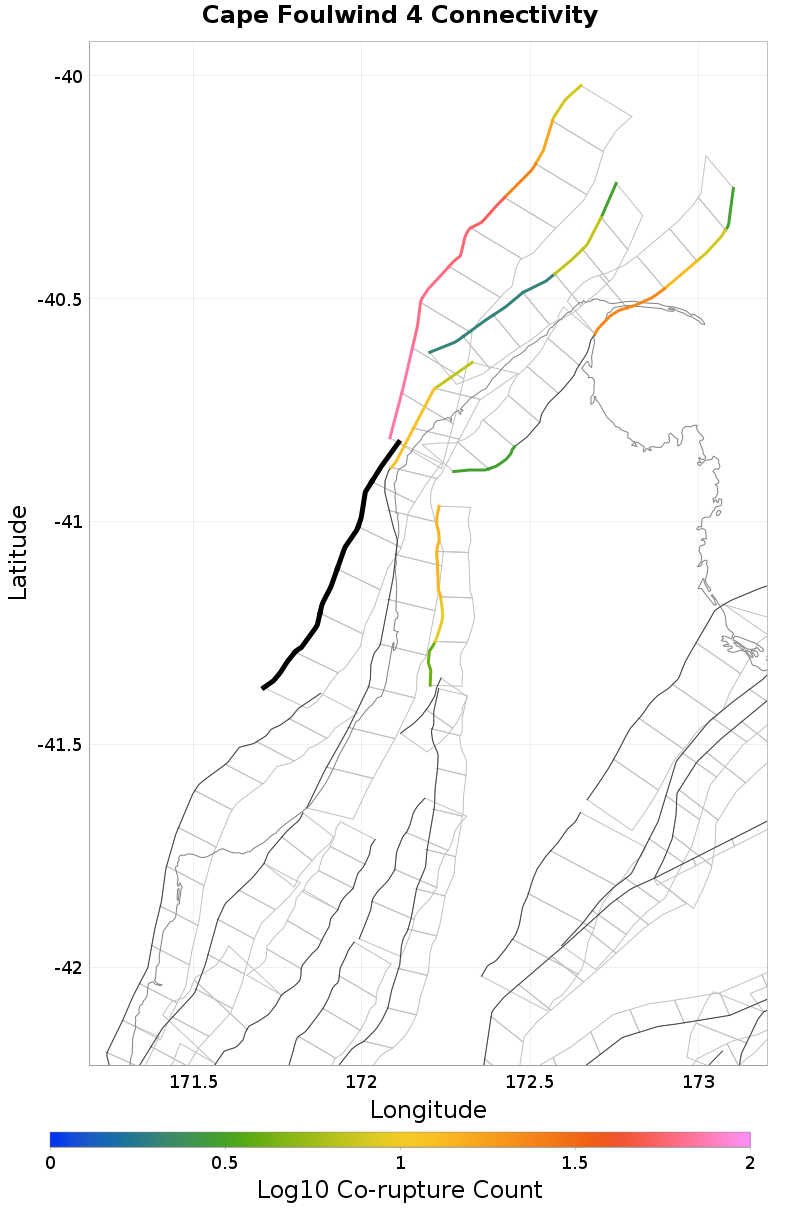

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kahurangi, 0.34 km away |
| Kongahau, 1.22 km away |
| Wakamarama, 1.47 km away |
| Cape Foulwind 2, 8.22 km away |
| Kohaihai, 11.52 km away |
| Farewell, 19.6 km away |
Kahurangi, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 72 |
| Co-rupture Rate | 4.8810536E-5 |
Kongahau, 1.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
Wakamarama, 1.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 2, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kohaihai, 11.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 6.6897364E-6 |
Farewell, 19.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 5.469269E-6 |
