Caswell 211 Details

Property	Value
Rupture Count	12,535
Ruptures Above Sect Min Mag	12,074
Ruptures w/ Nonzero Rates	17
Magnitude Range	[5.68, 8.49]
Length Range	[5, 933] km
Total Rate	1.639633E-4 /yr
Multi-Fault Rate	1.639633E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	50

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

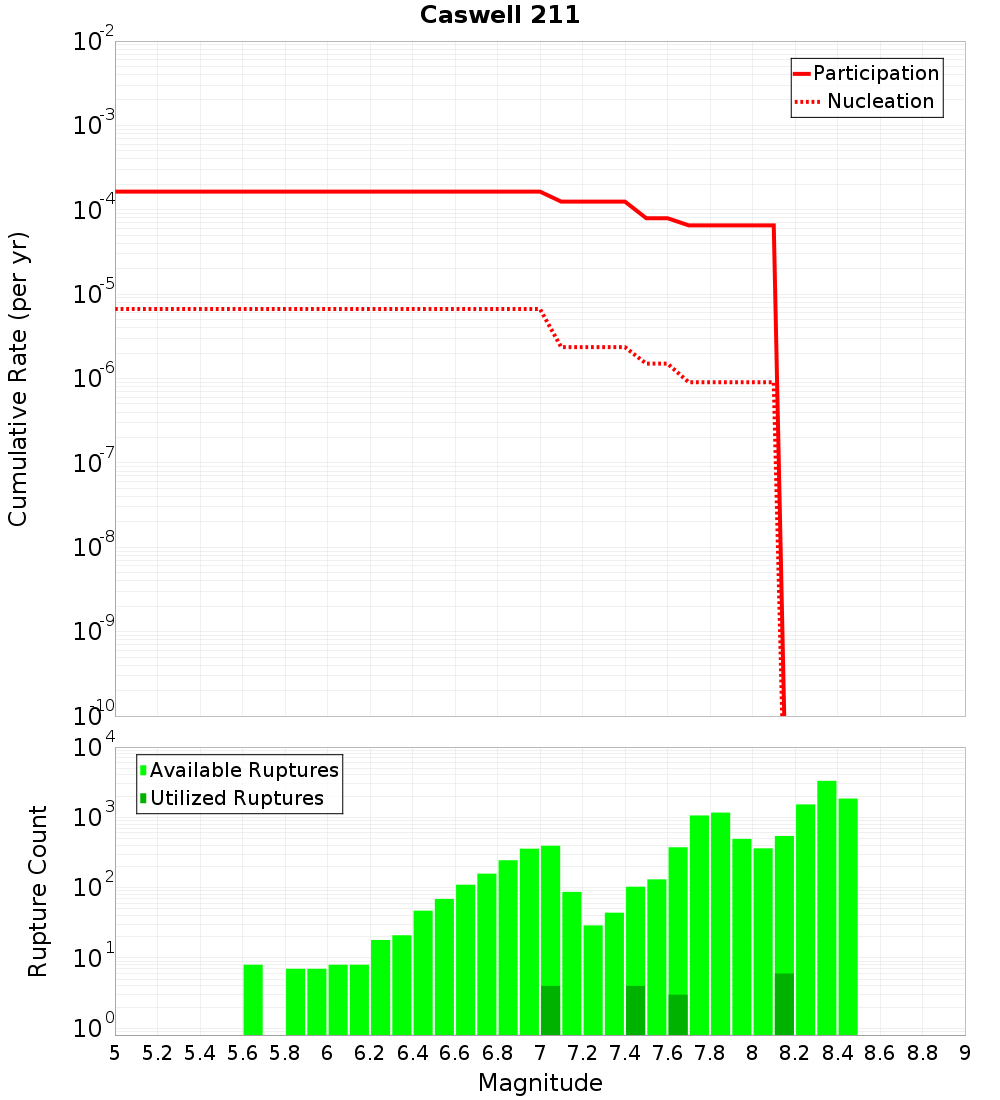

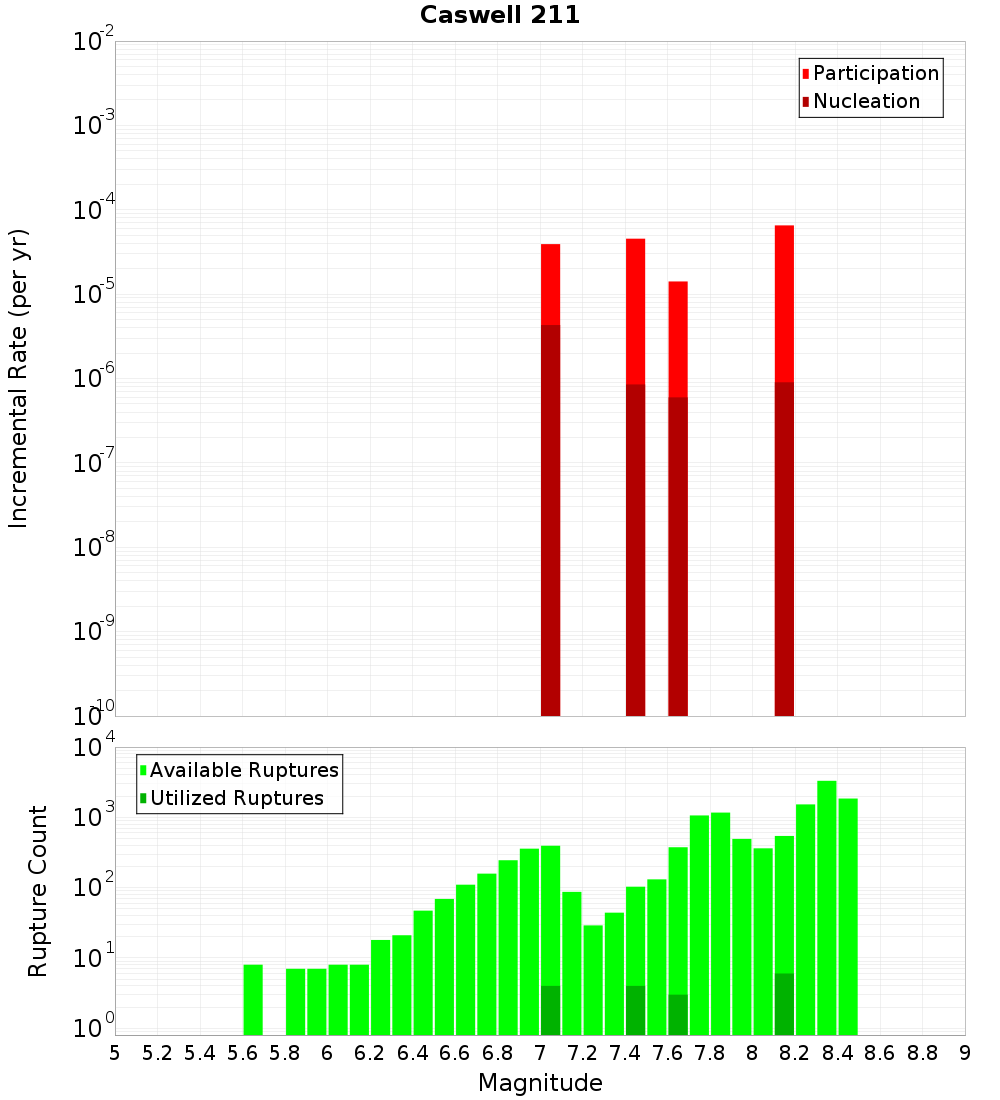

Magnitude-Frequency Distribution

Incremental	Cumulative

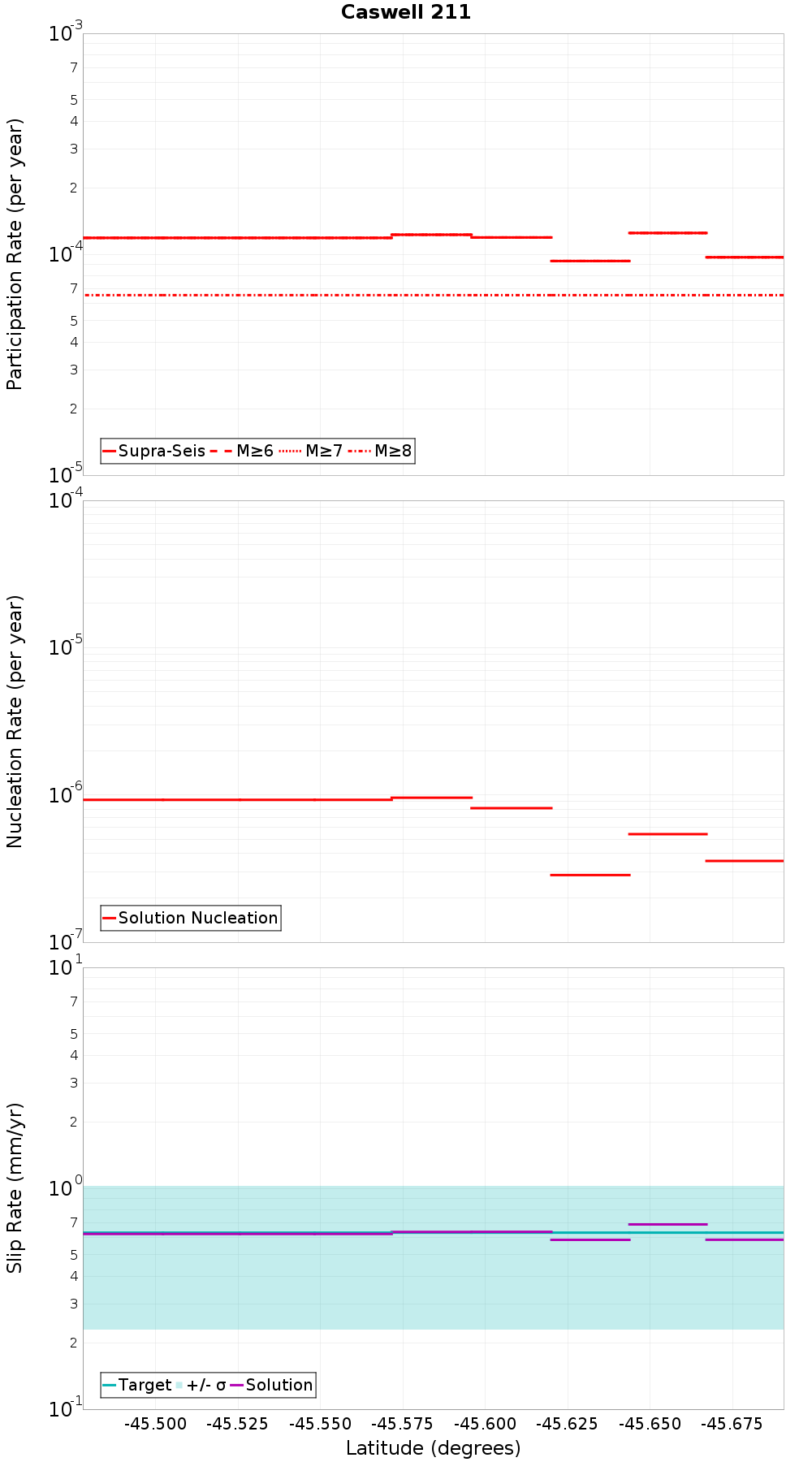

Along-Strike Values

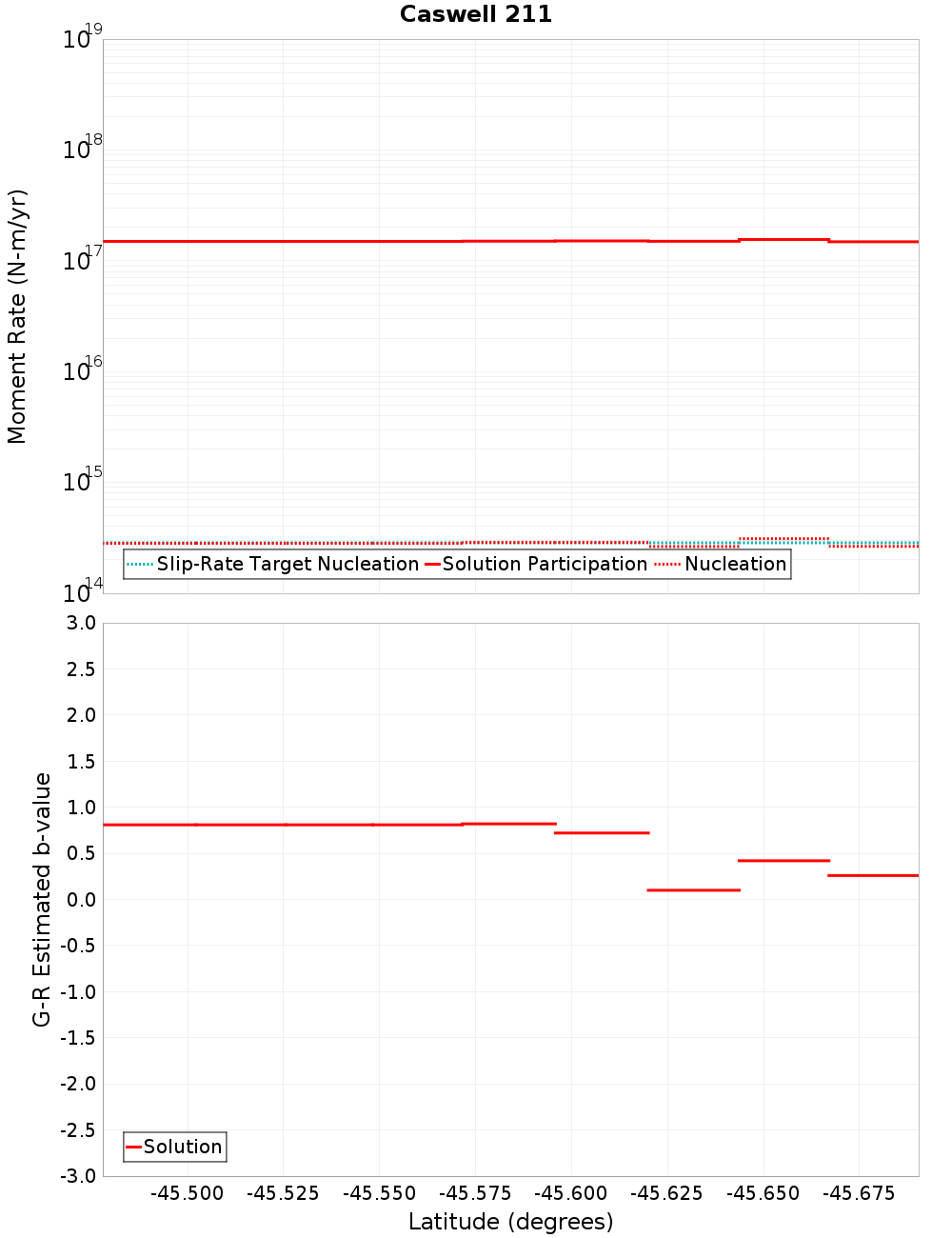

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Caswell High 3, 3.51 km away
Caswell High 1, 4.89 km away
Caswell High 4, 7.8 km away
South Wedge 5, 9.47 km away
South Wedge 3-6-10, 12.71 km away
Alpine: Resolution - Five Fingers, 12.73 km away

Caswell High 3, 3.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	6,701
Co-rupture Rate	1.1855323E-4

Caswell High 1, 4.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	764
Co-rupture Rate	0.0

Caswell High 4, 7.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	3,530
Co-rupture Rate	5.6012177E-5

South Wedge 5, 9.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,957
Co-rupture Rate	5.954339E-5

South Wedge 3-6-10, 12.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	751
Co-rupture Rate	5.954339E-5

Alpine: Resolution - Five Fingers, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	9,095
Co-rupture Rate	6.5272325E-5
