Caswell High 1 Details

Property	Value
Rupture Count	41,905
Ruptures Above Sect Min Mag	40,249
Ruptures w/ Nonzero Rates	25
Magnitude Range	[5.68, 8.51]
Length Range	[5, 1,009] km
Total Rate	1.8044413E-4 /yr
Multi-Fault Rate	1.8044413E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

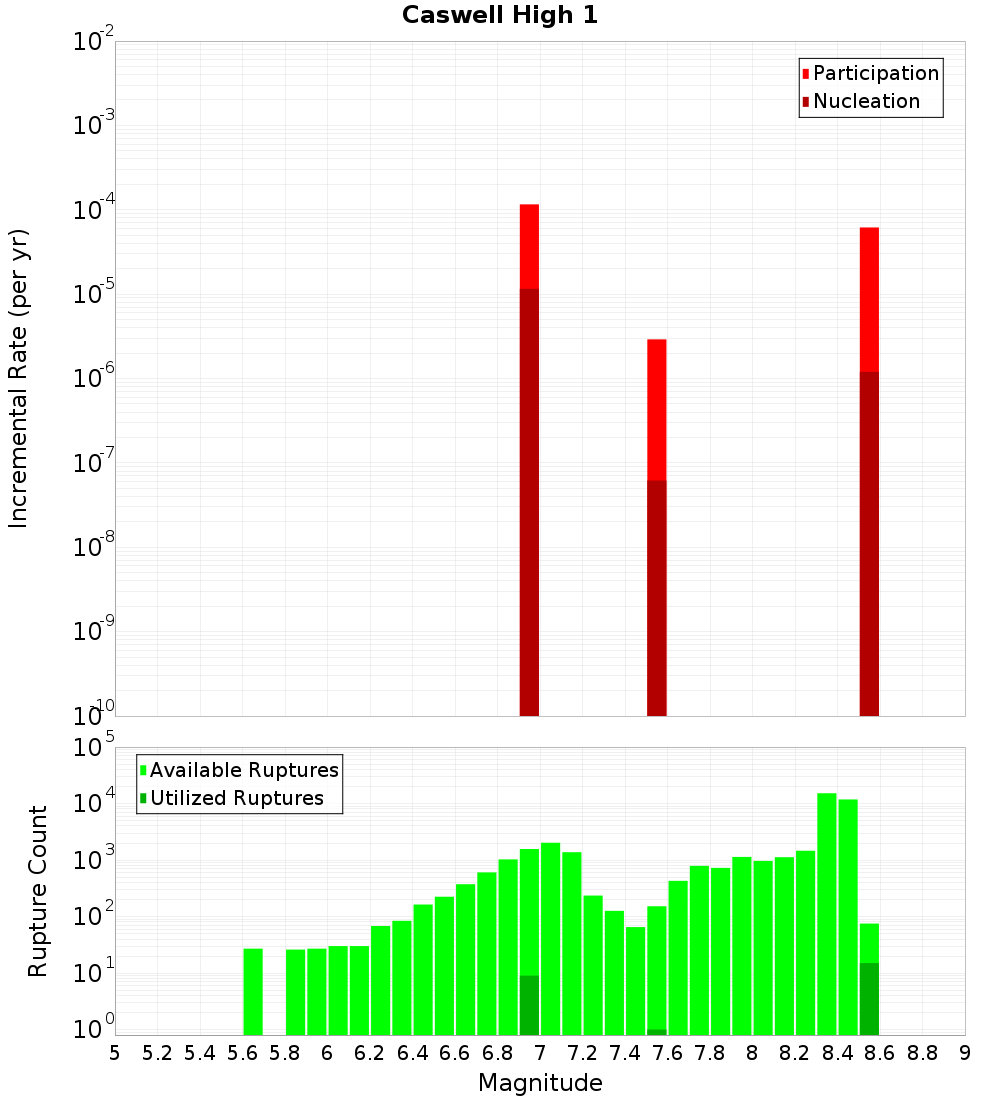

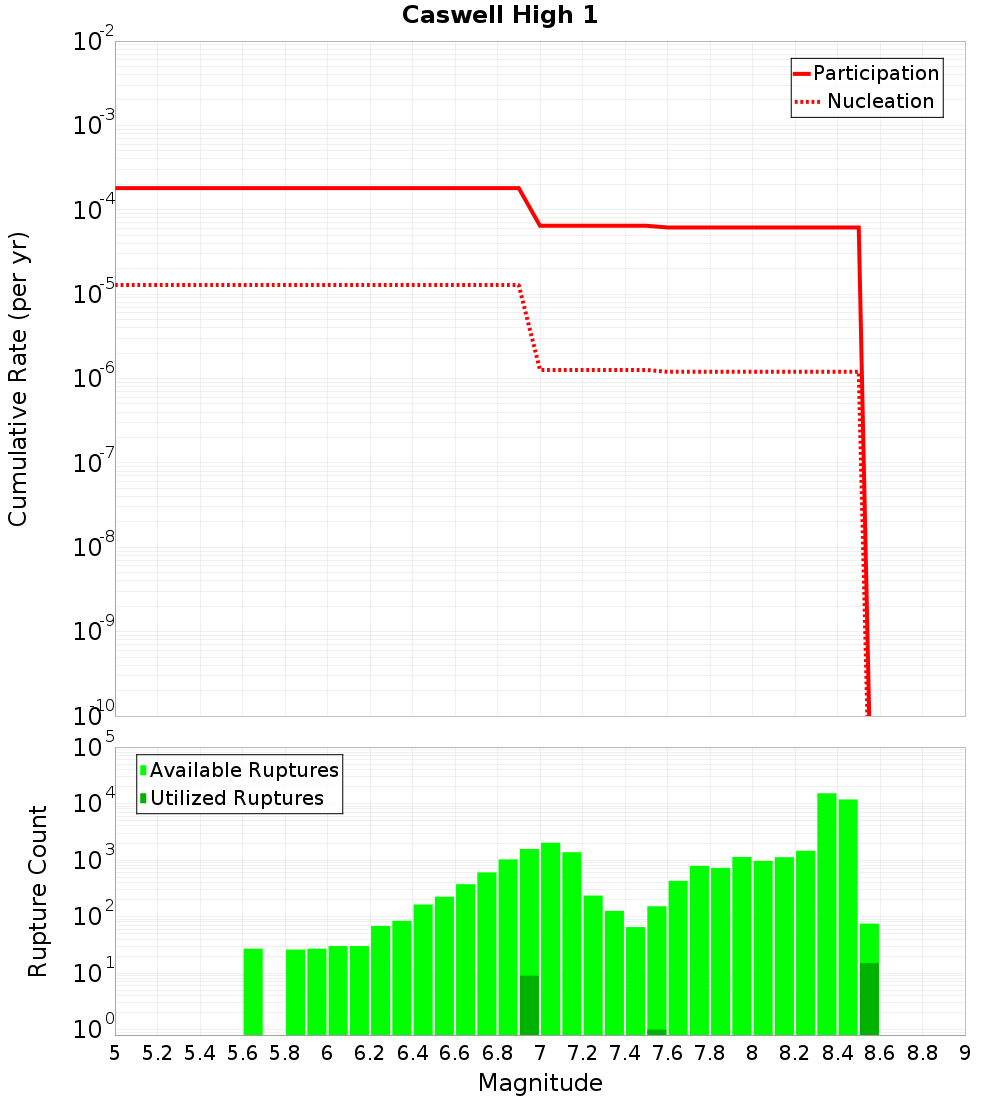

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

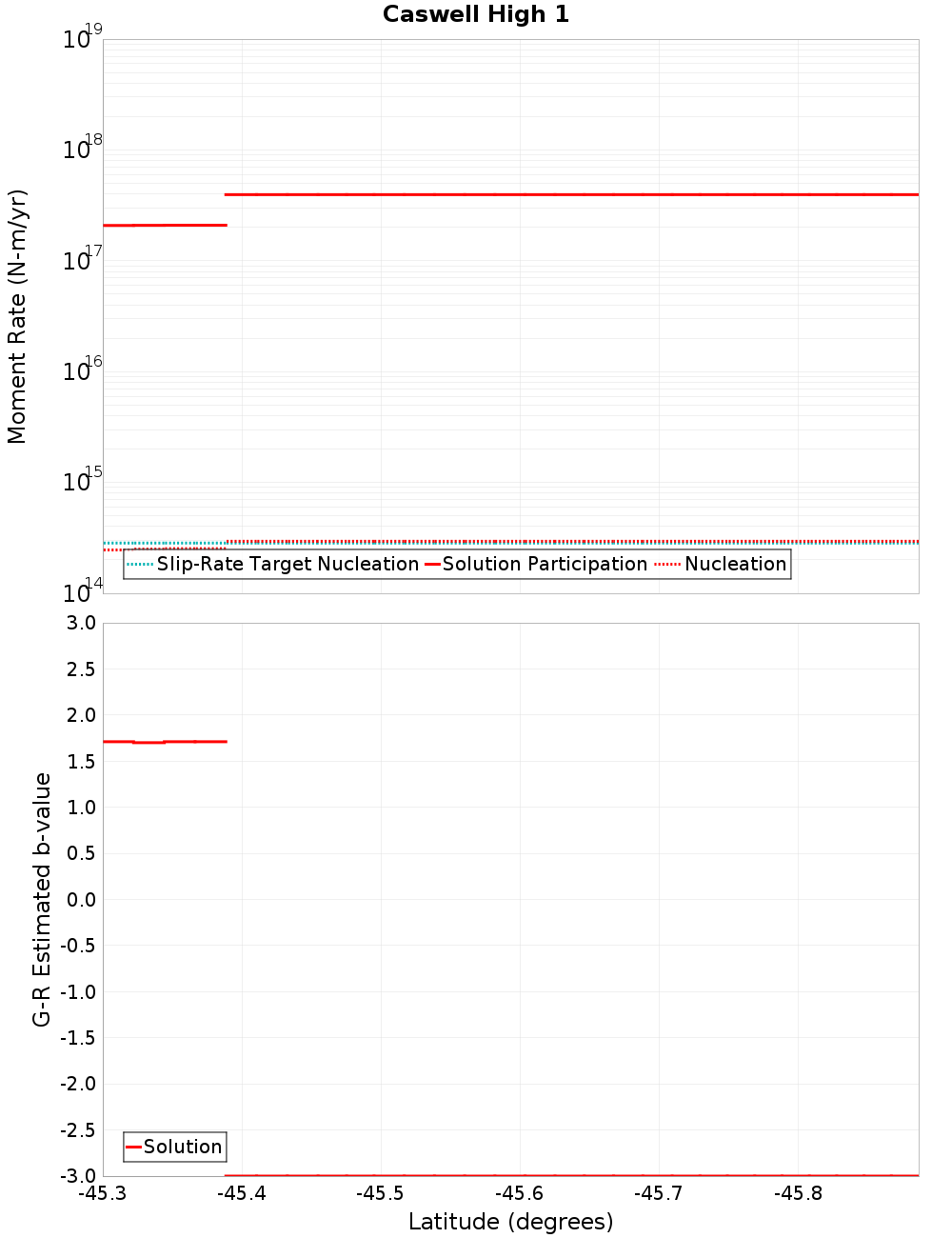

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Caswell High 4, 2.06 km away
Caswell High 3, 4.38 km away
Caswell 211, 4.89 km away
South Wedge 5, 13.27 km away
Alpine: Resolution - Five Fingers, 14.93 km away
Caswell High 5, 17.85 km away
South Wedge 3-6-10, 18.06 km away

Caswell High 4, 2.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	13,479
Co-rupture Rate	1.4546196E-4

Caswell High 3, 4.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	676
Co-rupture Rate	2.4490146E-6

Caswell 211, 4.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	764
Co-rupture Rate	0.0

South Wedge 5, 13.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	630
Co-rupture Rate	5.8185487E-6

Alpine: Resolution - Five Fingers, 14.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	33,592
Co-rupture Rate	6.167329E-5

Caswell High 5, 17.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	6,124
Co-rupture Rate	1.1586157E-4

South Wedge 3-6-10, 18.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	175
Co-rupture Rate	2.9092744E-6
