Caswell High 8 Details
| Property | Value |
|---|---|
| Rupture Count | 1,639 |
| Ruptures Above Sect Min Mag | 1,257 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [5.68, 7.82] |
| Length Range | [5, 223] km |
| Total Rate | 1.0305231E-4 /yr |
| Multi-Fault Rate | 1.0305231E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 16 |
Table Of Contents

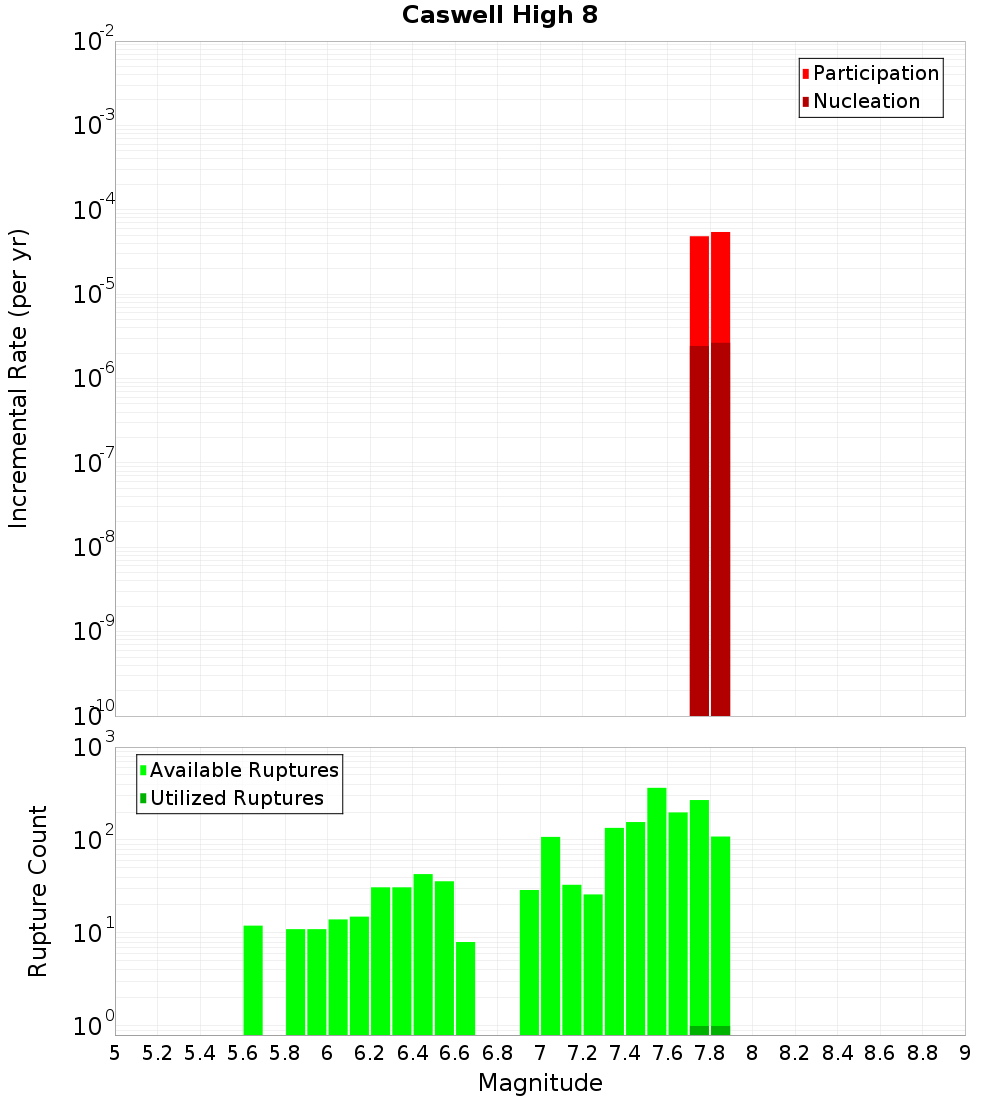

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

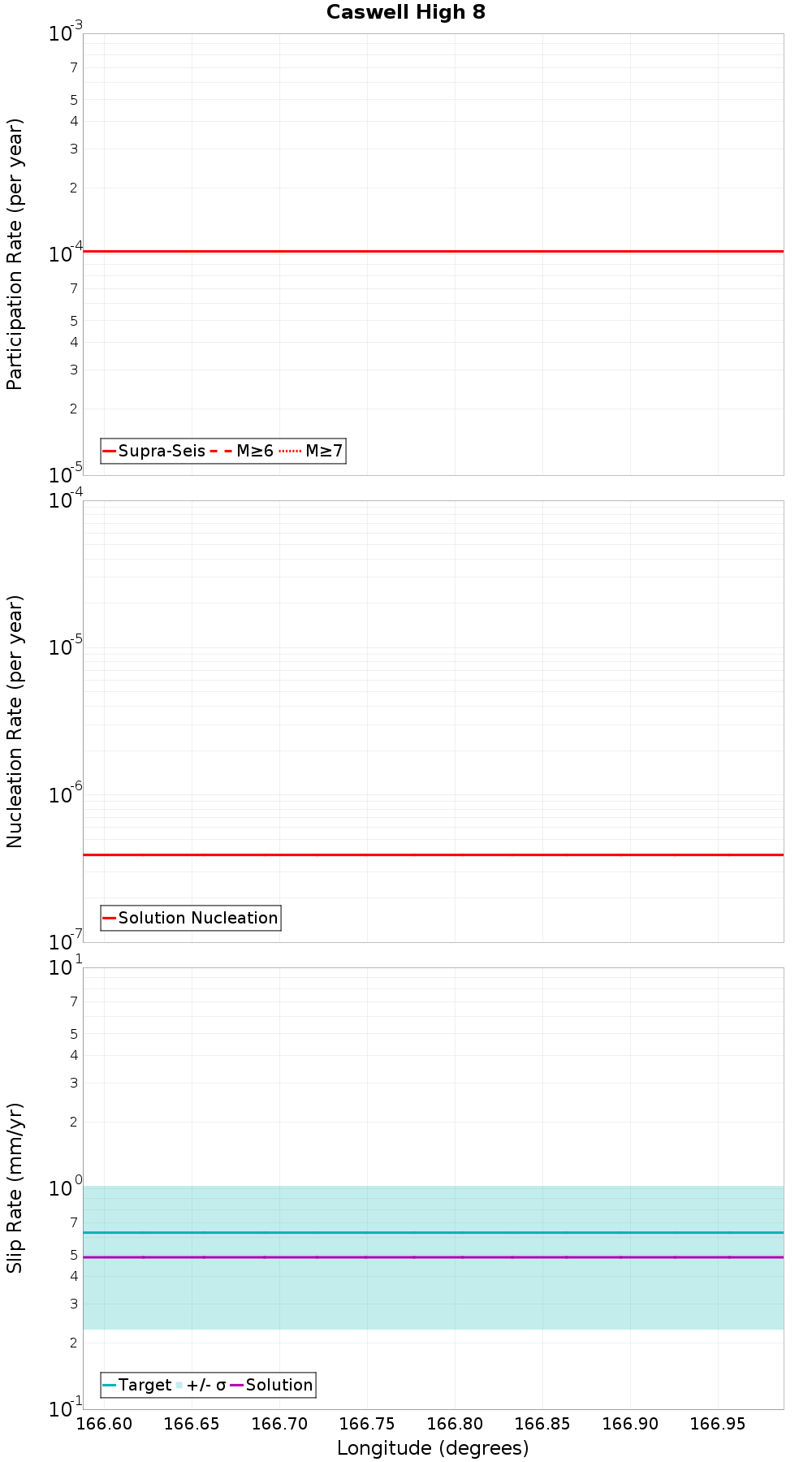

Along-Strike Values

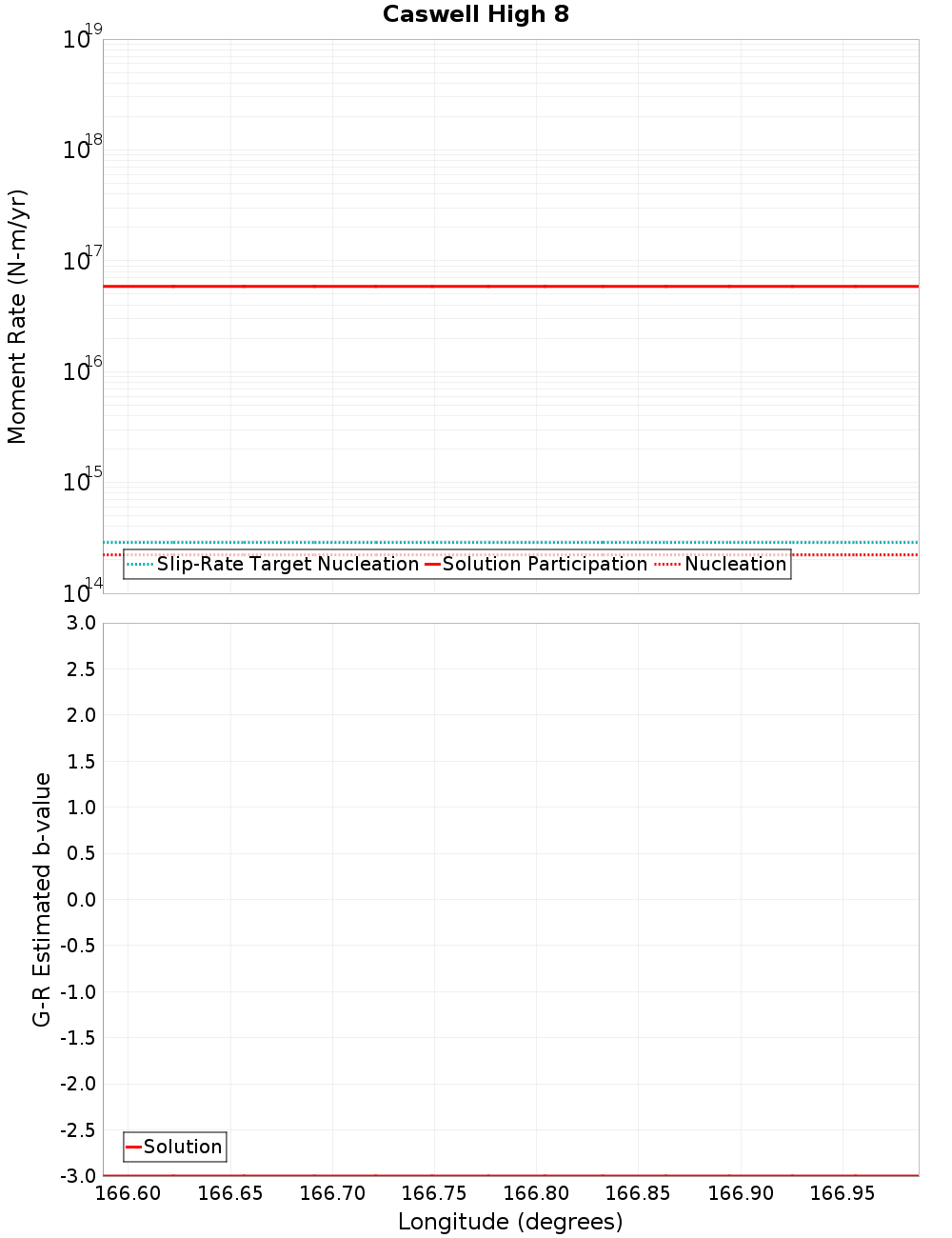

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Caswell High 9, 4.67 km away |
| Caswell High 10, 6.85 km away |
| Caswell High 67, 12.34 km away |
| Milford Basin 5 to George R2, 12.95 km away |
| Central Wedge 1 & 2 & 3, 13.85 km away |
Caswell High 9, 4.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 515 |
| Co-rupture Rate | 4.8535418E-5 |
Caswell High 10, 6.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 658 |
| Co-rupture Rate | 5.4516895E-5 |
Caswell High 67, 12.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 61 |
| Co-rupture Rate | 0.0 |
Milford Basin 5 to George R2, 12.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 81 |
| Co-rupture Rate | 0.0 |
Central Wedge 1 & 2 & 3, 13.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,427 |
| Co-rupture Rate | 1.0305231E-4 |
