Clarence: Southwest Details

PropertyValue
Rupture Count25,428
Ruptures Above Sect Min Mag25,424
Ruptures w/ Nonzero Rates30
Magnitude Range[6.94, 8.52]
Length Range[23, 977] km
Total Rate4.049454E-4 /yr
Multi-Fault Rate4.049454E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults144

Table Of Contents

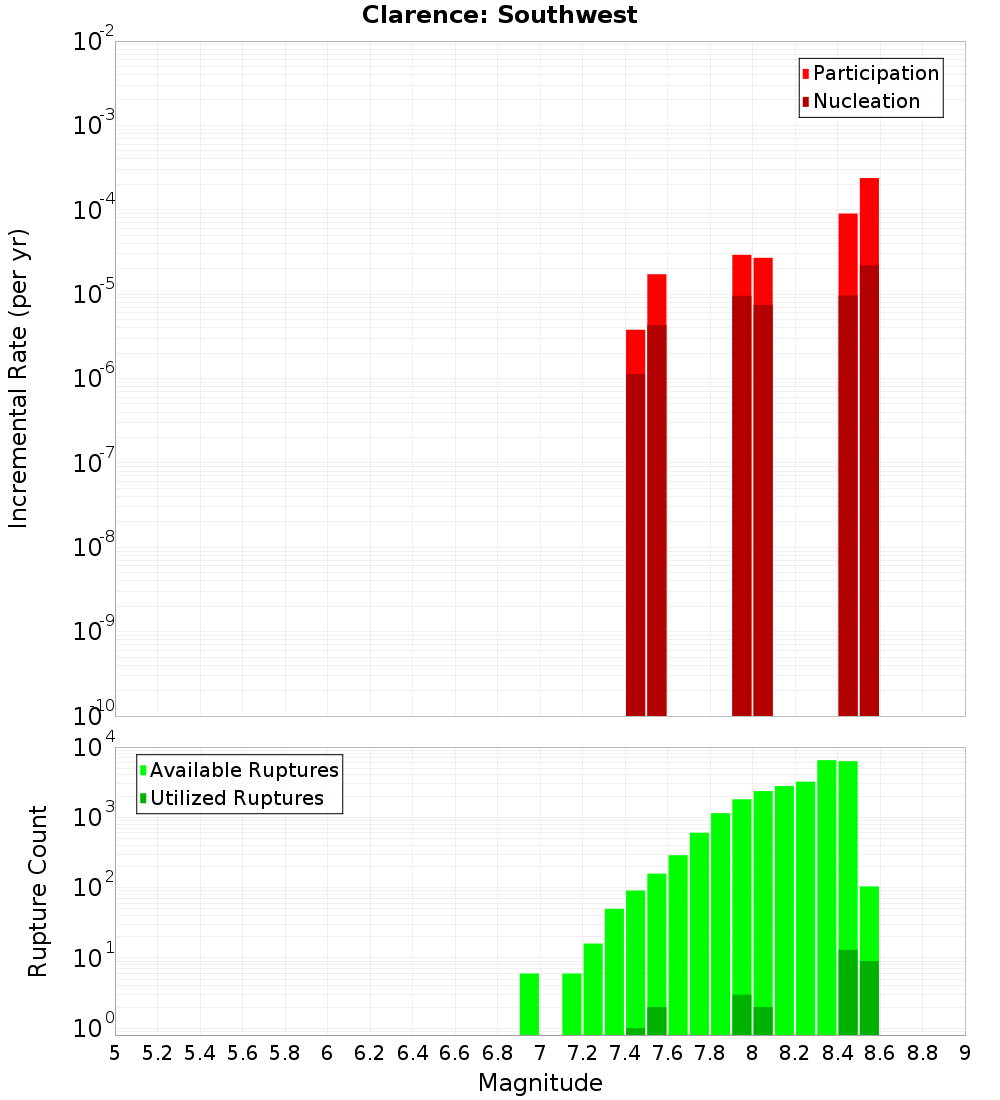

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

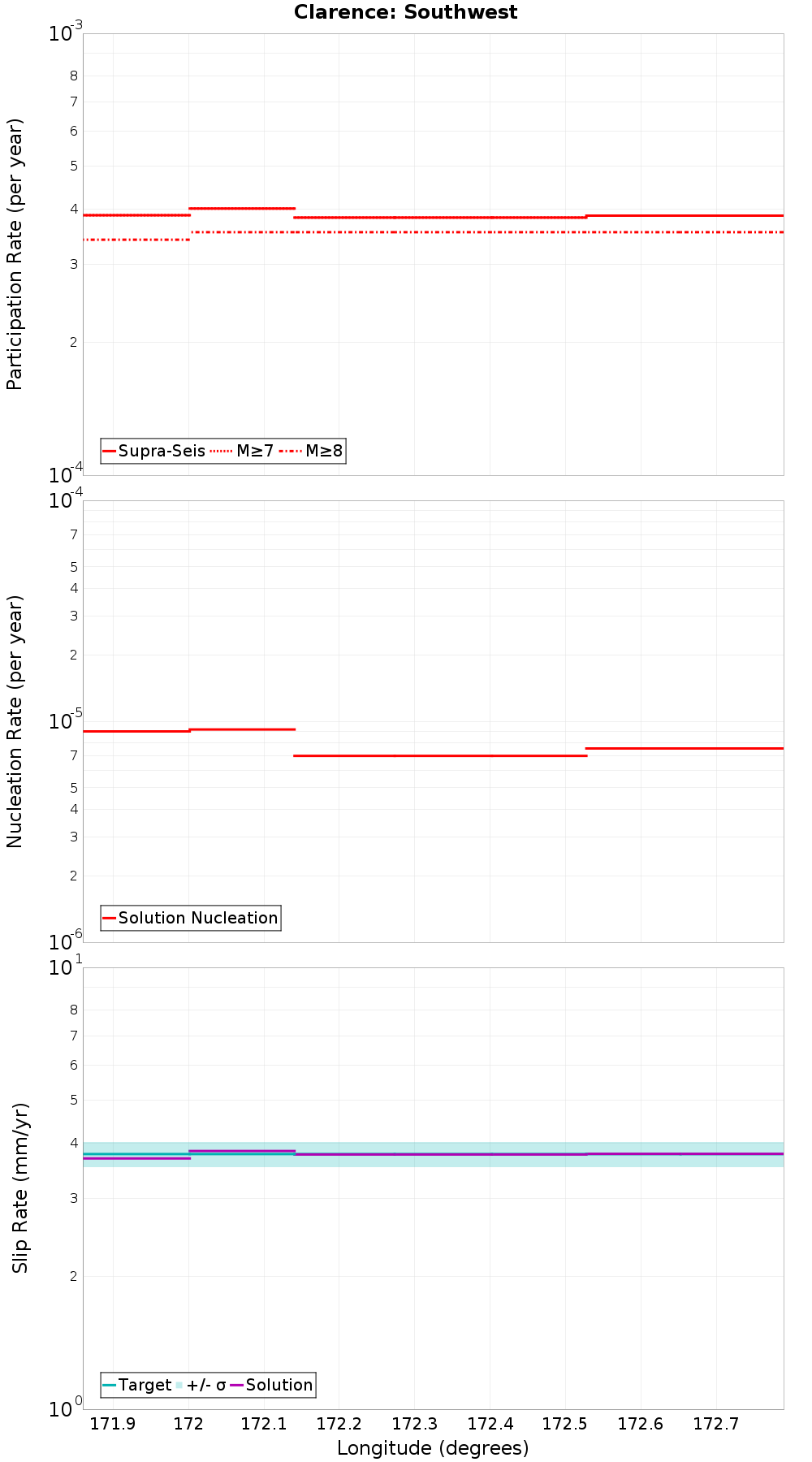

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

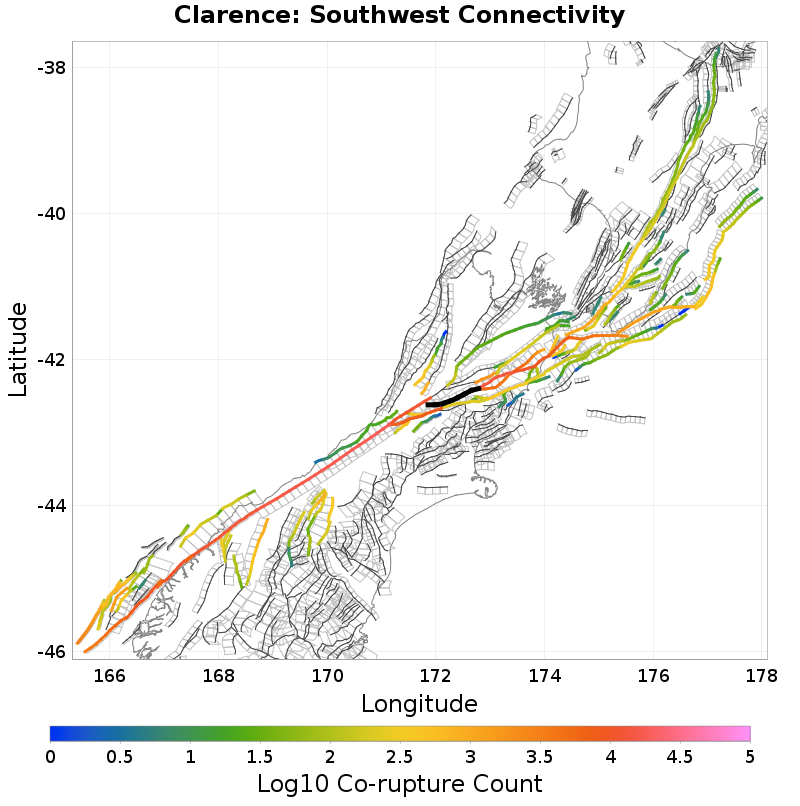

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Clarence: Central, 0 km awayHanmer, 11.45 km away
Alpine: Kaniere to Springs Junction, 0.1 km awayHope: Kakapo-2-Hamner, 12.23 km away
Elliott, 0.33 km awayHope: Hanmer NW, 12.23 km away
Fowlers, 2.25 km awayHope: Taramakau, 12.83 km away
Hope: Hope River, 5.56 km awayKelly, 13.21 km away
Alpine: Springs Junction to Tophouse, 6.38 km awayHope: Hanmer SW, 13.89 km away
White Creek - buried, 6.57 km awayPoulter, 15.04 km away
Hope: Hurunui, 8.29 km awayAwatere: Southwest, 15.97 km away
Kakapo, 8.64 km awayHope: Hanmer SE, 17.93 km away
Esk North, 8.86 km awayLyell South, 19.5 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count15,979
Co-rupture Rate2.9764997E-4

Alpine: Kaniere to Springs Junction, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count11,954
Co-rupture Rate3.141266E-4

Elliott, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count5,326
Co-rupture Rate4.02333E-5

Fowlers, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count1,912
Co-rupture Rate4.9828734E-5

Hope: Hope River, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count8,498
Co-rupture Rate3.197201E-5

Alpine: Springs Junction to Tophouse, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count142
Co-rupture Rate3.7836821E-6

White Creek - buried, 6.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count825
Co-rupture Rate7.342729E-5

Hope: Hurunui, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count8,247
Co-rupture Rate1.3607803E-5

Kakapo, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 8.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate0.0

Hope: Kakapo-2-Hamner, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count195
Co-rupture Rate1.0659708E-5

Hope: Hanmer NW, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Hope: Taramakau, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count491
Co-rupture Rate0.0

Kelly, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count7,820
Co-rupture Rate1.3607803E-5

Hope: Hanmer SW, 13.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count211
Co-rupture Rate1.14779E-6

Poulter, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate0.0

Awatere: Southwest, 15.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Hope: Hanmer SE, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count174
Co-rupture Rate1.14779E-6

Lyell South, 19.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count432
Co-rupture Rate2.171522E-5
