Kaiwara North Details

PropertyValue
Rupture Count643
Ruptures Above Sect Min Mag643
Ruptures w/ Nonzero Rates9
Magnitude Range[7.05, 8.45]
Length Range[25, 843] km
Total Rate6.768629E-5 /yr
Multi-Fault Rate6.768629E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults62

Table Of Contents

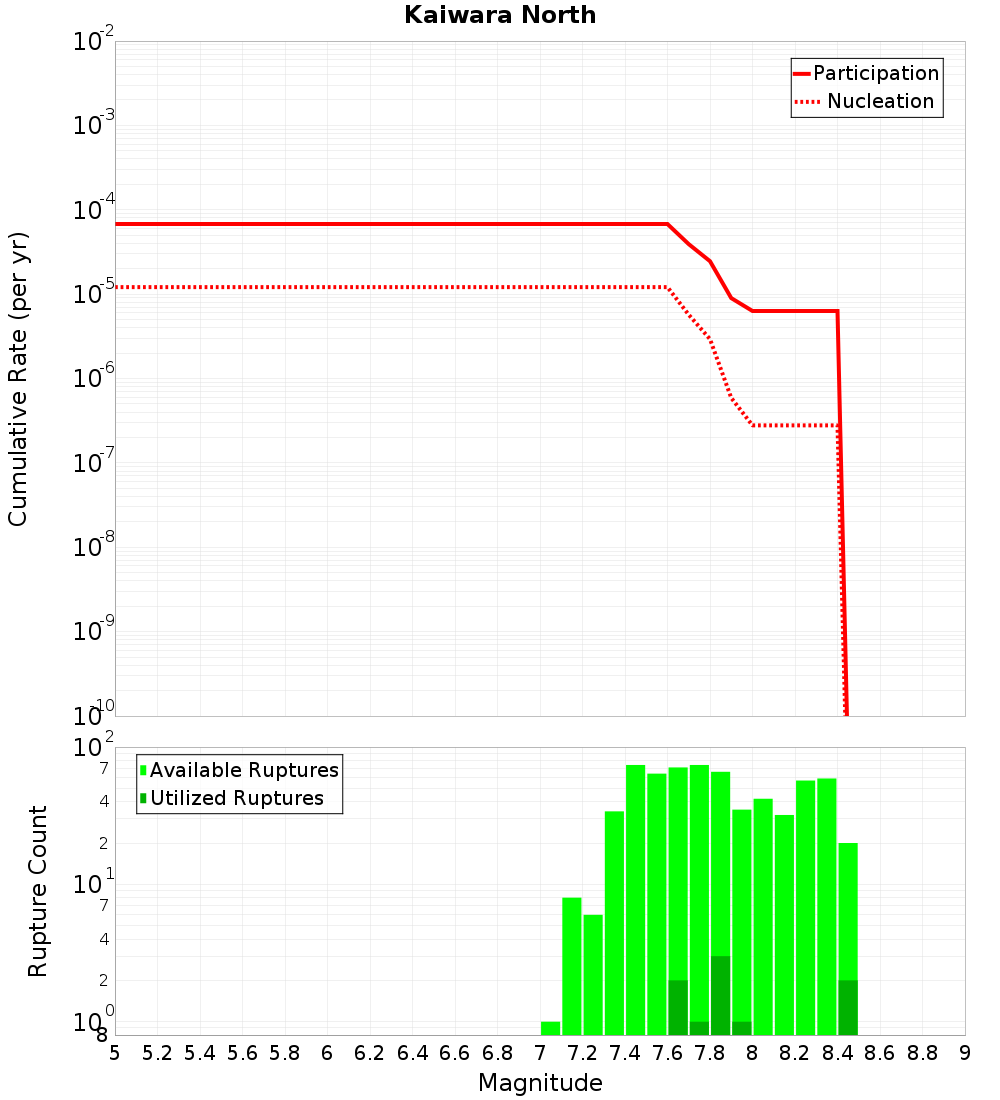

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

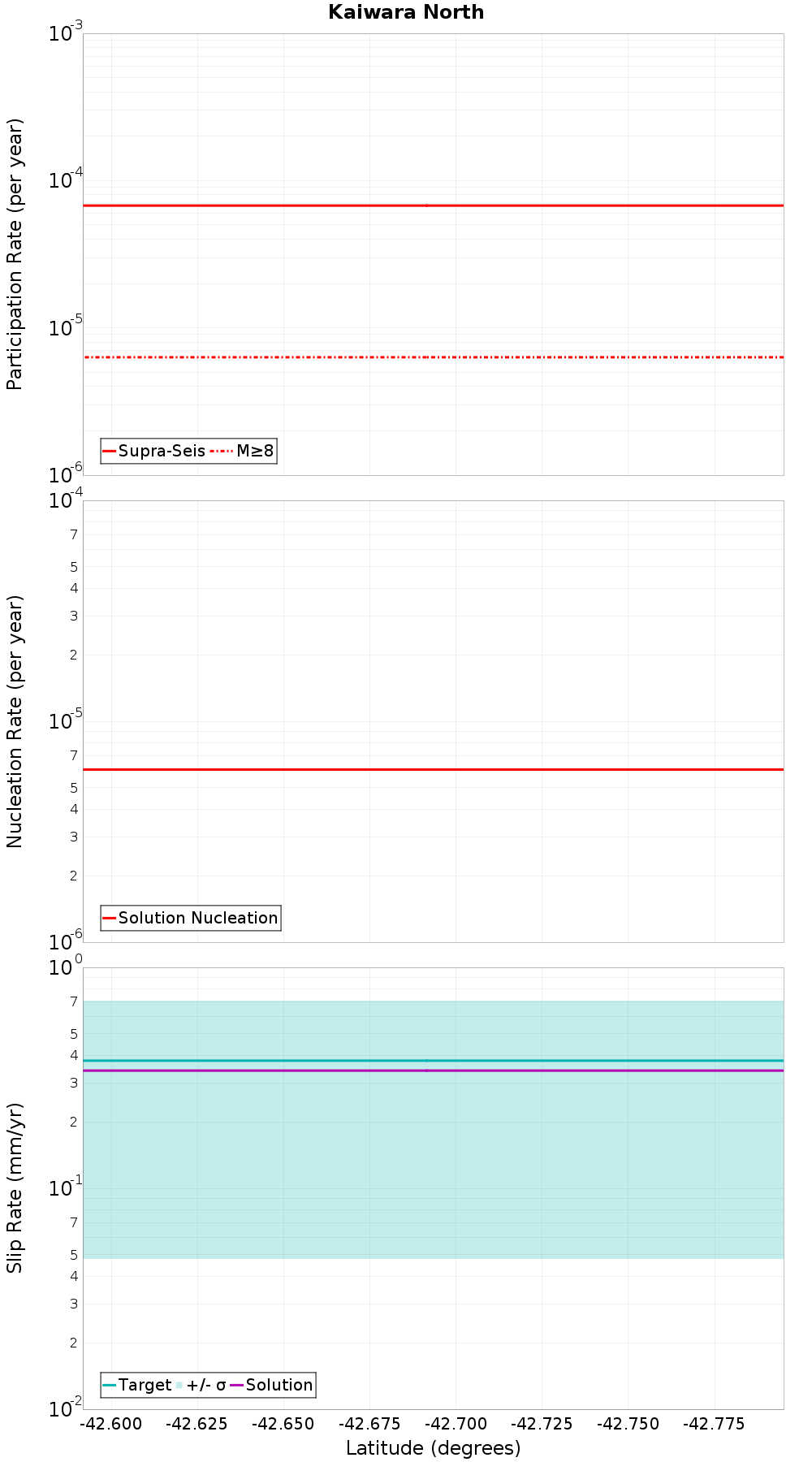

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

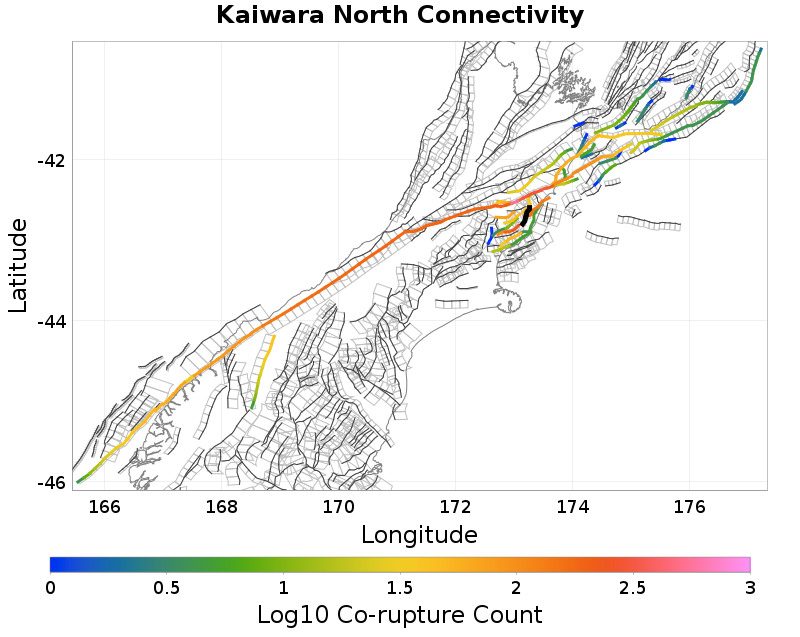

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
The Humps, 0.03 km awayHawkswood, 9.21 km away
Leader: South, 0.18 km awayLeader: North, 10.78 km away
Lowry, 0.2 km awayOmihiLwrHuru, 10.79 km away
Leonard Mound, 0.38 km awayKaiwara South, 11.67 km away
Mt Culverden, 0.48 km awayHope: Hanmer SE, 11.98 km away
Leader: Central, 2.03 km awayStoneJug, 13.47 km away
Hundalee, 3.48 km awayAmberBlyth, 15.9 km away
Alexander, 5.18 km awayHanmer, 16.38 km away
Hope: Conway, 5.81 km away

The Humps, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate0.0

Lowry, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.4541449E-5

Leonard Mound, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate4.3131633E-5

Mt Culverden, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate1.5573527E-5

Leader: Central, 2.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate0.0

Hundalee, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count156
Co-rupture Rate1.4541449E-5

Alexander, 5.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count236
Co-rupture Rate0.0

Hope: Conway, 5.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count546
Co-rupture Rate5.3144846E-5

Hawkswood, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Leader: North, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

OmihiLwrHuru, 10.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate0.0

Kaiwara South, 11.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer SE, 11.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count208
Co-rupture Rate6.313707E-6

StoneJug, 13.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 15.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Hanmer, 16.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate1.5569687E-5
