Kohaihai South Details
| Property | Value |
|---|---|
| Rupture Count | 23 |
| Ruptures Above Sect Min Mag | 23 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.81, 7.65] |
| Length Range | [17, 120] km |
| Total Rate | 9.890273E-5 /yr |
| Multi-Fault Rate | 9.890273E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

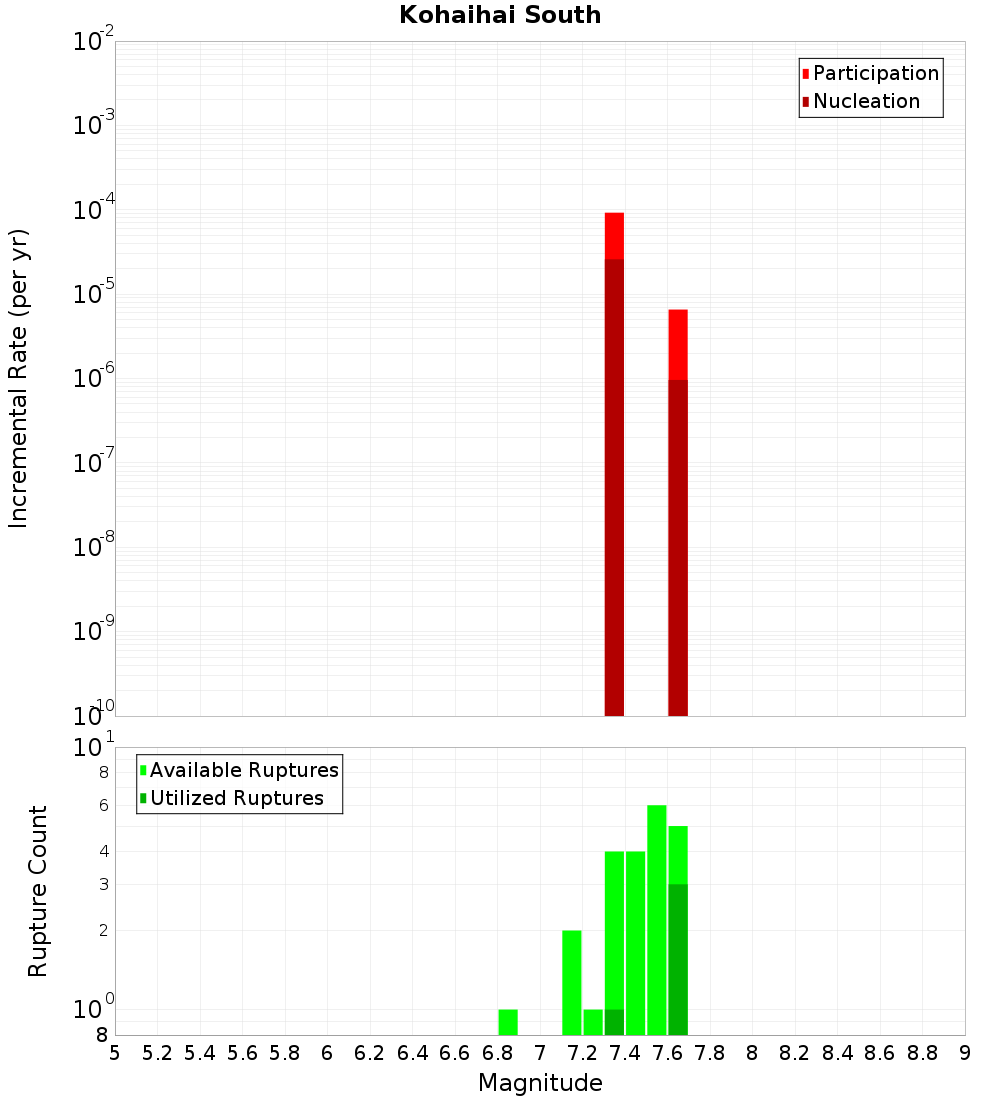

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

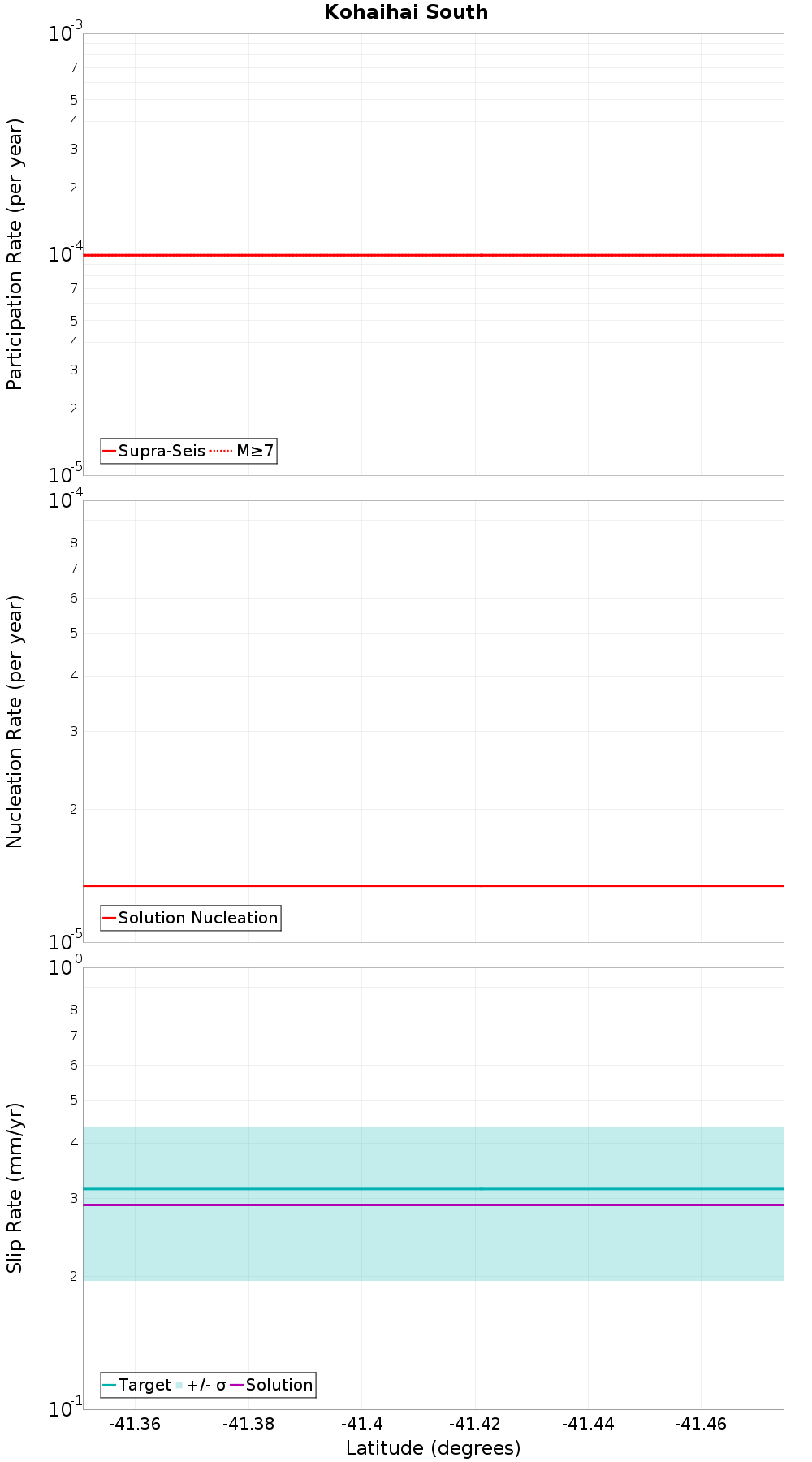

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.55 km away |
| Kohaihai, 1.73 km away |
| Kongahau, 7.55 km away |
| Lyell, 16.55 km away |
| Cape Foulwind 2, 17.22 km away |
White Creek, 0.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kohaihai, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 15 |
| Co-rupture Rate | 9.571372E-5 |
Kongahau, 7.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 19 |
| Co-rupture Rate | 6.565872E-6 |
Lyell, 16.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Foulwind 2, 17.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
