Lachlan 1 & 2 Details
| Property | Value |
|---|---|
| Rupture Count | 132 |
| Ruptures Above Sect Min Mag | 123 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.57, 7.64] |
| Length Range | [15, 200] km |
| Total Rate | 8.6446834E-4 /yr |
| Multi-Fault Rate | 2.3852513E-4 /yr (27.59%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 10 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

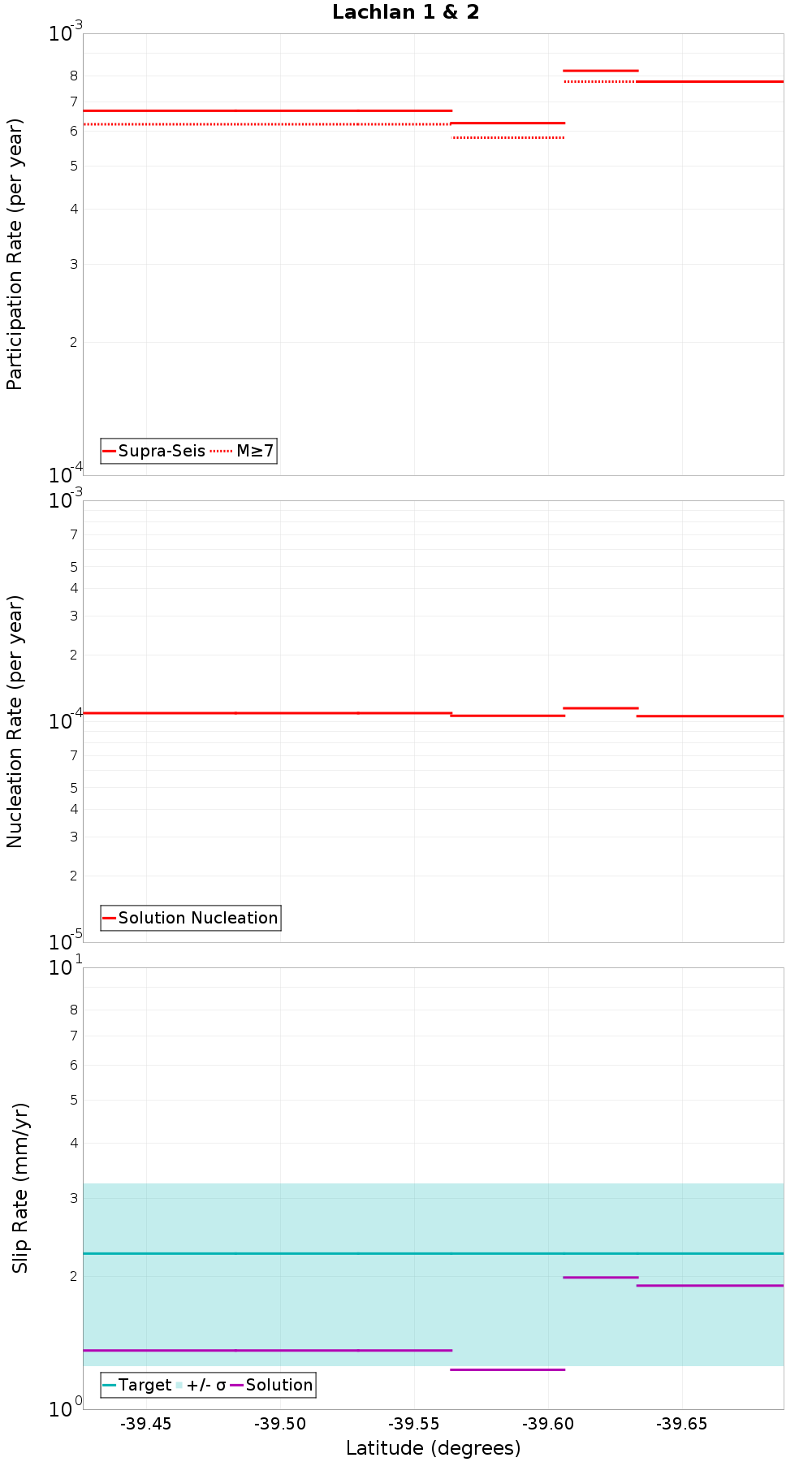

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lachlan 3, 0.51 km away |
| Mahia 2, 8.38 km away |
| Motu o Kura North, 10.61 km away |
| Kidnappers Ridge, 10.87 km away |
| Motu o Kura Ridge, 19.8 km away |
Lachlan 3, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mahia 2, 8.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu o Kura North, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 101 |
| Co-rupture Rate | 4.192259E-5 |
Kidnappers Ridge, 10.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 1.9660254E-4 |
Motu o Kura Ridge, 19.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 94 |
| Co-rupture Rate | 4.192259E-5 |
