Lachlan 3 Details

PropertyValue
Rupture Count179
Ruptures Above Sect Min Mag164
Ruptures w/ Nonzero Rates8
Magnitude Range[6.58, 7.62]
Length Range[15, 157] km
Total Rate9.5814513E-4 /yr
Multi-Fault Rate9.5814513E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults8

Table Of Contents

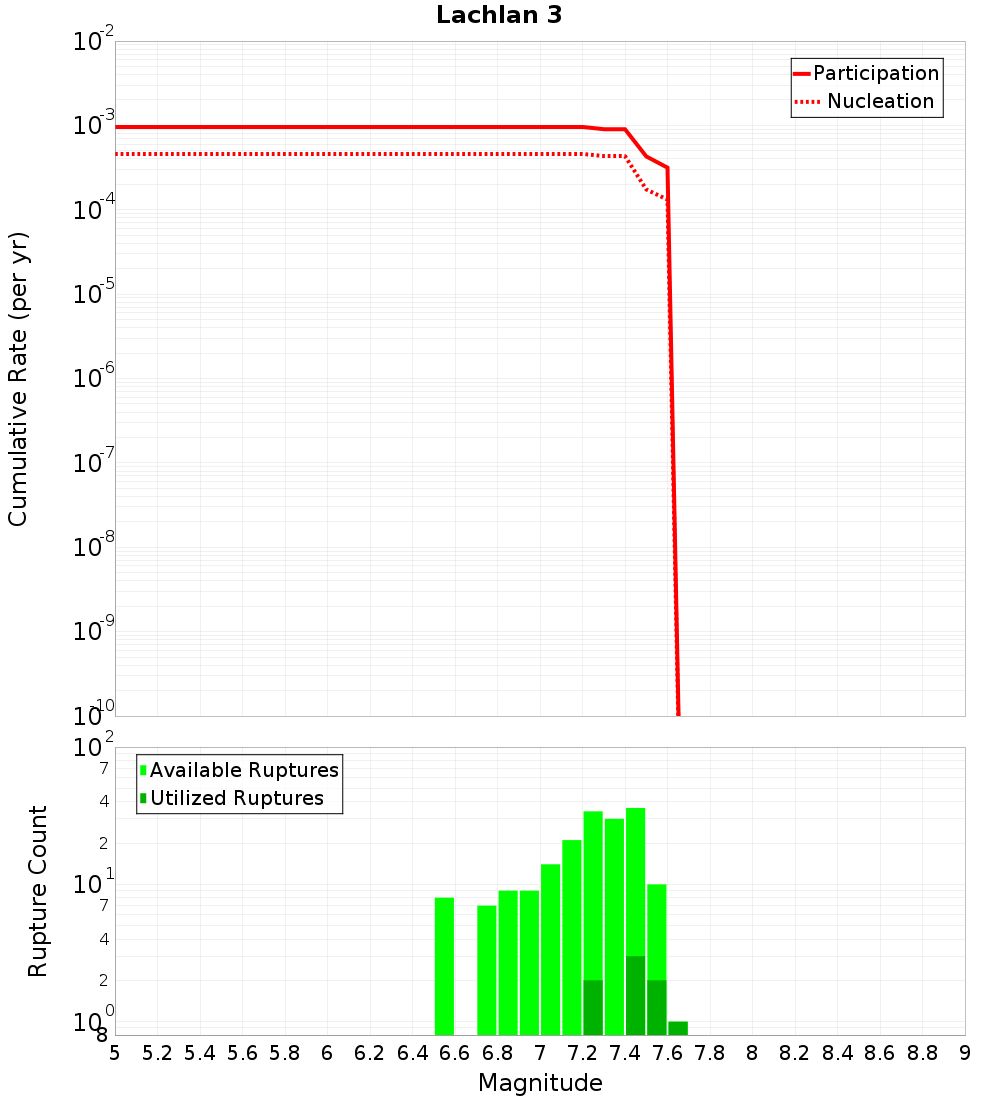

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lachlan 1 & 2, 0.51 km away
Mahia 2, 2.42 km away
Ariel East, 3.11 km away
Poverty Bay, 3.9 km away
Ariel Bank, 6.74 km away
Gable End South, 14.5 km away
Kidnappers Ridge, 17.32 km away
Te Ikaarongamai, 19.41 km away
Motu o Kura North, 19.7 km away

Lachlan 1 & 2, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mahia 2, 2.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel East, 3.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate4.247932E-4

Poverty Bay, 3.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate4.287343E-4

Ariel Bank, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count94
Co-rupture Rate1.9299972E-4

Gable End South, 14.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate4.287343E-4

Kidnappers Ridge, 17.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Ikaarongamai, 19.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate3.3641112E-4

Motu o Kura North, 19.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
