Moonlight North Details
| Property | Value |
|---|---|
| Rupture Count | 7,849 |
| Ruptures Above Sect Min Mag | 7,844 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [6.93, 8.44] |
| Length Range | [23, 926] km |
| Total Rate | 7.441858E-6 /yr |
| Multi-Fault Rate | 7.441858E-6 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 83 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

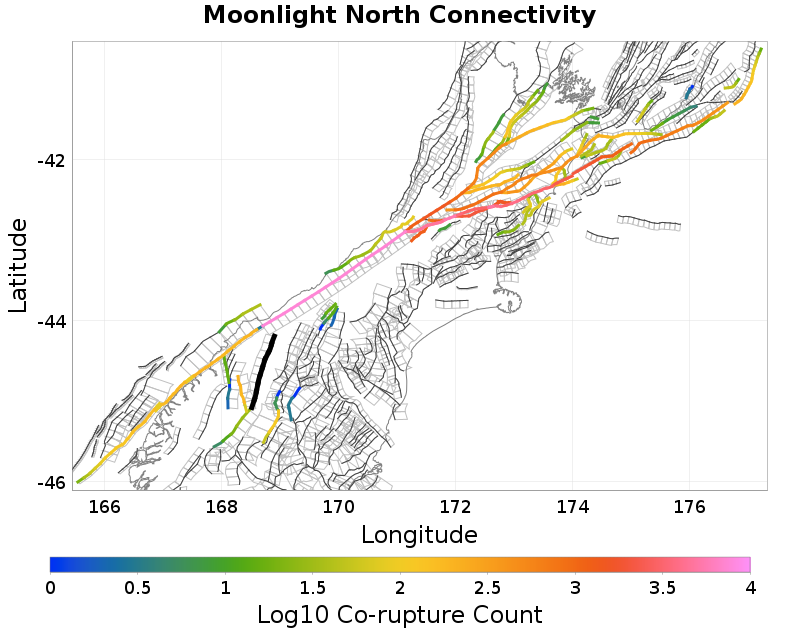

Connectivity
 |  |
|---|
Nearby Sections
West Wakatipu, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 199 |
| Co-rupture Rate | 1.2961323E-9 |
Alpine: Jacksons to Kaniere, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,527 |
| Co-rupture Rate | 1.2961323E-9 |
Moonlight South, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 28 |
| Co-rupture Rate | 7.3816373E-6 |
Livingstone, 7.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.111353E-9 |
Alpine: George to Jacksons, 8.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 206 |
| Co-rupture Rate | 5.7813587E-8 |
Barn, 13.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 7.3816373E-6 |
Motatapu, 19.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
