Moonlight South Details

PropertyValue
Rupture Count38
Ruptures Above Sect Min Mag37
Ruptures w/ Nonzero Rates5
Magnitude Range[7.13, 8.02]
Length Range[28, 241] km
Total Rate7.3816373E-6 /yr
Multi-Fault Rate7.3816373E-6 /yr (100.00%)
Directly-Connected Faults1
All Co-Rupturing Faults2

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

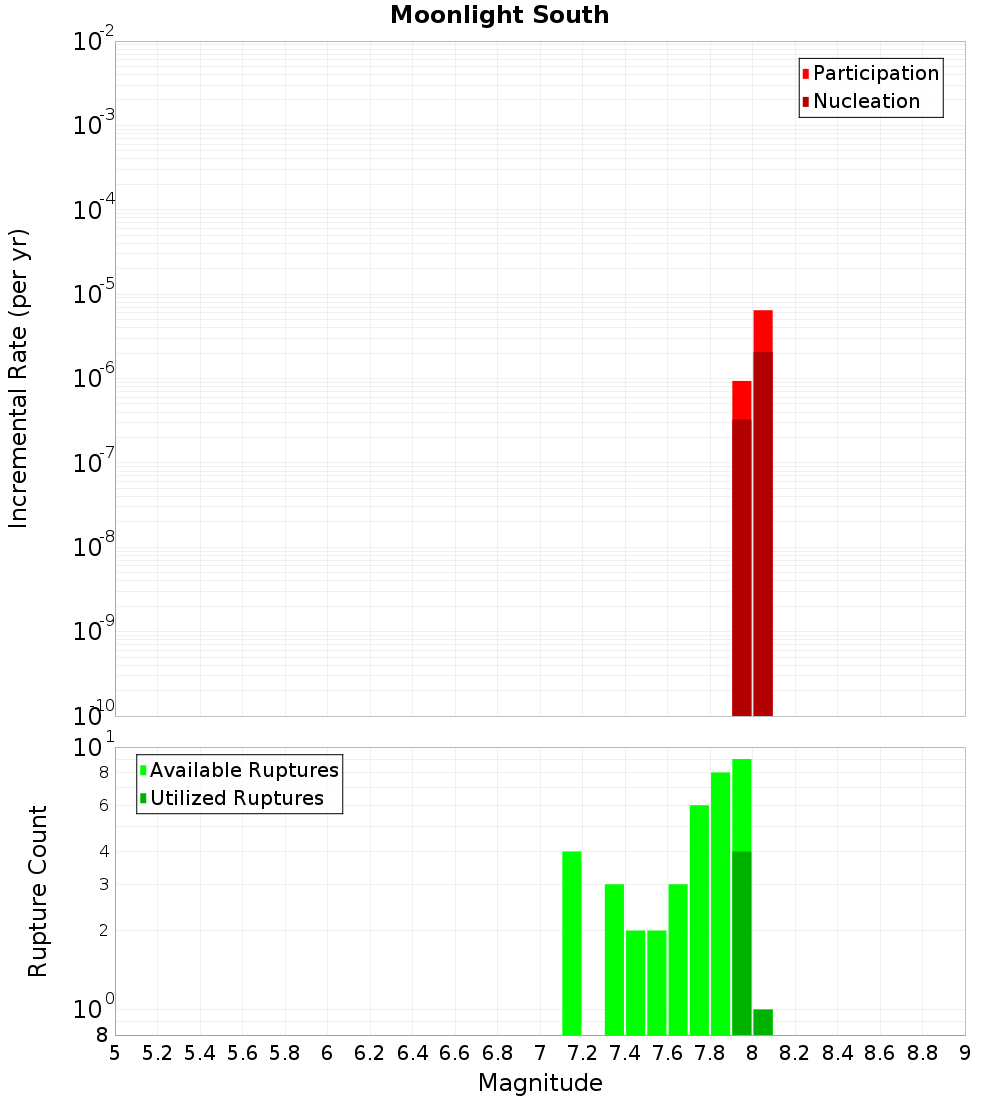

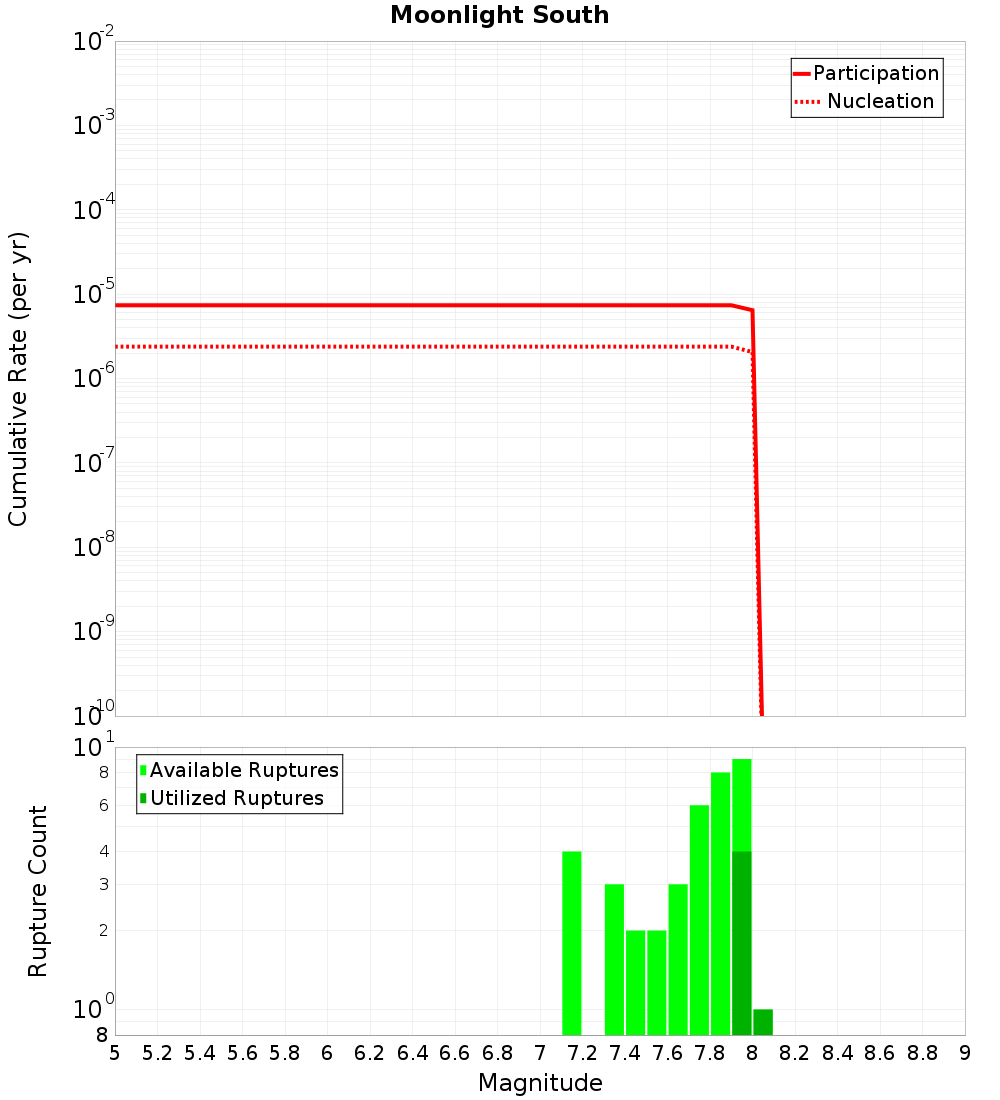

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

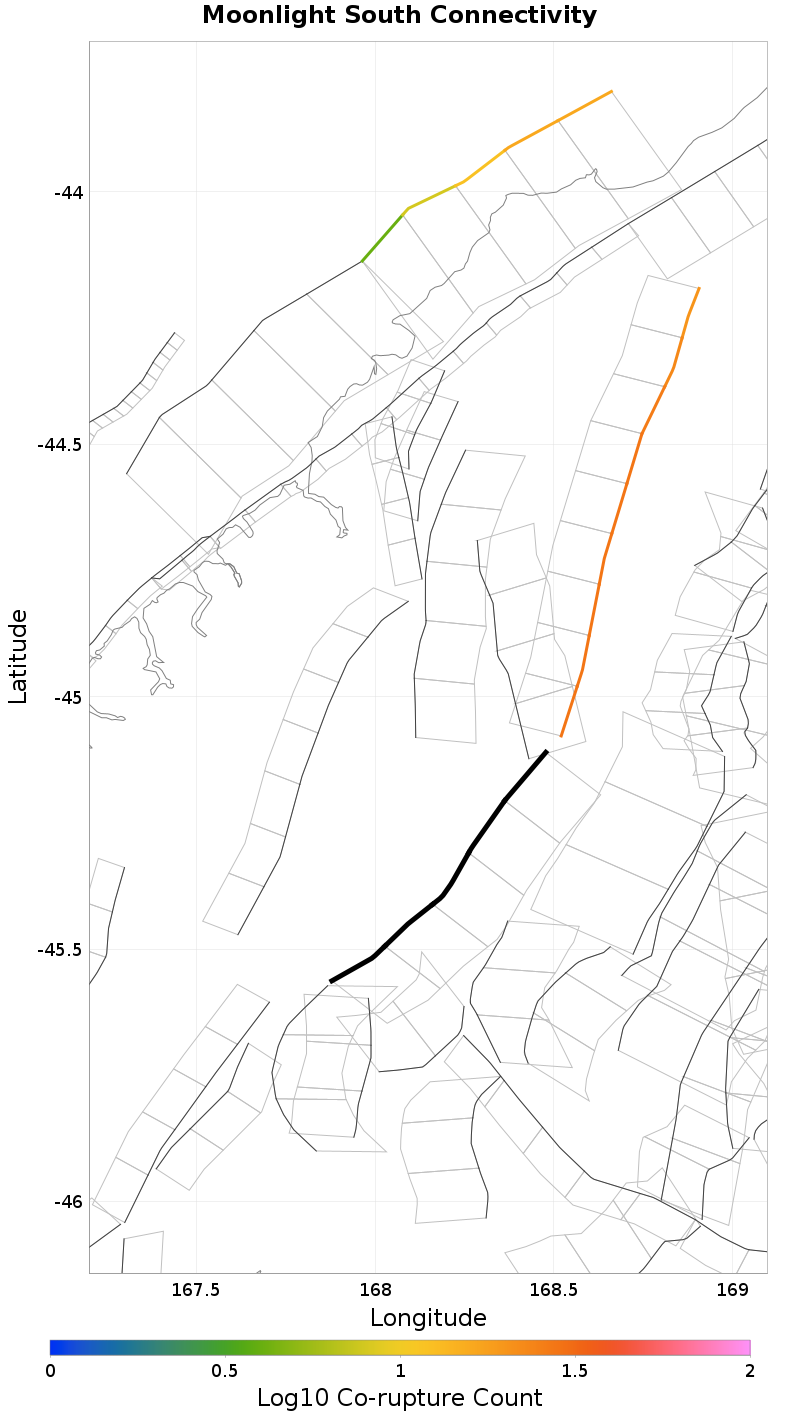

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mossburn, 0.24 km away
McKerchar, 0.53 km away
Nevis, 0.61 km away
Tin Hut, 0.88 km away
West Wakatipu, 1.86 km away
Moonlight North, 4.72 km away
Acton, 12 km away
Hokonui, 13.42 km away
Hauroko: North, 14.39 km away
White Hill, 15.82 km away
NW Cardrona South, 17.44 km away

Mossburn, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

McKerchar, 0.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nevis, 0.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tin Hut, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

West Wakatipu, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonlight North, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate7.3816373E-6

Acton, 12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hokonui, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hauroko: North, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Hill, 15.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona South, 17.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
