Motu o Kura East Details
| Property | Value |
|---|---|
| Rupture Count | 8,098 |
| Ruptures Above Sect Min Mag | 8,054 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.38, 8.43] |
| Length Range | [12, 953] km |
| Total Rate | 4.974368E-4 /yr |
| Multi-Fault Rate | 4.974368E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 40 |
Table Of Contents

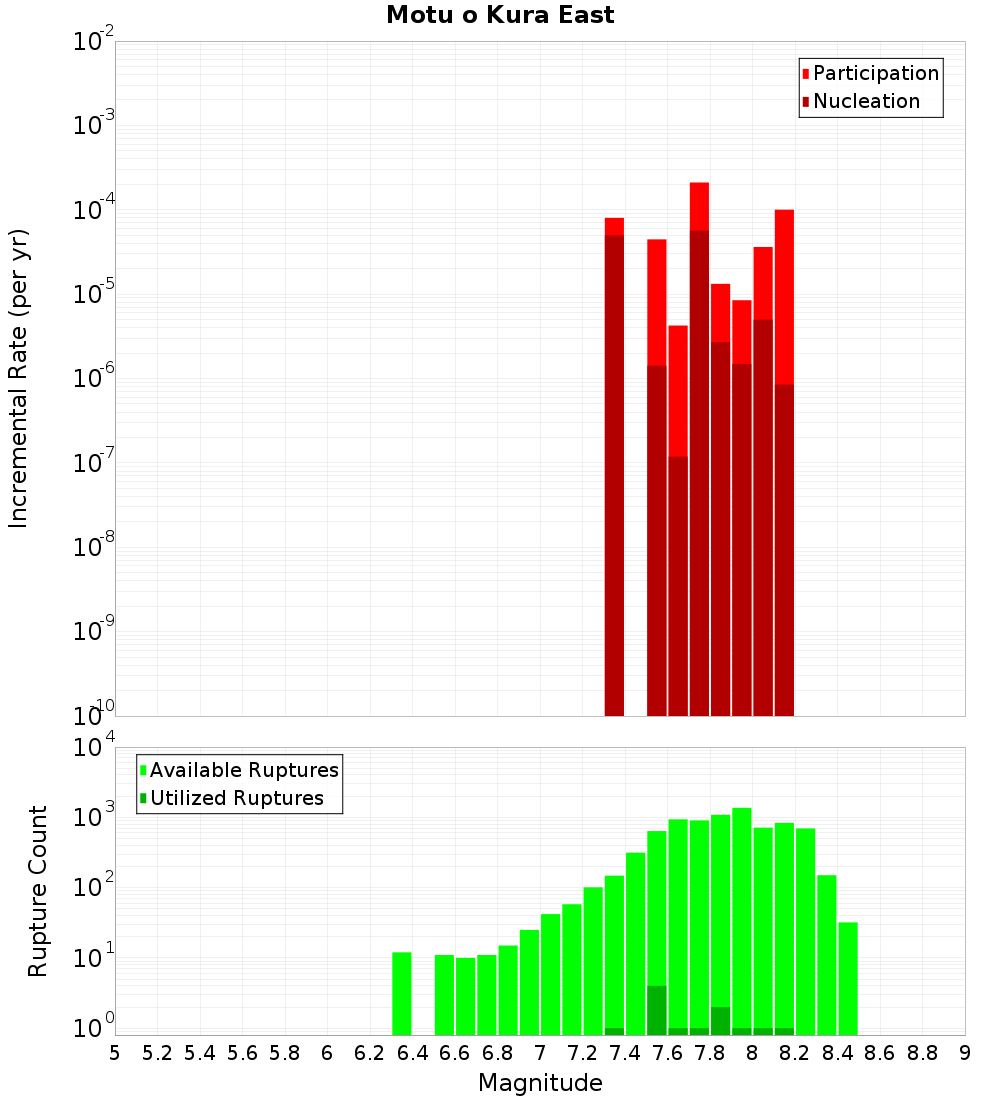

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

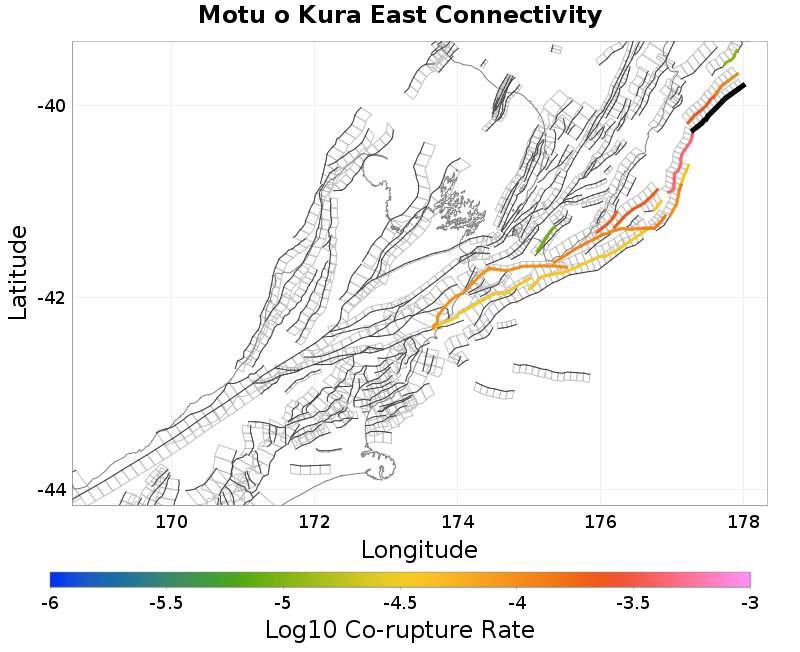

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Madden Banks, 0.5 km away |
| Motu o Kura Ridge, 6.47 km away |
| Motu o Kura North, 7.07 km away |
Madden Banks, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,854 |
| Co-rupture Rate | 4.1723618E-4 |
Motu o Kura Ridge, 6.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,323 |
| Co-rupture Rate | 2.292112E-4 |
Motu o Kura North, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,324 |
| Co-rupture Rate | 1.3786083E-4 |
