Motunau Details
| Property | Value |
|---|---|
| Rupture Count | 140 |
| Ruptures Above Sect Min Mag | 139 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.82, 7.91] |
| Length Range | [18, 240] km |
| Total Rate | 7.636038E-5 /yr |
| Multi-Fault Rate | 7.636038E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 18 |
Table Of Contents

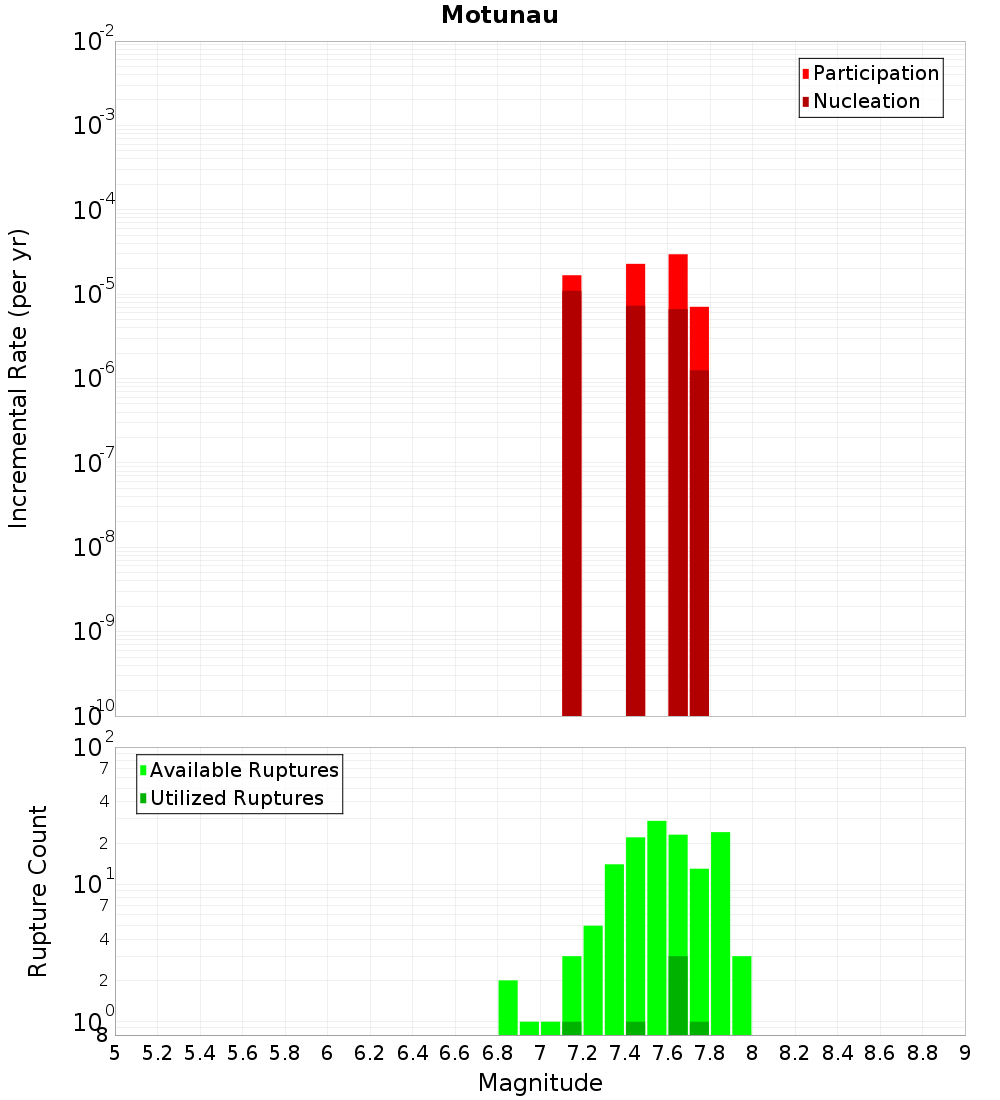

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

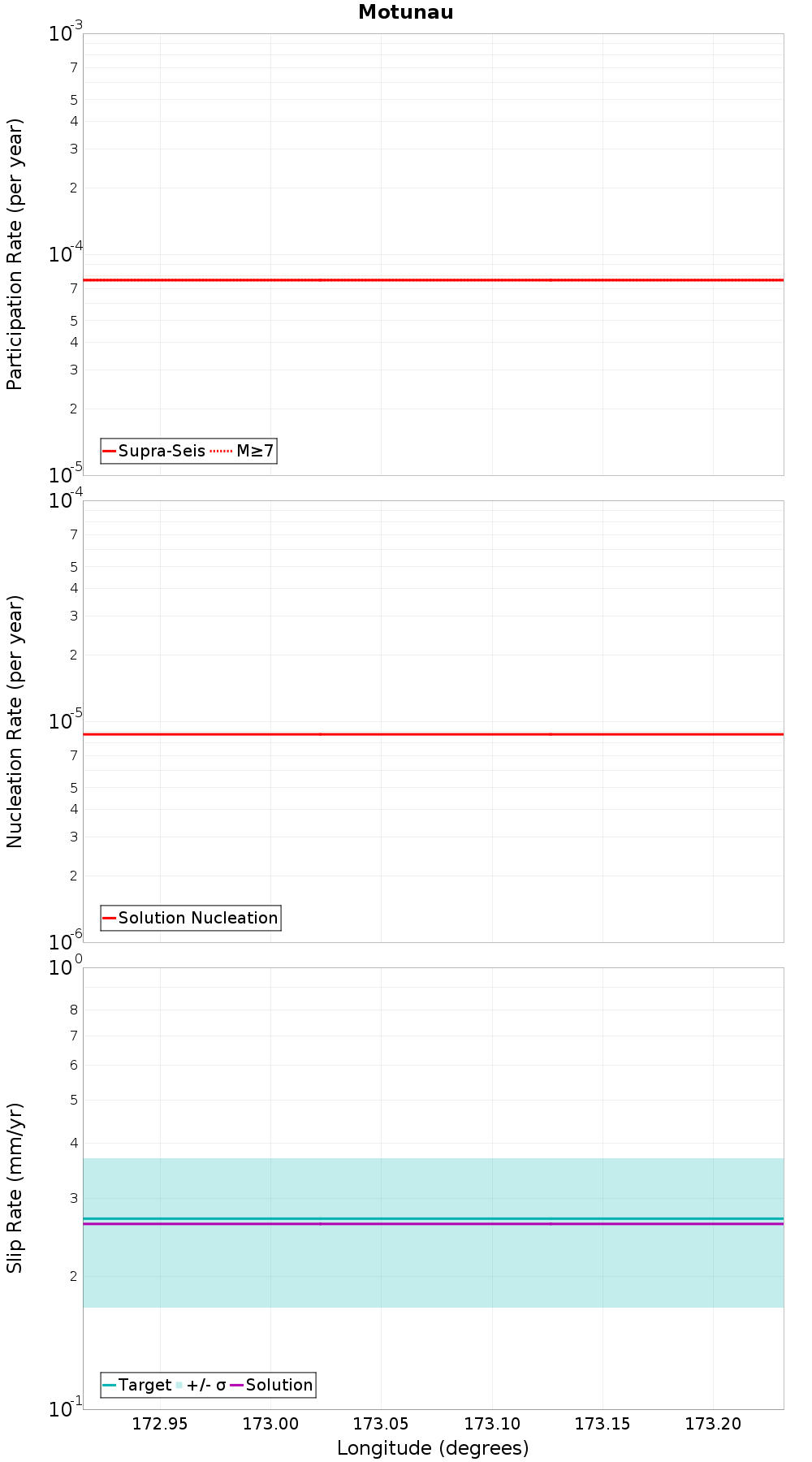

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
North Canterbury Shelf 11, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 48 |
| Co-rupture Rate | 6.928236E-5 |
North Canterbury Shelf 2, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Leithfield - NCVI - NCVII, 1.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 25 |
| Co-rupture Rate | 0.0 |
AmberBlyth, 1.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 98 |
| Co-rupture Rate | 5.495086E-5 |
Point Gibson, 4.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 50 |
| Co-rupture Rate | 2.9677803E-5 |
North Canterbury Shelf 4, 5.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 2.285879E-5 |
OmihiLwrHuru, 8.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waikuku, 9.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 7.0780247E-6 |
Pegasus Bay, 11.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Boby Stream, 13.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaiwara South, 15.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alexander, 19.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Doctors, 19.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
