Otaraia Details

PropertyValue
Rupture Count2,653
Ruptures Above Sect Min Mag2,645
Ruptures w/ Nonzero Rates3
Magnitude Range[6.54, 8.49]
Length Range[14, 980] km
Total Rate3.4165394E-5 /yr
Multi-Fault Rate3.4165394E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults69

Table Of Contents

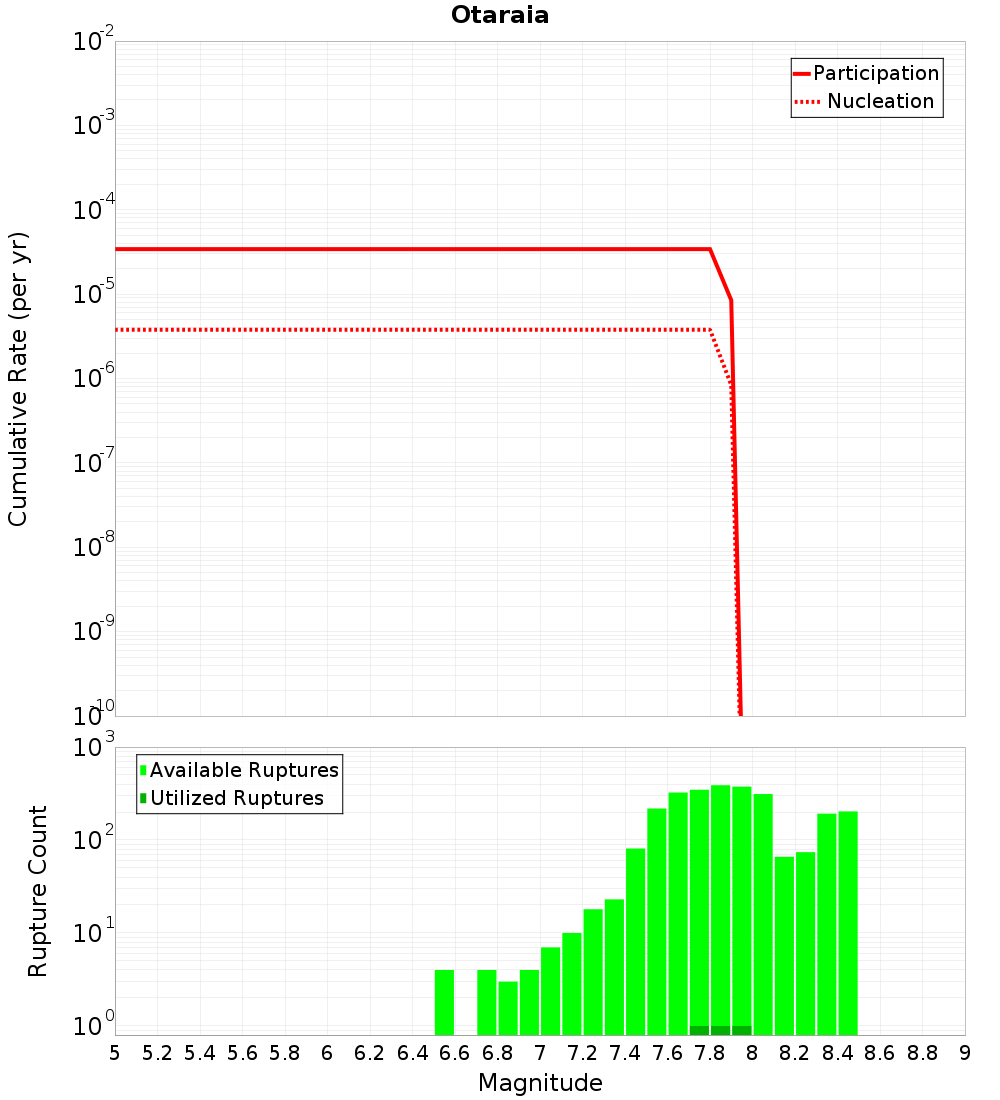

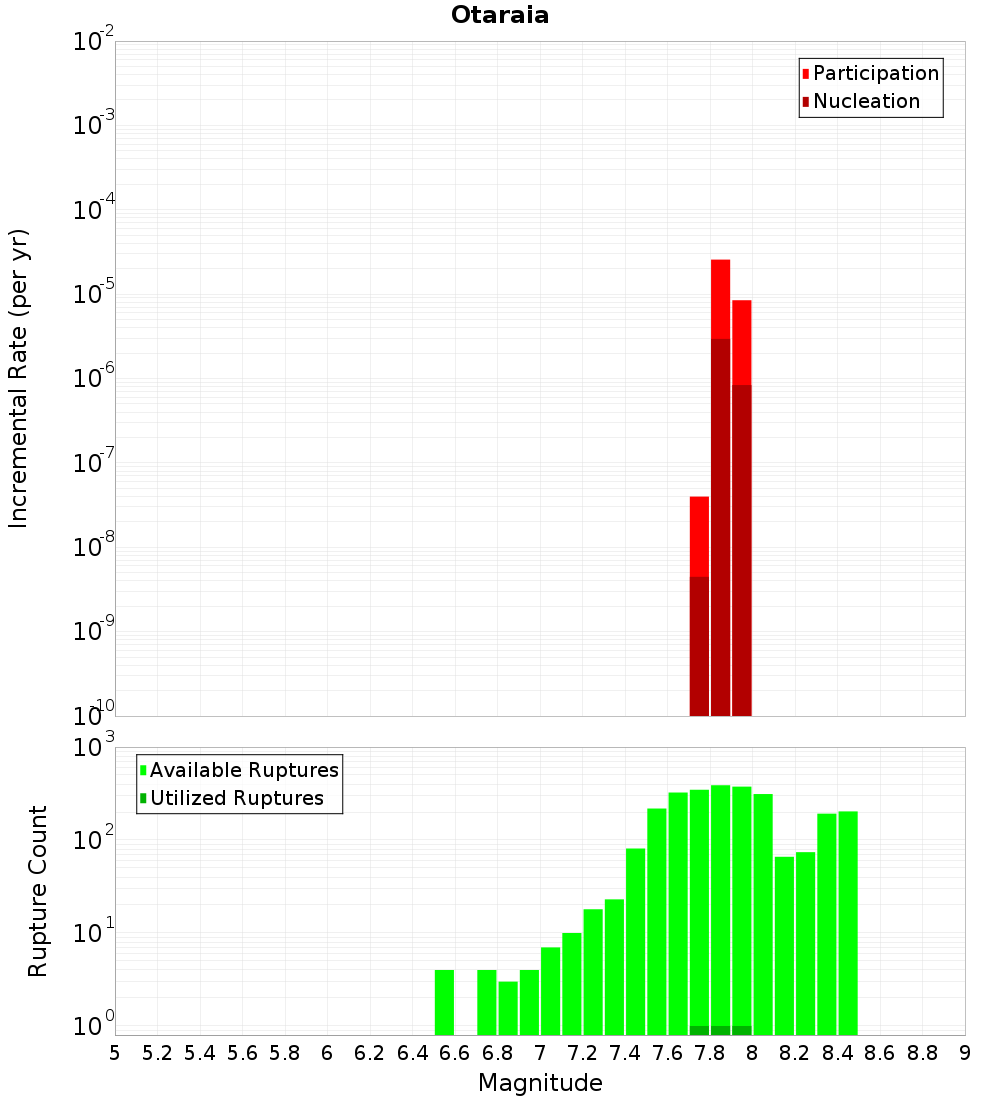

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

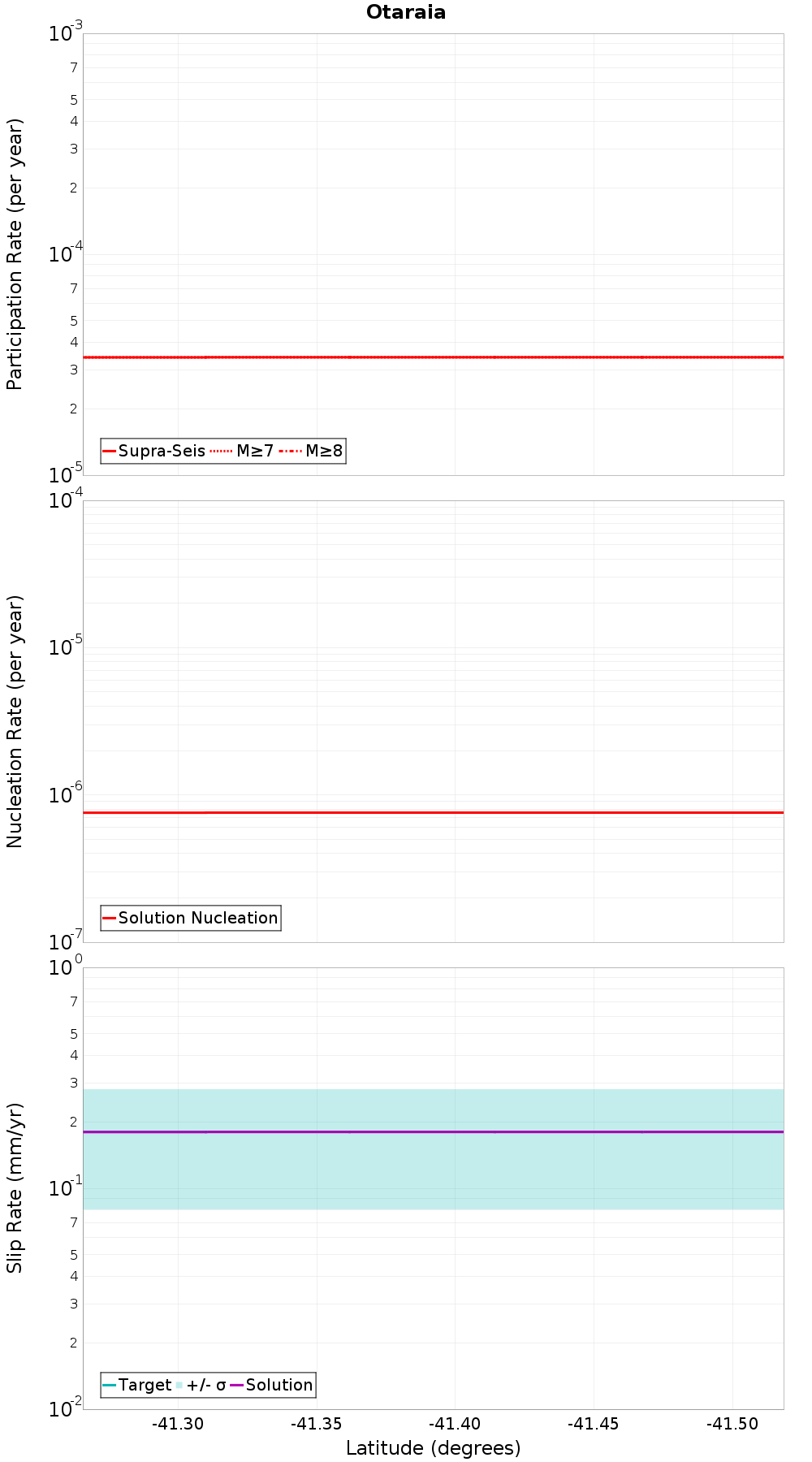

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

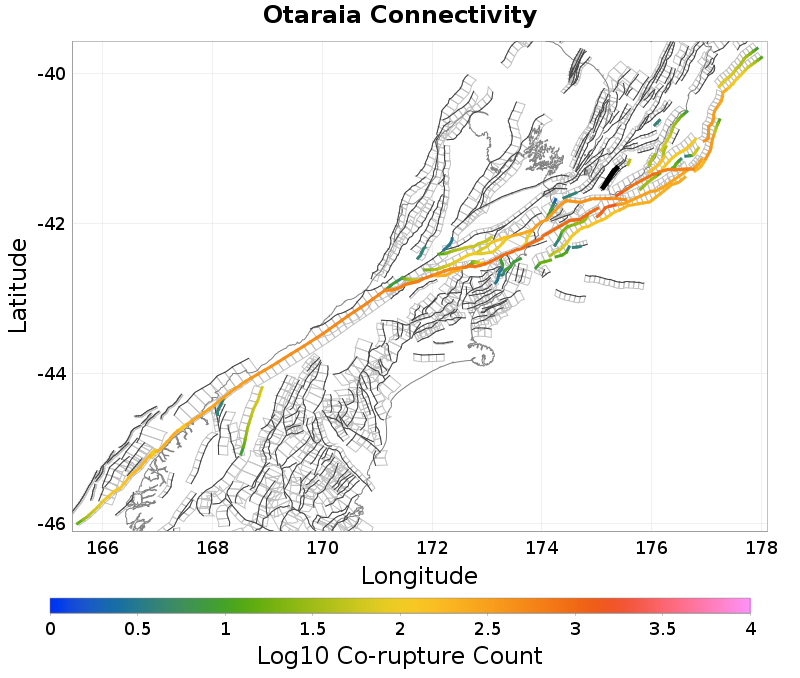

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dry River - Huangarua: 1, 0.2 km away
Martinborough, 1.89 km away
Palliser - Kaiwhata, 3.3 km away
Bidwill, 3.57 km away
BooBoo, 7.01 km away
Dry River - Huangarua: 2, 7.52 km away
Opouawe - Uruti, 11.1 km away
Wharekauhau, 12.79 km away
Dry River - Huangarua: 3, 13.49 km away
Wairarapa: 2, 13.88 km away
Wairarapa: 1, 16.27 km away

Dry River - Huangarua: 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Martinborough, 1.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Palliser - Kaiwhata, 3.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count1,298
Co-rupture Rate3.4165394E-5

Bidwill, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

BooBoo, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count549
Co-rupture Rate2.566001E-5

Dry River - Huangarua: 2, 7.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opouawe - Uruti, 11.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count1,513
Co-rupture Rate0.0

Wharekauhau, 12.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 3, 13.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count48
Co-rupture Rate0.0

Wairarapa: 2, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 1, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
