Pahaua Details

PropertyValue
Rupture Count7,400
Ruptures Above Sect Min Mag7,364
Ruptures w/ Nonzero Rates7
Magnitude Range[6.56, 8.54]
Length Range[15, 1,121] km
Total Rate2.852017E-4 /yr
Multi-Fault Rate2.852017E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults64

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

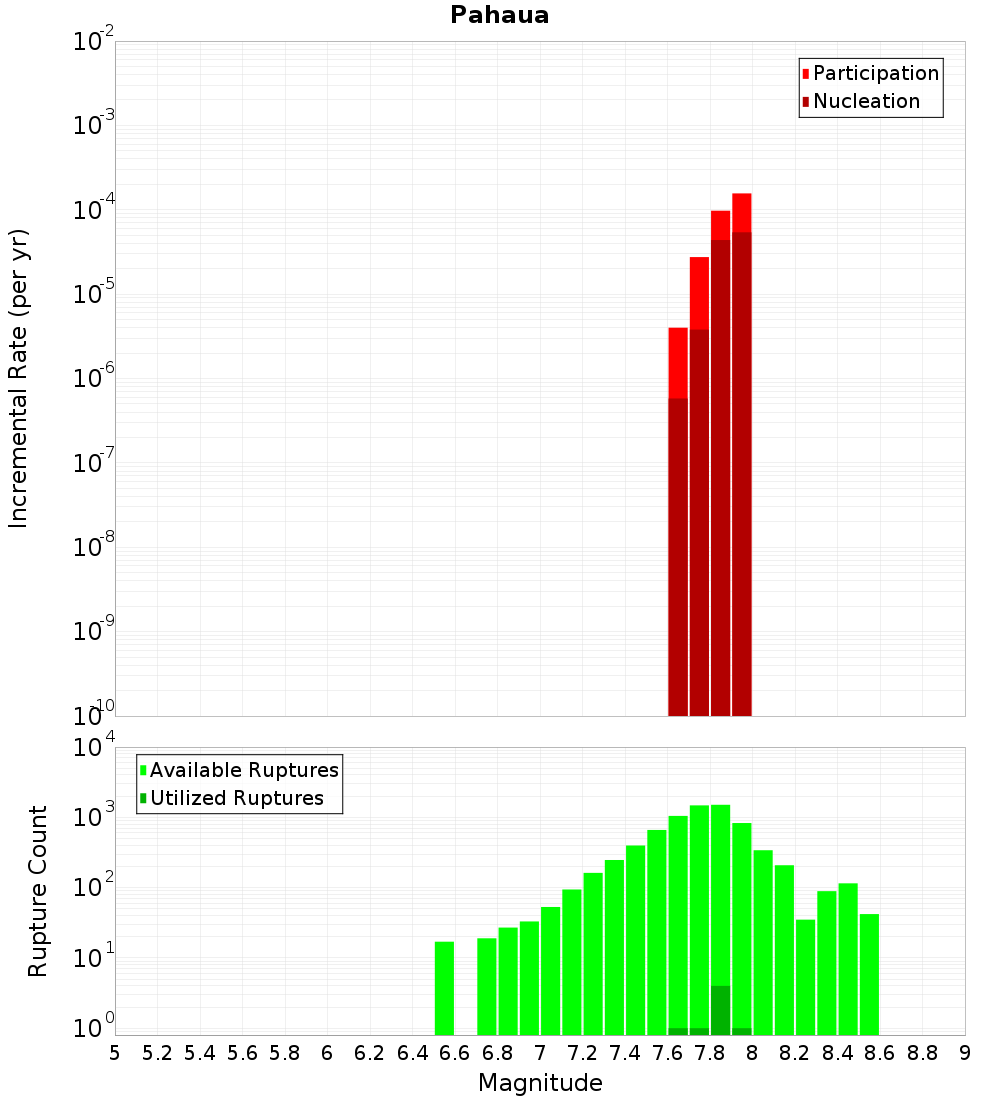

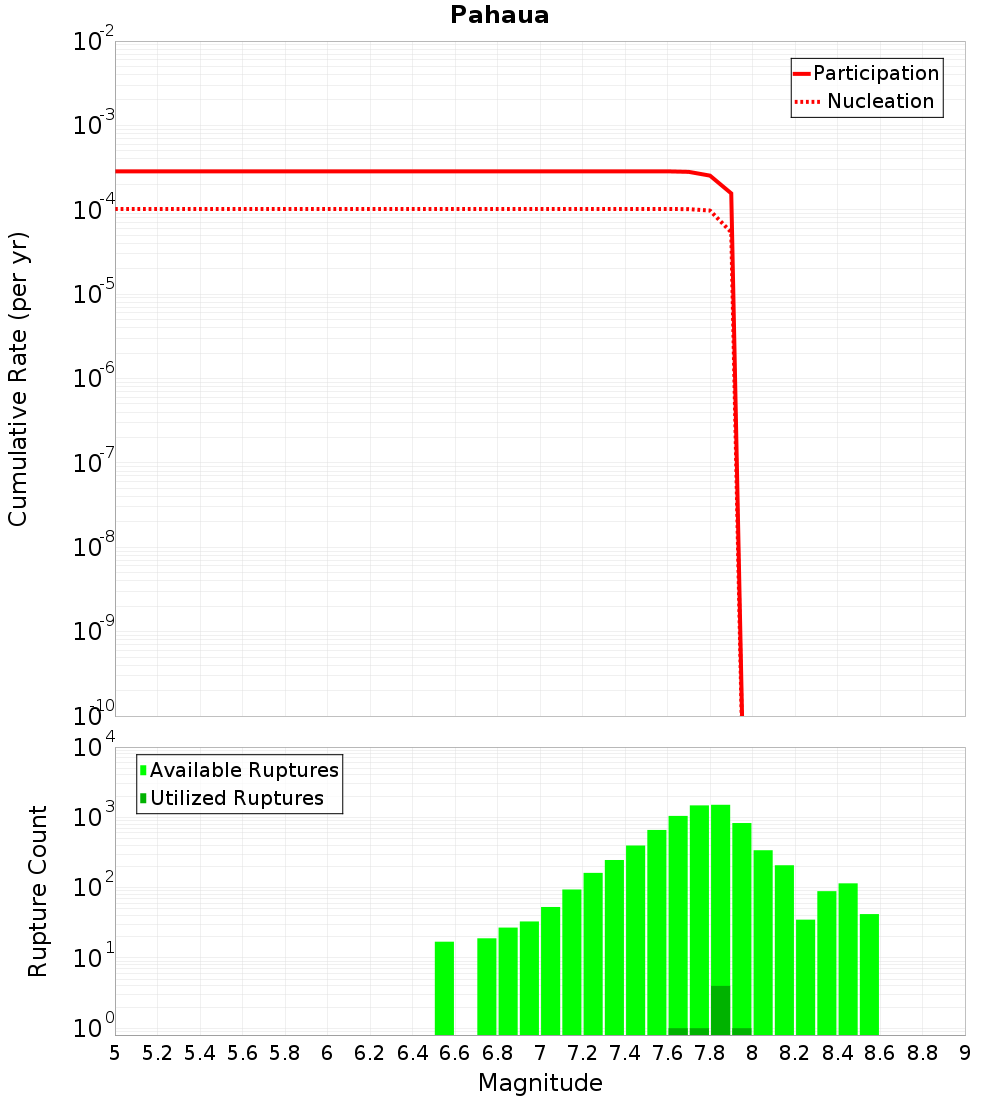

Incremental PlotCumulative Plot

Along-Strike Values

(top)

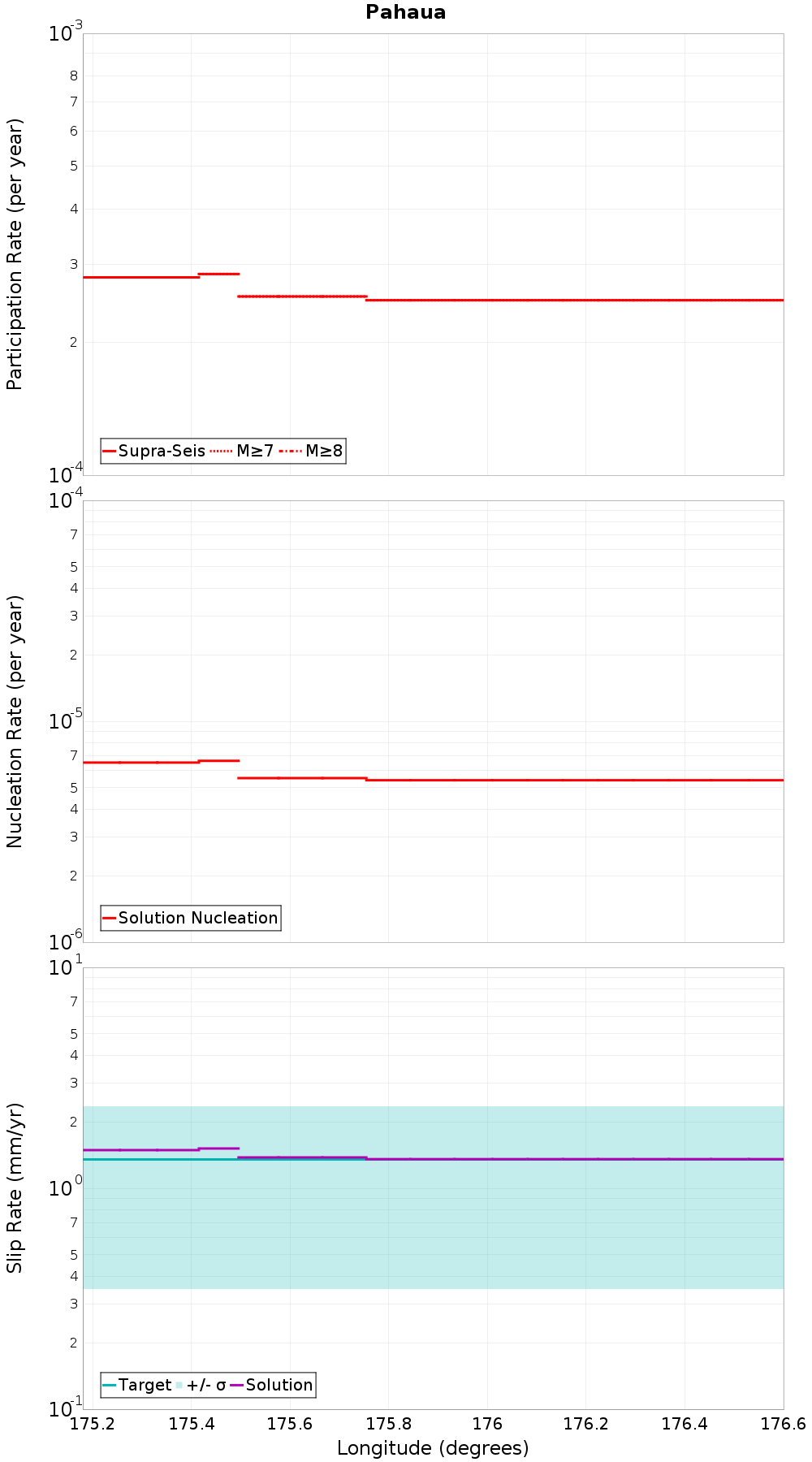

Along-strike plot

Moment-Rates and b-Values

(top)

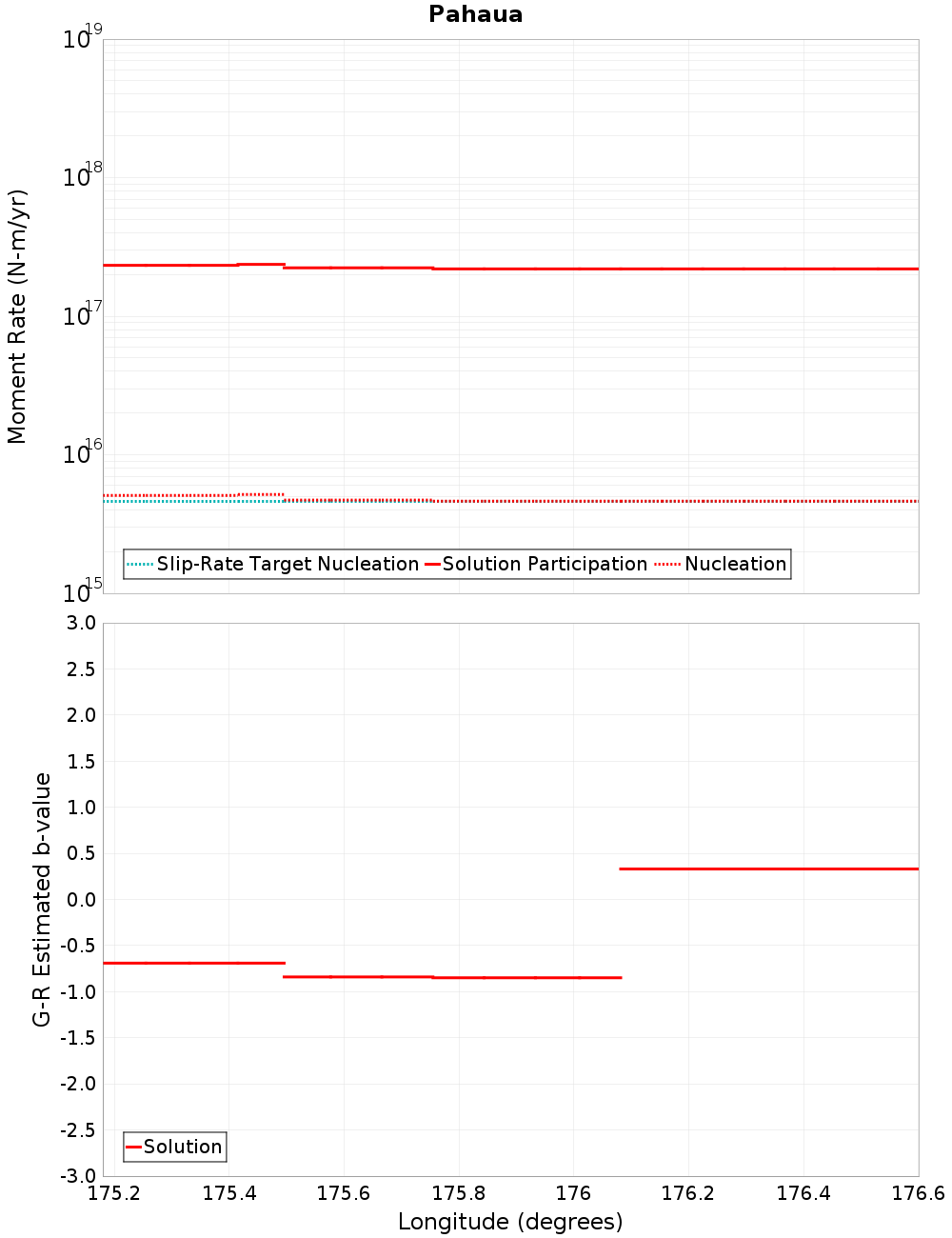

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kekerengu Bank, 0 km away
BooBoo, 1.46 km away
Uruti Basin, 1.79 km away
Opouawe - Uruti, 2.7 km away
Uruti Basin 2, 4.25 km away
Uruti East - PorWest 1, 11.57 km away
Te Rapa 2, 11.85 km away
Uruti Ridge 2, 13.52 km away
Honeycomb, 13.65 km away
Palliser - Kaiwhata, 13.66 km away
Whareama Bank, 18.98 km away

Kekerengu Bank, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count3,154
Co-rupture Rate2.8026832E-4

BooBoo, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count2,402
Co-rupture Rate3.6416663E-5

Uruti Basin, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count2,026
Co-rupture Rate1.566421E-4

Opouawe - Uruti, 2.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count3,706
Co-rupture Rate7.4068834E-5

Uruti Basin 2, 4.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count199
Co-rupture Rate1.8074126E-5

Uruti East - PorWest 1, 11.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count1,684
Co-rupture Rate0.0

Te Rapa 2, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count766
Co-rupture Rate0.0

Uruti Ridge 2, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count1,438
Co-rupture Rate0.0

Honeycomb, 13.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count184
Co-rupture Rate1.566421E-4

Palliser - Kaiwhata, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count622
Co-rupture Rate0.0

Whareama Bank, 18.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
