Point Gibson Details

PropertyValue
Rupture Count170
Ruptures Above Sect Min Mag169
Ruptures w/ Nonzero Rates6
Magnitude Range[6.95, 7.87]
Length Range[22, 223] km
Total Rate6.3283514E-5 /yr
Multi-Fault Rate6.3283514E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults21

Table Of Contents

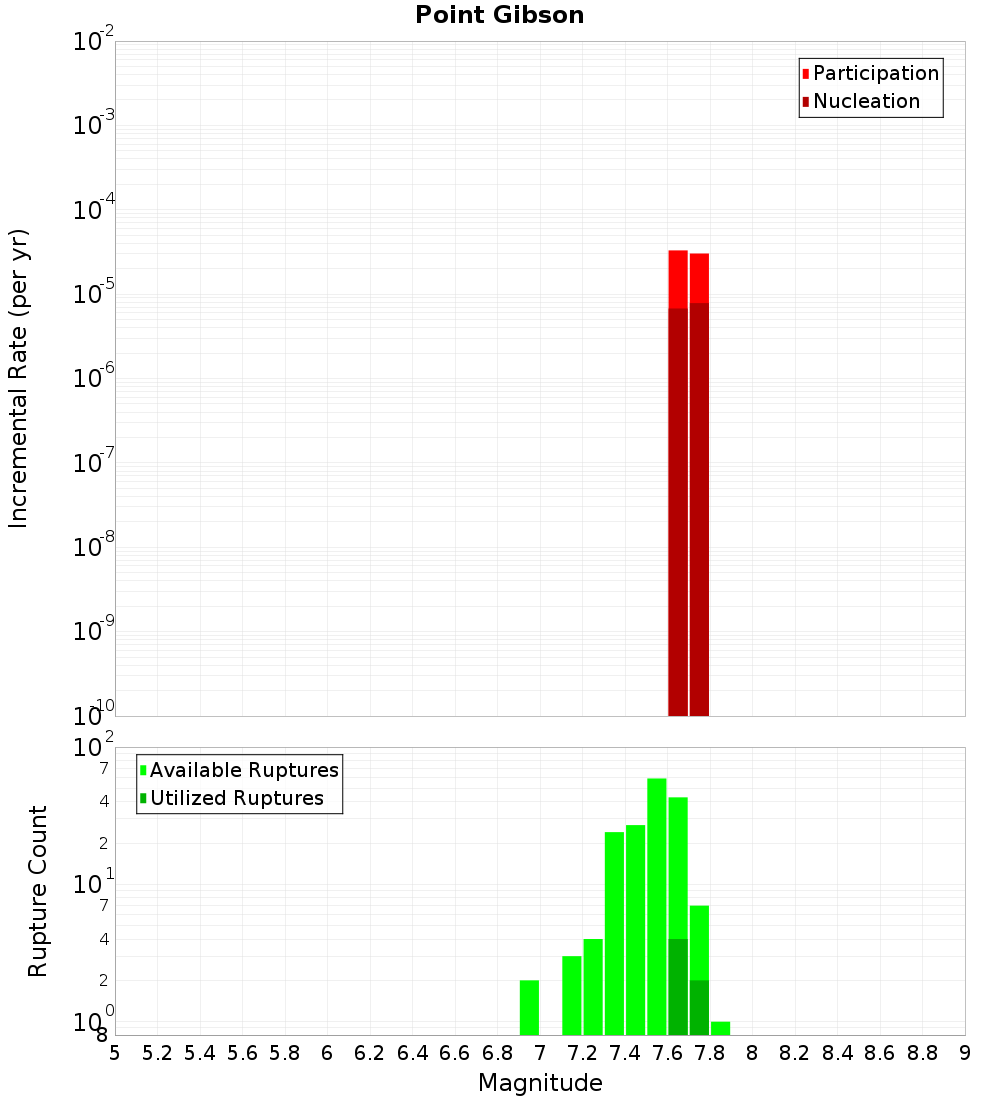

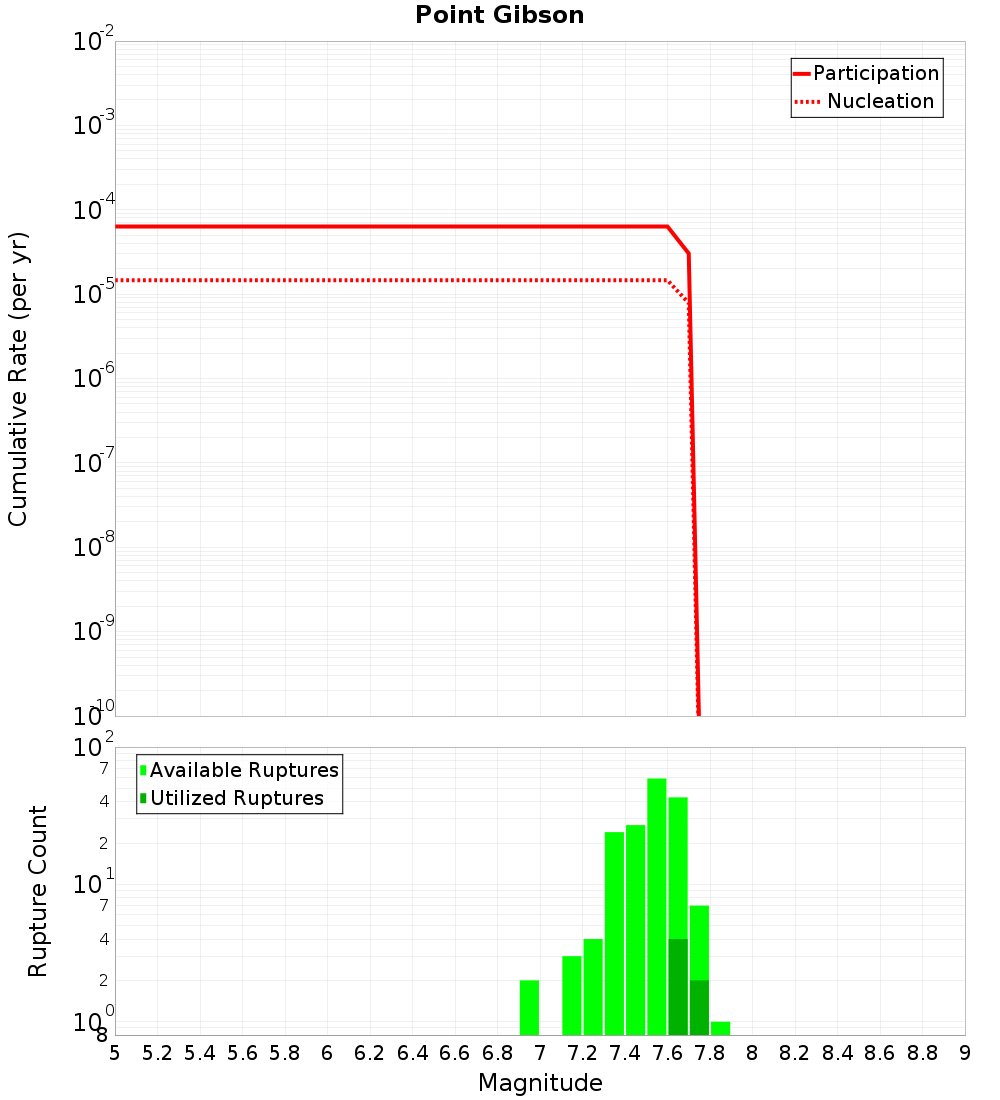

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

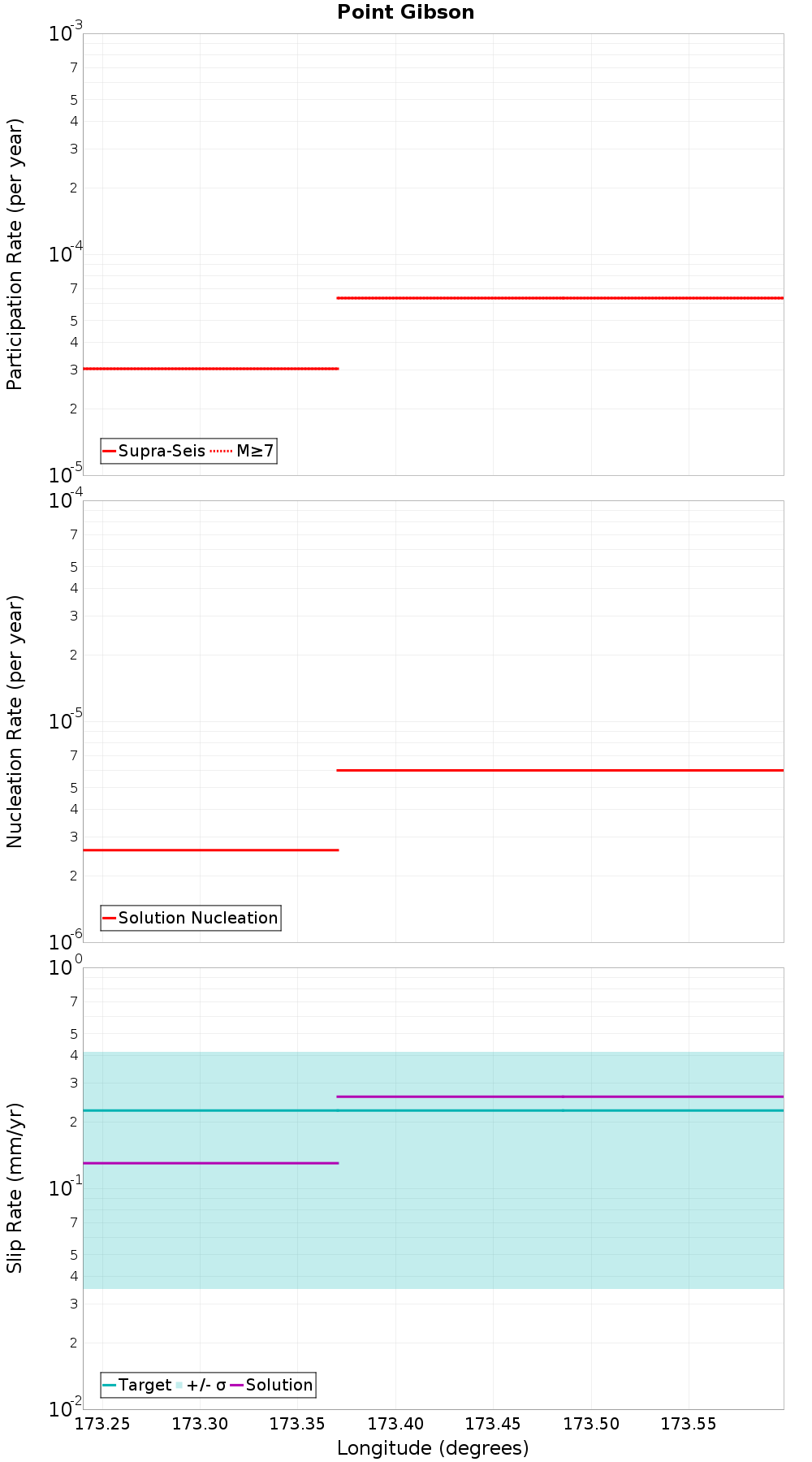

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

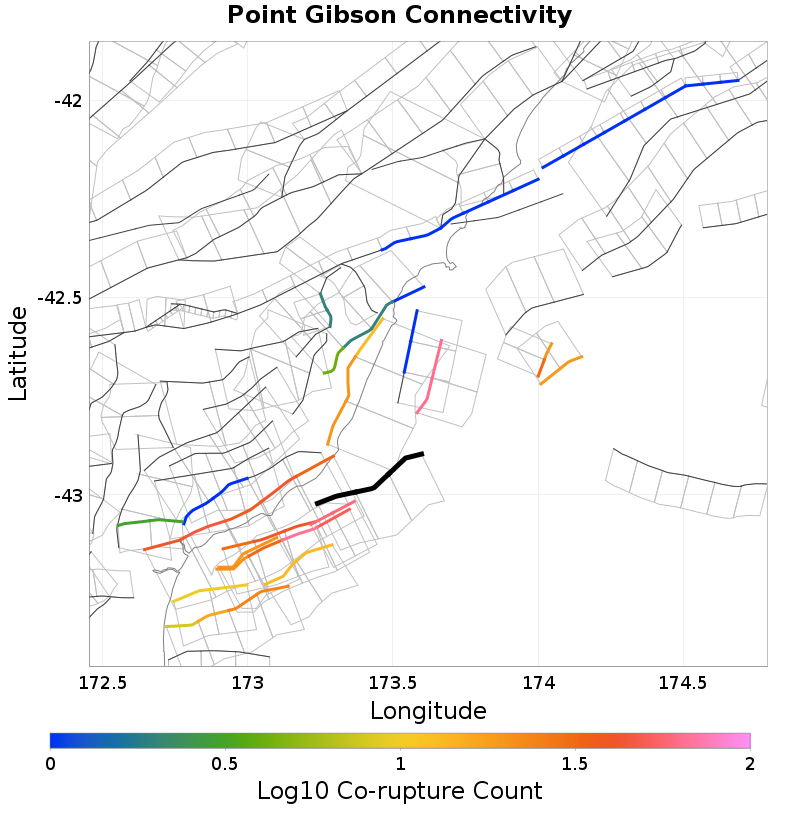

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 11, 2.04 km away
AmberBlyth, 3.19 km away
Leithfield - NCVI - NCVII, 3.67 km away
Motunau, 4.61 km away
OmihiLwrHuru, 8.6 km away
North Canterbury Shelf 4, 9.96 km away
Hawkswood, 10.72 km away
Conway Trough East, 11.43 km away
North Canterbury Shelf 2, 14.07 km away
Conway Trough West, 14.94 km away
Kaiwara South, 16.79 km away
Alexander, 19.39 km away

North Canterbury Shelf 11, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate3.2985536E-5

AmberBlyth, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count67
Co-rupture Rate4.8233996E-5

Leithfield - NCVI - NCVII, 3.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count75
Co-rupture Rate3.3077315E-6

Motunau, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate2.9677803E-5

OmihiLwrHuru, 8.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

North Canterbury Shelf 4, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Hawkswood, 10.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate0.0

Conway Trough East, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate6.3283514E-5

North Canterbury Shelf 2, 14.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate0.0

Conway Trough West, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Kaiwara South, 16.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 19.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
