Riversdale Details

Property	Value
Rupture Count	831
Ruptures Above Sect Min Mag	827
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.64, 8.17]
Length Range	[16, 457] km
Total Rate	7.9795375E-4 /yr
Multi-Fault Rate	7.9795375E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	38

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

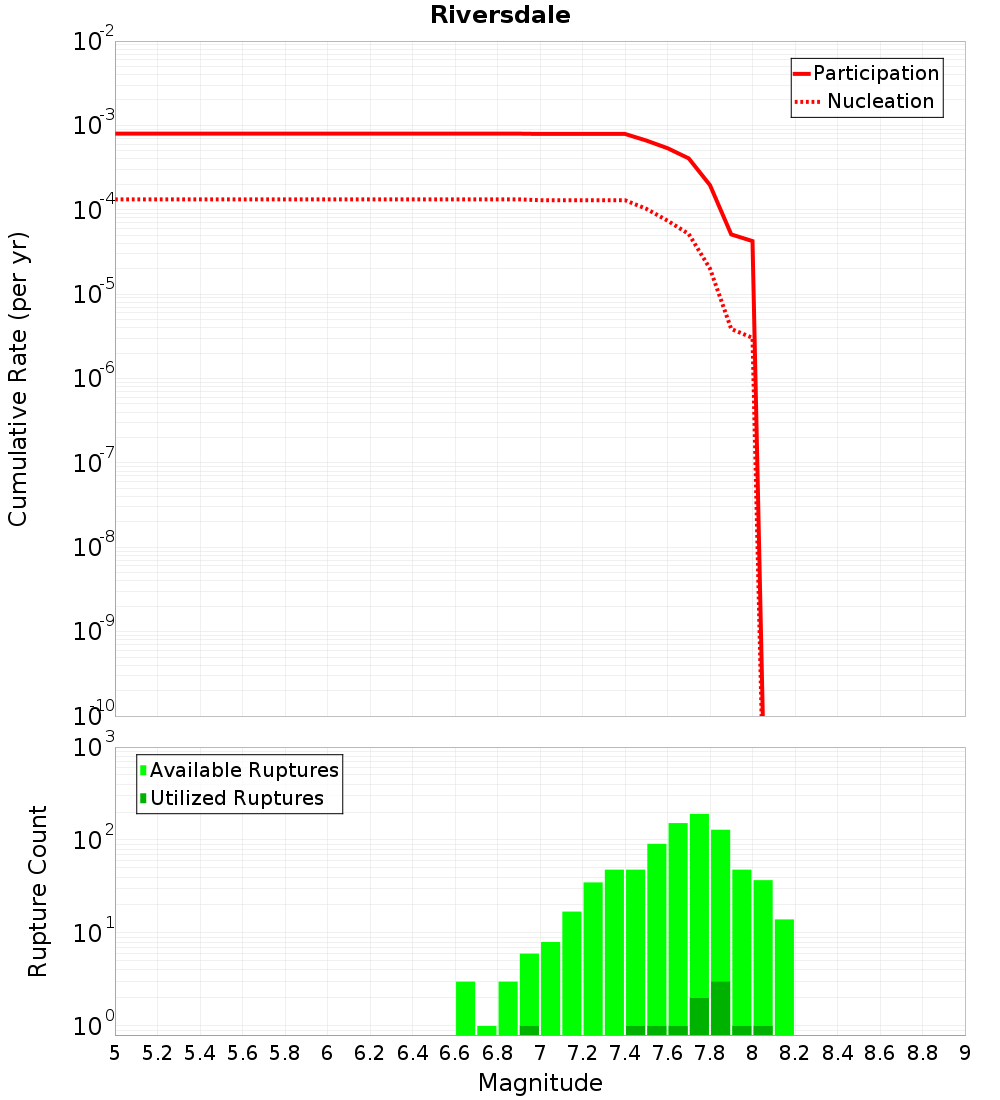

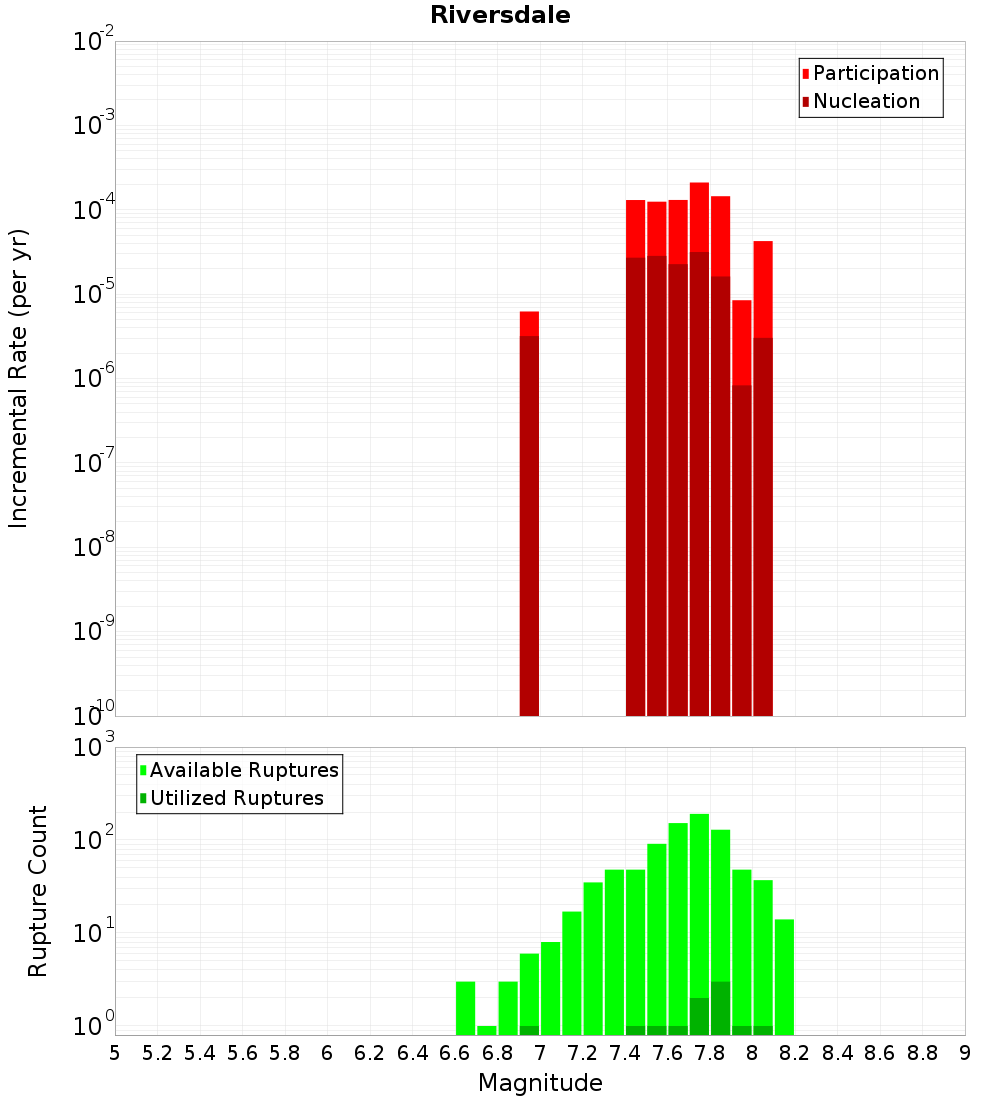

Magnitude-Frequency Distribution

Incremental	Cumulative

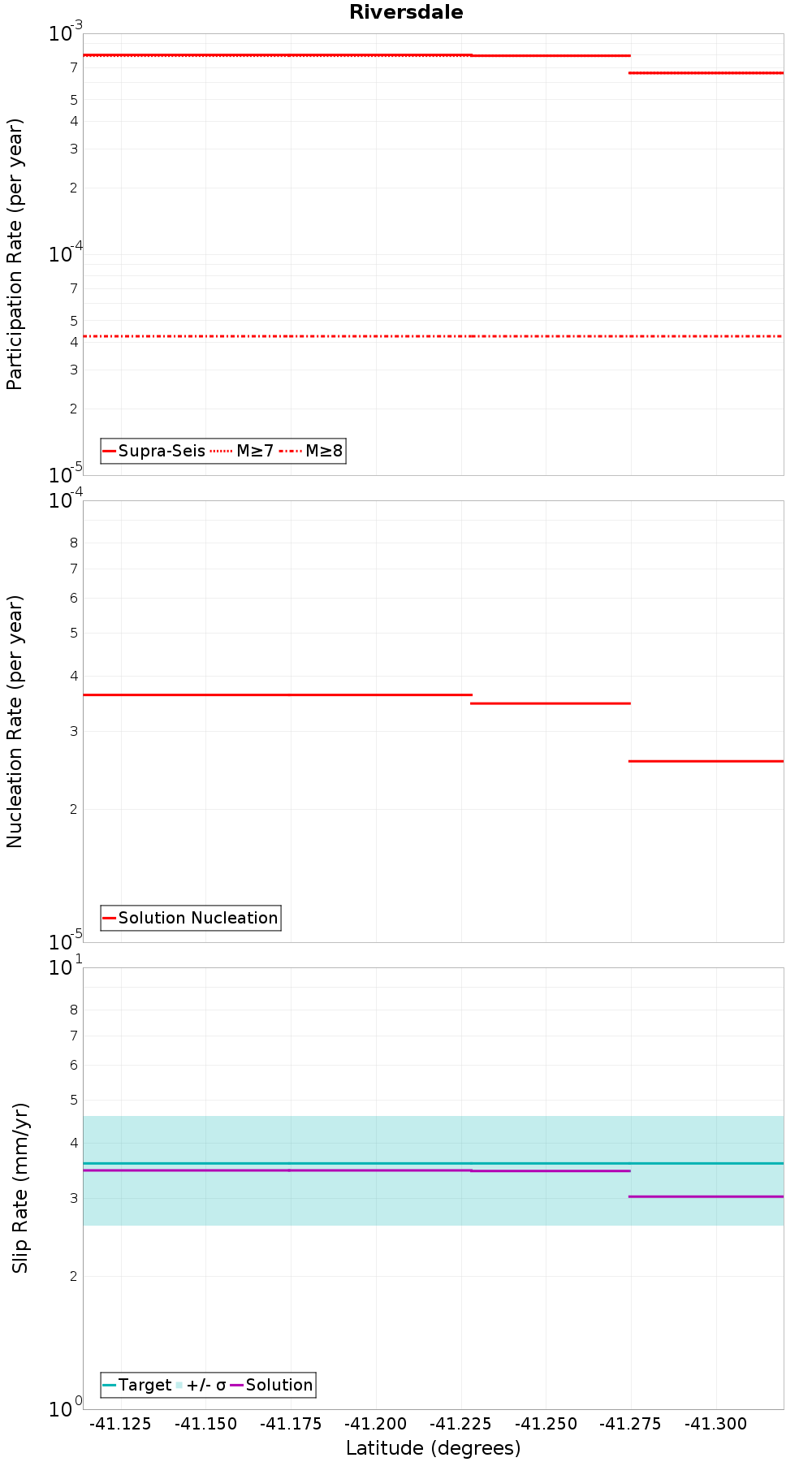

Along-Strike Values

Moment-Rates and b-Values

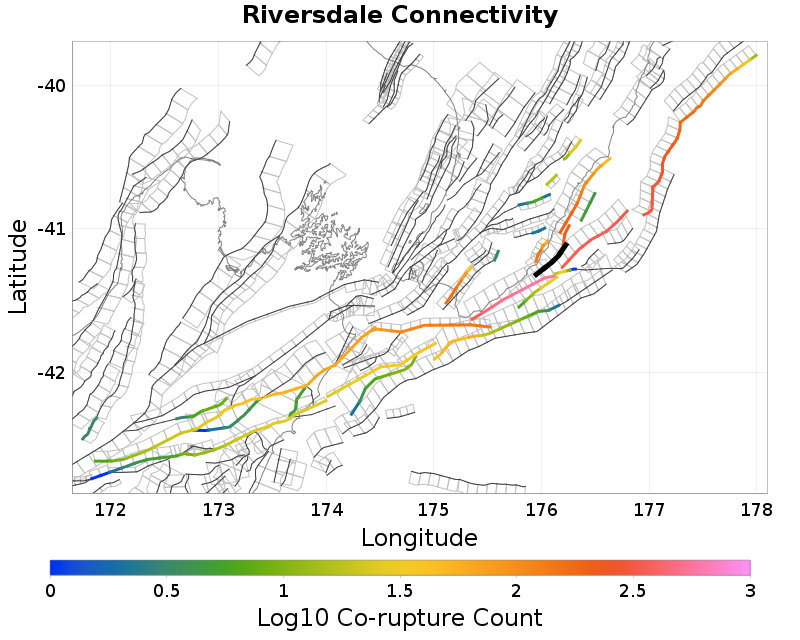

Connectivity

Nearby Sections

Fault Section
Uruti Point, 0.21 km away
Riversdale North, 1.12 km away
Palliser - Kaiwhata, 3.26 km away
Whareama Bank, 5.4 km away
Mataikona, 6.64 km away
Honeycomb, 6.88 km away
Uruti Basin, 8.5 km away
Kaumingi, 11.02 km away
Carterton, 12.56 km away
Mataikona East, 18.66 km away
Opouawe - Uruti, 19.4 km away
Uruti Basin 2, 19.51 km away

Uruti Point, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	146
Co-rupture Rate	0.0

Riversdale North, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	209
Co-rupture Rate	3.919787E-4

Palliser - Kaiwhata, 3.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	594
Co-rupture Rate	3.2639736E-4

Whareama Bank, 5.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	360
Co-rupture Rate	2.3201513E-4

Mataikona, 6.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	202
Co-rupture Rate	3.857518E-4

Honeycomb, 6.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	0.0

Uruti Basin, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	0.0

Kaumingi, 11.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Carterton, 12.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona East, 18.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Opouawe - Uruti, 19.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	true
Directly Connected?	false
Co-rupture Count	65
Co-rupture Rate	0.0

Uruti Basin 2, 19.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
