South Wedge 1 Details
| Property | Value |
|---|---|
| Rupture Count | 4,059 |
| Ruptures Above Sect Min Mag | 4,020 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [5.96, 8.47] |
| Length Range | [7, 860] km |
| Total Rate | 1.4811428E-4 /yr |
| Multi-Fault Rate | 1.4811428E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 48 |
Table Of Contents

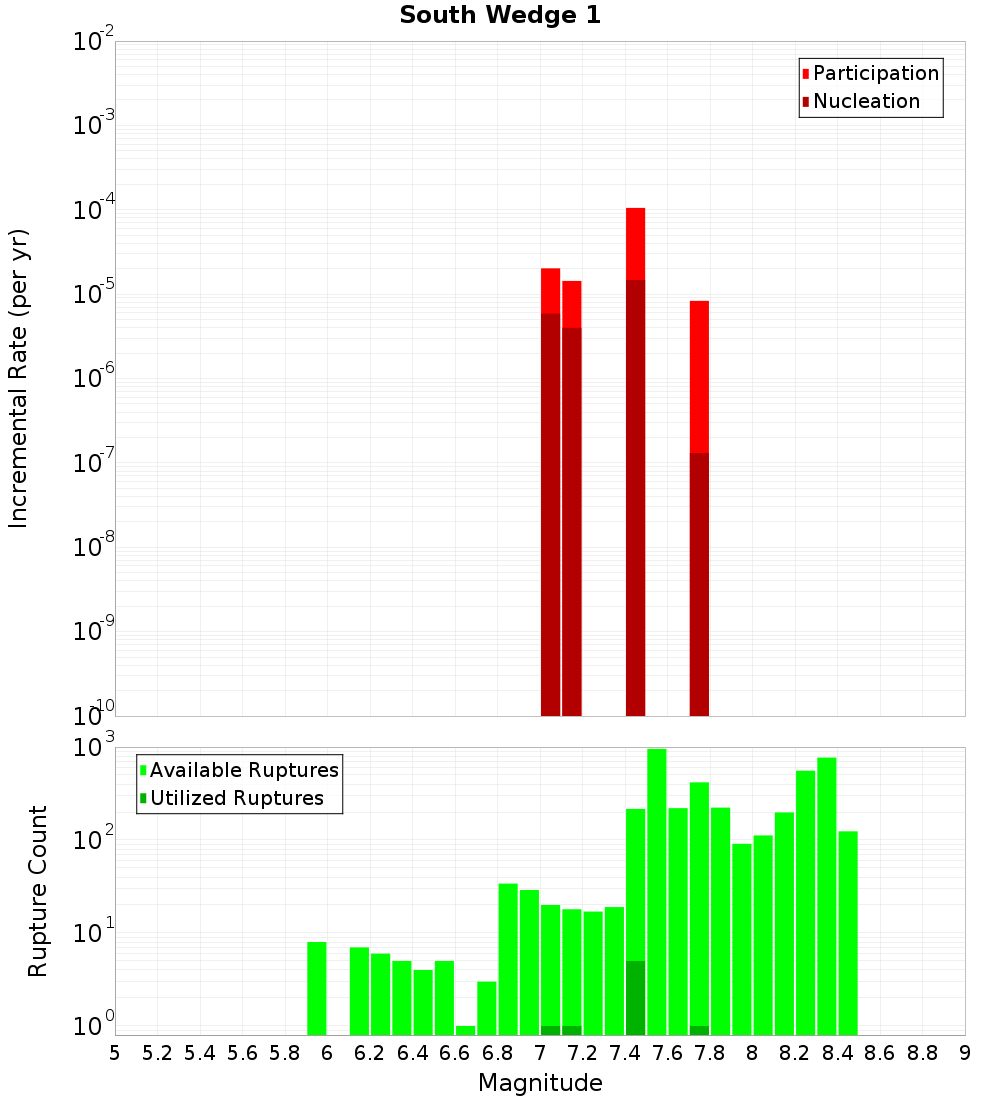

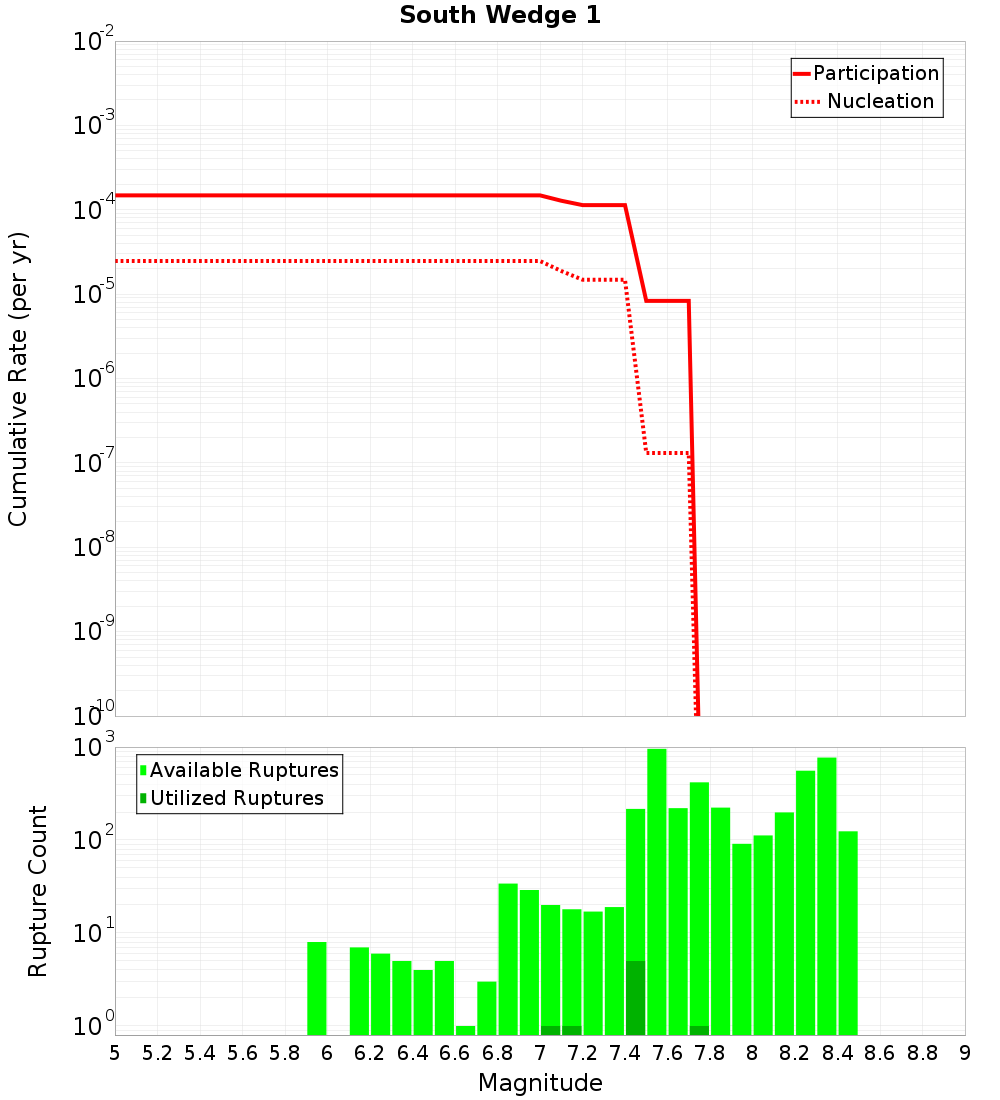

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

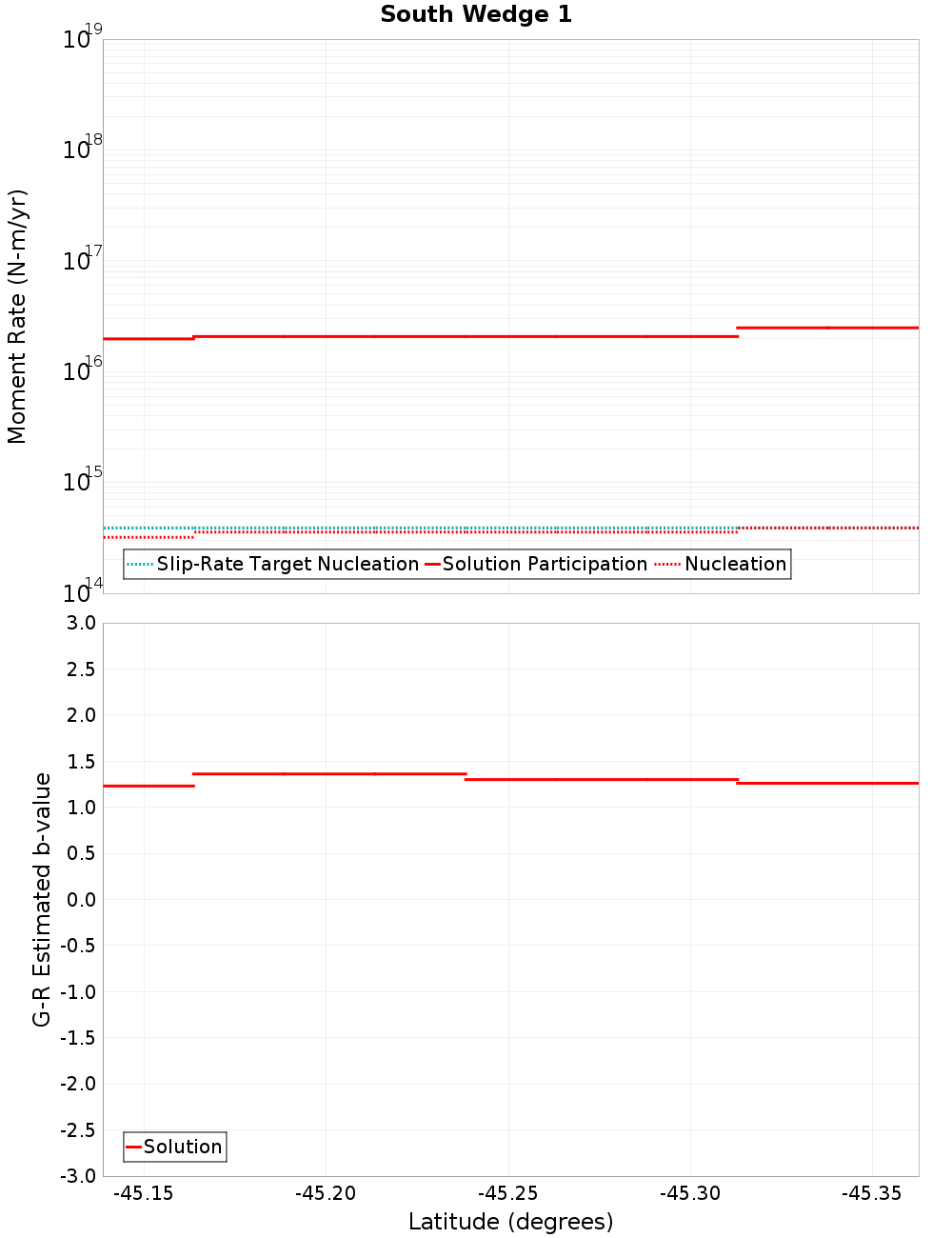

Along-Strike Values
Moment-Rates and b-Values

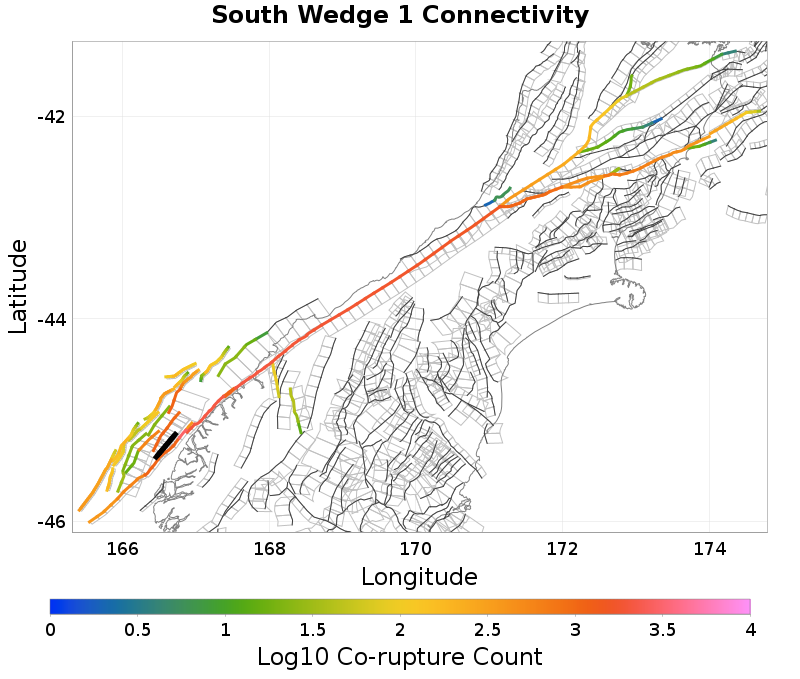

Connectivity
 |  |
|---|
Nearby Sections
Alpine: Resolution - Dagg, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,931 |
| Co-rupture Rate | 8.325391E-6 |
South Wedge 2, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,113 |
| Co-rupture Rate | 4.288389E-5 |
South Wedge 3-6-10, 4.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 600 |
| Co-rupture Rate | 1.052304E-4 |
Central Wedge 4 - South Wedge 411, 5.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 22 |
| Co-rupture Rate | 0.0 |
Alpine: Nancy, 10.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,968 |
| Co-rupture Rate | 0.0 |
South Wedge 5, 10.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 1.052304E-4 |
Alpine: Resolution - Charles, 10.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzOTMuMHFEcmF1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 378 |
| Co-rupture Rate | 0.0 |
